Medifab Bingo Evaluion Instructions de montage
Therapist and Carer manual
Please Read Before Use
Bingo Evolution
Medifab Medical Fabrication
Australia: 26 Pardoe Street, Devonport, TAS 7310 New Zealand: 7 Allens Road, Ashburton 7700
Call: 1300 543 343 (AU) 0800 543 343 (NZ)
www.medifab.com info@medifab.com
ABN # 49 828 922 466
User manual for BINGO Evolution
Contents
1 Common Information __________________________________________________________________________ . 2
1.1 Preface_________________________________________________________________________________ 2
1.2 Application ______________________________________________________________________________ 2
1.3 Declaration of conformity ___________________________________________________________________ 2
1.4 Terms of warranty ________________________________________________________________________ 2
1.5 Servicing and repairs ______________________________________________________________________ 2
2 Safety Instructions ____________________________________________________________________________ 3
2.1 Meaning of symbols _______________________________________________________________________ 3
2.2 Common safety instructions _______________________________________________________________3-5
3 Delivery and preparing for use ________________________________________________________________ 6-11
4 Adjusting and adaptation possibilities _________________________________________________________ 11-16
4.1 Wheel lock _____________________________________________________________________________ 11
4.2 Height adjustment of the push handle ________________________________________________________ 11
4.3 Seat depth and seat width _________________________________________________________________ 12
4.4 Retainer for accessories __________________________________________________________________ 12
4.5 Lateral supports _________________________________________________________________________ 12
4.6 Hip supports ____________________________________________________________________________ 13
4.7 Thigh supports _________________________________________________________________________13
4.8 Back height ____________________________________________________________________________ 13
4.9 Recline _______________________________________________________________________________ 13
4.10 Footrest hanger, angle adjustable ___________________________________________________________ 14
4.11 Footrest hanger, 90° _____________________________________________________________________ 14
4.12 Lower leg length ________________________________________________________________________ 14
4.13 Footrest _______________________________________________________________________________ 14
4.14 Footrest flip up lock ______________________________________________________________________ 15
4.15 Detaching & attaching the seat unit __________________________________________________________ 15
4.16 Seat unit in opposition to the driving direction __________________________________________________ 15
4.17 Tilt ____________________________________________________________________________________ 16
4.18 Detaching wheels with quick-release _________________________________________________________ 16
4.19 ASF - Adaptive suspension system___________________________________________________________ 16
4.20 Pneumatic tyres _________________________________________________________________________ 17
5 Zubehör __________________________________________________________________________________17-34
5.1 Swivel lock _____________________________________________________________________________ 17
5.2 Soft accessory bag ______________________________________________________________________ 17
5.3 Large accessory bag (in progress)___________________________________________________________ 19
5.4 Headrest pads__________________________________________________________________________ 20
5.5 Headrest pads (low version) _______________________________________________________________ 20
5.6 Headrest bracket „universal“ _______________________________________________________________ 21
5.7 Headrest with occiput upholstery ____________________________________________________________ 21
5.8 Thorax pads ____________________________________________________________________________ 21
5.9 Pelvic stirrup ___________________________________________________________________________ 22
5.10 4-point lap belt __________________________________________________________________________ 23
5.11 Five-point harness _______________________________________________________________________ 23
5.12 Foot straps _____________________________________________________________________________ 25
5.13 Ankle hugger ___________________________________________________________________________ 25
5.14 Groin strap _____________________________________________________________________________ 25
5.15 Fixation jacket __________________________________________________________________________ 26
5.16 Chest-shoulder harness ___________________________________________________________________ 27
5.17 Abduction block _________________________________________________________________________ 28
5.18 Grab rail with upholstery __________________________________________________________________ 28
5.19 Therapy tray ____________________________________________________________________________ 29
5.20 Retainer for accessories,grab rail or therapy tray _______________________________________________ 29
5.21 Winter warmer __________________________________________________________________________ 29
5.22 Sheep skin insert ________________________________________________________________________ 30
5.23 Rain cape ______________________________________________________________________________ 30
5.24 Canopy incl. adapter and rain cover _________________________________________________________ 30
5.25 Attendant brake _________________________________________________________________________ 31
5.26 Drum brake ____________________________________________________________________________ 32
5.27 Buggy-Board / Kiddy-board ________________________________________________________________ 32
5.28 Sun shade _____________________________________________________________________________ 33
5.29 Accessory and diaper bag _________________________________________________________________ 33
5.31 Headrest speakers, for headrest pads ________________________________________________________ 33
6 Transport ___________________________________________________________________________________ 34
6.1 In the Trunk of a car ______________________________________________________________________ 34
6.2 Using BINGO Evolution rehab pushchair for bus transport ______________________________________ 34
7 Maintenance / Service and Repairs _____________________________________________________________ 35
8 Technical data _______________________________________________________________________________ 36
9 Your notes __________________________________________________________________________________ 37
Page
2
1 Common Information
1.1 Preface
Thank you for selecting the BINGO Evolution wheelchair. We have designed this high-quality product to make
your life safer and easier, and we’ve included this manual to help you use and care for it. Please read the follo-
wing
instructions to make sure you use this product as recommended. If you have any further questions, or if
you have any problems, please contact your healthcare provider.
We hope that BINGO Evolution meets your expectations.
The design, as described in these instructions for use, are subject to technical alterations without notice.
1.2 Application
Rehab pushchairs, paediatric postural positioning systems or strollers are appropriate for individuals
requiring mobility assistance.
Assistance may be required due to:
• Paralysis (paraplegia / tetraplegia or tetraparesis) • Muscle and nerve disorders
• Loss of limbs (dysmelia/lower limb amputation) • Imperfect osteogenesis
• Infantile/spastic cerebral palsy • Poliomyelitis
• Spina Bifida
1.3 Declaration of Conformity
HOGGI® GmbH as manufacturer with sole responsibility declares that the BINGO Evolution conforms to the
requirements of the 93/42/EEC Guidelines.
1.4 Terms of Warranty
Warranty applies only when the product is used according to the specified conditions and for the intended
purposes, following all manufacturer’s recommendations.
The manufacturer is not responsible for damages caused by components and spare parts not approved by
the manufacturer.
1.5 Service and Repairs
Service and repairs on the BINGO Evolution should only be carried out by authorized HOGGI® dealers.
Should any problems arise, please contact the dealer who supplied your BINGO Evolution.
Authorized dealers only fit original HOGGI® spare parts.
For preparing, repair and service, the following tools are required:
Allen wrench,size: 3 mm, 4 mm, 5 mm and 6 mm
Screw wrench, size: 10 mm, 13 mm, 19 mm und 24 mm
Your authorized HOGGI® dealer:
3
2 Safety instructions
2.1 Meaning of symbols
Caution!
Warning of possible danger of accident and injury. Warning of possible technical damage.
Information!
About use of the product.
Information!
For service-personnel.
Attention!
Read manual before use!
2.2 Common safety instructions
Read manual completely before use!
Familiarize yourself with handling and functions of the product before use and practice the
various functions.
You are responsible for the safety of your child. The safety of your child could be
affected if you do not follow the instructions of this manual. Nevertheless not all possible
circumstances and unpredictable situations can be covered by this manual. Reason, care
and circumspection are not features of the product, they are required of persons, who use
the product. The person, who is using the product and its accessories should understand
all instructions and should explain them to every person using the product and its
accessories.
If instructions are not clear and further explanations become necessary, or if you have
further questions please contact your HOGGI® dealer.
Strap your child at all times, when they are in the wheelchair.
HOGGI® points out, that any use beside the typical use can be dangerous. The pushchair
is not suitable for jogging, running, skating or similar activities. Swivelling front wheels tend
to wobble at higher speed, which can cause a sudden stop and tip over of the pushchair.
Use the pushchair only at regular walking speed.
Under no circumstances leave the handle bar while pushing and never push the chair
away.
The pushchair should only be used on solid level ground.
Use your pushchair as intended by the manufacturer. For instance, do not drive into
obstacles (including steps, curbs) without braking.
To clear obstacles such as steps and curbs, tilt the pushchair onto the rear wheels (pull it
backwards to go up; to descend, slowly lower it forward).
Do not go up or down stairs without the assistance of another person. If devices such
as ramps or elevators are available, please use them. If they are not available, then the
pushchair should be carried over the obstacle by two persons.
Do not stand on the footplate when getting into or out of the rehab-buggy.
4
Pay particular attention when on slopes and inclines to prevent:
- the child from falling out of the pushchair
- the pushchair from tipping over
- the pushchair from rolling away
Only lift the pushchair by parts that are solidly attached:
- front frame tube above the front wheels
- front axle
- push handle
If you have to park on a slope, face the pushchair uphill with the brakes engaged and
ensure that the seat is in the upright position. There is a risk that the pushchair might tip
over backwards if the seat is the reclined position.
Before leaving the pushchair and before getting into and out of it, always lock the wheel
locks.
When your child reaches for objects in front, to the side or behind the pushchair, be sure
that he/she does not lean out of the pushchair too far since the shift in the center of gravity
might cause the pushchair to tilt or tip over.
The handling of the pushchair is strongly influenced by tyre pressure. Correctly inflate tyres
considerably improve its maneuverability. The air pressure should be at least 2 bar
(200 kPa resp. 29 PSI).
Please be aware that with certain footrest settings the footrest can collide with the caster
wheels.
Please keep packaging material away from children. Plastic packaging presents the
danger of suffocation.
Never leave your child unattended in the pushchair even when they are strapped in and
the brakes engaged.
In the dark, the user should wear light clothing or clothing with reflectors in order
to improvevisibility. Ensure that the reflectors if installed are easily visible. We also
recommend installing active illumination.
Before using the pushchair, both folding guards and the seat must be firmly locked in
place.
Static stability is at 10,5° inclination.
Attaching heavy bags or other weight to the push handles can adversely affect stability.
Caution!
Regard specially during adjusting the recline, the tilt in space function and the footrest
hanger angle the danger of getting caught for the child by protruding arms or legs into
flexible parts of the BINGO Evolution.
5
Caution!
All upholsteries are hardly inflammable and meet the claim EN 1021 part 1 (cigarette test)
and part 2 (match test). But that doesn`t protect the user in the seat unit to suffer burnings
by careless handling with blaze or open fire.
Disposal of waste: The packaging material as far as metal, aluminium and plastic parts can
be recycled. The recycling must be operated according to the national and legal terms.
The maximum weight that can be carried in the accessories bags is 3 kg (model “soft”) or
rather 8 kg (model “large”).
Trays must not be loaded with objects heavier than 5 kg.
The pushchair is only intended to carry one child at a time.
The maximum load for the BINGO Evolution is 60 kg.
The maximum load for the BINGO Evolution seat unit is 50 kg (body weight including
other load).
Accessories and add-ons reduce the maximum load proportionately.
Attention!
We recommend that, wherever and whenever possible users transfer to the seats installed
in the motor vehicle and use the corresponding vehicle restraint systems, because this is
the only way to ensure optimum protection of the passengers in case of an accident.
Your BINGO Evolution Rehab Pushchair was successfully tested in accordance with
ANSI/RESNA WC/19 and ISO 7176/19 (Crash Test).
It is, however, possible to use your BINGO Evolution Rehab Pushchair as a seat in a
motor vehicle, if our “Tie down Kit” (article 3231-7300) as well as appropriate restraint
systems are used.
Your BINGO Evolution is admitted for use as a seat in a motor vehicle yet.
This Rehab Pushchair is equipped with back angle and seat tilt adjustment. Turn the toggle
lever on the backrest and let engage the backrest in the first position. Using the seat tilt
adjustment you must bring the backrest into almost upright position (max. 20°). Observe
the specifications under 4.9 and 4.17 in this user manual.
Be careful in case of extreme temperatures. The wheelchair can heat up significantly when
in the sun or in the sauna. In extreme cold, there is a risk of hypothermia.
Caution!
Excess strap ends on accessories may be trapped in the tilt mechanism and can avoid the
engagement of the locking pins. In such a case the seat could fall off the mobility base.
Shorten excess strap ends on accessories so that they can not be trapped.
Check by pulling the seat sharply forward that the seat unit is properly engaged. Check
that the locking pins are completely engaged. Push in completely, if necessary.
The assembly of a seat shell is only permitted within the specified seating area.
The manufacturer of that new product combination has to test the stability and the adhe-
rence of the maximum load before commissioning.
Whenever you change any settings on the BINGO Evolution, make sure that you
firmly tighten any screws that have been loosened.
6
3 Delivery and Preparing for Use
The original package contains the following components:
• mobility base, folded
• seat unit and backrest folded
• seat-, backrest-, hip- and lateral upholstery
• instructions for use
• accessories as ordered
Please remove the transport safety items and packaging material
carefully.
To unfold the BINGO Evolution please proceed as follows:
• Use the black handle grip on the pushbar to lift the pushchair and
unfold it until you can set it on its wheels.
• Press the pushbar backwards until the folding guards engage
hearable.
• Check both folding guards and engage them if it`s necessary.
• Push the rear wheels on the rear axle stub until the quick release
engages.
• Ensure that the wheels are safely fixed on the axle stub by pulling
in the opposite direction.
• Pull the backrest and erect it.
1
2
3
4
5
7

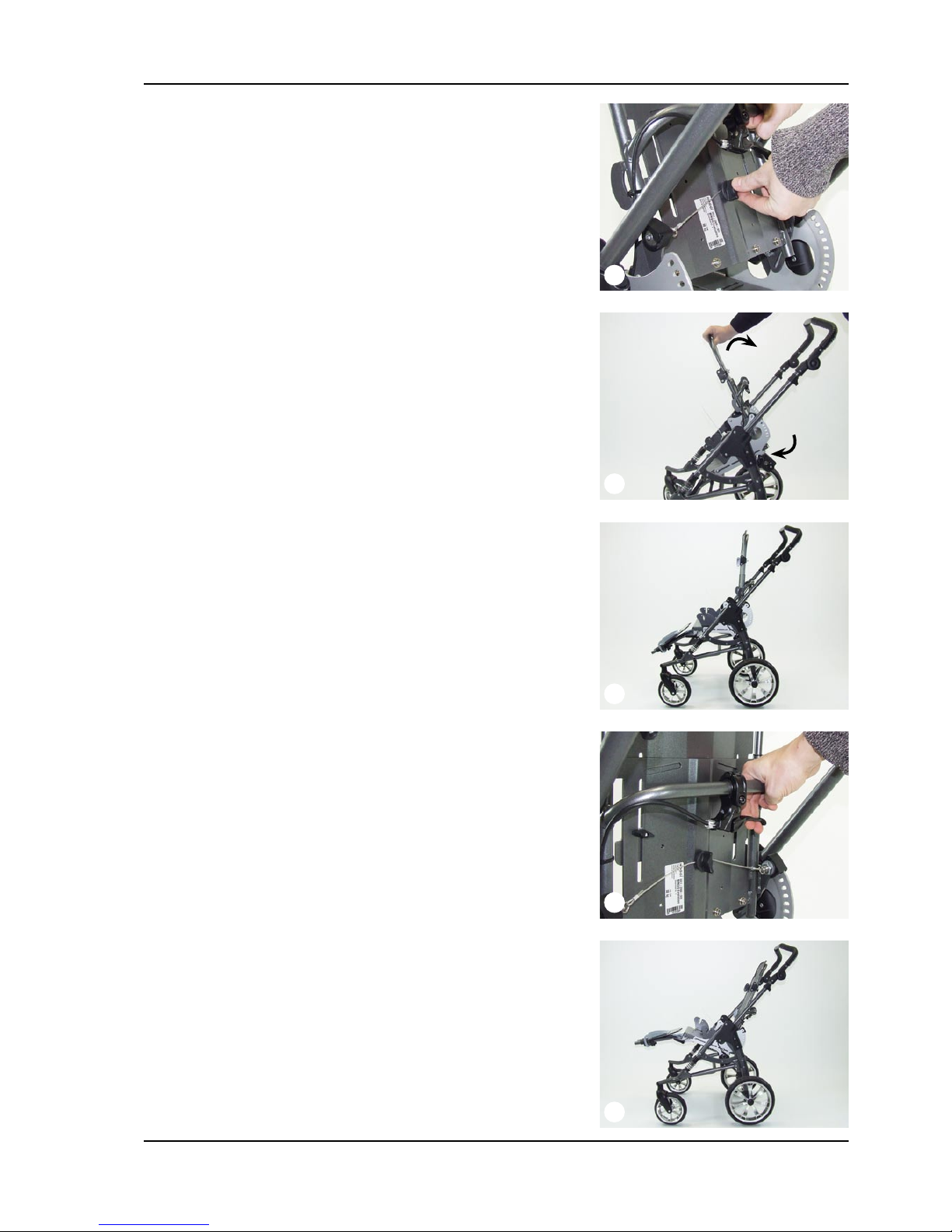

• Turn the toggle lever on the backrest (6) and let engage the
backrest in the first position.
• Pull the seat unit on the backrest to the back (7) until the
mechanism of the tilt function engages hearable in the first
position.
The illustration (8) shows a BINGO Evolution with the backrest and
the tilt function engaged in the first position.
• After pulling the active handle the angle of the seat unit can be
adjusted (9).
Tilt in space function (10).
6
7
8
9
10
8

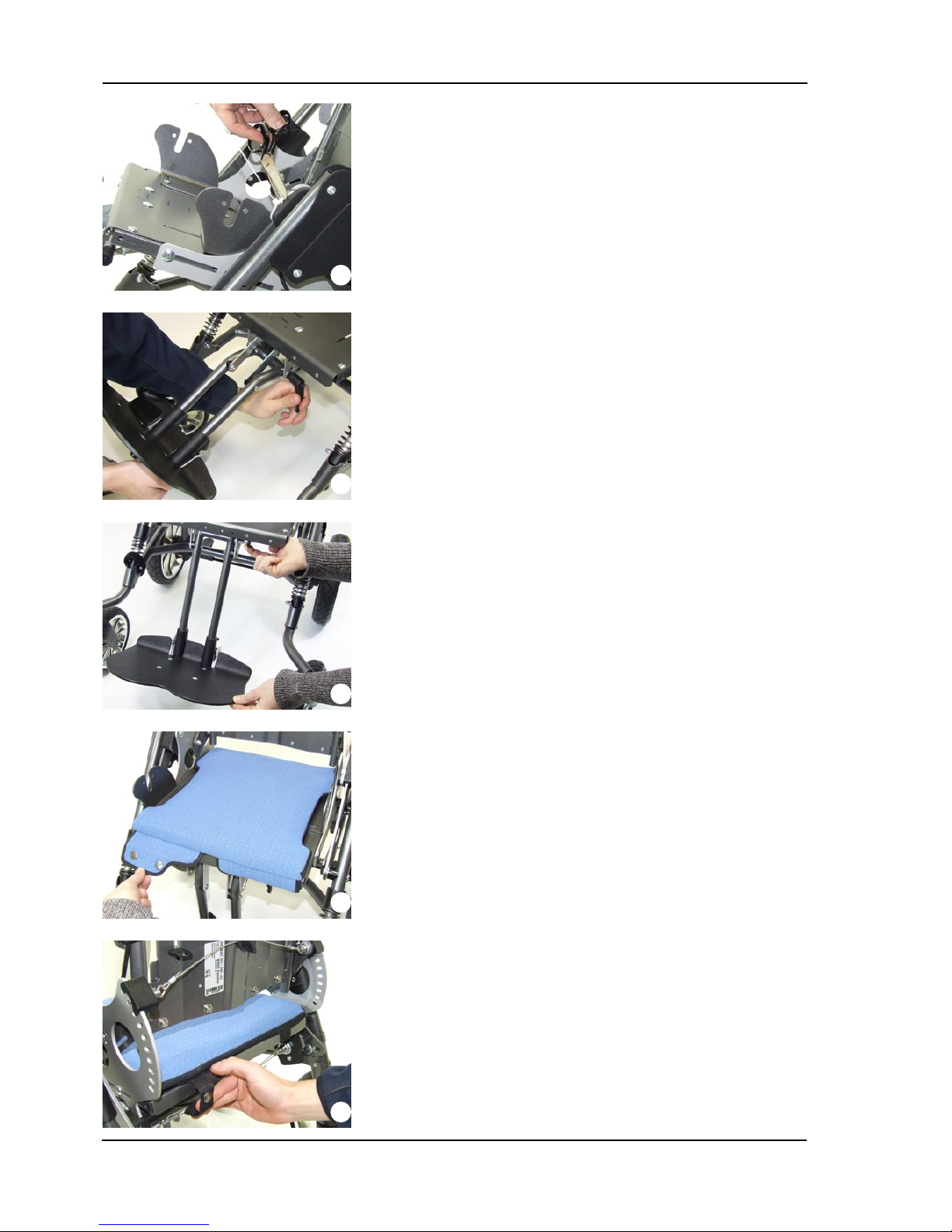

• Cut the transport safety (cable connector) carefully.
If your BINGO Evolution is equipped with an angle adjustable
footrest hanger the footrest could be in a hinged position for the
transport.
• Swing the footrest hanger with the footrest in the desired position
and clamp it firmly with the clamping lever.
If your BINGO Evolution is equipped with a footrest hanger 90° the
footrest could be in a hinged position for the transport.
• Swing the footrest below, pull the locking pin and let it engage
hearable.
• Check with a sharp push at the footrest hanger if the locking pin is
located securely.
Before mounting the upholstery it is recommended to adjust the seat
unit according to your requests as described under „4 Adjusting and
adaptation possibilities“.
• Place the seat cushion on the seat and fix it with the snap
fasteners below the front seat edge (14).
• Fix the snap fasteners below the backmost seat edge also (15).
11
12
13
14
15
9

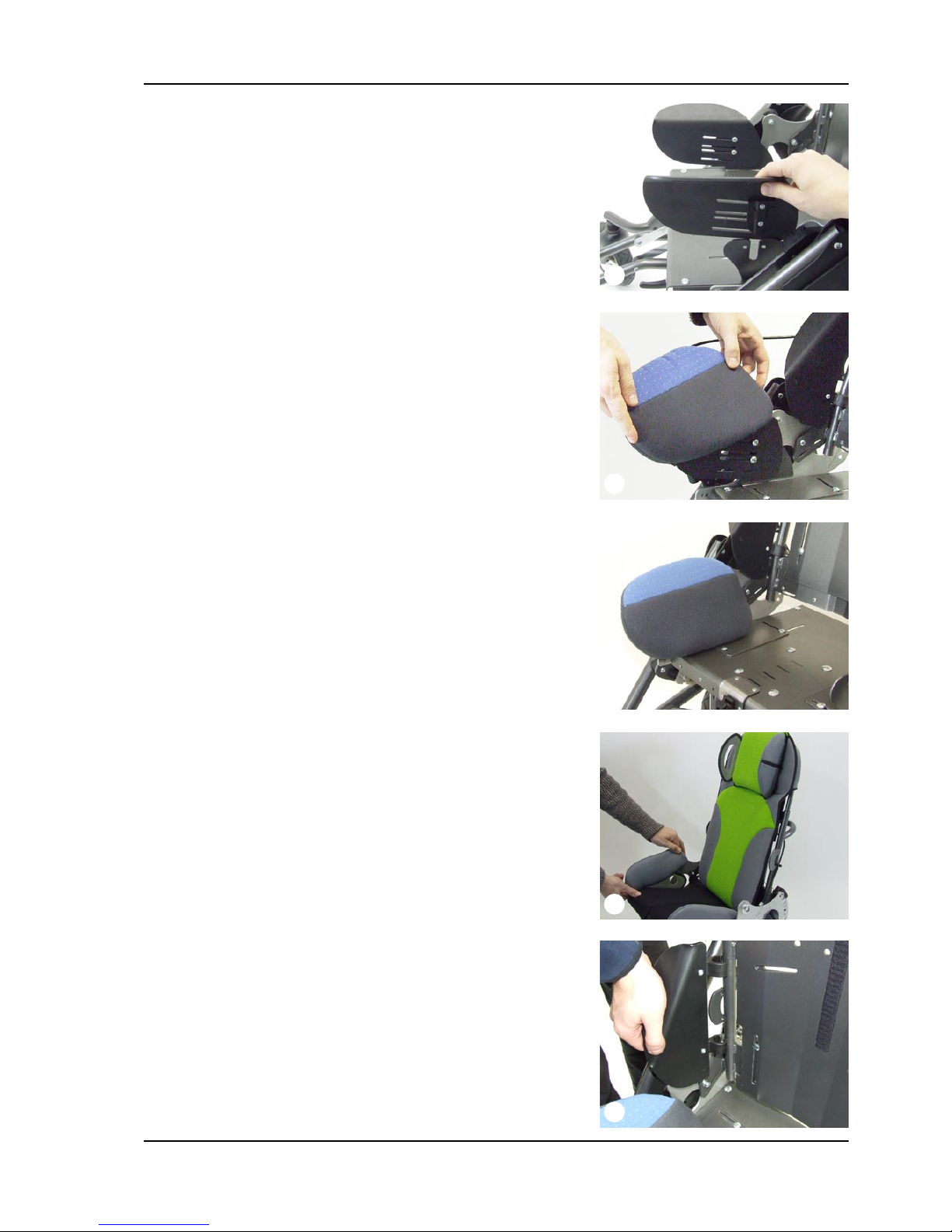

The hip supports can be detached for the transport to achieve a
compact folding size.
• Plug the hip supports on the brackets as shown (16).
• Pull the hip support upholstery from the top onto the bracket, so
that the cushioned side points to the inner side and fix it with the
Velcro fasteners.
The illustration (18) shows the BINGO Evolution with a mounted hip
support including upholstery.
The thigh supports get mounted identically as the hip supports on
the seat plate.
• Pull the upholstery of the thigh supports as shown starting from the
front, so that the padded side shows to the inner side and fix it with
the Velcro fasteners.
The lateral supports can be detached for the transport to achieve a
small pack size.
• Plug the side supports on the backrest tubes as shown (20).
.
16
17
18
20
19
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Medifab Fauteuil roulant
