Introduction

HD Multimedia Player is a powerful media player which truly decodes, playback and outputs High

Definition 1080p in the market. Through the USB 2.0 port and the HDMI interface, HD Multimedia

Player playback the HD MPEG2, HD VC-1, HD AVC/H.264 movie or transport stream from the USB

flash drive or hard disk drive to HDTV screen. The Network function allows you to browse the video file

in your PC, NAS which is in your room and play it on TV in the living room.

Feature Highlight：

：：

：

Decode and output High Definition 1080p video and Photo.

Support Mainstream formats of HD video including MPEG-2, VC-1, H.264/AVC and RMVB HD.

Within the next generation interface—HDMI 1.3 output.

Ethernet port supports Network player function.

High performance video playback. Experience fluent playback control like Zoom out/in, Pan the

picture, Fast Forward, Fast Reverse, Slow-motion.

Fully supports the subtitle format. Dynamically change the subtitle display by remote control.

Photo playback via HD. Supports Up to 4 mega-pixel photo files, 16X Zoom in, 3-direction

rotation.

Slide show mode with 8 kinds of transition effect. Background music playback is supported.

Rich types of music file. The playback function includes Fast Forward, Fast Reverse, Repeat,

Shuffle and Shuffle Repeat.

Within USB 2.0 port, plug-and-play the USB Flash Drive, USB Mobile Hard Disk Drive , USB Card

Reader, USB DVD-ROM, USB Wi-Fi Dongle.

Supports all most all formats of HDD and has the most interchangeability.

Easy to use and intuitive control. Change to setup menu at any time even in media playing to

provide the fluent control.

Package Contents

Please check the parts in the package. Contact the distributor if something is missing.

1. One HD Multimedia Player

2. One power adapter

3. One remote control unit

4. Two AAA batteries

5. One mini jack to RCA YPbPr cable

6. One RCA cable

7. One quick installation guide

8. This User’s manual

Product Overview

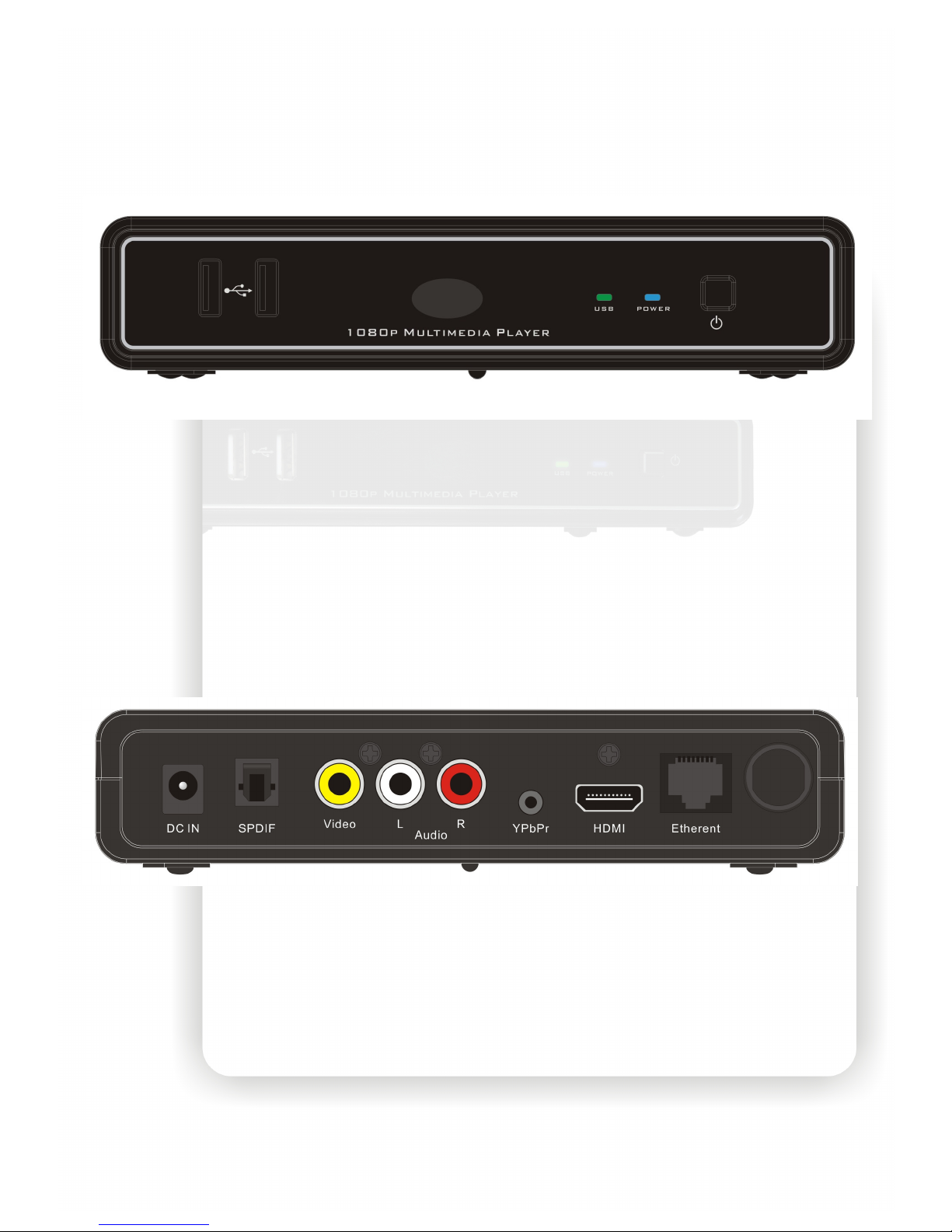

Panel Front side

LED/button/connector:

(1) USB port: These two USB 2.0 type A sockets are for the external USB Flash Disk, USB Mass

Storage, USB DVD-ROM or USB Wi-Fi Dongle.

(2) IR sensor: It receives the command from remote control unit. Do not block the port.

(3) USB indicator: It lights when the USB Storage is plugged in and ready. It may take 5 seconds to

ready when the USB storage is plugged in.

(4) Power indicator: It lights on when the power is plugged in.

(5) POWER STANDBY: Press it to standby or wake up this player.

Panel Back side

Video connection: Please select one below to connect the TV set.

HDMI output: This port is to connect with HDMI receiver or HDMI TV set.

YPbPr: This port is for the YPbPr input of TV set. Use the bundled phone jack to RCA jack cable to

connect.

VIDEO (CVBS): This port is for the CVBS input of TV set.

Audio connection: Please select one below to connect the TV set or S/PDIF receiver.

AUDIO L/R: These ports are the analog stereo audio channels to the input of TV set. If the HDMI is

connected, then you don’t need to connect AUDIO L/R.

S/PDIF: This is the TOSLINK digital output for audio.

Ethernet port: This is the Ethernet port for the sharing through Local Network.

DC IN: It connects the DC input of the Power Adapter. The power requirement is 12Vdc, 1.5 A.

1. 3. 4. 5.

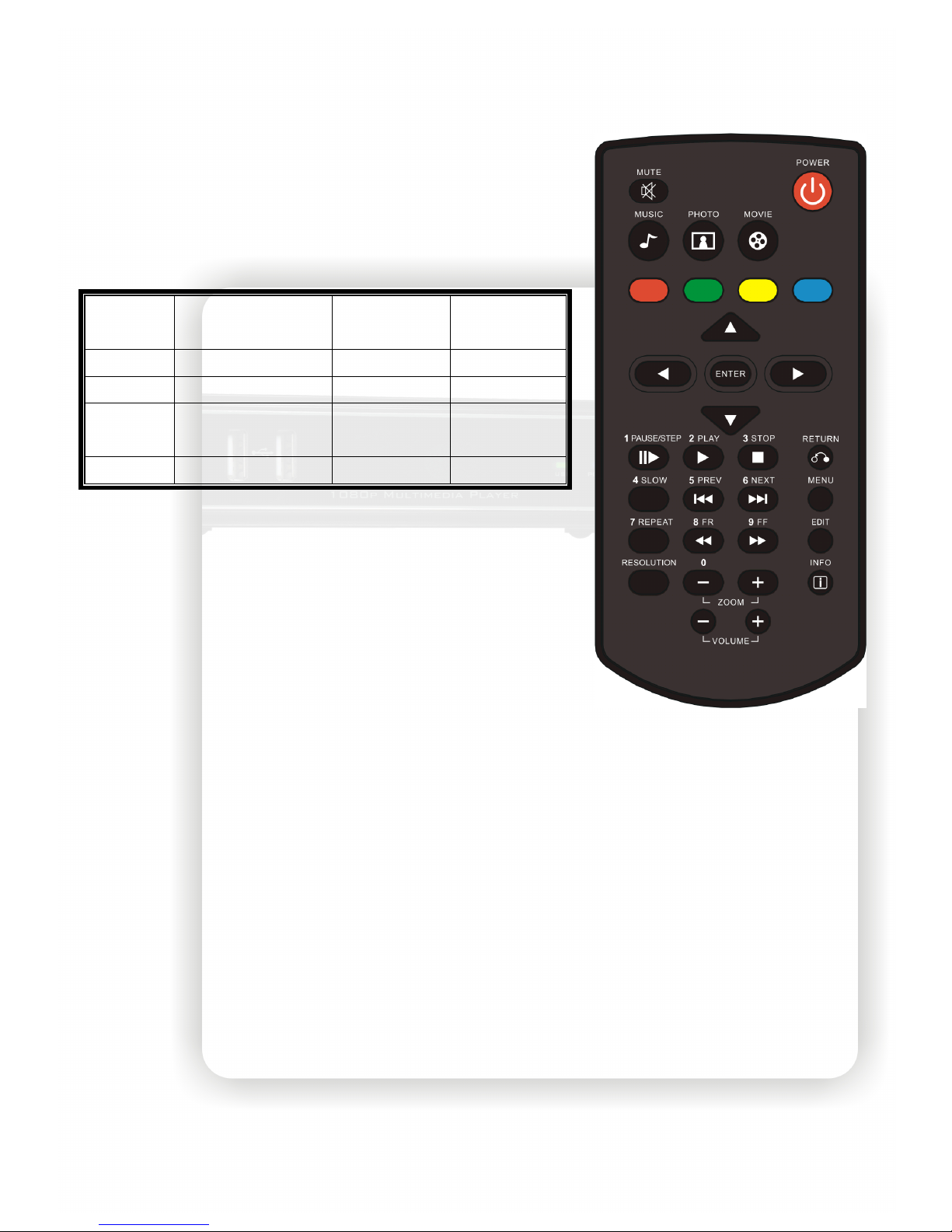

Remote Control

MUTE: Mute

POWER: Power on/Suspend

MUSIC: Hotkey to view the music file

PHOTO: Hotkey to view the photo file

MOVIE: Hotkey to view the movie file

RED / GREEN / YELLOW / BLUE: Special function

Function

key

Video playback

DVD Menu

File browser Network

function

Red Open DVD Menu None Refresh

Green Toggle audio track Edit Edit

Yellow Switch the subtitle Switch to

Thumbnail

None

Blue Change the Angle Back to home Back to home

:UP

:LEFT

:RIGHT

:DOWN

ENTER: ENTER

RETURN: go up one folder/Exit the current menu

MENU: open System Setup page

EDIT: Delete, Rename the folders and the files.

INFO: Display the information during playback

1 PAUSE/STEP: Number key 1, Pause and step in frame by frame

2 PLAY: Number key 2, Playback

3 STOP: Number key 3, Stop

4 SLOW: Number key 4, Slow motion

5 PREV: Number key 5, Previous file/section

6 NEXT: Number key 6, Next file/section

7 REPEAT: Number key 7, 1/ALL repeat

8 FR: Number key 8, Fast Reverse

9 FF: Number key 9, Fast Forward

0 ZOOM +/-: Number key 0, Zoon In/Fit

RESOLUTION: Change resolution for the video output.

VOLUME +/-: increase/decrease volume

Connect

There are three ways shown below to connect this player to your TV set. Please choose one to apply.

Basic connection:

Power Cord: Connect the DC input in the device.

Audio cable output: Connect the cables to TV set.

CVBS video output (NTSC or PAL): Connect to TV set.

Advanced connection:

Power Cord: Connect the DC input in the device.

Audio cable output: Connect the cables to TV set.

Component video cable for HD video output (720p, 1080i): Connect the phone jack to RCA cable

and then connect the RCA cable to the YPbPr input of TV set.

HDMI connection:

Power Cord: Connect the DC input in the device.

HDMI output (Up to 1080p): Connect to HDMI input of TV set. The HDMI port sends digital video

and audio signal through the cable. In this configuration, the audio output must be set

to LPCM 2CH. Please refer to the section of Audio setting.

*HDMI output to HDMI receiver: Connect HDMI input to the HDMI receiver, and then connects

another HDMI cable from the receiver to TV set like HD Multimedia Player -> HDMI

receiver -> HDMI TV set. In this configuration, the multichannel audio can be enabled

and decoded by the HDMI receiver. Please set the audio output to HDMI RAW. Refer

to the section of Audio setting for the further instruction.

SPDIF connection:

Either Basic/Advanced connection or HDMI connection can apply SPDIF connection. This

connection provides 5.1 audio data to the SPDIF receiver, and then the receiver decodes it into 5.1

audio outputs.

TOSLINK cable: Connect the optical cable from this port to the SPDIF input of the audio receiver.

When connecting SPDIF, the connection of AUDIO R/L isn’t required.

Multichannel audio setting: To obtain the multichannel audio via SPDIF, setup the audio output to

SPDIF RAW.

Network connection:

Choose either Ethernet cable or USB Wi-Fi dongle for the network connection.

Setup

Please check the battery of Remote Control first, and then start the initial setup.

Initial setup

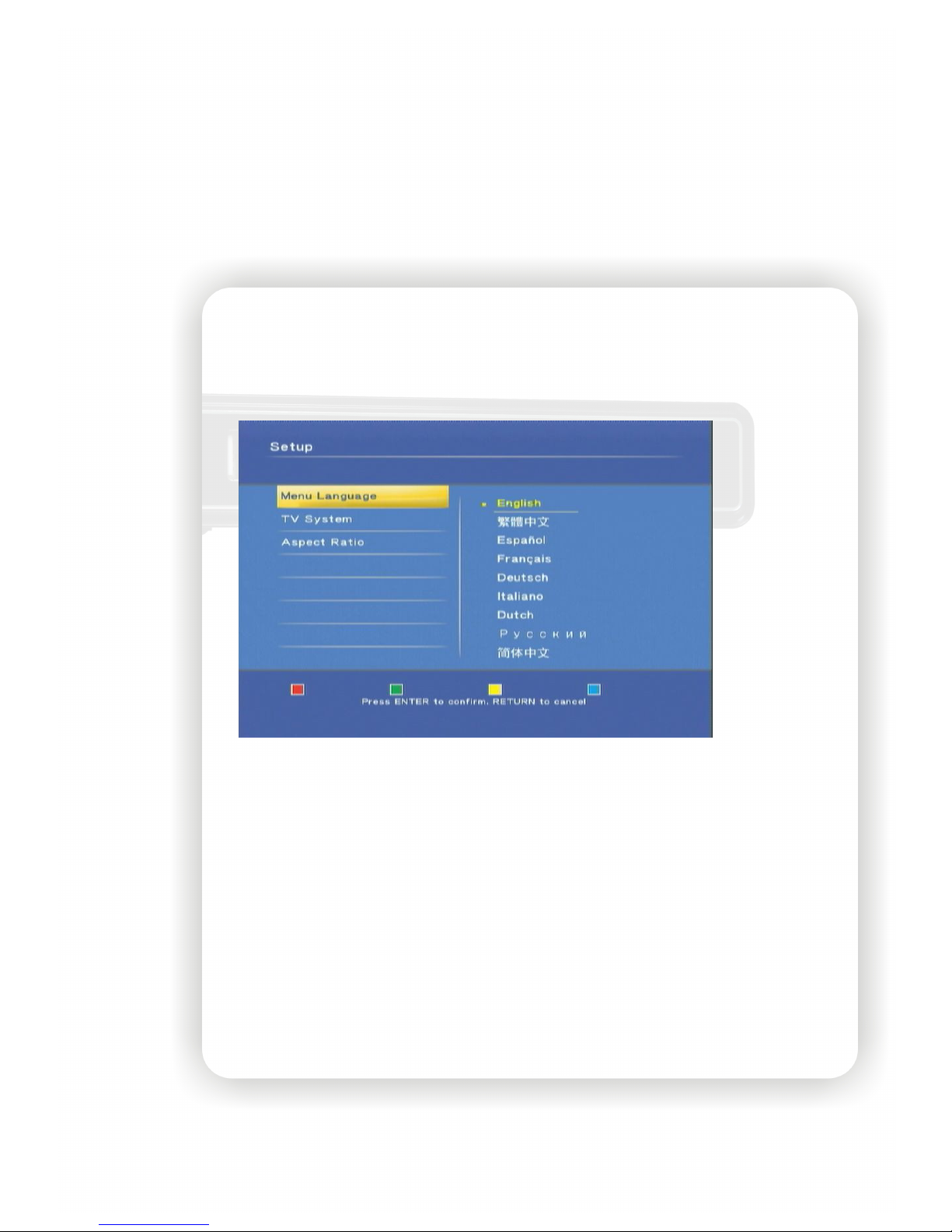

When plugged in the power at the first time, after the booting logo, the setup page should display

to start the initial setting. The first item is the menu language. Please setup the menu language for

OSD. Use ▲▼ button to select the language and press “ENTER” to confirm.

Note: Before beginning this process, if you want to connect HDMI, please connect it first and then

start the configuration.

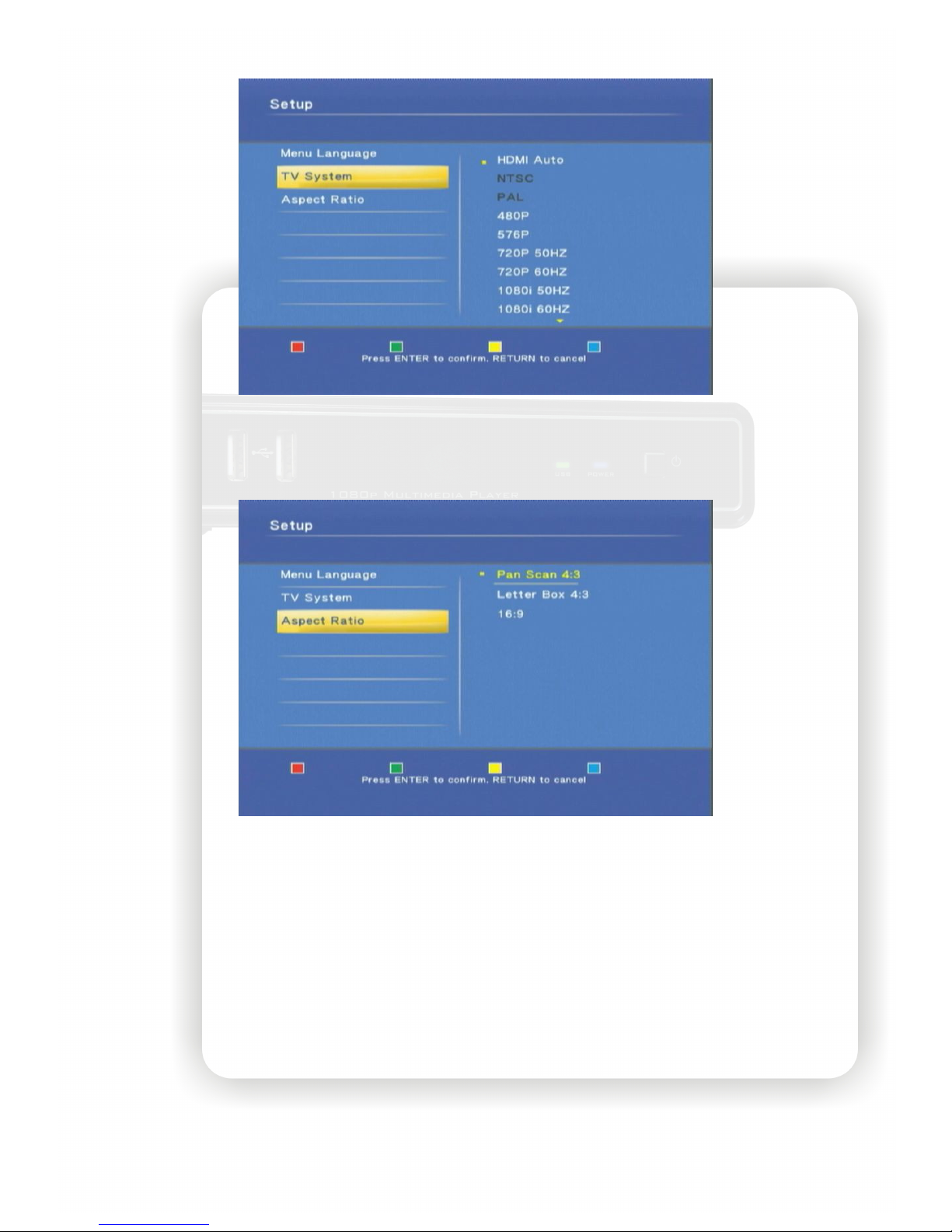

The second item is to choose the resolution of the video output according to your TV set and the

connection between this play and TV set.

For HDMI TV set, the device detects the available resolution of your TV set and lists them on

screen. In the list of resolution, the available option is in white characters and the unsupported

one is in dark characters. We recommend you to select the option “HDMI Auto” which enables the

maximum resolution on your TV set.

For YPbPr output, the supported resolution is up to 1080i so select “1080i 50Hz” for PAL TV set or

“1080i 60Hz” for NTSC TV set for the maximum resolution. For TV set that doesn’t support HD

input, select “NTSC” or “PAL” for the SD video.

For CVBS output, choose “NTSC” for NTSC TV set or “PAL” for PAL TV set.

Note: The CVBS is always output SD video no matter which resolution is chosen.

The final item is to setup the aspect ratio for your TV set. If your TV set is 4:3 then you can choose

Pan Scan 4:3 or Letter Box 4:3. If you have wide-screen TV then you can choose 16:9. Use ▲▼

button to select one and press “ENTER” to confirm.

The initial setting can be configured anytime in the setup menu. Please refer to the setup menu.

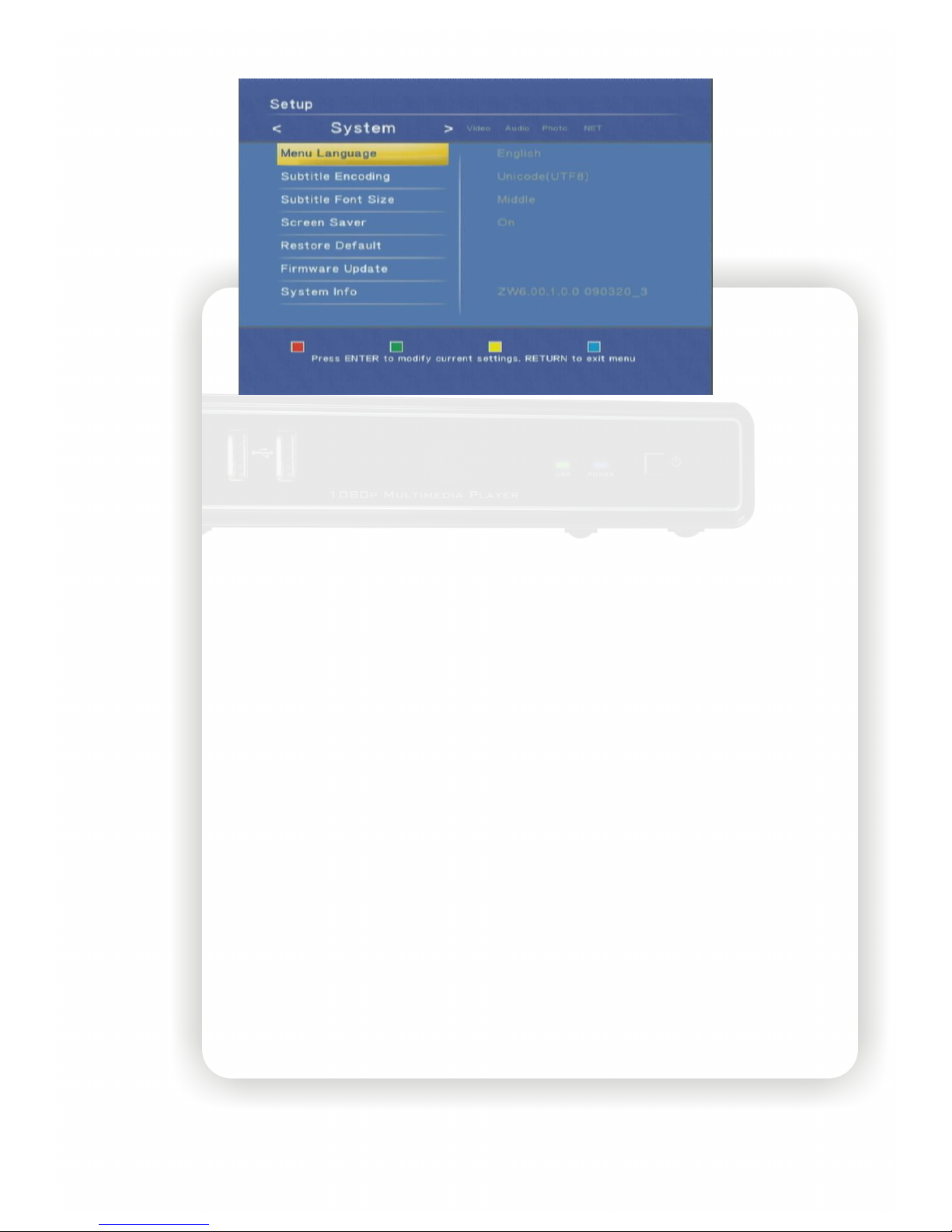

Setup Menu

You can press “MENU” to open the setup menu. Use ◄► key to select different pages among

“System”, “Video”, “Audio”, “Photo” and “NET”. Use ▲▼ key to select different item to setup. Press

“ENTER” to open detail setting for configuration.

The menu structure and options are listed below.

1. System

Select this option to open the detail setting for the system.

Menu Language: Select the OSD language among English, Chinese Traditional, Español, Franҫais,

Deutsch, Italiano, Dutch, Pyccкий, Chinese Simplified and Portuguese.

Subtitle Encoding: Select the encoding for subtitle file, file name and folder name display from

Unicode (UTF8), Chinese Simplified (GBK), Chinese Traditional (BIG5),

Western (CP1252), Turkish (CP1254), Central European (CP1250), Greek

(CP1253), Cyrillic (CP1251), Hebrew (CP1255) and SE European (ISO

8859-16). Please select the right code to display or the garbage characters may

appear on OSD.

Subtitle Font Size: Select the font size for the subtitle. The available options are “+2, +1, Normal, -1

and -2”. The default setting is “Normal”. If the format of font is “idx + sub” or it is

the subtitle in DVD Video/ISO/IFO, the font size option here won’t be applied.

Screen Saver: Select to turn off/no the screen saver. The default setting is on which displays icon

randomly on screen after 5 minutes idle. When using the device on the plasma TV, it

is recommended to turn on screen saver

Restore Default: Select this option to reset the setting to factory default.

Firmware Update: Select this option to apply the new firmware. When you find the new firmware,

please check the “System Info” for current firmware vision to see if the device

needs to upgrade. If so, please download the firmware file for upgrade. The

upgrade procedure is below.

1. Prepare an empty flash disk. Plug it into PC and copy all firmware files to its root directory.

2. Plug it into this device.

3. Open the “Firmware Update” option in the configure menu. Press it and select “OK” to

continue.

4. Wait for 5 minutes. Do not unplug the power during the upgrade procedure. When the

Table des matières

Manuels Lecteur multimédia populaires d'autres marques

Visual Land

Visual Land Impulse Manuel utilisateur

limHD

limHD 200i Manuel utilisateur

Transcend

Transcend DMP10 Manuel utilisateur

Philips

Philips GoGear Muse SA2MUS08 Manuel utilisateur

Fantec

Fantec MM-HDRL Manuel utilisateur

Dune HD

Dune HD Duo 4K Manuel utilisateur

IAdea

IAdea HMP-505S Manuel utilisateur

Camos

Camos MMS-1000 Manuel utilisateur

Energy

Energy 75 Series Manuel utilisateur

Z3 Technology

Z3 Technology DME-03 Manuel utilisateur

Sony

Sony SVR-2000 Guide de l'utilisateur

Meicheng

Meicheng HD-1080K12 Manuel utilisateur

DENAFRIPS

DENAFRIPS ARCE Manuel utilisateur

Topaz

Topaz CMS Media Player Instructions d'utilisation

InFocus

InFocus LightCast Manuel utilisateur

IconBiT

IconBiT XDS1003D Manuel utilisateur

Quanmax

Quanmax QDSP-2090 Series Manuel utilisateur

Samsung

Samsung MP-80S Manuel utilisateur
