Meade ETX-LS Manuel utilisateur

ETX-LS QUICKSTART GUIDE

STEP

Adjust leg height (make

sure that the top of

the tripod is

approximately level).

STEP

Spread tripod legs. STEP

Place eyepiece into

diagonal prism.

STEP

Attach diagonal prism.

STEP

Thread eyepiece holder

into rear cell.

STEP

Remove rear cell cap.

STEP

Center telescope base onto tripod head and fasten three screw

knobs to a firm feel.

STEP

Attach spreader bar and secure with

washer and knob.

Remove knob and washer

from threaded spreader

bar tension rod.

It is best to set up the telescope in twilight

or before sunset the ﬁrst time you use

the ETX-LS. Take the telescope and tripod

outside. Set the telescope in a large open

area where you can see lots of sky. Don’t

setup right next to a building or

a wall. Also try to stay away from

large metal objects like a car or

a metal fence. Make sure the ground is

stable and is approximately level. It is best to

set up the scope away from bright nighttime

lighting. Bright lights will spoil your night

vision and impede your ability to see the sky.

Additionally, it will take the telescope longer

to align itself if there are too many bright

lights around.

ETX-LS begins moving, rotates to

find Magnetic North and level, slews

to and verifies guide star(s).

STEP

AutoStar sounds tone

and display verifies

successful alignment.

Look through the eyepiece

and focus on the bright star.

ETX-LS is now

ready to lead you

on a tour of the

night sky!

STEP

Remove dust cover.

Open battery compartment.

Insert batteries according

to diagram on battery tray.

Connect AutoStar III handbox

to ETX-LS.

Turn on ETX-LS

LightSwitch.

Remove ECLIPS CCD cover.

©2009 Meade Instruments Corporation. All rights Reserved. Speciﬁcations subject to change without notice. Your product may appear visually different. 27 Hubble, Irvine CA 92618. www.meade.com 14-7302-06

The complete ETX-LS Instruction Manual can be found on the AutoStar Suite disk included with your telescope.

Autres manuels Meade Télescope

Meade

Meade LX200-ACF Manuel utilisateur

Meade

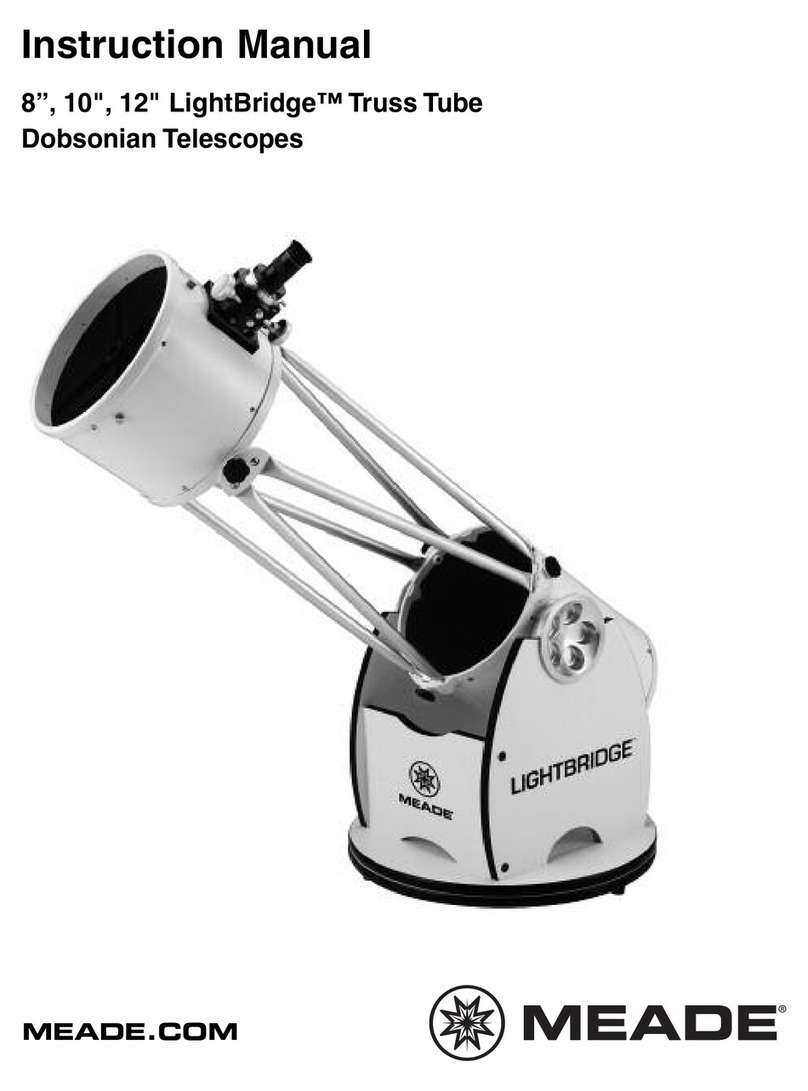

Meade LightBridge 16 Manuel utilisateur
