MD SPORTS 44111 Manuel utilisateur
MODEL/MODELO: 44111
Please contact us before returning the product to the store.
Toll Free: 877-885-1635
Por favor póngase en contacto con nosotros antes de
devolver el producto a la tienda.
Número telefónico gratis: 877-885-1635
INSTRUCCIONES DE ARMADO
LIMITED 90 DAYS WARRANTY
1
This product is covered by a limited warranty that is effective for 90 days
from the date of purchase. The warranty covers any defects in parts and
workmanship.
This Limited Warranty gives you specific legal rights and you may also have
other rights which very from one state (province) to another.
If, during the limited warranty period, a part is found to be defective or
breaks, we will offer replacement part at no cost to you, the customer. The
only exceptions to the warranty include main frames, tabletops, playing
surfaces, batteries or tools.
The above warranty will not apply in cases of damages due to improper
usage, alteration, misuse, abuse, accidental damage or neglect.
Attention: Since you build all tables upside down, please inspect table tops
and playing surfaces right away before putting together.
“PLEASE SAVE THESE INSTRUCTIONS
AND PURCHASE RECEIPT!”
A PURCHASE RECEIPT (or other proof of purchase date) will be required
before any warranty service is initiated. All requests for warranty service can
be submitted by email, in writing or by contacting our Consumer service
Department at:
TOLL FREE: 877-885-1635
WEBSITE: www.medalsports.com.tw
*Please do not call our 800 NUMBER as well as email us. This will result in
duplicate orders and charges will occur.
*Please note that all damaged table tops need to be returned to the store.
We do not replace any tabletops or playing surfaces.
PLEASE CONTACT US BEFORE RETURNING THE
PRODUCT TO THE STORE.
THANK YOU VERY MUCH!
Phillips Screwdriver – Not Included
Standard (Flat Head Screwdriver) – Not Included
Allen Wrench - Included
TOOLS REQUIRED:
ASSEMBLY TIPS:
:
!
!
2
IMPORTANT NOTICE! Please contact us before returning the product to the store.
Please read the instructions carefully, and follow all assembly, operation or safety instructions
properly in order to avoid damage or injury. For the assembly, at least two adults are required.
Some figures or drawings may not look exactly like your product. Please read and understand
the text before beginning each assembly step.
1 -
2 -
Please Keep Your Instructions! Your Model number is necessary should you need to contact
us. Please read through this instruction manual book to familiarize yourself with all parts and
assembly steps. Kindly refer to the parts identifier below and be sure that all parts have been
included.
Although we are dedicated to giving our customers the best product possible, a question may
arise or parts may be missing. If you are missing parts, or, if you have any questions, please
contact our fast and friendly service centre on:
1 - This product is intended for INDOOR use only.
2 - Please Do Not sit, climb or lean on the game table.
3 - Please Do Not drag the table when moving it in order to avoid the damaged on the legs.
4 - Please only use spray furniture polish to clean the exterior surfaces on the game table.
5 - This is not a child's toy, adult supervision is required for children playing this game.
877-885-1635
Power Tools
- Set Low Torgue
High Torque
over tightened
High Torque
over tightened
CAUTION !
Electric Screwdrivers may be helpful during
assembly; however, please set a low torque
and use extreme caution.
6
11
2 3 4 51
7 8 9 10
12 13 14 15
16 17 18 19 20
21 22 23 24 25

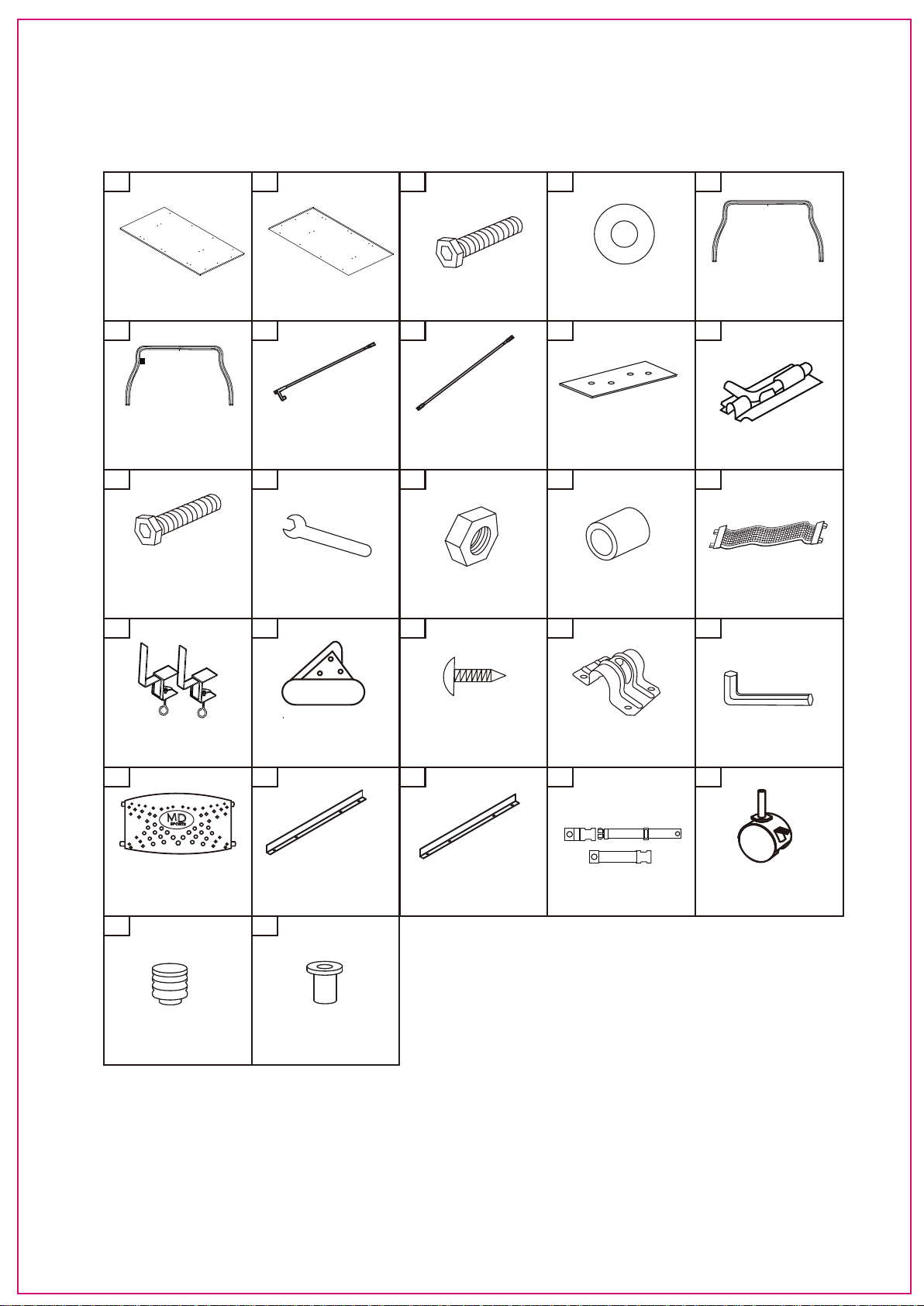

44111 PARTS LIST
RIGHT TABLE SURFACE
2 PIECES 6MM WASHER
24 PIECES
WRENCH
1 PIECE M6 NUT
8 PIECES 16MM SPACER
8 PIECES
LEFT TABLE SURFACE
2 PIECES
CURVED OUTER LEG
WITH CAPS
2 PIECES
CURVED INNER LEG
WITH CAPS
2 PIECES
M6 X 47MM BOLT
8 PIECES
M6 X 42MM BOLT
8 PIECES
PLASTIC LEG PANEL
WITH FRAME
2 PIECES
ALLEN KEY
1 PIECE
NET POST
2 PIECES
WHEEL
4 PIECES
END APRON 1.3M
2 PIECES
M5 X 15MM SCREW
119 PIECES LEG BRACKET
12 PIECES
MOLDED PROTECTIVE
CORNER
4 PIECES
LINKAGE TUBE WITH
STOP BRACKET
2 PIECES LINKAGE TUBE
2 PIECES BRACKET
6 PIECES
NET
1 PIECE
SAFTEY STRAP
1 SET
SIDE APRON 1.25M
4 PIECES
3
LOCK PIN
2 PIECES
26 27
OUTER LEG CAP
4 PIECES INNER LEG CAP
4 PIECES
PRE-INSTALLED PRE-INSTALLED
4
FIG. 1
2
1
1
2
9
24
18
Center
Player
Player
1. Find a clean, level place to begin the assembly of your Table Tennis Table. The table will be assembled upside down
and then turned over. This is a heavy game and tuning it over will require at least two strong adults.
2. Remove all of the parts from box and verify that you have all of the listed parts as shown on the Parts List.
Carefully cut or tear the four carton corners so that the bottom of the box can act as your workarea.
3. Place the Right Table Surface (#1) and Left Table Surface (#2) with the painted surface facing down on a flat surface.
4. Connect together using three Bracket (#9) using twelve Screws (#18). See Fig.1A.
5. Repeat the above steps for another Table Surface.
6. Attach the Safety Strap (#24) using three Screws (#18).
ASSEMBLY INSTRUCTIONS
FIG.1
Note:
Align the inside seams of
each sections so that
pre-drilled holes line up
across from each other. FIG. 1A
18
9
18
24
1
5
6
5
Center
Player
7. Place one Curved Outer Leg (# 5) on the player end of the table half and one Curved Inner Leg (#6) on the center
end of the table half, and then using the Leg Bracket (#19) attach legs to the table with twenty-four Screw (#18).
NOTE: Make sure that the oval cut-out in the Leg Bracket are facing the center of the table for proper installation.
8. Repeat steps for Curved Legs of the other table half.
FIG.2
27
26
FIG. 2
19
18
FIG.3
9. Attach one end of the Linkage Tube (#8) to the inside of the Curved Outer Leg (#5) using one Bolt (#3), two Washers
(#4), one Spacer (#14) and one Nut (#13).
10. Repeat the same for the other end of this Linkage Tube, only attaching it to the outside of the Curved Inner Leg (#6).
11. Attach one end of the Linkage Tube with Stop Bracket (#7) to the inside of the Curved Outer Leg (#5) using one Bolt
(#3), two Washers (#4), one Spacer (#14) and one Nut (#13).
12. Repeat the same for the other end of this Linkage Tube, only attaching it to the outside of the Curved Inner Leg (#6).
13. Next attach the Lock Pin (#10) to the bottom of the table using four Screws (#18)
14. Repeat the above steps for the other table half.
14
13
4
3
4
7
14 43
413
Center
18
8
10
7
Player
5
6
6
FIG. 3
Note:
Be careful of the assembly direction on
pictures when you assemble the Linkage
Tube #7 and #8 in order to fit the folding
function.
7
FIG. 4A
17
18
23 22
18
17
23
FIG.4
15. Place the Molded Protective Corners (#17) flush with table corner using twelve Screws (#18). See FIG.4A
16. Place the End Apron (#22) between the Corners(#17) using four Screws (#18) per End Apron. See FIG.4
17. Place the SideApron (#23) flush with table edge at the side of the table using four Screws (#18) per Side Apron.
See FIG.4.
NOTE: Make sure the all Aprons are inside the Molded Protective Corners.
FIG. 4
Center
Player

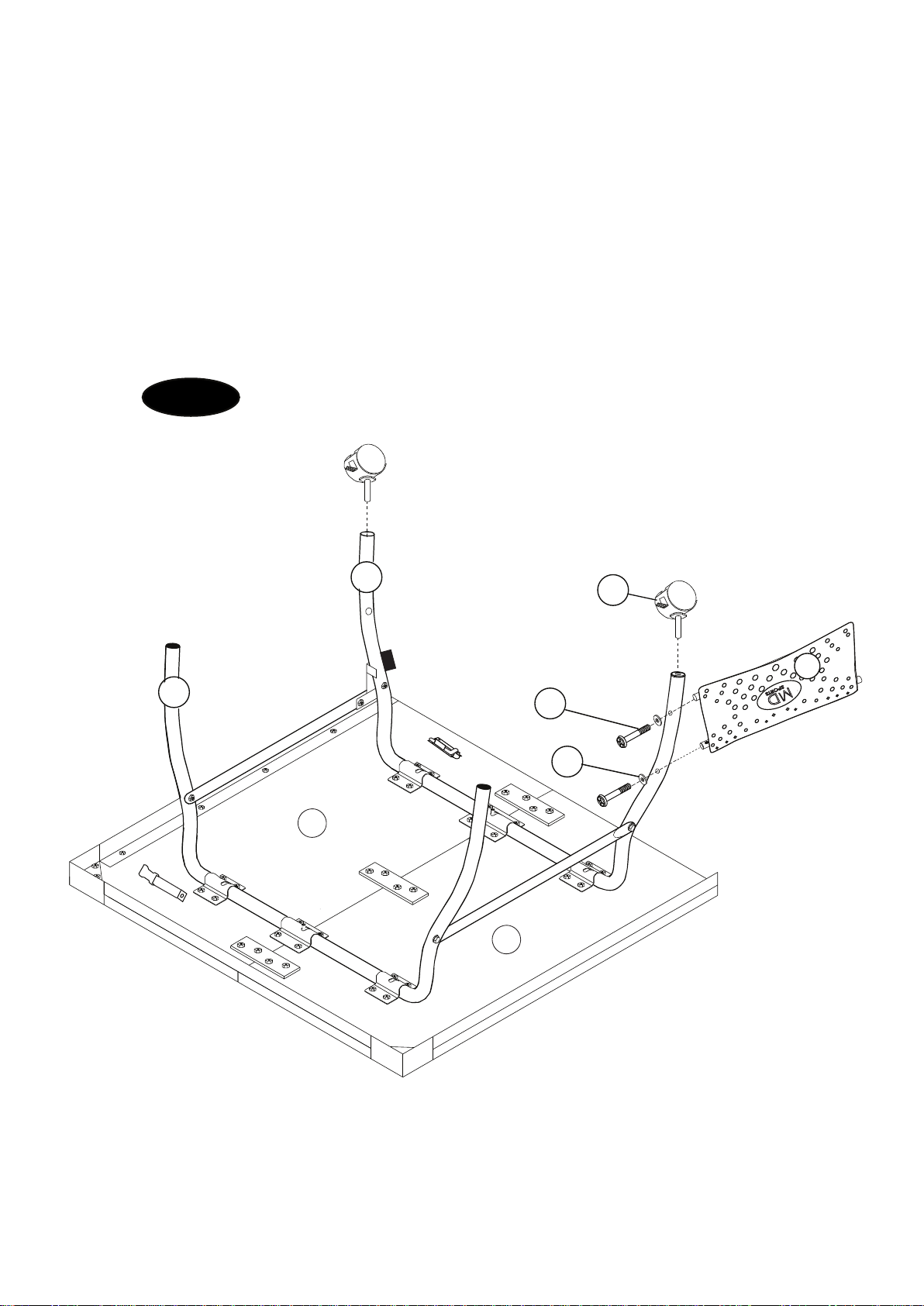

FIG.5
18. Place the Wheel(#25) into the Curved Inner Legs.
19. With the logo upside-down, attach the Plastic Leg Panel (#21) to the Curved Inner Leg (#6) using
two Bolts (#11) and two Washers (#4). NOTE: Do not tighten securely at this time.
20. Repeat the above steps for the other side of this table half.
8
FIG. 5
4
11
6
5
25
21
Center
Player
2
1
9
FIG. 6
FIG.6
21. Before turning the table over, make sure to push the Curved Inner Leg (#6) towards the center of the table in order
to engage the stop. NOTE: Two adults are required to turn this table over
22. One person should stand at each center of the table and turn the table over completely so that it rests on its legs.
23. Standing at the sides of the table, place the two table halves so they are inches apart.
NOTE: Be careful that you do not push either half backwards as this may cause the legs to fold!
24. Attach the Plastic Leg Panel and Frame (#21) to the opposite table half using two Bolts (#11) and two Washers
(#4).See FIG. 6. Now go back and tighten all the connections.
Caution:
Two strong adults are recommended to
turn the table over as shown.
A. TURN TABLE
ON ITS SIDE
B. FOLD LEGS AND
TABLE HALVES AND
LOCK IN PLACE
C. LIFT TABLE AND
TURN IN THE AIR
D. DO NOT LEAN
TABLE ON ITS LEGS! E. SET TABLE DOWN
EVENLY ON ALL
WHEELS, TO PREVENT
BREAKING LEGS
DE
11
11
4
Note: Please leave 10mm distance
between table centers.
