McCulloch MC627ES Manuel utilisateur

MC627ES

Owner's Manual

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC627ES (96192004100)

AUGER HOUSING / IMPELLER ASSEMBLY

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

18 19

31 31

01.07.026-D

2 (EXPLODED)

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC627ES (96192004100)

AUGER HOUSING / IMPELLER ASSEMBLY

1 175321X431 IMPELLER

2 427148 GEARBOX ASSEMBLY

3 188909 BEARING

4 427146 IMPELLER PULLEY

5 175322 DISCHARGE BASE

6 178675X431 CORNER BRACKET

7 192199 CLEAN OUT TOOL

8 405400 TOOL CLIP

9 73800400 NUT 1/4-20

10 74780426 SCREW 1/4-20 X .625

11 427942 NUT 5/16-18

12 163183 SCREW 5/16-18 X .625

13 427145 IMPELLER HUB

14 427154 IMPELLER SLEEVE

15 73900600 NUT 3/8-16

16 180355 CARRIAGE BOLT

17 194189 SCREW 13-16 X .625

18 407760 PLUG

19 427302 GEARBOX COVER RH

20 427345 GASKET

21 407770 SEAL

22 407762 BEARING

23 174697 THRUST WASHER 1.00

24 407763 WORM GEAR

25 407764 AUGER SHAFT

26 189282 SQUARE KEY

27 407758 BEARING

28 174683 THRUST WASHER

29 427147 IMPELLER SHAFT

30 184205 ROLL PIN

31 174681 THRUST WASHER

32 174684 THRUST BEARING

33 407769 BEARING

34 407768 O-RING

35 407767 SCREW 5/16-18 X .750

36 427317 GEARBOX COVER LH

37 192090 SHEAR BOLT

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC627ES (96192004100)

AUGER HOUSING / IMPELLER ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

3 (5x)

4 (5x)

01.07.002-A

1 404929X421 AUGER HOUSING 27

2 404932X431 SCRAPER BAR

3 72270505 CARRIAGE BOLT 5/16−18 X .625

4 155377 NUT 5/16−18

01.07.018-A

1 420495X431 AUGER 27 LH

2 420496X431 AUGER 27 RH

KEY PART

NO. NO. DESCRIPTION

01.11.001-B

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

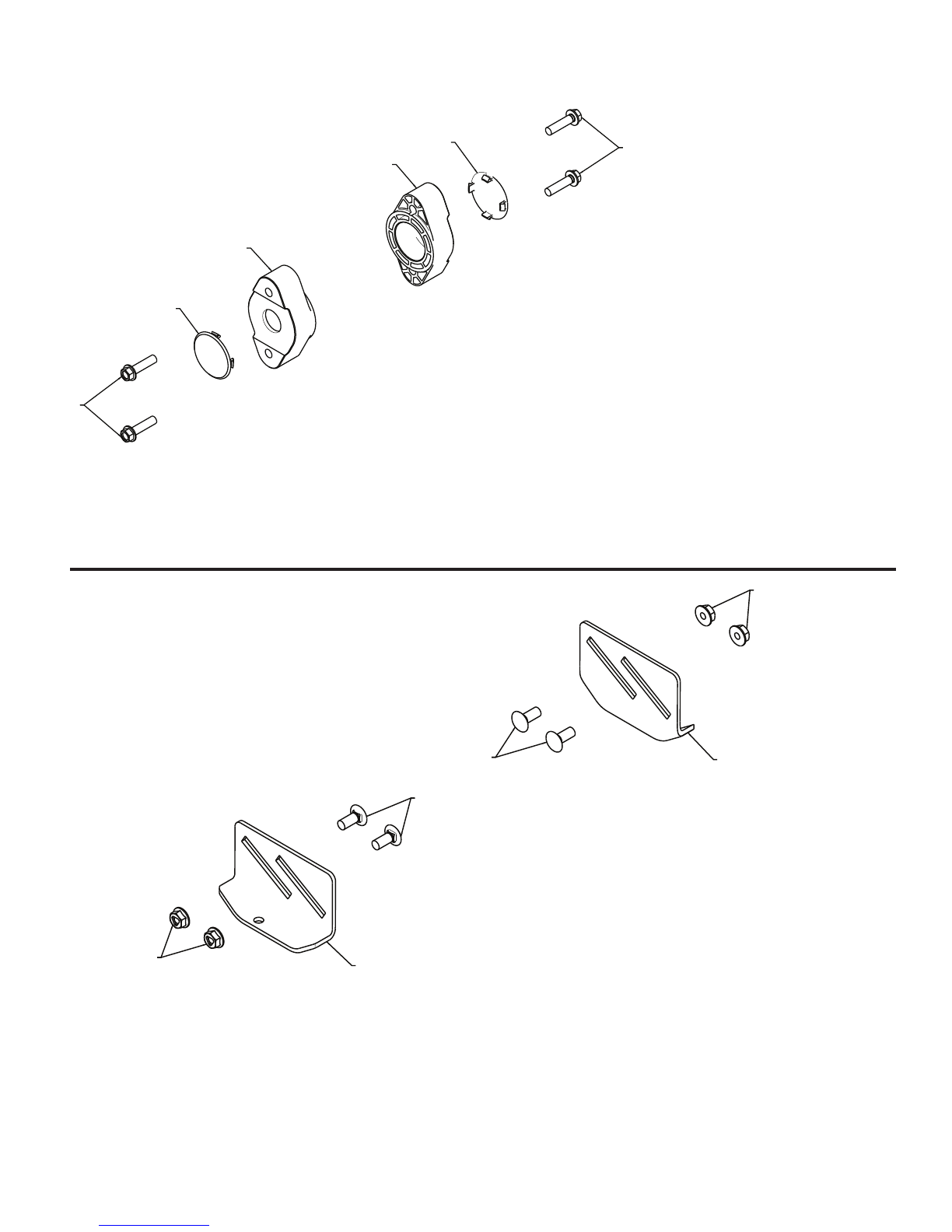

1 174762X431 SKID PLATE LH

2 178777X431 SKID PLATE RH

3 72270506 CARRIAGE BOLT 5/16−18 X .75

4 751153 NUT 5/16−18

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC627ES (96192004100)

AUGER HOUSING / IMPELLER ASSEMBLY

01.07.024-B

1 420478 AUGER BEARING

2 411939 BEARING PLUG

3 179582 SCREW 5/16−18 X 1.00

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC627ES (96192004100)

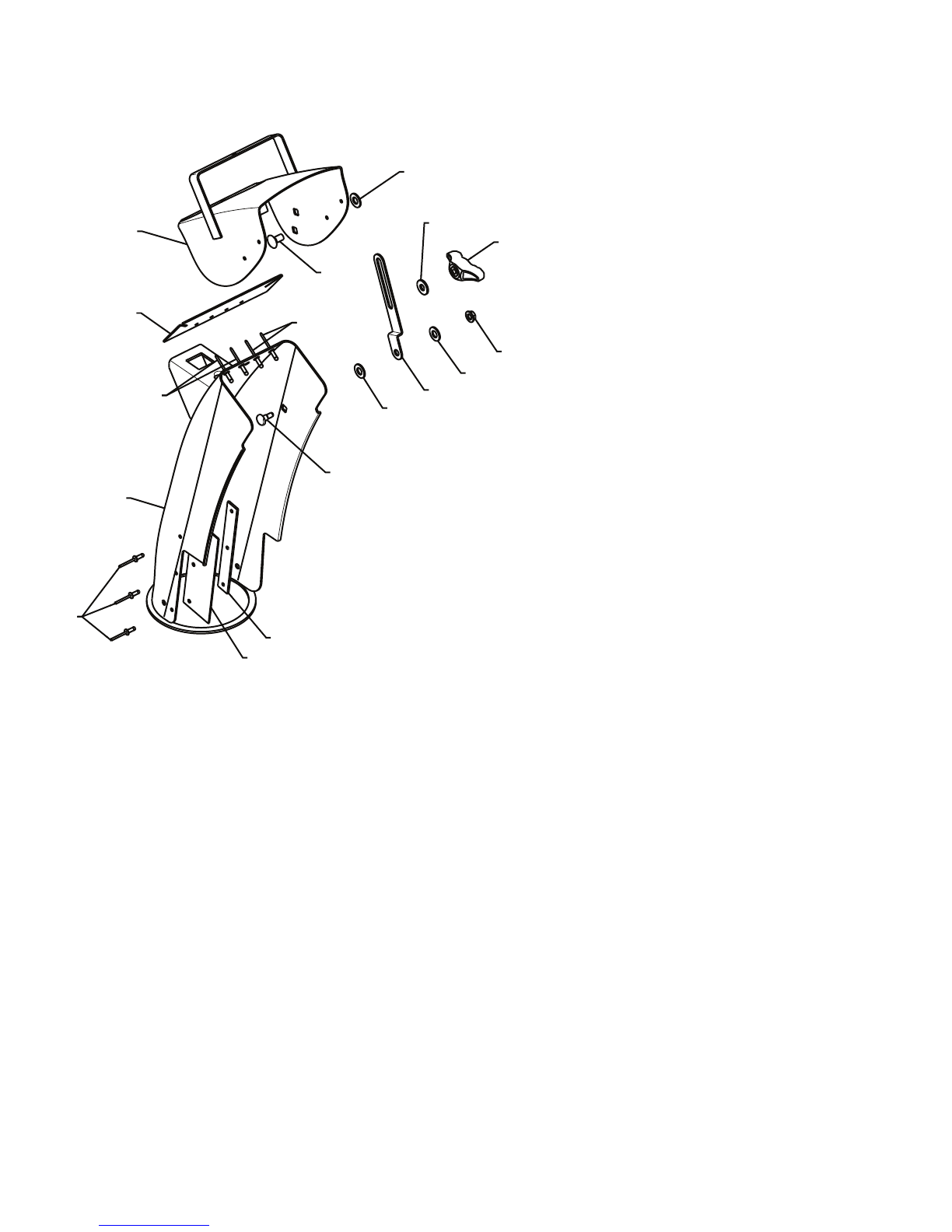

CONTROL PANEL / CHUTE

01.09.005-E

1 435023X421 CHUTE WELDMENT

2 178633X421 DEFLECTOR WELDMENT

3 420325 DEFLECTOR SEAL

4 179096X421 STRAP

5 189713X428 KNOB BLACK

6 128415 POP RIVET

7 185600 SHOULDER BOLT 1/4−20 X .704

8 72270505 CARRIAGE BOLT 5/16−18 X .625

9 191730 NUT 1/4−20

10 155415 WASHER

11 179246 PLASTIC WASHER

12 430324 CHUTE SNOW SHIELD

13 419822X431 SHIELD RETAINER STRAP

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC627ES (96192004100)

CONTROL PANEL / CHUTE

*4 *5

01.09.010-B

1 428272 LEVER/CABLE ROTATOR ASSEMBLY

2 17501010 SCREW 10-24 X .625

*3 420678 ROTATOR HEAD

*4 405932 ROTATOR PIVOT BRACKET

*5 420675 PULLEY PIVOT

*6 428273 CABLE ASSEMBLY ADJUSTABLE

*7 428310 CABLE ASSEMBLY HEAT SHIELD

NOTES:

1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC627ES (96192004100)

HANDLES

01.08.003-A

1 419800X431 PLOW HANDLE LH

2 419801X431 PLOW HANDLE RH

3 196944X431 PANEL BRACKET LH

4 196943X431 PANEL BRACKET RH

5 199513 HANDLE GRIP

6 74780512 SCREW 5/16−18 X .750

7 74780524 SCREW 5/16−18 X 1.50

8 751153 NUT 5/16−18

9 155415 WASHER

01-05-013-A

1 419797X431 LOWER HANDLE

2 427513X431 PIVOT SUPPORT WELDMENT

3 428867 SCREW 5/16−18 X .750

4 17000616 SCREW 3/8−16 X 1.00

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC627ES (96192004100)

HANDLES

01.08.002-F

1 412683X431 CONTROL PANEL

2 424517X431 CONTROL LEVER LH

3 424516X431 CONTROL LEVER RH

4 412679X008 TRACTION ROD ARM

5 426918X008 IMPELLER ROD ARM

6 412677 INTERLOCK BAIL

7 421613 SPACER

8 169675 RETAINER

9 17060410 SCREW 1/4-20 X .62

10 414280 KNOB BLACK

11 414281 KNOB RED

12 178899 HANDLE KNOB

13 19131316 WASHER 3/8

14 72120618 CARRIAGE BOLT 3/8-16 X 2.25

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC627ES (96192004100)

HANDLES

01.12.001-E

1 180480 IMPELLER ROD

2 405740 TRACTION ROD

3 180445 SHIFTER ROD TOP

4 187716 SHIFTER ROD BOTTOM

5 180447 SPRING SLEEVE

6 178669 IMPELLER SPRING

7 180926 TRACTION SPRING

8 72270505 CARRIAGE BOLT 5/16-18 X .625

9 155377 NUT 5/16-18

10 169675 RETAINER
