Operator's manual

ROB S400, ROB S500, ROB

S600

Read the operator's manual carefully and make sure that

you understand the instructions before you use the

product.

Contents
Introduction
1 Introduction.................................................3
2 Product overview........................................4
3 Symbols on the product..............................5
4 Symbols on the display.............................. 5
5 Symbols on the battery...............................5
6 Menu structure overview............................ 7
7 Display........................................................7
8 Keypad....................................................... 8
Safety
1 Safety definitions........................................ 9
2 General safety instructions.........................9
3 Safety instructions for operation...............11
Installation
1 Introduction - Installation.......................... 14
2 Before the installation of the wires........... 14
3 Before the installation of the product........14
4 Installation of the product......................... 18
5 To put the wire into position with stakes...19
6 To bury the boundary wire or the
guide wire....................................................... 19
7 To change the position of the
boundary wire or the guide wire..................... 19
8 To extend the boundary wire or the
guide wire....................................................... 19
9 After the installation of the product...........20
10 To do the product settings......................20
Operation
1 The ON/OFF button..................................26
2 To start the product.................................. 26
3 Operating modes......................................26
4 Park modes.............................................. 27
5 Stop.......................................................... 27
6 Switch off..................................................27
7 Schedule and Standby............................. 27
8 To charge the battery............................... 28
9 Adjust the cutting height........................... 29
Maintenance
1 Introduction - maintenance.......................30
2 Clean the product..................................... 30
3 Replace the blades...................................31
4 Software update....................................... 31
5 Battery...................................................... 32
6 Winter service...........................................33
Troubleshooting
1 Introduction - troubleshooting...................34
2 Fault messages........................................ 35
3 Information messages.............................. 39
4 Indicator lamp in the charging station.......40
5 Symptoms................................................ 41
6 Find breaks in the loop wire..................... 42
Transportation, storage and disposal
1 Transportation.......................................... 45
2 Storage.....................................................45
3 Disposal....................................................45
Technical data
1 Technical data.......................................... 46
Warranty
1 Guarantee terms...................................... 49
EC Declaration of Conformity
1 EC Declaration of Conformity.................50
- 004 - 22.01.2019

1 Introduction

1.1 Introduction

Serial number:

PIN code:

Product registration key:

The serial number is on the product rating plate and on the product carton.

•Use the serial number to register your product on www.mcculloch.com.

1.1.1 Support

For support about the McCulloch product, speak

to your servicing dealer.

1.1.2 Product description

Note: McCulloch regularly updates the

appearance and function of the products. Refer

Support on page 3

The product is a robotic lawn mower. The product

has a battery power source and cuts the grass

automatically. Collection of grass is not

necessary.

The operator selects the operation settings with

the keys on the keypad. The display shows the

selected and possible operation settings, and the

operation mode of the product.

The boundary wire and the guide wire controls

the movement of the product within the work

area.

985 - 004 - 22.01.2019 Introduction - 3

1.2 Product overview

16 17

25 27

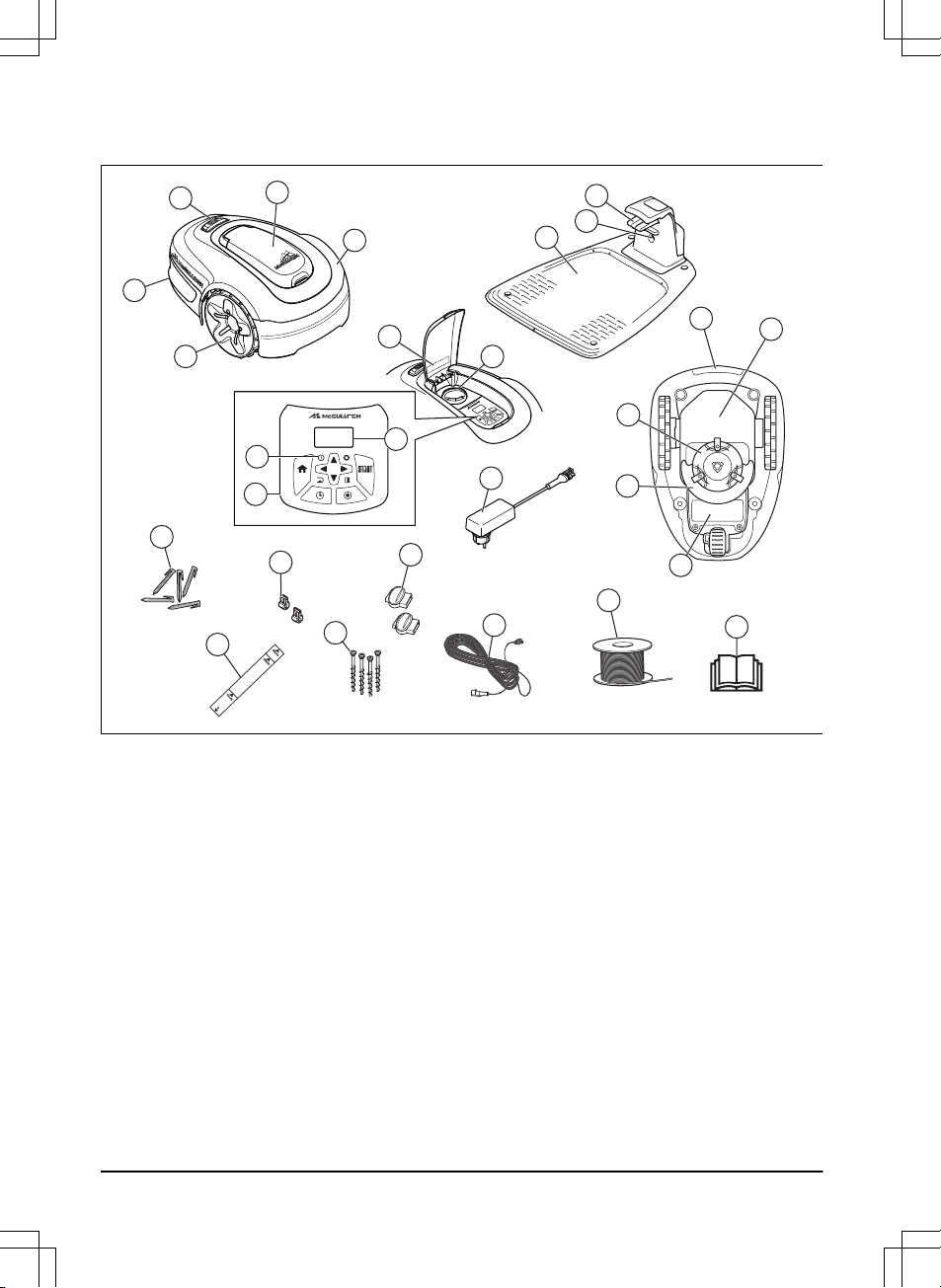

The numbers in the figure represent:

1. Body

2. Hatch to display and keypad

3. Stop button

4. Rear wheel

5. Front wheels

6. Charging station

7. Contact strips

8. LED for operation check of the charging

station, boundary wire and guide wire

9. Cutting height adjustment

10. Rating plate

11. Display

12. Keypad

13. ON/OFF button

14. Cutting system

15. Blade disc

16. Handle

17. Chassis box with electronics, battery and

motors

18. Battery cover

19. Power supply (the appearance of the power

supply may differ depending on market)

20. Stakes

21. Measurement gauge for help when installing

the boundary wire (the measurement gauge

is broken loose from the box)

22. Couplers for loop wire

23. Screws for securing the charging station

24. Connector for the loop wire

25. Low voltage cable

26. Loop wire for boundary loop and guide wire

27. Operator’s Manual and Quick Guide

4 - Introduction 985 - 004 - 22.01.2019

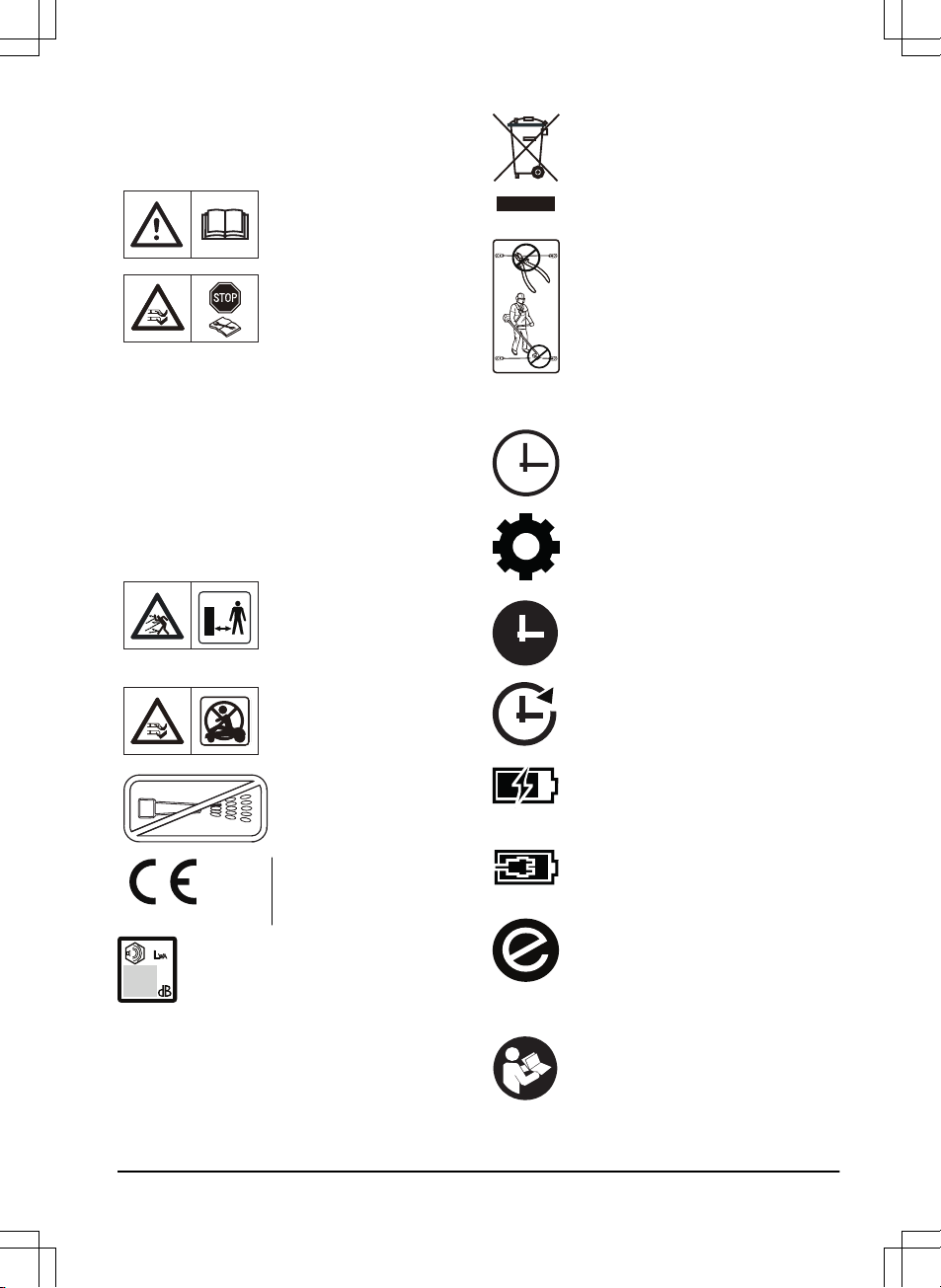

1.3 Symbols on the product

These symbols can be found on the product.

Study them carefully.

WARNING: Read the

user instructions before

operating the product.

WARNING: Operate the

disabling device before

working on or lifting the

product.

The product can only start

if the ON/OFF button is

pressed and the indicator

lamp is lit. Also, the cor-

rect PIN code must be

entered. Before any in-

spections or maintenance

is done, turn off the prod-

uct and check that the in-

dicator lamp on the

ON/OFF button is not lit.

WARNING: Keep a safe

distance from the product

when operating. Keep

your hands and feet away

from the rotating blades.

WARNING: Do not ride

on the product. Never put

your hands or feet close

to or under the product.

Do not use a high-pres-

sure washer.

This product conforms to

the applicable EC Direc-

tives.

Noise emission to surroundings. The

product’s emissions are set out in

Technical data on page 46

and on the

rating plate.

It is not permitted to dispose this

product as normal household waste.

Ensure that the product is recycled in

accordance with local legal

requirements.

The low voltage cable must not be

shortened, extended or spliced.

Do not use a trimmer nearby the low

voltage cable. Be careful when

trimming edges where the cables are

placed.

1.4 Symbols on the display

The schedule function controls when

the product cuts the lawn.

The settings function is where the

general settings for the products are

set.

The product will not cut the grass due

to the schedule function.

The product overrides the schedule

function.

The battery indicator shows the charge

level of the battery. When the product

charges the symbol flashes.

The product is put in the charging

station but do not charge the battery.

The product is set in ECO-mode.

1.5 Symbols on the battery

Read the user instructions.

985 - 004 - 22.01.2019 Introduction - 5

Do not discard the battery into fire and

do not expose the battery to a heat

source. Do not immerse the battery into water.

6 - Introduction 985 - 004 - 22.01.2019

1.6 Menu structure overview

Settings

Time &

date

Set time Set date Time format Date format

Language Country Reset all

user setting

About

Lawn shield Security Installation General

Low/Mid/High

Use

Lawnshield

Cutting time

Starting

point

Drive past

wire

ECO

mode

Mower

house

Security Level Advanced

Low Medium High

Bluetooth

New

loop

signal

Change

code

New

pairing

Remove

paired

devices

Lawn

Coverage

Schedule

Overview/Week

Period 1 Period 2 Copy

Su Current

day

All week

SaFrThWeTuMoAll

days

Reset

Wizard AdvancedDay

mode

Night

mode

1.7 Display

The display on the product shows information

and settings of the product.

To access the display, push the STOP button.

985 - 004 - 22.01.2019 Introduction - 7

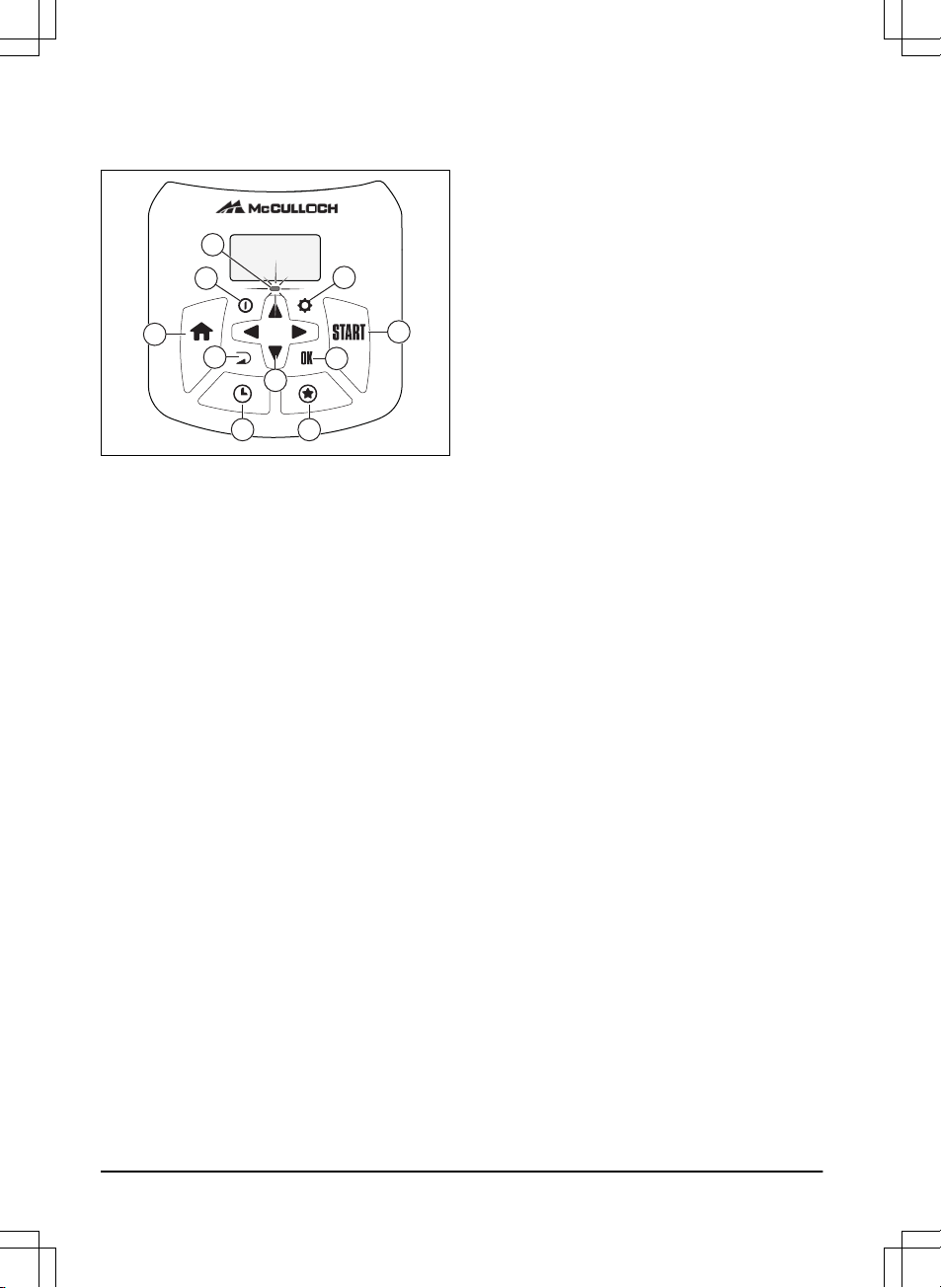

1.8 Keypad

The keypad consists of 6 groups of buttons:

109

1. The indicator lamp on the keypad is an

important status indicator. Refer to

The

indicator lamp on page 26

2. The ON/OFF button is used to turn the

product ON/OFF.

3. The Settings button is used to go to the

main menu.

4. The Home button is used to choose the park

modes:

Home & Stay

and

Home & Wait

5. The Start button is used to start the

operation of the product. The OK button is

used to confirm the chosen settings in the

menus.

6. The Back button is used when moving back

up in the menu lists.

7. The OK button is used to confirm the

chosen settings in the menus.

8. The arrow keys are used to navigate in the

menu. The up/down arrow keys are also

used to enter digits, for example, PIN code,

time and date

9. The Schedule button is used to go to the

schedule menu.

10. The STAR button is used to choose

operating modes:

2nd area

Power Cut

and

Spot Cut

8 - Introduction 985 - 004 - 22.01.2019

2 Safety

2.1 Safety definitions

Warnings, cautions and notes are used to point

out specially important parts of the manual.

WARNING: Used if there is a risk of

injury or death for the operator or

bystanders if the instructions in the

manual are not obeyed.

CAUTION: Used if there is a risk of

damage to the product, other materials

or the adjacent area if the instructions

in the manual are not obeyed.

Note: Used to give more information that is

necessary in a given situation.

2.2 General safety instructions

The following system is used in the Operator’s

Manual to make it easier to use:

•Text written in

italics

is a text that is shown

on the display of the product or is a

reference to another section in the

Operator’s Manual.

• Text written in bold is one of the buttons on

the keypad of the product.

• Text written in

UPPERCASE

and

italics

refer

to the different operating modes available in

the product.

985 - 004 - 22.01.2019 Safety - 9

2.2.1 IMPORTANT. READ CAREFULLY

BEFORE USE. KEEP FOR FUTURE

REFERENCE

The operator is responsible for accidents or hazards occurring to

other people or property.

This appliance is not intended for use by persons (including chil-

dren) with reduced physical, sensory or mental capabilities (that

could affect a safe handling of the product), or lack of experience

and knowledge, unless they have been given supervision or in-

struction concerning use of the appliance by a person responsible

for their safety.

This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Local regula-

tions may restrict the age of the operator. Cleaning and mainte-

nance shall not be made by children without supervision.

Never connect the power supply to an outlet if the plug or cord is

damaged. Worn or damaged cord increase the risk of electric

shock.

Only charge the battery in the included charging station. Incorrect

use may result in electric shock, overheating or leaking of corro-

sive liquid from the battery. In the event of leakage of electrolyte,

flush with water/neutralizing agent. Seek medical help if it comes

in contact with the eyes.

Use only original batteries recommended by the manufacturer.

Product safety cannot be guaranteed with other than original bat-

teries. Do not use non-rechargeable batteries.

The appliance must be disconnected from the supply mains when

removing the battery.

10 - Safety 985 - 004 - 22.01.2019

Autres manuels pour ROB S400

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels McCulloch Tondeuse à gazon

McCulloch

McCulloch Edition 1 Manuel du propriétaire

McCulloch

McCulloch MC30 Manuel du propriétaire

McCulloch

McCulloch 532 43 55-83 Rev. 1 Manuel utilisateur

McCulloch

McCulloch Elite 3300 Manuel utilisateur

McCulloch

McCulloch MC20V42YT Manuel du propriétaire

McCulloch

McCulloch Edition 1-R Manuel du propriétaire

McCulloch

McCulloch M145-107T POWERDRIVE Manuel utilisateur

McCulloch

McCulloch 532 43 22-10 Manuel utilisateur

McCulloch

McCulloch Edition 1-R Manuel utilisateur

McCulloch

McCulloch M7053D Manuel utilisateur

McCulloch

McCulloch ROB S400 Manuel utilisateur

McCulloch

McCulloch 96141020600 Manuel utilisateur

McCulloch

McCulloch M125-85FH Manuel utilisateur

McCulloch

McCulloch 180HCRD Guide de configuration

McCulloch

McCulloch M46-160 AWRPX Manuel utilisateur

McCulloch

McCulloch M12592 RB Manuel du propriétaire

McCulloch

McCulloch M53-190RP Manuel utilisateur

McCulloch

McCulloch HURRICANE 125 RB Manuel utilisateur

McCulloch

McCulloch BM145B107HRBK Manuel utilisateur

McCulloch

McCulloch M145107HP Manuel utilisateur

McCulloch

McCulloch 96041009100 Manuel utilisateur

McCulloch

McCulloch 532 43 30-30 Manuel utilisateur

McCulloch

McCulloch M51-125M Manuel utilisateur

McCulloch

McCulloch 532 43 41-99 Rev. 1 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
