Operator's manual

ROB S400, ROB S500,

ROB S600

Read the operator's manual carefully and make sure that you

understand the instructions before you use the product.

Contents
Introduction
1 Introduction.................................................3
2 Product overview........................................4
3 Symbols on the product..............................5
4 Symbols on the display.............................. 5
5 Symbols on the battery...............................5
6 General manual instructions.......................5
7 Menu structure overview............................ 7
8 Display........................................................7
9 Keypad....................................................... 8
Safety
1 IMPORTANT. READ CAREFULLY
BEFORE USE. KEEP FOR FUTURE
REFERENCE................................................... 9
2 Safety definitions...................................... 10
3 Safety instructions for operation...............10
Installation
1 Introduction - Installation.......................... 14
2 Main components for installation..............14
3 General preparations................................14
4 Before the installation of the wires........... 14
5 Installation of the product......................... 19
6 To put the wire into position with stakes...21
7 To bury the boundary wire or the
guide wire....................................................... 22
8 To extend the boundary wire or the
guide wire....................................................... 22
9 After the installation of the product...........22
10 To do the product settings......................23
Operation
1 The ON/OFF button..................................30
2 To start the product.................................. 30
3 Operating modes......................................30
4 Park modes.............................................. 31
5 To stop the product.................................. 31
6 Switch off..................................................31
7 Schedule and Standby............................. 32
8 To charge the battery............................... 33
9 Adjust the cutting height........................... 33
Maintenance
1 Introduction - maintenance.......................34
2 Clean the product..................................... 34
3 Replace the blades...................................35
4 Battery...................................................... 35
5 Winter service...........................................36
Troubleshooting
1 Introduction - troubleshooting...................38
2 Fault messages........................................ 38
3 Information messages.............................. 43
4 Indicator lamp in the charging station.......44
5 Symptoms................................................ 45
6 Find breaks in the loop wire..................... 46
Transportation, storage and disposal
1 Transportation.......................................... 49
2 Storage.....................................................49
3 Disposal....................................................49
Technical data
1 Technical data.......................................... 50
2 Registered trademarks............................. 52
Warranty
1 Warranty terms.........................................53
EC Declaration of Conformity
1 EC Declaration of Conformity.................54
11
- 001 - 18.12.2019

1 Introduction

1.1 Introduction

Serial number:

PIN code:

Product registration key:

The serial number is on the product rating plate and on the product carton.

• Use the serial number to register your product on www.mcculloch.com.

1.1.1 Support

For support about the product, speak to your

servicing dealer.

1.1.2 Product description

Note: regularly updates the appearance and

function of the products. Refer to

Support on

page 3

The product is a robotic lawn mower. The product

has a battery power source and cuts the grass

automatically. It continuously alternates between

mowing and charging. The movement pattern is

random, which means that the lawn is mowed

evenly and with less wear. The boundary wire

and the guide wire controls the movement of the

product within the work area. Sensors in the

product senses when it is approaching the

boundary wire. The front of the product always

passes the boundary wire by a specific distance

before the product turns around. When the

product hits an obstacle or approaches the

boundary wire the product selects a new

direction.

The operator selects the operation settings with

the keys on the keypad. The display shows the

selected and possible operation settings, and the

operation mode of the product.

1.1.2.1 Mowing technique

The product is emission free, easy to use and

saves energy. The frequent cutting technique

improves the grass quality and decreases the

use of fertilizers. Collection of grass is not

necessary.

1.1.2.2 Find the charging station

The product operates until the battery is low.

Then it follows the guide wire to the charging

station. The guide wire is laid from the charging

station towards, for instance, a remote part of the

work area or through a narrow passage. The

guide wire is connected with the boundary wire

and makes it much easier and faster for the

product to find the charging station.

1411 - 001 - 18.12.2019 Introduction - 3

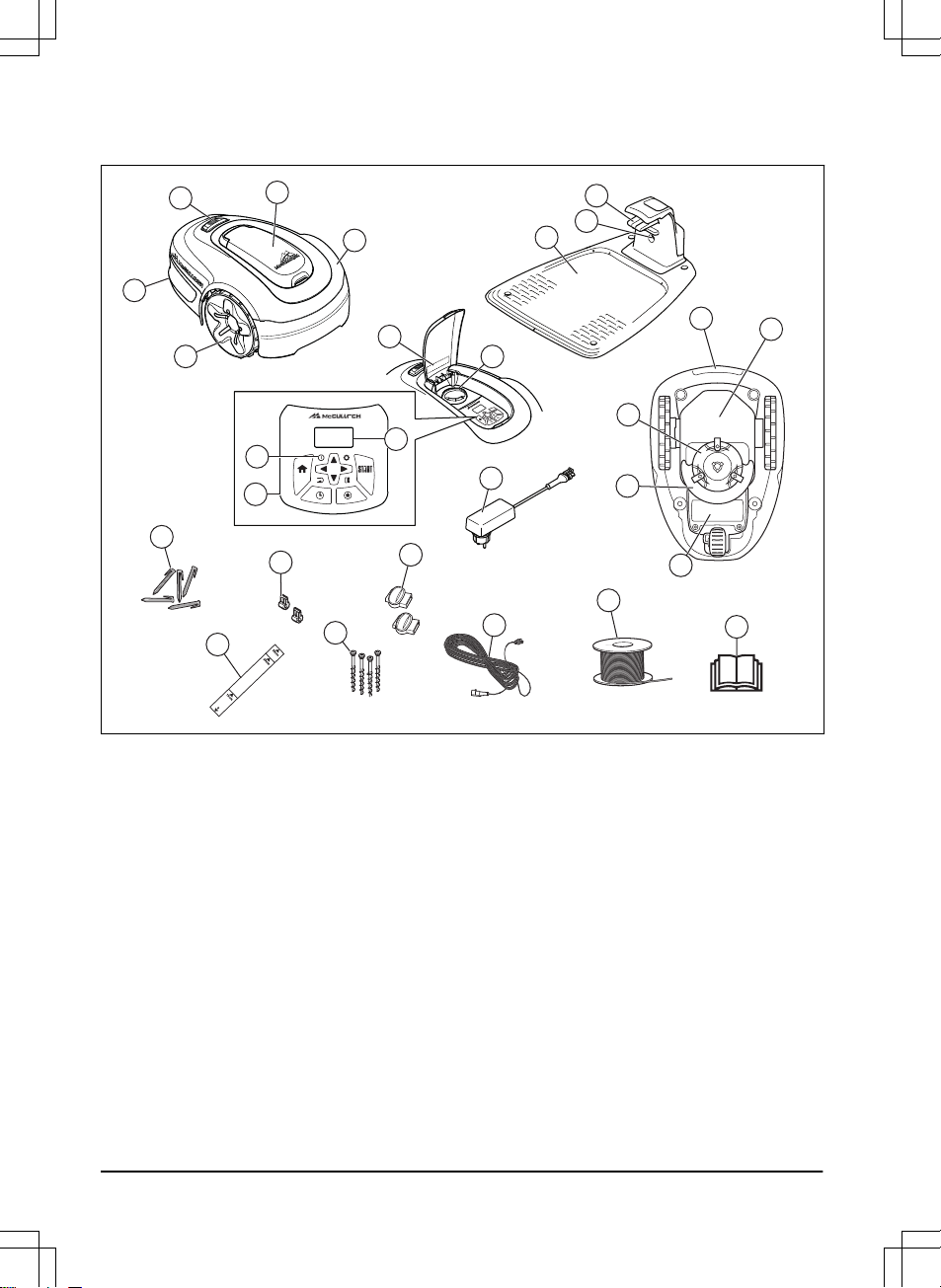

1.2 Product overview

16 17

25 27

The numbers in the figure represent:

1. Body

2. Hatch to display and keypad

3. Stop button

4. Rear wheel

5. Front wheels

6. Charging station

7. Contact plates

8. LED for operation check of the charging

station, boundary wire and guide wire

9. Cutting height adjustment

10. Rating plate (including product identification

code)

11. Display

12. Keypad

13. ON/OFF button

14. Cutting system

15. Blade disc

16. Handle

17. Chassis box with electronics, battery and

motors

18. Battery cover

19. Power supply (the appearance of the power

supply may differ depending on market)

20. Stakes

21. Measurement gauge for help when installing

the boundary wire (the measurement gauge

is broken loose from the box)

22. Couplers for loop wire

23. Screws for securing the charging station

24. Connector for the loop wire

25. Low voltage cable

26. Loop wire for boundary loop and guide wire

27. Operator’s Manual and Quick Guide

4 - Introduction 1411 - 001 - 18.12.2019

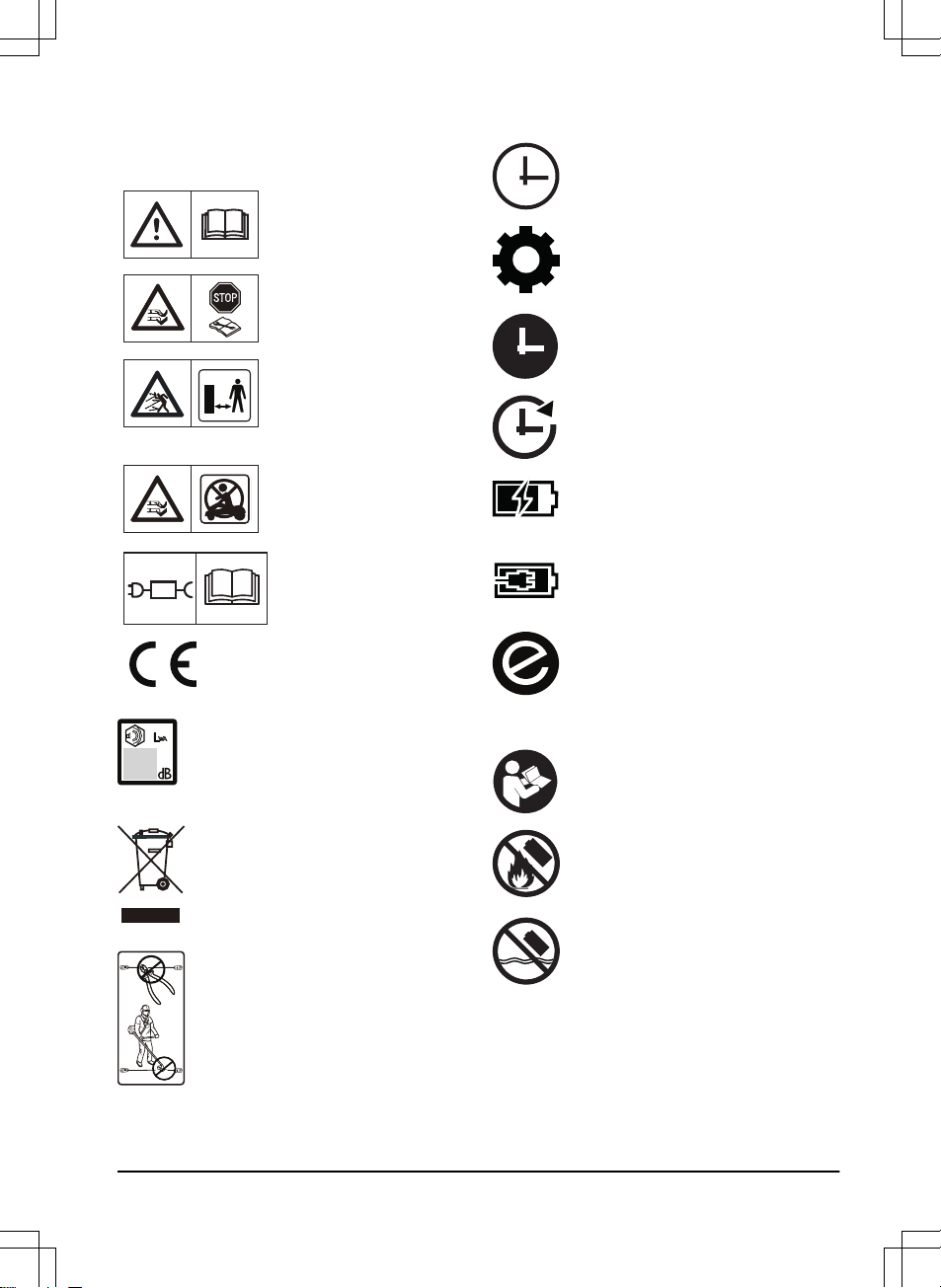

1.3 Symbols on the product

These symbols can be found on the product.

Study them carefully.

WARNING: Read the

user instructions before

operating the product.

WARNING: Disable the

product before working on

or lifting the product.

WARNING: Keep a safe

distance from the product

when operating. Keep

your hands and feet away

from the rotating blades.

WARNING: Do not ride

on the product. Never put

your hands or feet close

to or under the product.

Use a detachable power

supply as defined on the

rating label next to the

symbol.

This product conforms to

the applicable EC Direc-

tives.

Noise emission to surroundings. The

product’s emissions are set out in

Technical data on page 50

and on the

rating plate.

It is not permitted to dispose this

product as normal household waste.

Ensure that the product is recycled in

accordance with local legal

requirements.

The low voltage cable must not be

shortened, extended or spliced.

Do not use a trimmer nearby the low

voltage cable. Be careful when

trimming edges where the cables are

placed.

1.4 Symbols on the display

The schedule function controls when

the product cuts the lawn.

The settings function is where the

general settings for the products are

set.

The product will not cut the grass due

to the schedule function.

The product overrides the schedule

function.

The battery indicator shows the charge

level of the battery. When the product

charges the symbol flashes.

The product is put in the charging

station but do not charge the battery.

The product is set in ECO-mode.

1.5 Symbols on the battery

Read the user instructions.

Do not discard the battery into fire and

do not expose the battery to a heat

source.

Do not immerse the battery into water.

1.6 General manual instructions

The following system is used in the Operator’s

Manual to make it easier to use:

1411 - 001 - 18.12.2019 Introduction - 5

• Text written in

italics

is a text that is shown

in the display or is a reference to another

section in the Operator’s Manual.

• Text written in bold is one of the buttons on

the product.

• Text written in

UPPERCASE

and

italics

refer

to the different operating modes available in

the product.

6 - Introduction 1411 - 001 - 18.12.2019

1.7 Menu structure overview

Settings

Time &

date

Set time Set date Time format Date format

Language Country Reset all

user setting

About

Lawn shield Security Installation General

Low/Mid/High

Use

Lawnshield

Cutting time

Starting

point

Drive past

wire

ECO

mode

Mower

house

Security Level Advanced

Low Medium High

Bluetooth

New

loop

signal

Change

code

New

pairing

Remove

paired

devices

Lawn

Coverage

Schedule

Overview/Week

Period 1 Period 2 Copy

Su Current

day

All week

SaFrThWeTuMoAll

days

Reset

Wizard AdvancedDay

mode

Night

mode

1.8 Display

The display on the product shows information

and settings of the product.

To access the display, push the STOP button

and open the hatch.

1411 - 001 - 18.12.2019 Introduction - 7

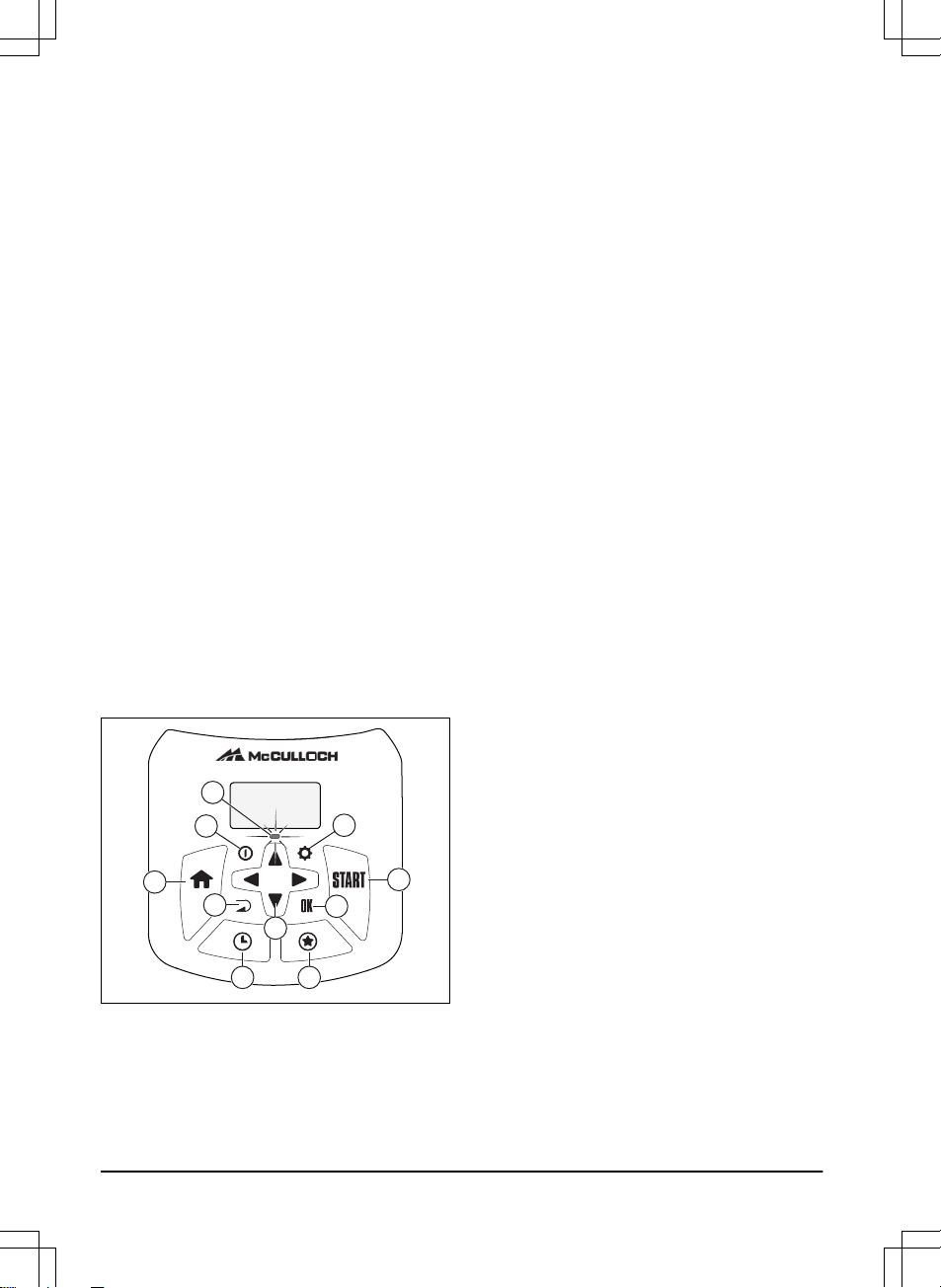

1.9 Keypad

The keypad on the product lets the operator

navigate in the menu. To access the keypad,

push the STOP button and open the hatch.

• The indicator lamp (A) on the keypad is an

important status indicator. Refer to

The

indicator lamp on page 30

• The ON/OFF button (B) is used to turn the

product ON/OFF.

• The Settings button (C) is used to go to the

main menu.

• The Home button (D) is used to choose the

park modes:

Home & Stay

and

Home &

Wait

• The Start button (E) is used to start the

operation of the product.

• The BACK button (F) is used when moving

back up in the menu lists.

• The OK button (G) is used to confirm the

chosen settings in the menus.

• The arrow keys (H) are used to navigate in

the menu. The up/down arrow keys are also

used to enter digits, for example, PIN code,

time and date

• The Schedule button (I) is used to go to the

schedule menu.

• The STAR button (J) is used to choose

operating modes:

2nd area

Power Cut

and

Spot Cut

8 - Introduction 1411 - 001 - 18.12.2019

2 Safety

2.1 IMPORTANT. READ CAREFULLY

BEFORE USE. KEEP FOR FUTURE

REFERENCE

The operator is responsible for accidents or hazards occurring to

other people or property.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities (that

could affect a safe handling of the product), or lack of experience

and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety.

This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Local regulations

may restrict the age of the operator. Cleaning and maintenance

shall not be made by children without supervision.

Never connect the power supply to an outlet if the plug or cord is

damaged. Worn or damaged cord increase the risk of electric

shock.

Only charge the battery in the included charging station. Incorrect

use may result in electric shock, overheating or leaking of

corrosive liquid from the battery. In the event of leakage of

electrolyte, flush with water/neutralizing agent. Seek medical help if

it comes in contact with the eyes.

Use only original batteries recommended by the manufacturer.

Product safety cannot be guaranteed with other than original

batteries. Do not use non-rechargeable batteries.

The appliance must be disconnected from the supply mains when

removing the battery.

1411 - 001 - 18.12.2019 Safety - 9

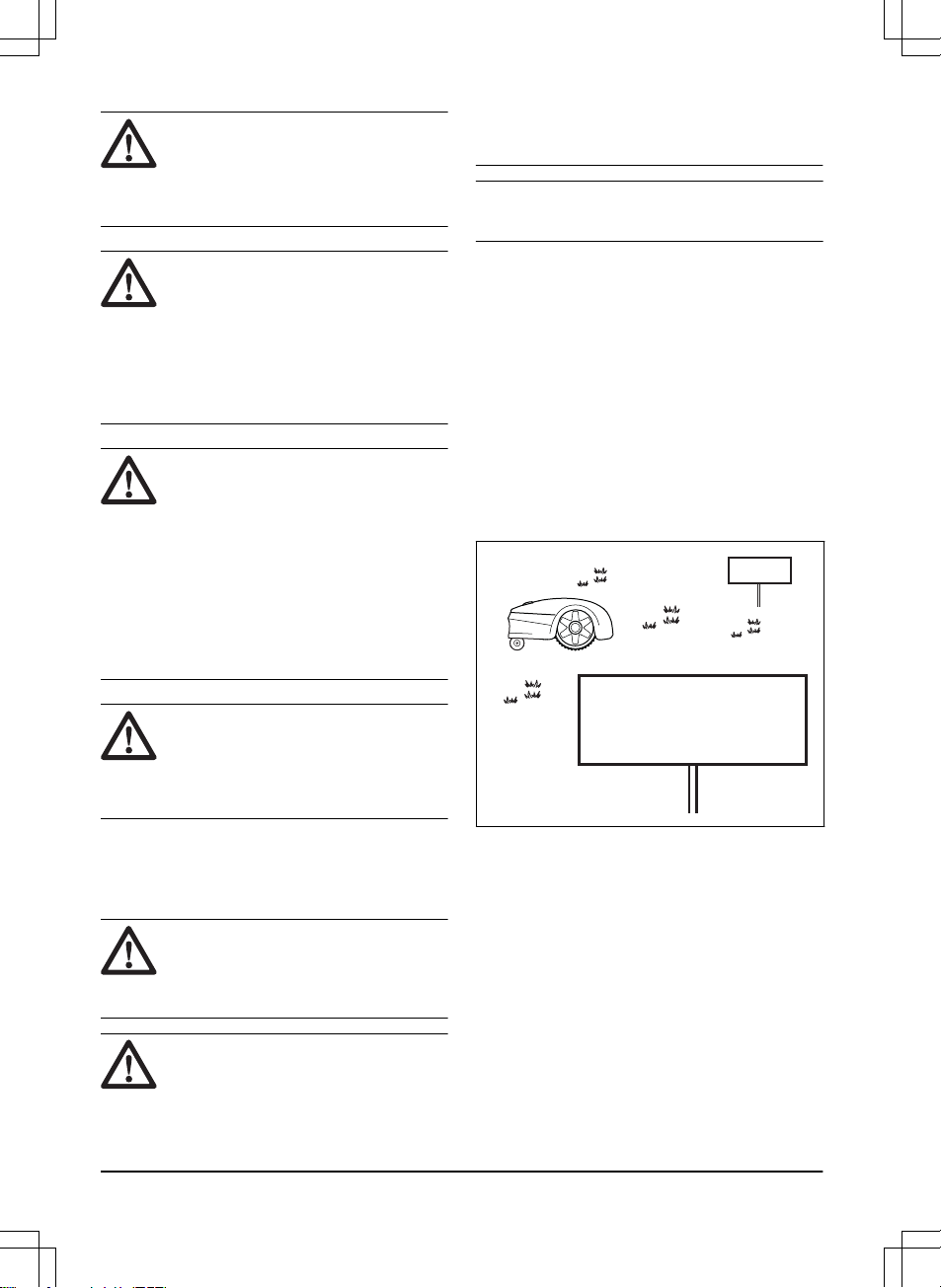

WARNING: The product

can be dangerous if used

incorrectly.

WARNING: Do not use

the product when

persons, especially

children, or animals, are

in the work area.

WARNING: Keep your

hands and feet away

from the rotating blades.

Never put your hands or

feet close to or under the

product when the motor

is running.

WARNING: In the event

of an injury or accident

seek medical help.

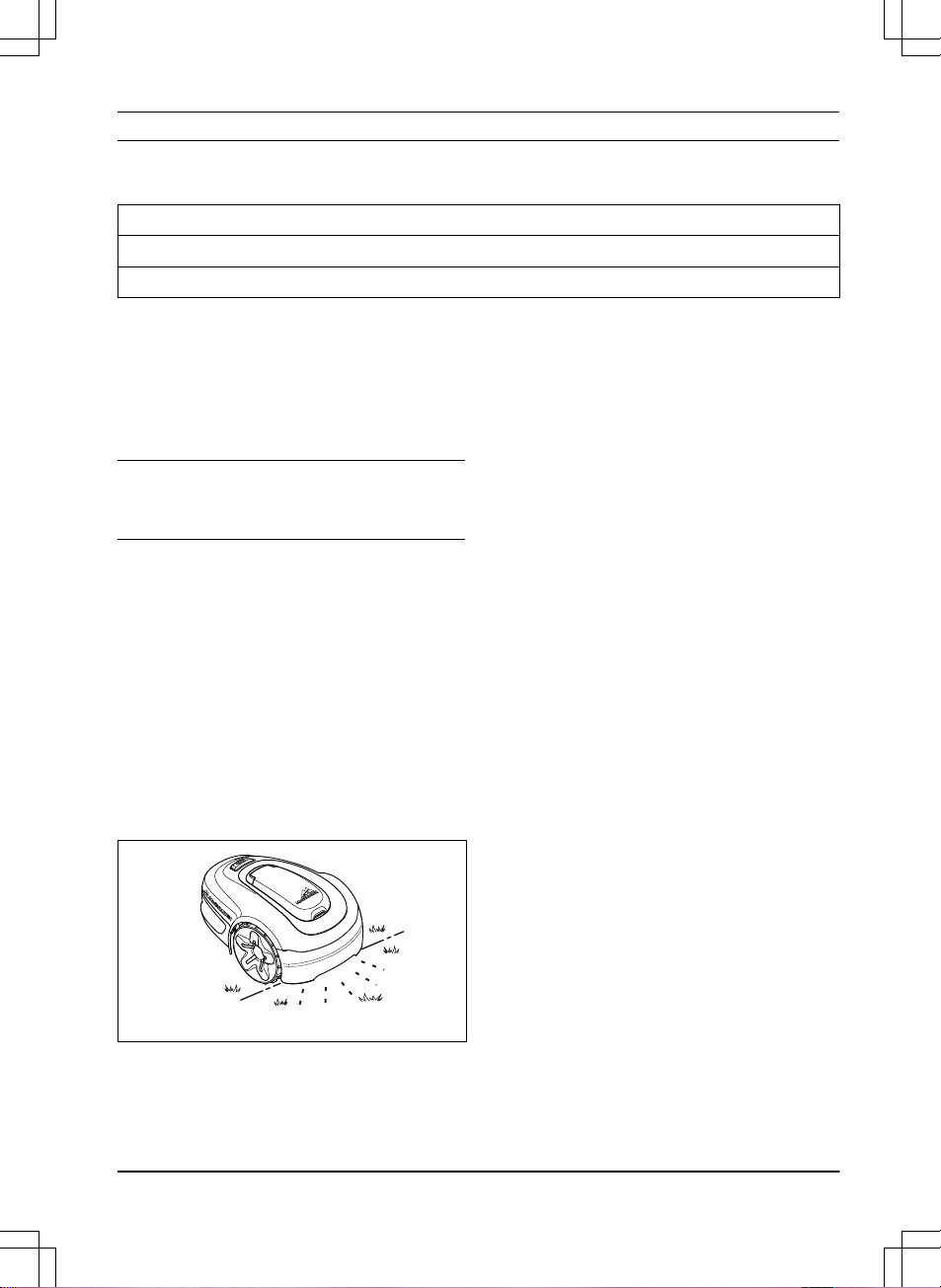

2.2 Safety definitions

Warnings, cautions and notes are used to point

out specially important parts of the manual.

WARNING: Used if there is a risk of

injury or death for the operator or

bystanders if the instructions in the

manual are not obeyed.

CAUTION: Used if there is a risk of

damage to the product, other materials

or the adjacent area if the instructions

in the manual are not obeyed.

Note: Used to give more information that is

necessary in a given situation.

2.3 Safety instructions for operation

2.3.1 Use

• The product may only be used with the

equipment recommended by the

manufacturer. All other types of use are

incorrect. The manufacturer’s instructions

with regard to operation/maintenance must

be followed precisely.

• Warning signs shall be placed around the

work area of the product if it is used in public

areas. The signs shall have the following

text: Warning! Automatic lawnmower! Keep

away from the machine! Supervise children!

Warning!

Automatic lawnmower!

Keep away from the machine!

Supervise children!

Warning!

Automatic lawnmower!

Keep away from the machine!

Supervise children!

• Use the operating mode

Home & Stay

switch off the product when persons,

especially children, or animals, are in the

work area. It is recommended to program

the product for use during hours when the

area is free from activity, e.g. at night. Refer

To do the schedule settings on page 23

Consider that certain species, e.g.

hedgehogs, are active at night. They can

potentially be harmed by the product.

• The product may only be operated,

maintained and repaired by persons that are

fully conversant with its special

characteristics and safety regulations.

10 - Safety 1411 - 001 - 18.12.2019

Autres manuels pour ROB S400

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels McCulloch Tondeuse à gazon

McCulloch

McCulloch PM1850SBH Guide de configuration

McCulloch

McCulloch M53-190AWFP Manuel utilisateur

McCulloch

McCulloch MC30 Manuel utilisateur

McCulloch

McCulloch MC11T92RB Manuel du propriétaire

McCulloch

McCulloch M12592 RB Manuel du propriétaire

McCulloch

McCulloch M3750SM Manuel utilisateur

McCulloch

McCulloch 532 43 45-09 Rev. 1 Manuel utilisateur

McCulloch

McCulloch 960210033 Manuel utilisateur

McCulloch

McCulloch M53-190WFX Manuel utilisateur

McCulloch

McCulloch MM51-500CMDW Manuel utilisateur

McCulloch

McCulloch M46-110 CLASSIC Manuel utilisateur

McCulloch

McCulloch M175H38RB Manuel utilisateur

McCulloch

McCulloch M195-42T Manuel utilisateur

McCulloch

McCulloch PM655HW Guide de configuration

McCulloch

McCulloch LZ145H92RBK Manuel utilisateur

McCulloch

McCulloch 11597SD Manuel utilisateur

McCulloch

McCulloch MCM2011 Mode d’emploi

McCulloch

McCulloch 96141014103 Manuel utilisateur

McCulloch

McCulloch M51-140F Manuel utilisateur

McCulloch

McCulloch M115-97T Manuel utilisateur

McCulloch

McCulloch M46-125WR Manuel utilisateur

McCulloch

McCulloch BLISAR BE24 PRO Manuel utilisateur

McCulloch

McCulloch EDITION 96141012700 Manuel utilisateur

McCulloch

McCulloch M155-107HRB Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
