McCulloch MC550R Manuel du propriétaire

www.mcculloch.biz

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as

manufactured is free from defects in materials and workmanship. For a period of

two (2) years from date of purchase by the original consumer purchaser, we will re-

pair or replace, at our option, without charge for parts or labor incurred in replacing

parts, any part which we ﬁnd to be defective due to materials or workmanship. This

Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine, transaxle/transmission components,

battery (except as noted below) or components parts thereof. Please refer to the

applicable manufacturer's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or at-

tachment are the responsibility of the purchaser. Transportation charges for any

parts submitted for replacement under this warranty must be paid by the pur-

chaser unless such return is requested by the manufacturer.

3. Battery Warranty: On products equipped with a Battery, we will replace, without

charge to you, any battery which we ﬁnd to be defective in manufacture, during

the ﬁrst ninety (90) days of ownership. After ninety (90) days, we will exchange

the Battery, charging you 1/12 of the price of a new Battery for each full month

from the date of the original sale. Battery must be maintained in accordance with

the instructions furnished.

4. The Warranty period for any products used for rental or commercial purposes is

limited to 45 days from the date of original purchase.

5. This Warranty applies only to products which have been properly assembled,

adjusted, operated, and maintained in accordance with the instructions furnished.

This Warranty does not apply to any product which has been subjected to al-

teration, misuse, abuse, improper assembly or installation, delivery damage, or to

normal wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, nor-

mal wear, normal adjustments, standard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to

an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, contact:

giving the model number, serial number and date of purchase of your product and

the name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL

DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME

TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES.

Some areas do not allow the limitation of consequential damages or limitations

of how long an implied Warranty may last, so the above limitations or exclusions

may not apply to you. This Warranty gives you speciﬁc legal rights, and you may

have other rights which vary from locale to locale.

This is a limited Warranty within the meaning of that term as deﬁned in the Mag-

nuson-Moss Act of 1975.

In Canada contact:

HOP

Customer Service Department

5855 Terry Fox Way

Mississauga, Ontario L5V 3E4

HOP

Customer Service Department

1030 Stevens Creek Road

Augusta, GA 30907 USA

435223 02.12.10 BY Printed in U.S.A.

REPAIR PARTS MANUAL

MODEL NUMBER MC550R

MFG. ID. NO. 96132005300

Rotary Lawn Mower

For Parts and Service, contact our authorized distributor: call 1-800-849-1297

For Technical Assistance: call 1-800-829-5886

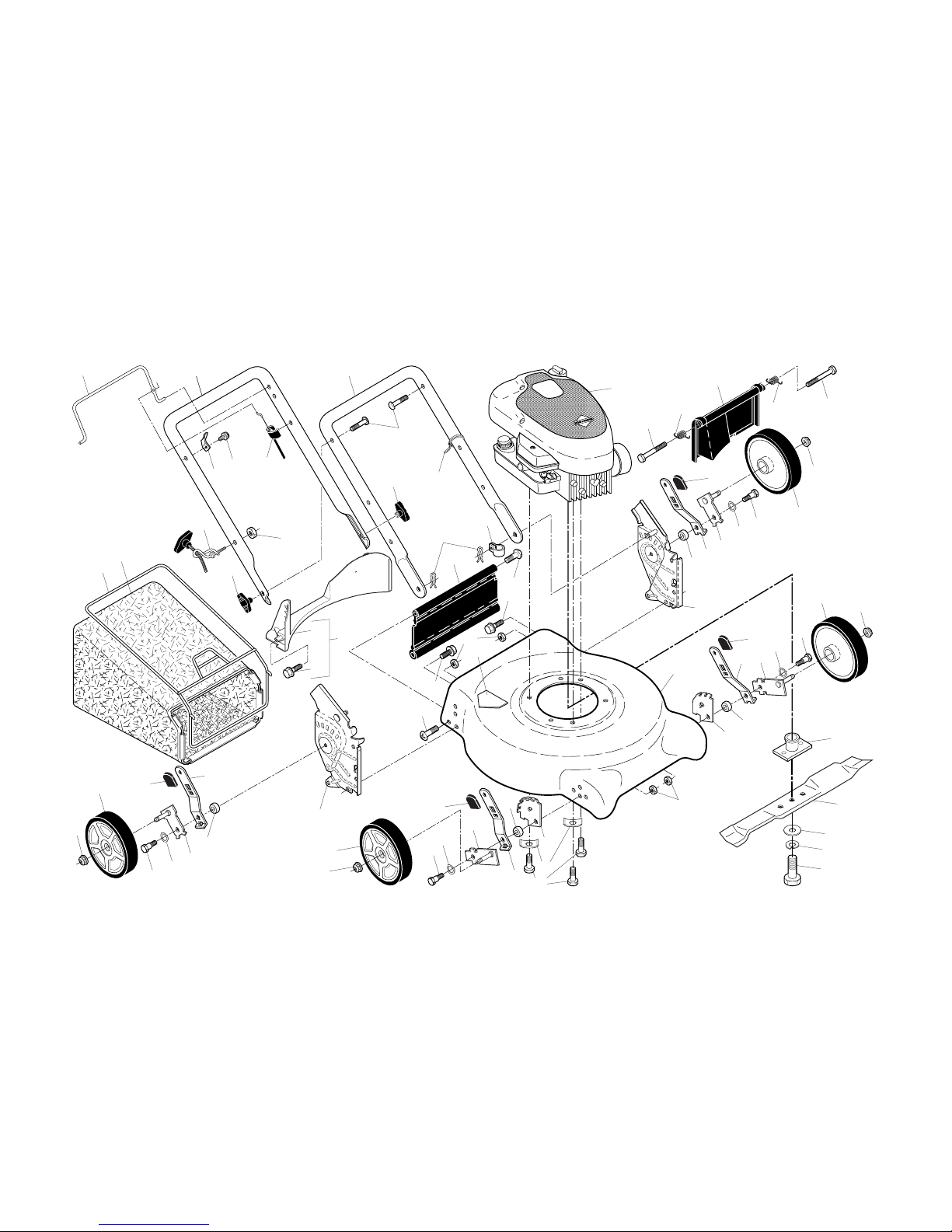

ROTARY LAWN MOWER - - MODEL NUMBER MC55R (MFG. ID. NUMBER 96132005300)

12 3

43 44

ROTARY LAWN MOWER - - MODEL NUMBER MC55R (MFG. ID. NUMBER 96132005300)

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

28 407499X005 Wheel Adjusting Bracket,

Front, LH

29 407500X005 Wheel Adjusting Bracket,

Front, RH

30 401629 Spacer

32 401623X004 Selector Spring, Rear

33 701037 Selector Knob

34 401173X004 Axle Arm Assembly,

Rear, LH

35 73930500 Locknut, Hex 5/16-18

36 401638 Shoulder Bolt 5/16-18

37 193931X421 Wheel & Tire Assembly,

Front 7 x 1-3/4

40 411949 Frame, Grassbag

41 88652 Hinge Screw

42 405421 Spring, Rear Door, LH

43 405423 Spring, Rear Door, RH

44 184193 Bolt, Rear Door

45 150406 Hex Head Thread Rolling

Screw 3/8-16 x 1

46 404763 Danger Decal

49 193905X421 Wheel & Tire Assembly,

Rear 8 x 1-3/4

50 402024 Grassbag

52 424110 Kit, Mower Housing

(Includes Key Number 46)

KEY PART

NO. NO. DESCRIPTION

1 194177X428 Control Bar

2 194179X479 Upper Handle

3 169708X479 Lower Handle

4 194788 Rope Guide

5 132004 Nut, Hex

6 191574 Handle Bolt

7 66426 Wire Tie

11 176556 Cable, Engine Zone Control

12 750634 Hex Washer Head Screw

13 429930X004 Up-Stop Bracket

14 189713X428 Knob, Handle

15 51793 Hairpin Cotter

18 17600406 Screw

19 401174X004 Axle Arm Assembly,

Front, LH

20 401175X004 Axle Arm Assembly,

Front, RH

21 418655 Kit, Rear Skirt

22 401621X004 Selector Spring, Front

23 401814X428 Rear Door Assembly

24 426589 Nut, Hex 5/16-18

25 410387X479 Handle Bracket

Assembly, LH

26 410388X479 Handle Bracket

Assembly, RH

KEY PART

NO. NO. DESCRIPTION

53 851084 Hex Head Screw

3/8-24 x 1-3/8 Grade 8

54 850263 Helical Lockwasher

55 851074 Hardened Washer

56 406712 21" Blade

57 851514 Blade Adapter

59 - - - Engine, Briggs & Stratton,

Model Number 10T802-

1098-ED (For engine service

and replacement parts,

call Briggs & Stratton

at 1-800-233-3723)

61 409148 Flanged Locknut, Hex

67 197991 Clip, Cable

73 401630 Washer, Curved, Cylindrical

74 851201X004 Washer, Special, Engine

75 413693 Kit, Rear Bafﬂe

(Includes 3 Screws)

76 410589 Bafﬂe, Rear

77 17411312 Screw, Rear Bafﬂe

- - 404764 Warning Decal (not shown)

- - 193732 Operator’s Manual, English

- - 193734 Operator’s Manual, French

- - 435223 Repair Parts Manual, English

KEY PART

NO. NO. DESCRIPTION
