McCulloch BH55Y21RH Manuel du propriétaire

REPAIR PARTS MANUAL

MODEL NO. BH55Y21RH

MFG. ID. NO. 96141000100

Rotary Lawn Mower

532 19 53-42 Rev. 1 12.08.04 BY Printed in U.S.A.

ROTARY LAWN MOWER - - MODEL NO. BH55Y21RH (96141000100) - PRODUCT NO. 961 41 00-01

1 532 19 25-17 Upper Handle

2 532 15 36-05 Lower Handle

3 532 14 67-71 Control Bar

4 532 18 35-67 Cable, Engine Zone Control

5 532 19 15-74 Handle Bolt

6 532 19 19-38 Handle Knob

7 532 05 17-93 Hairpin Cotter

8 532 06 64-26 Wire Tie

9 532 18 04-79 Rear Door Kit (Includes Key Numbers 16 and 17)

10 532 12 84-15 Pop Rivet

11 532 18 25-38 Support Bracket, LH

12 532 18 25-39 Support Bracket, RH

13 817 06 04-10 Screw 1/4-20 x 5/8

14 532 18 25-43 Handle Bracket Assembly, LH

15 532 18 25-45 Handle Bracket Assembly, RH

16 532 18 00-71 Spring, Rear Door, LH

17 532 18 00-72 Spring, Rear Door, RH

18 532 13 20-04 Locknut, Hex, Keps 1/4-20

19 532 17 95-85 Rope Guide

20 532 17 92-05 Foot Guard, C.E.

21 532 05 45-83 Screw, Tapping 1/4-20 x 1/2

22 532 18 49-41 Engine Pulley

23 532 18 77-23 Hi-Pro Key

24 - - - Engine, Honda, Model Number GCV160

(order parts from engine manufacturer)

25 532 15 04-06 Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8

26 532 08 39-23 Nut, Hex, Flanged

27 532 18 05-52 Wheel & Tire Assembly, Rear 14 x 2

28 532 16 08-28 Shoulder Bolt 5/16-18 x .33

KEY PART

NO. NO. DESCRIPTION

30 532 18 25-41 Axle Arm Assembly, Rear, RH

31 532 14 60-52 Selector Knob

32 532 18 25-37 Selector Spring

33 873 80 05-00 Locknut, Hex

34 532 18 25-42 Axle Arm Assembly, Rear, LH

35 532 19 18-53 Hubcap

36 532 18 41-93 Bolt

37 532 15 00-78 Thread Cutting Screw w/Sems 5/16-18 x 3/4

38 819 11 22-06 Spacer

40 532 19 09-39 Mounting Bracket, Debris Shield

41 532 19 23-25 Screw, Hex Washer Head

43 532 18 87-84 Debris Shield

44 532 18 75-07 Kit, Lawn Mower Housing

(Includes Key Numbers 10, 11, 12 and 45)

45 532 18 21-66 Danger Decal

46 532 18 46-32 Blade Adapter

47 532 16 58-33 Blade, 21"

48 532 85 10-74 Hardened Washer

49 532 85 02-63 Helical Washer 3/8-24 x 1-3/8 Grade 8

50 532 85 10-84 Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8

65 532 18 81-52 O-Ring

66 532 08 83-48 Washer, Flat 3/8

67 532 19 34-98 Kit, Bushing, High Wheel

68 532 19 36-96 Bushing, Nylon, Black

96 532 19 27-70 Clip, Cable

- - 532 18 21-34 Decal, Self-Propelled, Internal (not shown)

- - 532 19 63-27 Operator’s Manual, European

- - 532 19 63-28 Operator’s Manual, Scandinavian

- - 532 19 63-29 Operator’s Manual, East Bloc

- - 532 19 53-42 Repair Parts Manual, English

KEY PART

NO. NO. DESCRIPTION

ROTARY LAWN MOWER - - MODEL NO. BH55Y21RH (96141000100) - PRODUCT NO. 961 41 00-01

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

ROTARY LAWN MOWER - - MODEL NO. BH55Y21RH (96141000100) - PRODUCT NO. 961 41 00-01

1 532 18 45-88 Cable Assembly, Drive Control

2 532 08 80-58 Bearing, Wheel Adjuster

3 532 17 52-62 Pan Head Tapping Screw #10-24 x 2-3/4

4 532 15 87-55 Hex Washer Head Screw 1/4-20 x 2.12

5 532 17 54-36 V-Belt

6 532 15 04-95 Spring Retainer

7 532 19 17-30 Nut, Hex, Flanged 1/4-20

8 532 18 06-26 Hubcap

9 532 14 52-12 Locknut, Hex

11 532 18 07-75 Wheel & Tire Assembly, Front 8 x 2

12 812 00 00-58 E-Ring

13 532 13 70-54 Pinion

14 532 18 94-03 Dust Cover

16 532 06 77-25 Washer 1/2 x 1-1/2 x .134

KEY PART

NO. NO. DESCRIPTION

18 532 70 10-37 Selector Knob

28 532 18 14-67 Drive Cover

31 532 13 20-10 Hex Nut, Flanged

32 532 18 94-07 Drive Pulley

35 532 15 15-21 Kit, Wheel Adjuster, LH

(Includes Knob and Bearing)

36 532 18 01-84 Gear Case Assembly (See Breakdown)

38 873 80 04-00 Locknut, Hex 1/4-20

40 532 13 70-90 Spring

41 532 15 15-20 Kit, Wheel Adjuster, RH

(Includes Knob and Bearing)

54 532 19 54-76 Grassbag Assembly

55 532 17 57-39 Driveshaft Cover

57 532 18 88-15 Frame, Grassbag

KEY PART

NO. NO. DESCRIPTION

ROTARY LAWN MOWER - - MODEL NO. BH55Y21RH (96141000100) - PRODUCT NO. 961 41 00-01

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

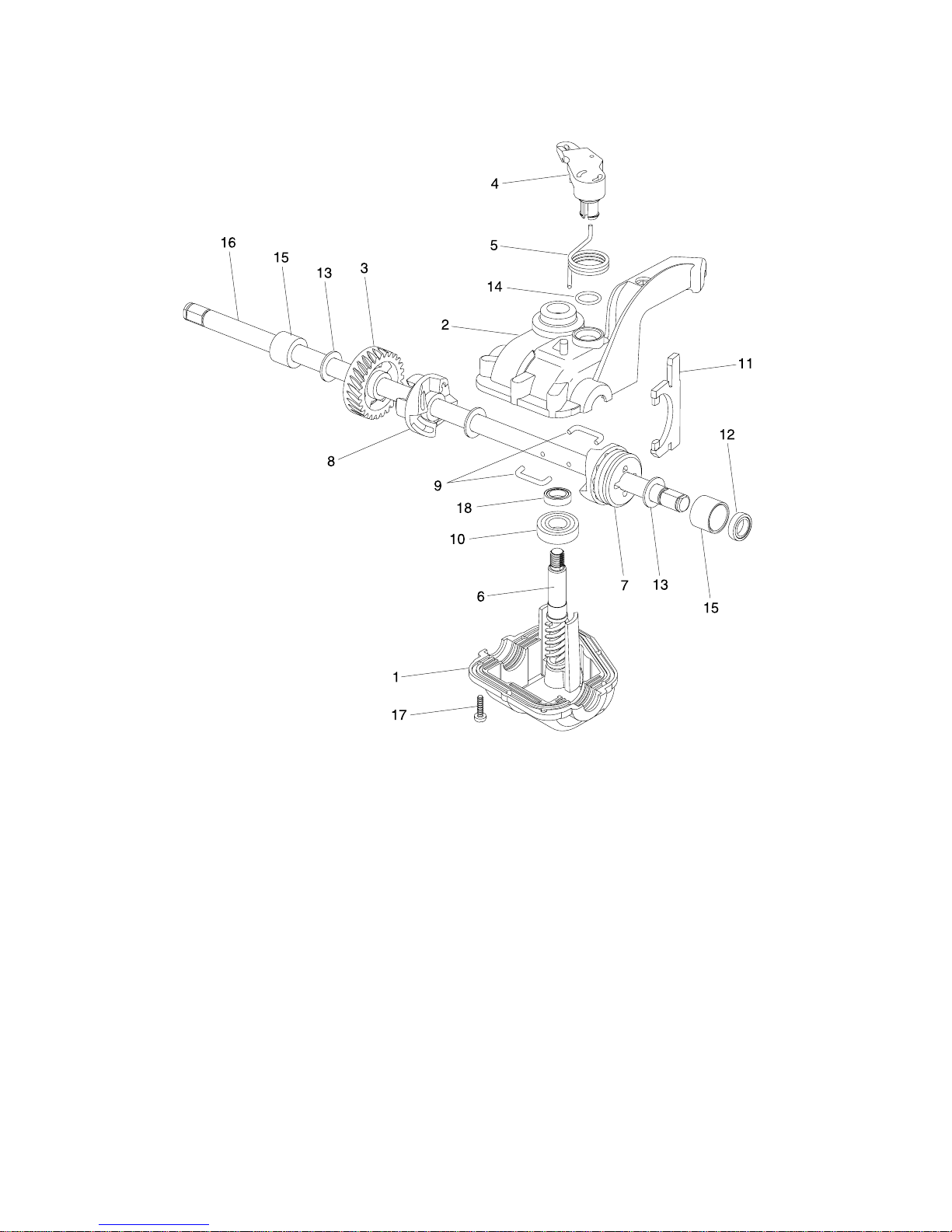

KEY PART

NO. NO. DESCRIPTION

1 532 18 34-97 Case, Lower

2 532 18 34-98 Case, Upper

3 532 18 34-99 Gear, 27 Teeth

4 532 18 35-00 Lever, Clutch

5 532 18 35-01 Spring, Return

6 532 18 35-02 Shaft, Input

7 532 18 35-03 Dog, Movable

8 532 18 35-04 Dog, Fixed

9 532 18 35-05 Wire, Formed

10 532 18 35-06 Bearing, Ball

11 532 18 35-07 Fork, Shift

12 532 18 35-08 Seal, Output Shaft

13 532 18 35-09 Washer

14 532 18 35-10 Seal, Case

15 532 18 35-11 Bushing

16 532 18 35-12 Shaft, Output

17 532 18 35-13 Screw

18 532 18 35-14 Seal, Input Shaft

- - 532 18 34-04 Kit, Gearcase Replacement

NOTE: Use Dow Corning #709 to reseal Gear Case Halves.

ROTARY LAWN MOWER - - MODEL NUMBER BH55Y21RH

(96141000100) - PRODUCT NUMBER 961 41 00-01

GEARCASE ASSEMBLY - PART NUMBER 532 18 01-84

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product

as manufactured is free from defects in materials and workmanship. For a period

of two (2) years from date of purchase by the original consumer purchaser, we will

repair or replace, at our option, without charge for parts or labor incurred in replac-

ing parts, any part which we ﬁnd to be defective due to materials or workmanship.

This Warranty is subject to the following limitations and exclusions.

1.This warranty does not apply to the engine. Please contact your nearest dealer

where they will send the machine to the engine manufacturer.

2.Transportation charges for the movement of any power equipment unit or at-

tachment are the responsibility of the purchaser. Transportation charges for

any parts submitted for replacement under this warranty must be paid by the

purchaser unless such return is requested by your dealer.

3.Battery Warranty: On products equipped with a Battery, we will replace, without

charge to you, any battery which we ﬁnd to be defective in manufacture, during

the ﬁrst ninety (90) days of ownership. After ninety (90) days, we will exchange

the Battery, charging you 1/12 of the price of a new Battery for each full month

from the date of the original sale. Battery must be maintained in accordance with

the instructions furnished.

4.The Warranty period for any products used for rental or commercial purposes is

limited to 90 days from the date of original purchase.

5.This Warranty applies only to products which have been properly assembled,

adjusted, operated, and maintained in accordance with the instructions fur-

nished. This Warranty does not apply to any product which has been subjected

to alteration, misuse, abuse, improper assembly or installation, delivery damage,

or to normal wear of the product.

6.Exclusions: Excluded from this Warranty are belts, blades, blade adapters, nor-

mal wear, normal adjustments, standard hardware and normal maintenance.

7.In case of any problem within the boundaries of this warranty, contact the near-

est department store, indicate the model number, serial number and the date of

purchase of your machine. This warranty does not apply to accidental damages.

All implicit warranties are limited to the same time frames. Or contact:

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL

DAMAGES. ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME

PERIODS STATED HEREIN.

E.M. Services

54 Rue Lambrechts

92400 Courbevoie

France

Telephone: (1) 46678078

Fax: (1) 46678095

www.electrolux.com/mcculloch
