REPAIR PARTS MANUAL

MODEL NO. 14596 (BA14596B)

Lawn Tractor

532 18 94-73 12.17.03 TR

PRINTED IN THE U.S.A.

HOW TO USE THIS MANUAL

This manual is designed to provide the customer with a means to identify the parts on his/her tractor

when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,

it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some

hardware and parts are drawn larger in order to more readily identify them.

Each tractor has its own model number.

The model number for your tractor can be found on the fender under the seat.

When ordering parts, always give the following information:

• Product - “Tractor”

• Model Number - 14596 (BA14596B)

• Part Number

• Part Description

TABLE OF CONTENTS

SCHEMATIC ................................................................................................................3

ELECTRICAL............................................................................................................4-5

CHASSIS...................................................................................................................6-7

DRIVE........................................................................................................................8-9

STEERING ............................................................................................................10-11

SEAT ..........................................................................................................................12

DECALS.....................................................................................................................13

ENGINE......................................................................................................................14

MOWER LIFT.............................................................................................................15

MOWER DECK .....................................................................................................16-17

WARRANTY...............................................................................................................20

BATTERY

FUSE

IGNITION

SWITCH

RED RED

RED BLACK

IGNITION

UNIT

HEADLIGHTS

REMOVABLE

CONNECTIONS

BLACK

BLACK BLACK

WHITE

RED

BLACK

ORANGE

BLACK

BROWN

BLACK

STARTER

SEAT SWITCH

(NOT OCCUPIED)

GROUNDING

CONNECTOR

ATT'MENT CLUTCH

(CLUTCH OFF)

CLUTCH / BRAKE

(PEDAL UP)

SOLENOID

BLACK

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

AMMETER

RED

BSM

HOUR

METER

(OPTIONAL)

SPARK

PLUG

GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

IGNITION SWITCH

CIRCUITPOSITION

OFF

B+A1RUN/LIGHT

B + S + A1START

M+G+A1

B+A1RUN

“MAKE”

A2+L

NONE

(IF SO EQUIPPED)

NON-REMOVABLE

CONNECTIONS

BLUE

FUEL SHUT-OFF SOLENOID

FUEL

LINE

TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02

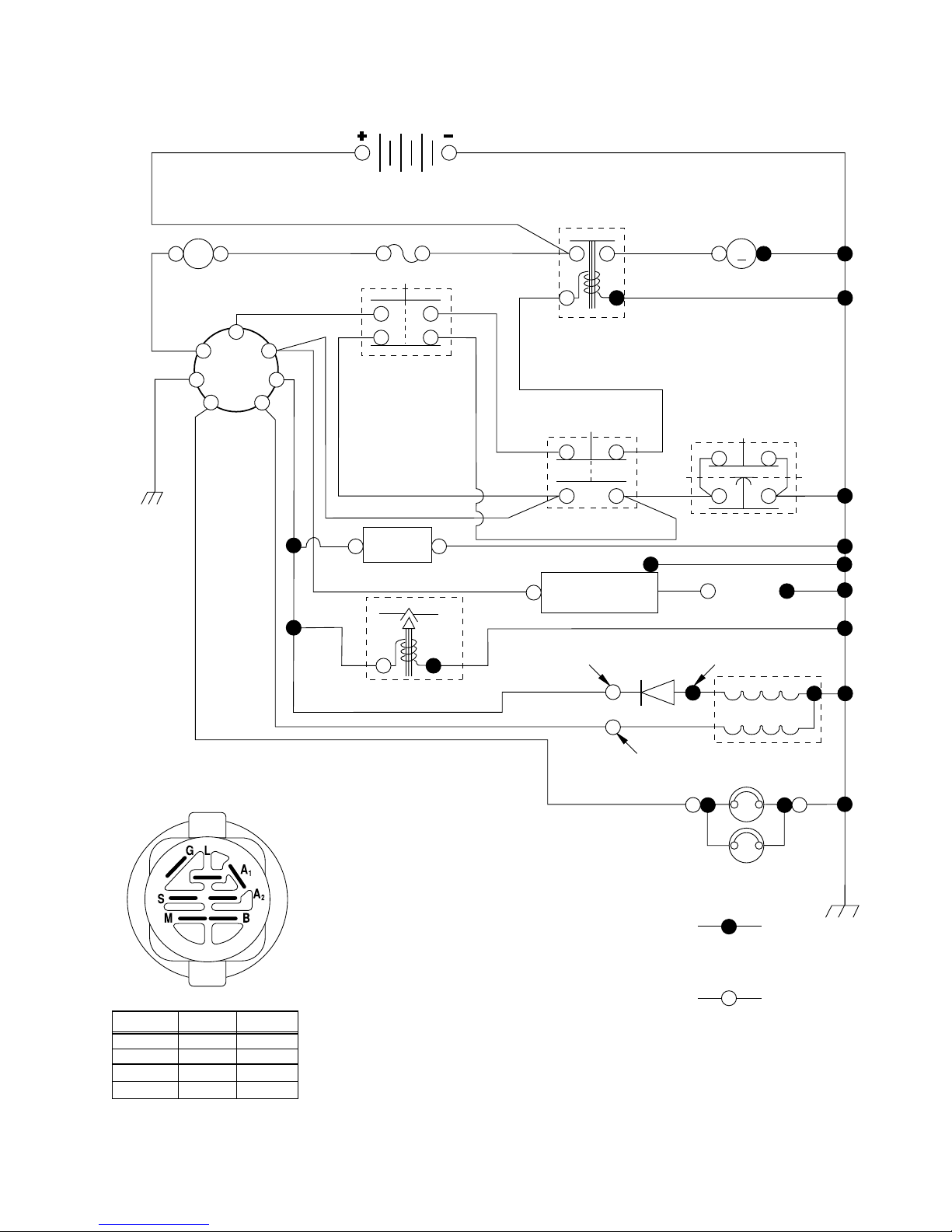

SCHEMATIC

REPAIR PARTS

TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02

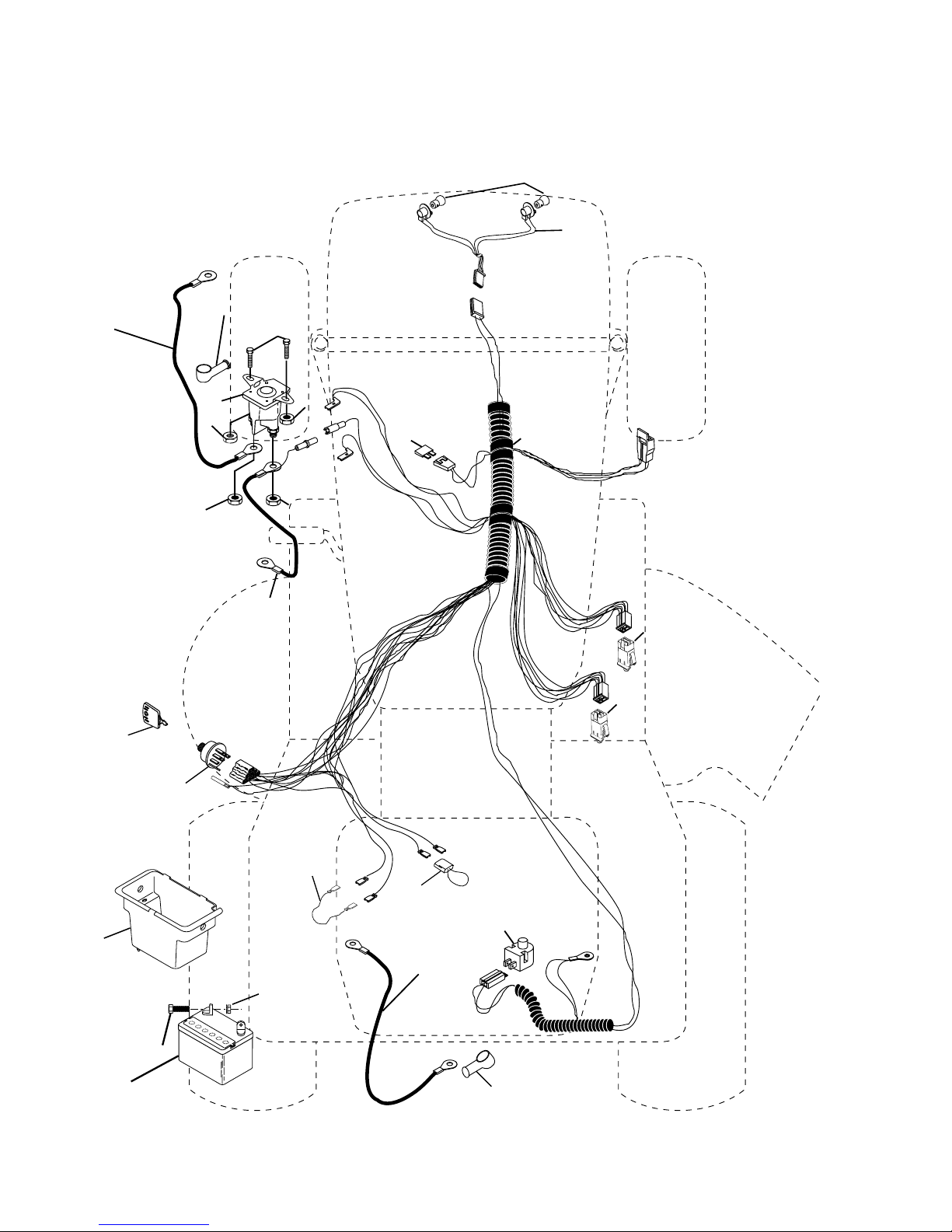

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery 12 Volt 28 AMP

2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 17 66-89 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 18 37-59 Harness Asm. Light

22 532 00 41-52 Bulb Light

24 532 12 47-80 Cable Battery 6 Ga. 11" red

25 532 14 61-47 Cable Battery 6 Ga. 44" red w/16 wire

26 532 17 51-58 Fuse 20 AMP

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 12 47-73 Cable Ground 6 Ga. 12" black

29 532 12 13-05 Switch Plunger Nc Gray

30 532 17 55-66 Switch Ign

33 532 14 04-01 Key Ign Molded Generic

40 532 17 97-20 Harness Ign.

41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2

42 532 13 15-63 Cover Terminal Red

43 532 17 88-61 Solenoid

48 532 14 08-44 Adapter Ammeter Rectangular

52 532 14 19-40 Protection Wire Loop

90 532 18 04-49 Cover Terminal Battery

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02

ELECTRICAL

209

235

209

208 11

208

209

145

206

205

166

Chassis-Elite_Value_LT_1

209

212

REPAIR PARTS

TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02

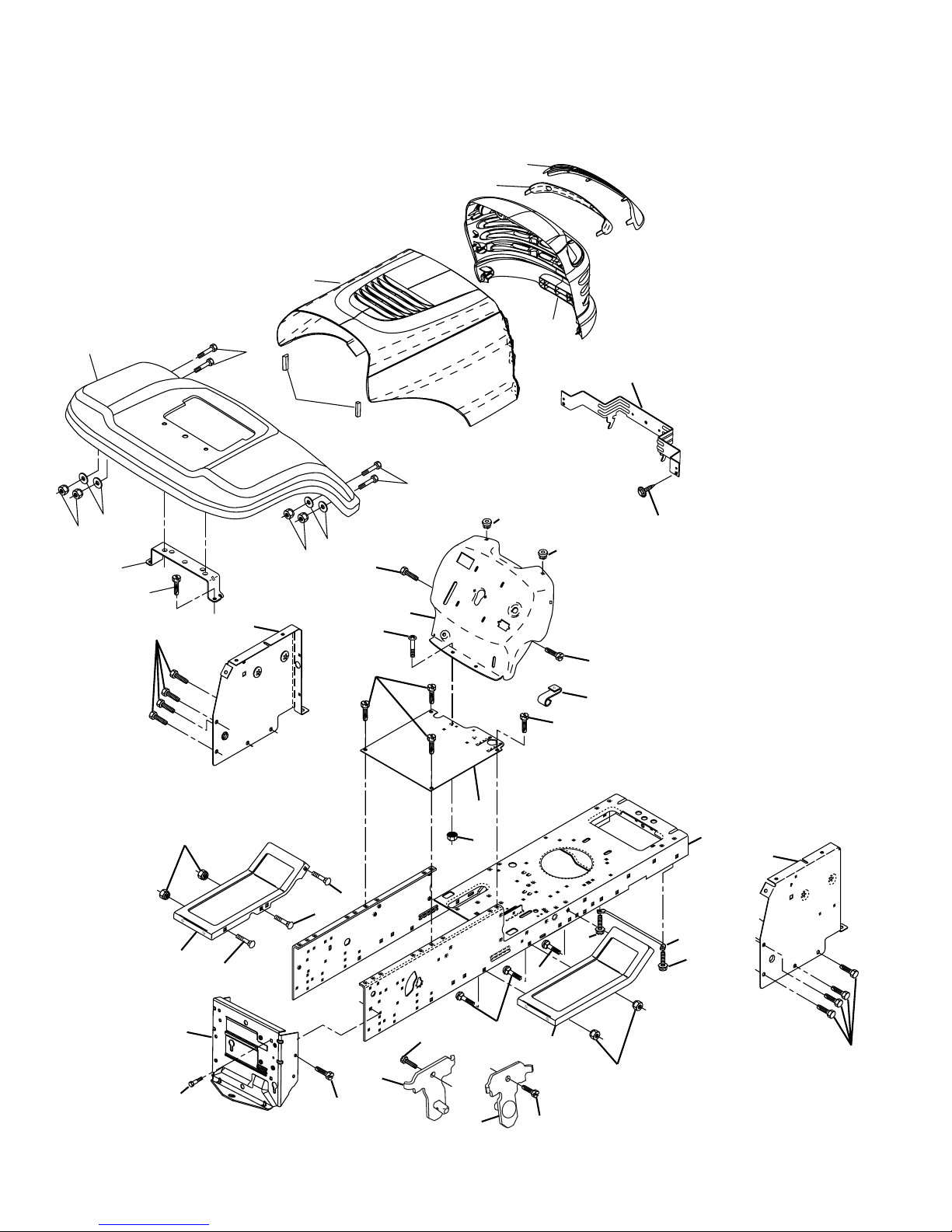

CHASSIS AND ENCLOSURES

1 532 17 46-20 Chassis Stamping

2 532 17 65-54 Drawbar

5 532 15 52-72 Bumper Hood/Dash

6 532 18 25-59 Saddle

8 532 12 64-71 Clip Insulator

9 532 18 54-80 Dash P/L

10 872 14 06-08 Bolt Carriage 3/8-16 x 1

11 532 17 49-96 Panel Dash Lh

13 532 18 69-52 Panel Dash Rh

15 874 18 05-12 Screw Mach Trhd 5/16-18 unc x 3/4

16 873 51 05-00 Nut Keps 5/16-18 unc

17 532 18 65-80 Hood LT/PL

18 532 12 69-38 Bumper Hood

24 874 78 06-16 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5

25 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.

26 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 unc

28 532 18 35-52 Grille/Lens Asm. (Includes #'s 29 and 212)

29 532 18 58-46 Lens LT/PL

30 532 19 10-03 Fender

31 532 13 66-19 Bracket Support Fender

33 532 18 25-07 Footrest LH

34 532 18 25-08 Footrest RH

35 872 11 06-06 Bolt Rdhd 3/8-16 x 3/4

37 817 49 05-08 Screw Thdrol 6/16-18 x 1/2 TYT

38 532 17 57-10 Bracket, Asm. Pivot, Mower Rear

39 532 17 47-14 Bracket Pivot

145 532 15 65-24 Rod Pivot Chassis/Hood

166 532 17 18-75 Screw HWHD Hi-Lo #13-16 x 5/8

205 817 49 06-08 Screw Thdrol 3/8-16 x 1/2

206 532 17 01-65 Bolt Shoulder 5/16-18 TT

208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2

209 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4

212 532 18 35-50 Insert Lens Reﬂect

- - 532 00 54-79 Plug Button

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02

CHASSIS AND ENCLOSURES

112

57 120

7876

253

36 35

212

116

22 27

113

51 5

52 30

263

27 51

151

202

120

150

170

263

275

268

drive-saddle_31

REPAIR PARTS

TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02

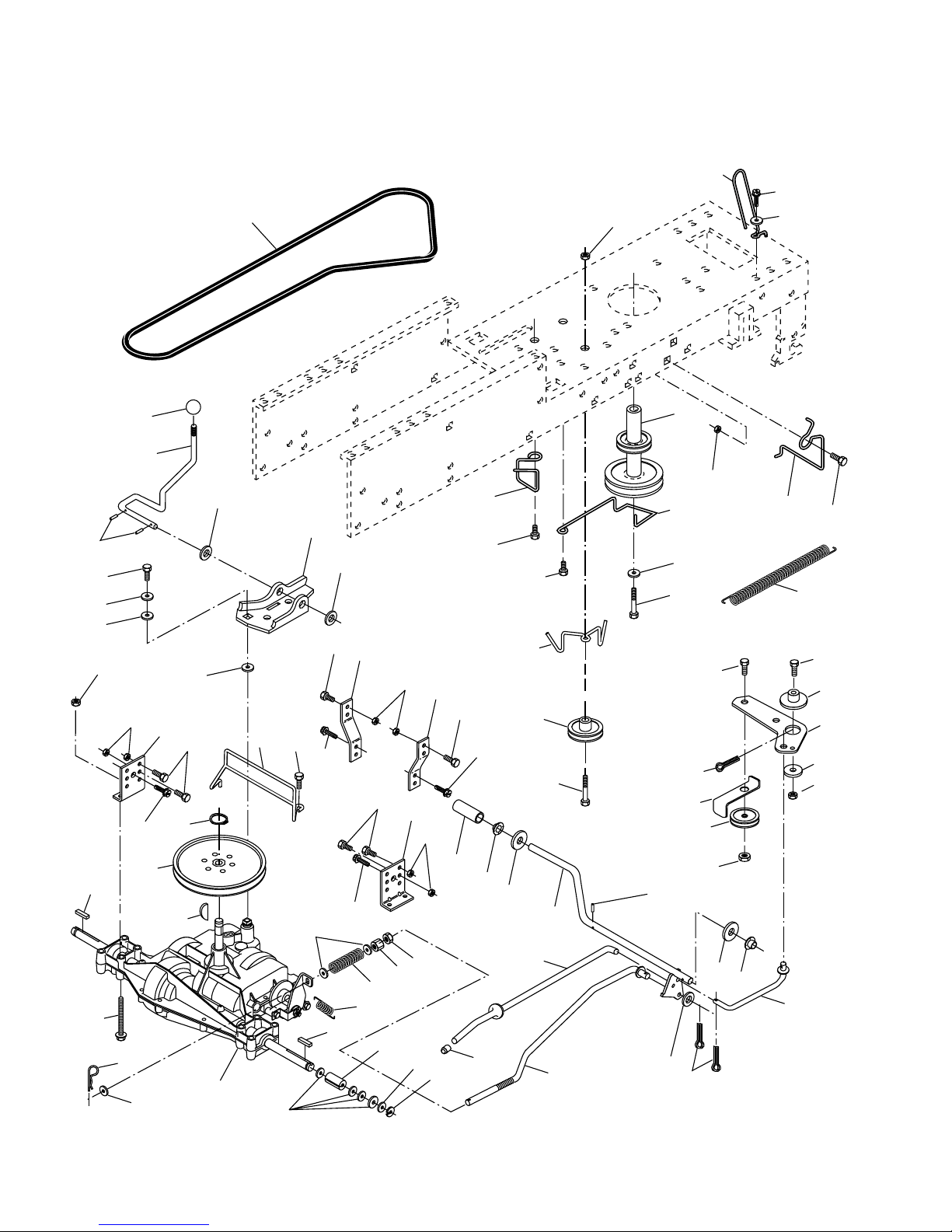

DRIVE

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 - - - - - - - - - Transaxle, Peerless 206-545C

(Order Parts From Transaxle Manu-

factuer)

2 532 14 66-82 Spring Return Brake T/a Zinc

3 532 12 36-66 Pulley Transaxle 18" tires

4 812 00 00-28 Ring Retainer # 5100-62

5 532 12 15-20 Strap Torque 30 Degrees

6 817 00 05-12 Screw 5/16-18 x 3/4

7 532 16 22-40 Plate Bracket Shift Saddle

8 532 13 16-79 Rod Shift Saddle

10 876 02 04-16 Pin Cotter 1/8 x 1 Cad

11 532 10 57-01 Washer Plate Shf 388 Sq Hole

12 819 15 12-16 Washer 15/32 x 3/4 x 16 Ga.

13 874 55 04-12 Bolt 1/4-28 Unf Gr. 8 W/Patch

14 810 04 04-00 Washer Lock Hvy Helical 1/4

15 874 49 05-44 Bolt Hex Flg Hd 5/16-18 Gr. 5

16 873 80 05-00 Nut lock Hx W/Ins 5/16-18 unc

18 874 78 06-16 Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5

19 873 80 06-00 Nut Lock 3/8-16 Unc

21 532 10 69-33 Knob

22 532 13 08-04 Rod Brake Blk Zinc 26 840

24 873 35 06-00 Nut Hex Jam 3/8-16 unc

25 532 10 68-88 Spring Rod Brake 2 00 Zinc

26 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

27 876 02 04-12 Pin Cotter 1/8 x 3/4 Cad

28 532 17 57-65 Rod Brake Parking LT/YT

29 532 07 16-73 Cap Brake Parking Black

30 532 17 49-73 Bracket Mtg Transaxle

32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4

34 532 17 55-78 Shaft Asm Pedal Foot

35 532 12 01-83 Bearing Nylon Blk 629 Id

36 819 21 16-16 Washer 21/32 x 1 x 16 Ga.

37 532 12 49-63 Pin Roll 3/16 x 1"

38 532 17 91-14 Pulley Composite

39 872 11 06-22 Bolt RDHD 3/8-16 unc x 2-3/4 Gr. 5

41 532 17 55-56 Keeper Belt Idler Flat

47 532 12 77-83 Pulley Idler V Groove Plastic

48 532 15 44-07 Bellcrank Clutch Grnd Drv Stl

49 532 12 32-05 Retainer Belt Style Spring

50 872 11 06-12 Bolt Carr Sh 3/8-16 unc x 1-1/2 Gr.5

51 873 68 06-00 Nut Crownlock 3/8-16 unc

52 873 68 05-00 Nut Crownlock 5/16-18 unc

53 532 10 57-10 Link Clutch

55 532 10 57-09 Spring Return Clutch 6 75

56 817 06 06-20 Screw 3/8-16 x 1-1/4

57 532 13 08-01 V-Belt Ground Drive 95 25

59 532 16 96-91 Keeper Belt Span Ctr

61 817 12 06-14 Screw 3/8-16 x .875

62 532 12 48-72 Cover Pedal

63 532 18 02-19 Engine Pulley LT/YT

64 532 17 39-37 Bolt Hex 7/16-20 x 4 x Gr. 5 - 1Hr

65 810 04 07-00 Washer Lock Hvy Hlcl Spr 7/16

66 532 15 47-78 Keeper Belt Engine Foolproof

70 532 18 02-18 Guide Belt Mower Drive RH

74 532 13 70-57 Spacer Axle

75 532 12 17-49 Washer 25/32 x 1 1/4 x 16 Ga.

76 812 00 00-01 E-ring #5133-75

77 532 12 35-83 Key Square 2 0 x 1845/ 1865

78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

79 532 12 50-96 Key Woodruff #9 3/16 x 3/4

96 532 12 47-88 Retainer Spring 1"

112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.

113 532 12 72-85 Strap Torque LT

116 872 14 06-08 Bolt Rdhd Sq Neck 3/8-16 x 1

120 873 90 06-00 Nut Lock Flg. 3/8-16

150 532 17 54-56 Spacer Retainer

151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.

170 532 18 74-14 Keeper Belt T/A

202 872 11 06-14 Bolt RDHD 3/8-16 x 1-3/4 Gr. 5

212 532 14 52-12 Nut Hex Flg Lock

263 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4

268 532 18 24-02 Guard Mufﬂer OHV B&S RH

275 819 13 16-14 Washer 13/32 x 1 x 14 Ga.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02

DRIVE

332

68 67

29 82

steering_pl.lt_42

REPAIR PARTS

TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02

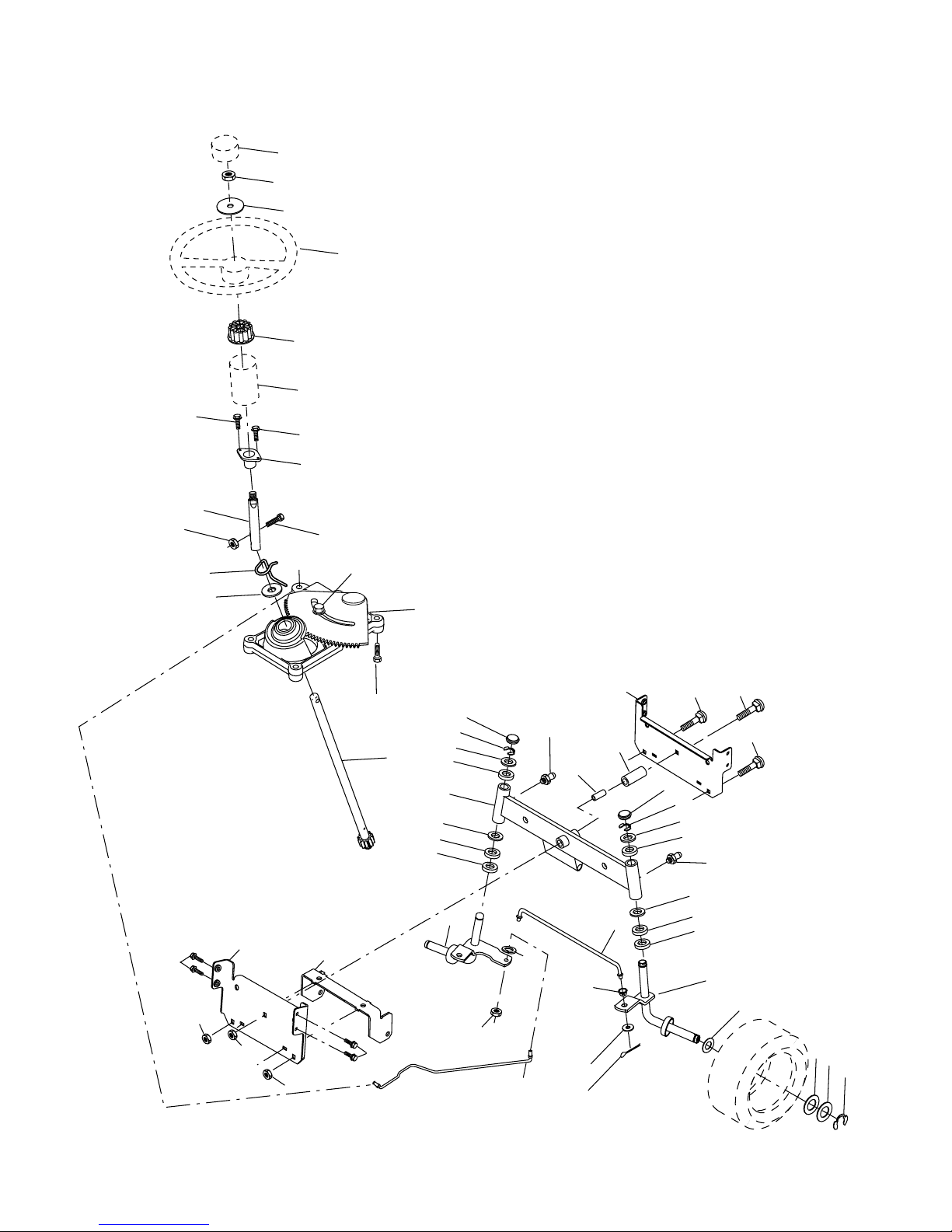

STEERING ASSEMBLY

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels McCulloch Tondeuse à gazon

McCulloch

McCulloch 96041009100 Manuel utilisateur

McCulloch

McCulloch MC17542STA Manuel utilisateur

McCulloch

McCulloch ROB S400 Manuel utilisateur

McCulloch

McCulloch ICT16A Manuel utilisateur

McCulloch

McCulloch 14592RB Manuel du propriétaire

McCulloch

McCulloch M53-190CMD Manuel utilisateur

McCulloch

McCulloch M46-160AWRPX Manuel utilisateur

McCulloch

McCulloch 96041011600 Manuel utilisateur

McCulloch

McCulloch M5553D Manuel utilisateur

McCulloch

McCulloch 532 42 27-27 Rev. 2 Manuel utilisateur

McCulloch

McCulloch BA12592RBA Manuel du propriétaire

McCulloch

McCulloch M11597 Manuel du propriétaire

McCulloch

McCulloch M40-125 CLASSIC+ Manuel utilisateur

McCulloch

McCulloch M12597HRB Manuel utilisateur

McCulloch

McCulloch 96041000901 Manuel utilisateur

McCulloch

McCulloch ROB S800 Manuel utilisateur

McCulloch

McCulloch MC20H42YT Manuel du propriétaire

McCulloch

McCulloch M46-160 AWRPX Manuel utilisateur

McCulloch

McCulloch ZM3016BF/966564001 Manuel utilisateur

McCulloch

McCulloch M12592 RB Manuel du propriétaire

McCulloch

McCulloch M53-650CMDW Manuel utilisateur

McCulloch

McCulloch 966564001 Manuel utilisateur

McCulloch

McCulloch 532 43 55-83 Rev. 1 Manuel utilisateur

McCulloch

McCulloch YP12597HRB Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
