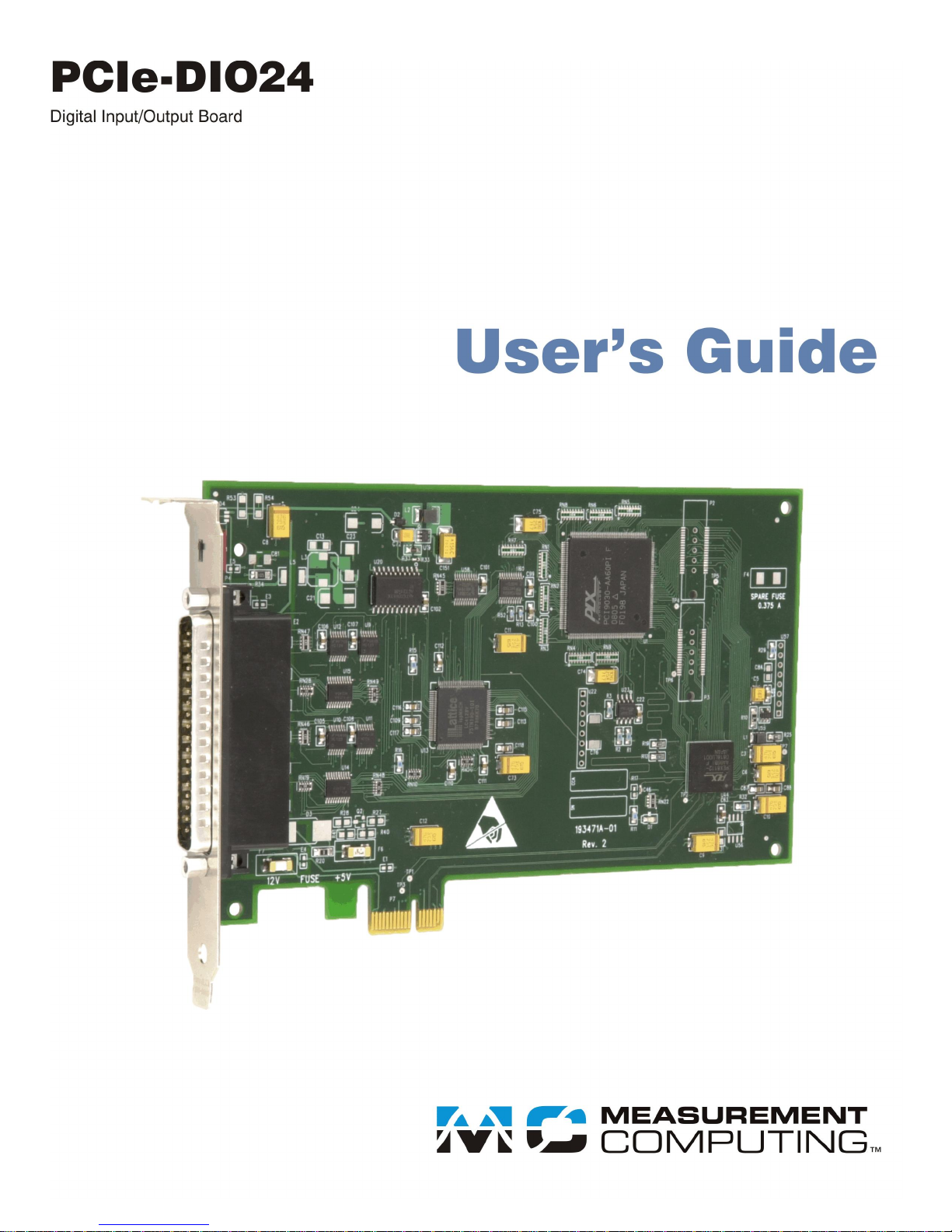

PCIe-DIO24

Digital Input/Output

User's Guide

Document Revision 1, October, 2008

HM PCIe-DIO24.docx

Your new Measurement Computing product comes with a fantastic extra —

Management committed to your satisfaction!

Refer to www.mccdaq.com/execteam.html for the names, titles, and contact information of each key executive at Measurement

Computing.

Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy

the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our mission:

To provide PC-based data acquisition hardware and software that will save time and save money.

Simple installations minimize the time between setting up your system and actually making measurements. We offer quick and

simple access to outstanding live FREE technical support to help integrate MCC products into a DAQ system.

Limited Lifetime Warranty: Most MCC products are covered by a limited lifetime warranty against defects in materials or

workmanship for the life of the product, to the original purchaser, unless otherwise noted. Any products found to be defective in

material or workmanship will be repaired, replaced with same or similar device, or refunded at MCC’s discretion. For specific

information, please refer to the terms and conditions of sale.

Harsh Environment Warranty® Program: Any Measurement Computing product that is damaged due to misuse, or any

reason, may be eligible for replacement with the same or similar device for 50% of the current list price. I/O boards face some

harsh environments, some harsher than the boards are designed to withstand. Contact MCC to determine your product’s

eligibility for this program

30 Day Money-Back Guarantee: Any Measurement Computing Corporation product may be returned within 30 days of

purchase for a full refund of the price paid for the product being returned. If you are not satisfied, or chose the wrong product by

mistake, you do not have to keep it.

These warranties are in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or

fitness for a particular application. The remedies provided herein are the buyer’s sole and exclusive remedies. Neither

Measurement Computing Corporation, nor its employees shall be liable for any direct or indirect, special, incidental or

consequential damage arising from the use of its products, even if Measurement Computing Corporation has been notified in

advance of the possibility of such damages.

Trademark and Copyright Information

TracerDAQ, Universal Library, Harsh Environment Warranty, Measurement Computing Corporation, and the Measurement

Computing logo are either trademarks or registered trademarks of Measurement Computing Corporation.

Windows, Microsoft, and Visual Studio are either trademarks or registered trademarks of Microsoft Corporation

LabVIEW is a trademark of National Instruments.

CompactFlash is a registered trademark of SanDisk Corporation.

XBee and XBee-PRO are trademarks of MaxStream, Inc.

All other trademarks are the property of their respective owners.

Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no

responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or

other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or

copyrights of Measurement Computing Corporation.

means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement

Computing Corporation.

Notice

Measurement Computing Corporation does not authorize any Measurement Computing Corporation product for use

in life support systems and/or devices without prior written consent from Measurement Computing Corporation.

Life support devices/systems are devices or systems which, a) are intended for surgical implantation into the body,

or b) support or sustain life and whose failure to perform can be reasonably expected to result in injury.

Measurement Computing Corporation products are not designed with the components required, and are not subject

to the testing required to ensure a level of reliability suitable for the treatment and diagnosis of people.

Table of Contents

Preface

About this User's Guide.......................................................................................................................6

What you will learn from this user's guide.........................................................................................................6

Conventions in this user's guide .........................................................................................................................6

Where to find more information.........................................................................................................................6

Register-level programming...............................................................................................................................7

Chapter 1

Introducing the PCIe-DIO24 .................................................................................................................8

Overview: PCIe-DIO24 features ........................................................................................................................8

Software features................................................................................................................................................8

PCIe-DIO24 block diagram................................................................................................................................9

Chapter 2

Installing the PCIe-DIO24 ...................................................................................................................10

What comes with your PCIe-DIO24 shipment? ...............................................................................................10

Hardware .........................................................................................................................................................................10

Additional documentation................................................................................................................................................10

Optional components.......................................................................................................................................................10

Unpacking the PCIe-DIO24 .............................................................................................................................11

Installing the software ......................................................................................................................................11

Installing the hardware .....................................................................................................................................11

Connecting the board for I/O operations ..........................................................................................................12

Main I/O connector..........................................................................................................................................................12

Connector pin out.............................................................................................................................................................12

Cabling.............................................................................................................................................................................13

Field wiring and signal termination .................................................................................................................................13

Chapter 3

Functional Details...............................................................................................................................14

82C55 emulation ..............................................................................................................................................14

Replacing a fuse ...............................................................................................................................................14

Fuse specifications...........................................................................................................................................................14

Logic level switch.............................................................................................................................................14

Chapter 4

Specifications......................................................................................................................................15

Digital input / output.........................................................................................................................................15

Power Consumption .........................................................................................................................................15

Environmental ..................................................................................................................................................15

Mechanical .......................................................................................................................................................16

General .............................................................................................................................................................16

Main connector and pin out..............................................................................................................................16

Preface

About this User's Guide

What you will learn from this user's guide

This user's guide explains how to install, configure, and use the PCIe-DIO24 so that you get the most out of its

digital I/O features.

This user's guide also refers you to related documents available on our web site, and to technical support

resources.

Conventions in this user's guide

For more information on …

Text presented in a box signifies additional information and helpful hints related to the subject matter you are

reading.

Caution! Shaded caution statements present information to help you avoid injuring yourself and others,

damaging your hardware, or losing your data.

< : > Angle brackets that enclose numbers separated by a colon signify a range of numbers, such as those assigned

to registers, bit settings, etc.

bold text Bold text is used for the names of objects on the screen, such as buttons, text boxes, and check boxes. For

example:

1. Insert the disk or CD and click the OK button.

italic text Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase. For

example:

The InstaCal installation procedure is explained in the Quick Start Guide.

Never touch the exposed pins or circuit connections on the board.

Where to find more information

The following electronic documents provide helpful information relevant to the operation of the PCIe-DIO24.

MCC's Specifications: PCIe-DIO24 (the PDF version of the Specifications chapter in this guide) is

available on our web site at www.mccdaq.com/pdfs/PCIe-DIO24.pdf.

MCC's Quick Start Guide is available on our web site at

www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf.

MCC's Guide to Signal Connections is available on our web site at

www.mccdaq.com/signals/signals.pdf.

MCC's Universal Library User's Guide is available on our web site at

www.mccdaq.com/PDFmanuals/sm-ul-user-guide.pdf.

MCC's Universal Library Function Reference is available on our web site at

www.mccdaq.com/PDFmanuals/sm-ul-functions.pdf.

MCC's Universal Library for LabVIEW™User’s Guide is available on our web site at

www.mccdaq.com/PDFmanuals/SM-UL-LabVIEW.pdf.

PCIe-DIO24 User's Guide (this document) is also available on our web site at

www.mccdaq.com/PDFmanuals/PCIe-DIO24.pdf.

PCIe-DIO24 User's Guide About this User's Guide

If you need to program at the register level in your application, you can find more information in the Register

Map for the PCIe-DIO24. This document is available at www.mccdaq.com/registermaps/RegMapPCIe-

DIO24.pdf.

Only experienced programmers should try register-level programming.

Chapter 1

Introducing the PCIe-DIO24

Overview: PCIe-DIO24 features

This manual explains how to install and use the PCIe-DIO24 board. The PCIe-DIO24 is a digital I/O board

designed for the PCI Express (PCIe) bus.

The PCIe-DIO24 provides 24 lines of digital I/O with selectable 3.3 V and 5 V logic levels. The 24 DIO lines

are organized into three groups of 8-bits each (Port A, Port B, and Port C). Port C can be further divided into

two four-bit ports (Port C-HI and Port C-LO). The direction of each port is independently configurable with

software for either input or output. Digital outputs are HC logic and can source and sink 2.5 mA.

The PCIe-DIO24 has a 10 k resistor network associated with each digital port. You can configure each port for

pull-up or pull-down with software. On power up and reset the configuration of each port is read from

EEPROM. The board is shipped with each port configured in the pull-up state.

The PCIe-DIO24 emulates the 82C55 Programmable Peripheral Interface (PPI) chip. Measurement

Computing's Universal Library and Windows driver supports mode 0 only.

Digital I/O lines are accessible through a 37-pin D-type connector. The board has two individual slow blow

fuses rated at 0.375 amp to protect the +VDIO and +12V outputs on the connector. One spare fuse is provided.

Software programs written with the Universal Library for the USB-DIO24/37, PCI-DIO24 and CIO-DIO24

devices are fully compatible with the PCIe-DIO24.

Power is provided by the PCI Express slot. The PCIe-DIO24 board is completely plug-and-play. All board

addresses are set by the board's plug-and-play software. Board configuration is controlled by your system's

BIOS.

Software features

For information on the features of InstaCal and the other software included with your PCIe-DIO24, refer to the

Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at

www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf.

Check www.mccdaq.com/download.htm for the latest software version.

PCIe-DIO24 User's Guide Introducing the PCIe-DIO24

PCIe-DIO24 block diagram

PCIe-DIO24 functions are illustrated in the block diagram shown here.

Figure 1. PCIe-DIO24 functional block diagram

Boot

EEPROM

37-pin I/O Connector

Fuse

Protection

PORT A

PCI-to-Local

Bus

BADR2

BADR3

Bus

Timing

LAD(0:7)

PCI Express Edge Connector

x1 Link

PCIe-to-PCI

Bridge

PCI Bus

3.3V3.3V

1.5V

Regulator

3.3V, 32-bit, 66 MHz

Regulated

DIO

Local

Address

Data Bus

3.3V Board Power

Interface

Decode/Status

82C55 Emulation

Logic, Control,

Complex,

Programmable

Logic Device

(CPLD)

User

3.3/5V

I/O Switch

(VDD)3.3 V

PORT A

Buffering

3.3/5V

Direction CTR

PORT B

Buffering

PORT CL

Buffering

PORT CH

Buffering

PORT B

3.3/5V

Direction CTR 8

PORT CL

3.3/5V

Direction CTR 4

PORT CH

3.3/5V

Direction CTR 424 4

Direction

Control

GND

4EEPROM

switch +5V (VDD)

10 k

Pull

Resistor

Network

Buffer

Spare Fuse

V and 12V

DIO

(pin 18)

DIO

+VDIO

(pin 20)

+12V

(pin 16)

IRQ Input

IRQ Enable

+5 (VDD) 5V

Regulator

Fuse

Protection

+12V

VDIO

Chapter 2

Installing the PCIe-DIO24

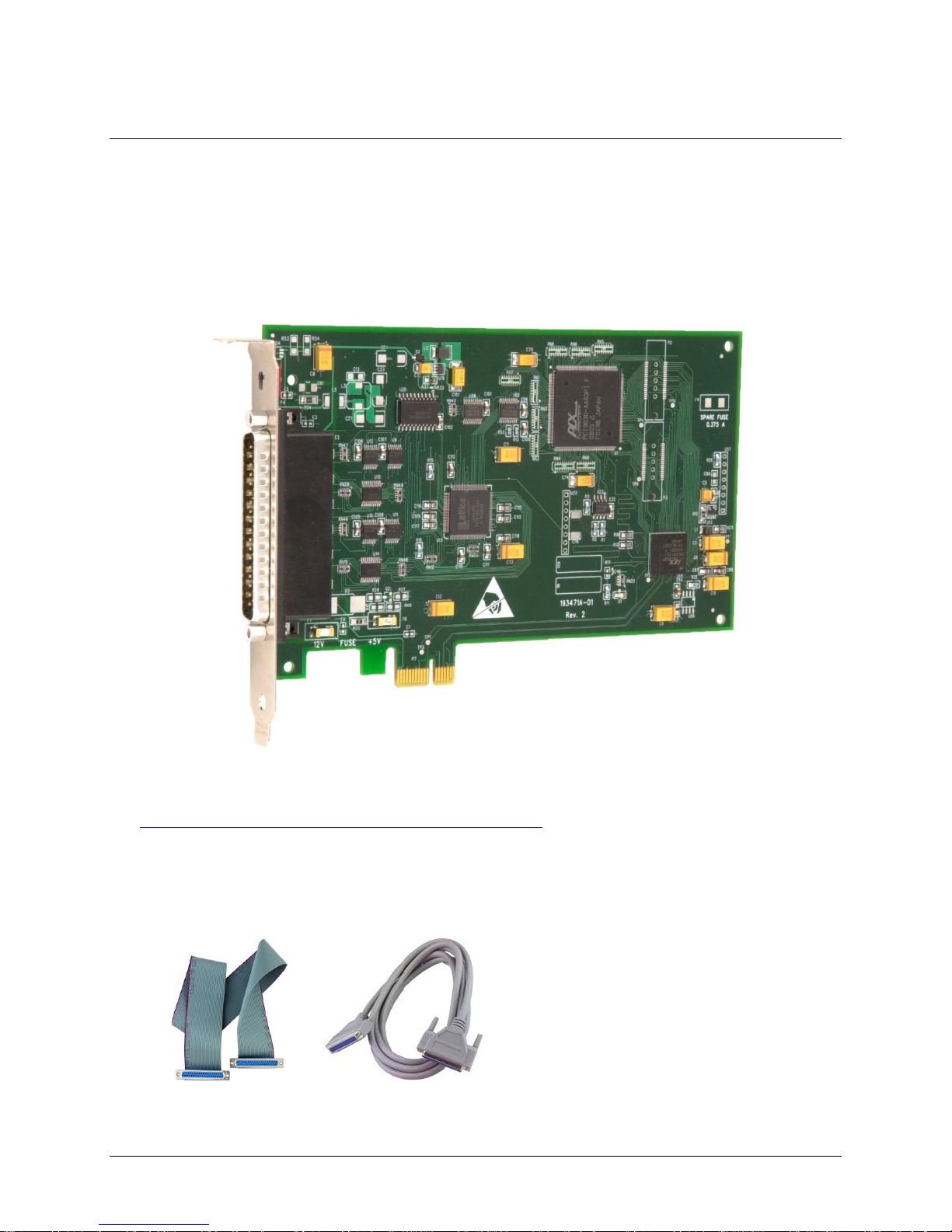

What comes with your PCIe-DIO24 shipment?

The following items are shipped with the PCIe-DIO24.

Hardware

PCIe-DIO24

Additional documentation

In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at

www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of

the software you received with your PCIe-DIO24 and information regarding installation of that software. Please

read this booklet completely before installing any software or hardware.

Optional components

Cables

C37FF-x

C37FFS-x

Table des matières

Autres manuels MC Carte PCI

MC PCI-DAS1602 Manuel utilisateur

Manuels Carte PCI populaires d'autres marques

ERMA

ERMA SSI 1417 Manuel utilisateur

SIIG

SIIG CyberSerial Dual PCI Instructions de montage

Moxa Technologies

Moxa Technologies CP-102E Manuel utilisateur

I-Bus

I-Bus IBC2602 Manuel utilisateur

Exsys

Exsys EX-60102 Manuel utilisateur

Chelsio Communications

Chelsio Communications T5 Series Manuel utilisateur

Conrad Electronic

Conrad Electronic 97 46 71 Manuel utilisateur

Micro Innovations

Micro Innovations USB650A Manuel utilisateur

KTI Networks

KTI Networks KF-310 Manuel utilisateur

Asus

Asus SpaceLink WL230 Manuel utilisateur

SIIG

SIIG SC2475 Manuel utilisateur

TRENDnet

TRENDnet TEW-703PI Manuel utilisateur

Belkin

Belkin F5D7000F Manuel utilisateur

Pericom

Pericom PI7C7100 Manuel utilisateur

ADLINK Technology

ADLINK Technology cPCI-3548 Manuel utilisateur

Digium

Digium TE200 Series Manuel utilisateur

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur

Western Digital

Western Digital FireWire PCI Adapter Manuel utilisateur
