Maytag Whirlpool MHN33PR Manuel de référence

MHN33PR Product Introduction

September 2016

Outline

I.Installation

II.Technical Information/Description

III.Installation (How To)

a.Physical/Mounting

b.Programming (Card and Non-Card)

IV.Usage and Demo

V.Servicing

a.Diagnostics

b.Disassembly

c.Re-assembly

d.Common Issues and Solutions

Feature Definition

•10.5 Kg Capacity

•Advance Spin Technology

•Duracore Drive System

•Intelligent Controls

•With M-series Technology

•Energy-efficient Cleaning

•Clothespin™ App By Maytag

Compatible

•HWD in mm: 961 x 686 x 732

Accessories

For Card System

Operation

Technical Specifications

HWD in mm: 961 x 686 x 732

BREAKER/FUSE MIN. REQUIREMENTS

15A

MOTOR:

Variable

-speed, reversible, thermo-

protected, high

-efficiency,

controlled induction

Yes

EXTRACT SPEED

Maximum RPM

Maximum g

-force

1,000

300

MHN33PR

11kg. Capacity

Energy Advantage ™ High-Efficiency Front-Load Washer

Pre-installation Requirements

•Faucet with thread (3/4)

•Standing Pipe

-30-39 inches in height

- 2 inches in diameter

MHN33PR

11kg. Capacity

Energy Advantage ™ High-Efficiency Front-Load Washer

Installation Procedure

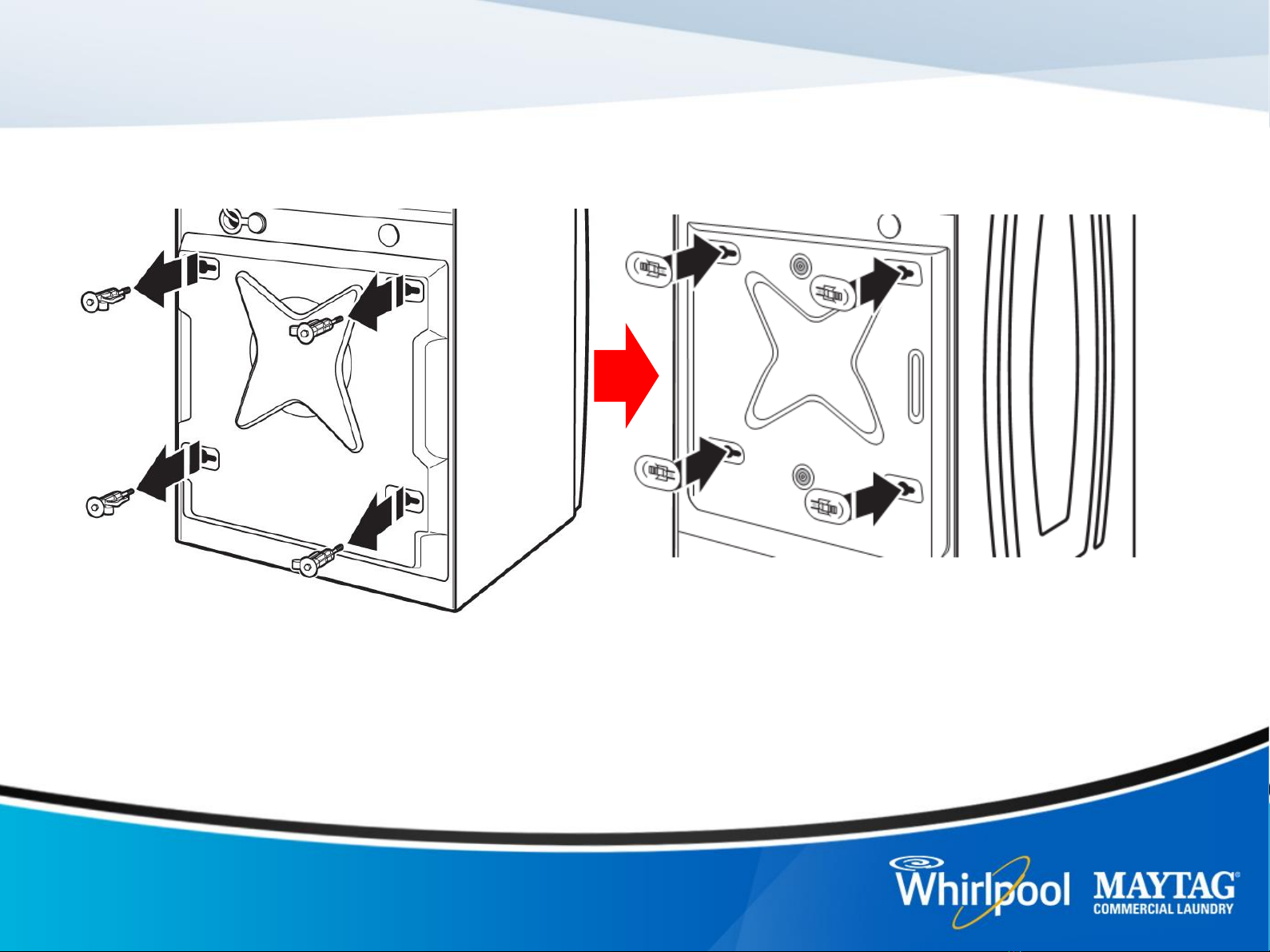

•Using a 1/2" wrench, loosen each of the shipping bolts at the back of

the unit.

•Once all 4 bolts are removed, discard the bolts and spacers.

Installation Reminders

Using a 1/2" wrench, loosen each of the shipping bolts at the back of the unit.

Check the levelness of the washer by placing a

level on the top edge of the washer, first side to

side, then front to back.

After the washer is level, use a 9/16"

open-end wrench to turn the nuts on the

feet tightly against the washer cabinet.

Operational Requirements

Water Pressure:

20-100 psi (137.9-689.6 kPa)

Water Flow Rate:

1L/10sec or 1.5L/15sec

Space Requirements:

To avoid operational noise created by the unit’s vibration, customer must provide enough spacing.

Front and Back** Left and Right

Installation Reminders

Using a 1/2" wrench, loosen each of the shipping bolts at the back of the unit.

Check the levelness of the washer by placing a

level on the top edge of the washer, first side to

side, then front to back.

After the washer is level, use a 9/16"

open-end wrench to turn the nuts on the

feet tightly against the washer cabinet.
