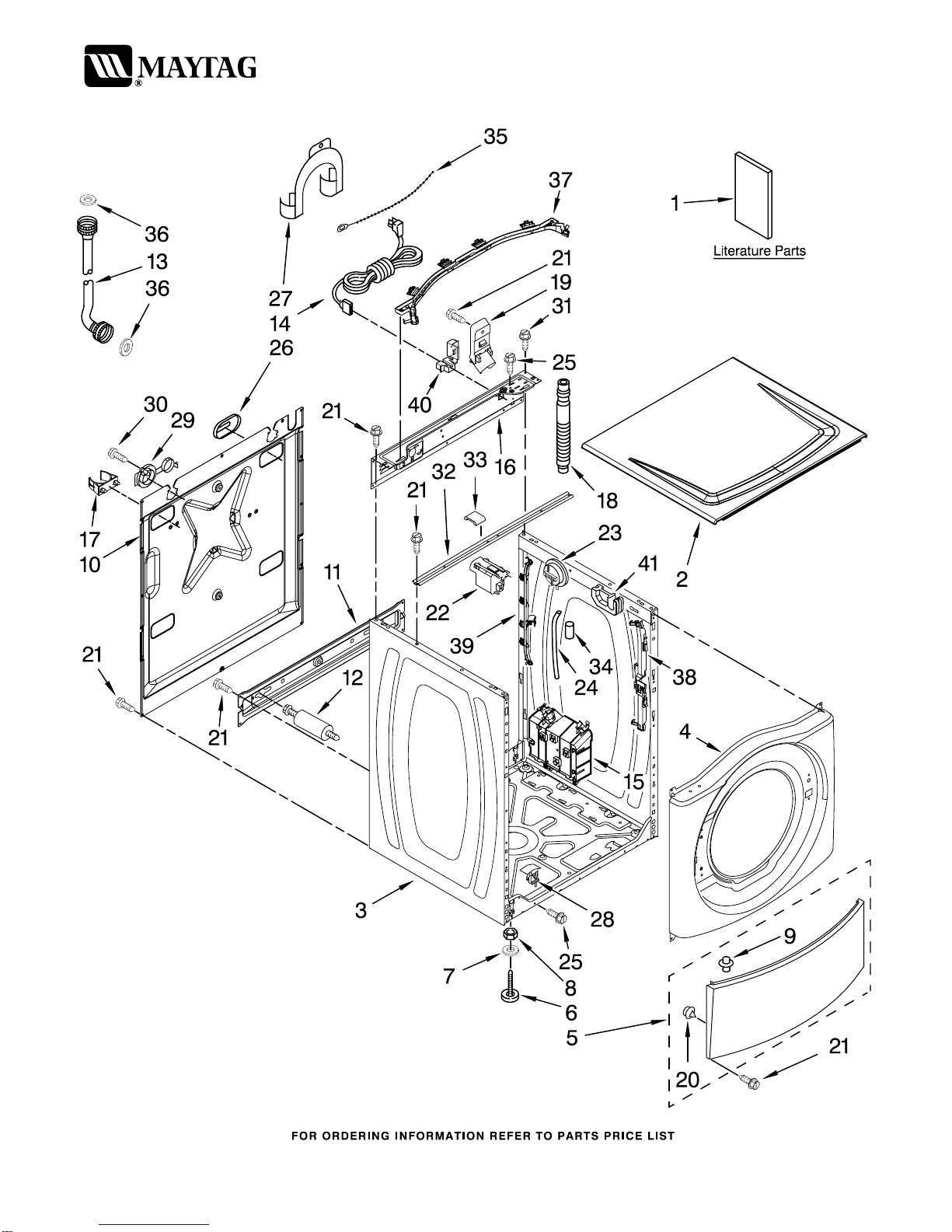

TOP AND CABINET PARTS

10−09 Printed in U.S.A. (drd) (psw) Part No. W10140756 Rev. A

AUTOMATIC

WASHER

For Models: MHWZ600TW00, MHWZ600TB00, MHWZ600TK00

(White/Chrome) (Black/Chrome) (Pacific Blue)

TOP AND CABINET PARTS

2W10140756

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10117443

Use & Care Guide

W10118956

Tech Sheet

W10117444

Energy Guide

W10112913

Quick Start Guide

2 Top

8540716 White

W10128645

Black

W10135105

Pacific Blue

3 Cabinet

8540548 White

W10117456

Black

W10135011

Pacific Blue

4 Panel, Front

W10112948

White

W10117457

Black

W10119003

Pacific Blue

5 Toe Panel

8540813 White

W10112981

Black

W10135103

Pacific Blue

W10121009

Foot, Leveling (4)

7 487576 Washer, Plastic

8 3359452 Nut, Lock (4)

9 8518891 Rivet

10 8540580 Panel, Rear

11 8540581 Brace, Transport

12 8540199 Bolt, Shipping (4)

13 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

W10121405

Cord, Power

15 8540540 Motor Control Unit

16 8540974 Brace, Rear

17 8540093 Clamp, Tube

Transportation

W10114608

Hose, Drain

19 8540607 Retainer,

Hose Outlet

20 238614 Bumper (2)

W10015090

Screw, 8−18 x 5/8

22 8540230 Filter,

Interference

23 8540224 Switch, Pressure

24 8540294 Hose, Pressure

Switch

25 8540479 Screw, Grounding

26 8540268 Cover, Transport

27 8540021 U−Bend,

Drain Hose

W10085220

Microswitch (2)

29 8540728 Sleeve,

Cord Support (2)

30 8540727 Screw, 3 x 8 mm

31 8540329 Screw

32 8540720 Brace, Top

(Includes Item 33)

33 8283273 Damper, Brace

34 2161302 Sleeve, Pressure

Switch Hose

35 3347868 Cable Tie

36 16123 Washer, Water

Inlet Hose (4)

1−1/16 x 5/8

37 8540290 Harness Channel,

Top Rear

38 8540288 Harness Channel,

Side Front

39 8540289 Harness Channel,

Side Rear

W10110676

Strain Relief,

Power Cord

41 8540644 Bracket, Spring

For Models: MHWZ600TW00, MHWZ600TB00, MHWZ600TK00

(White/Chrome) (Black/Chrome) (Pacific Blue)

DOOR AND LATCH PARTS

W10140756

Illus. Part

No. No. DESCRIPTION

1 8540952 Bellow

2 8540108 Clamp, Bellow

3 8540772 Lock, Door

4 8540725 Screw

5 8540221 Hook, Door

W10117475

Handle, Door

W10112915

Trim Ring,

Outer Door

8 8540107 Clamp, Bellow

(Front)

9 8540115 Clamp, Support

10 8540114 Clamp, Glass (2)

11 8540513 Screw

W10119007

Frame, Door

Front Assembly

13 8540428 Glass, Door

W10138523

Frame, Door

Back Support

W10118967

Hinge, Door

16 8540284 Screw

17 8540282 Screw

W10015090

Screw

W10112927

Pad, Door Handle

For Models: MHWZ600TW00, MHWZ600TB00, MHWZ600TK00

(White/Chrome) (Black/Chrome) (Pacific Blue)

CONTROL PANEL PARTS

4W10140756

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

W10117409

White

W10117413

Black

W10119012

Pacific Blue

W10119050

Knob, Control

W10117419

User Interface

4 8540558 Brace, Top Front

5 8540722 Channel, Water

W10118971

Microcomputer,

Machine Control

W10015090

Screw, 8−18 X 5/8

8 8540524 Harness, Wiring

(Main)

For Models: MHWZ600TW00, MHWZ600TB00, MHWZ600TK00

(White/Chrome) (Black/Chrome) (Pacific Blue)

DISPENSER PARTS

W10140756

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8540751 Valve, Inlet

2 8540065 Hose, Valve

To Dispenser

3 370450 Clamp, Hose

4 8540282 Screw

5 8540042 Nozzle, Inlet

6 8540393 Cam, Actuator

7 8540394 Lever, Water

Distribution

8 8540041 Actuator

9 VS611 Washer

10 8281276 Clamp, Hose

11 8540395 Connection, Lever

12 8540058 Dispenser

13 8540053 Nozzle,

Distribution

14 8540063 Hose, Dispenser

To Tub

15 Handle, Drawer

W10118955

White

W10118961

Black

W10119017

Pacific Blue

W10112569

Badge Assembly

17 8540399 Cover,

Detergent Drawer

18 8540402 Drawer,

Detergent

19 8540400 Hook, Drawer

20 8540429 Siphon,

Bleach/Softener

For Models: MHWZ600TW00, MHWZ600TB00, MHWZ600TK00

(White/Chrome) (Black/Chrome) (Pacific Blue)

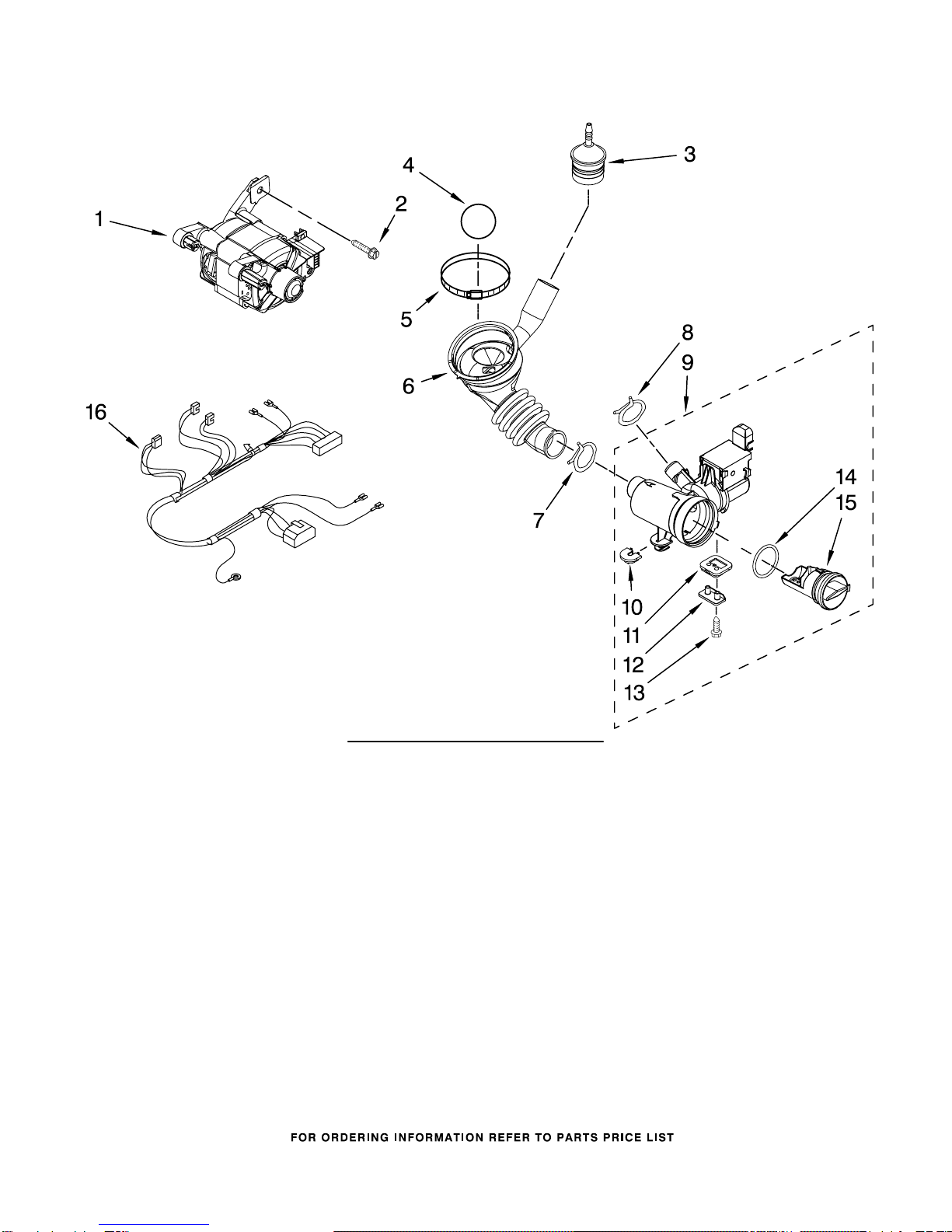

PUMP AND MOTOR PARTS

6W10140756

Illus. Part

No. No. DESCRIPTION

W10140582

Motor, Drive

2 8540134 Bolt, Motor

3 8540180 Air Trap

4 8540013 Ball

5 8540008 Clamp

6 8540012 Hose,

Tub to Pump

7 370448 Clamp, Hose

8 356138 Clamp, Drain Hose

W10130913

Pump (Complete)

W10034820

Foot, Rubber

(Slider)

W10034830

Foot, Rubber

(Lock)

12 8540033 Cap, Lock Foot

13 8533964 Screw,

10−16 x 1.25 (2)

14 8540025 Seal, Filter Cap

15 8540996 Filter Assembly

(Includes Item 14)

16 8540525 Harness, Motor

For Models: MHWZ600TW00, MHWZ600TB00, MHWZ600TK00

(White/Chrome) (Black/Chrome) (Pacific Blue)

TUB AND BASKET PARTS

W10140756

For Models: MHWZ600TW00, MHWZ600TB00, MHWZ600TK00

(White/Chrome) (Black/Chrome) (Pacific Blue)

TUB AND BASKET PARTS

8W10140756

Illus. Part

No. No. DESCRIPTION

1 8533999 Nut, Pulley

2 8540088C Pulley

W10116215

Belt, Drive

4 8540600 Counterweight,

Front Lower

W10112169

Pipe, Ventilation

6 8540010 Clamp, Vent Hose

7 8540019 Hose, Exhaust

W10112663

Tub, Rear

(Includes Items

10, 21 & 22)

9 8540604 Counterweight,

Rear

10 8540090 Gasket, Tub

W10112984

Basket, Complete

W10112972

Baffle, Tub

13 8540323 Element, Heating

14 8534084 Nut, Shock

Absorber Mounting

15 8540598 Counterweight,

Front Upper

W10010360

Spring,

Suspension

W10094780

Bolt,

Counterweight Mtg.

18 3363365 Clamp, Hose

19 8540015 Hose, Exhaust

20 8540092 Clamp, Tub

W10112664

Tub, Front

(Includes Items 8,

10, 22, 30 & 31)

22 8540072 Nut, Push−In

W10084740

Shock Absorber

24 8540226 Negative

Thermistor Control

25 8540382 Screw

26 8540342 Crosspiece

Assembly

27 8540940 Bracket, Shock

Absorber Mounting

28 8540841 Bolt, Shock Brkt.

29 8540842 Nut, Shock Brkt.

30 8540322 Bracket,

Heating Element

31 8540880 Screw

For Models: MHWZ600TW00, MHWZ600TB00, MHWZ600TK00

(White/Chrome) (Black/Chrome) (Pacific Blue)

OPTIONAL PARTS (NOT INCLUDED)

W10140756

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

4396816 Pacific Blue

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

786020 Black

PAINT, BULK (1 qt.)

799344 White (Uncut)

786032 Black (Uncut)

ACCESSORY PARTS

285863 Drain Extension

For Models: MHWZ600TW00, MHWZ600TB00, MHWZ600TK00

(White/Chrome) (Black/Chrome) (Pacific Blue)
