Maytag MGR4451BDQ - 30 Inch Gas Range Manuel

Repair

Parts

List

MODEL NUMBER

MGR4451BDQ

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

RANGE

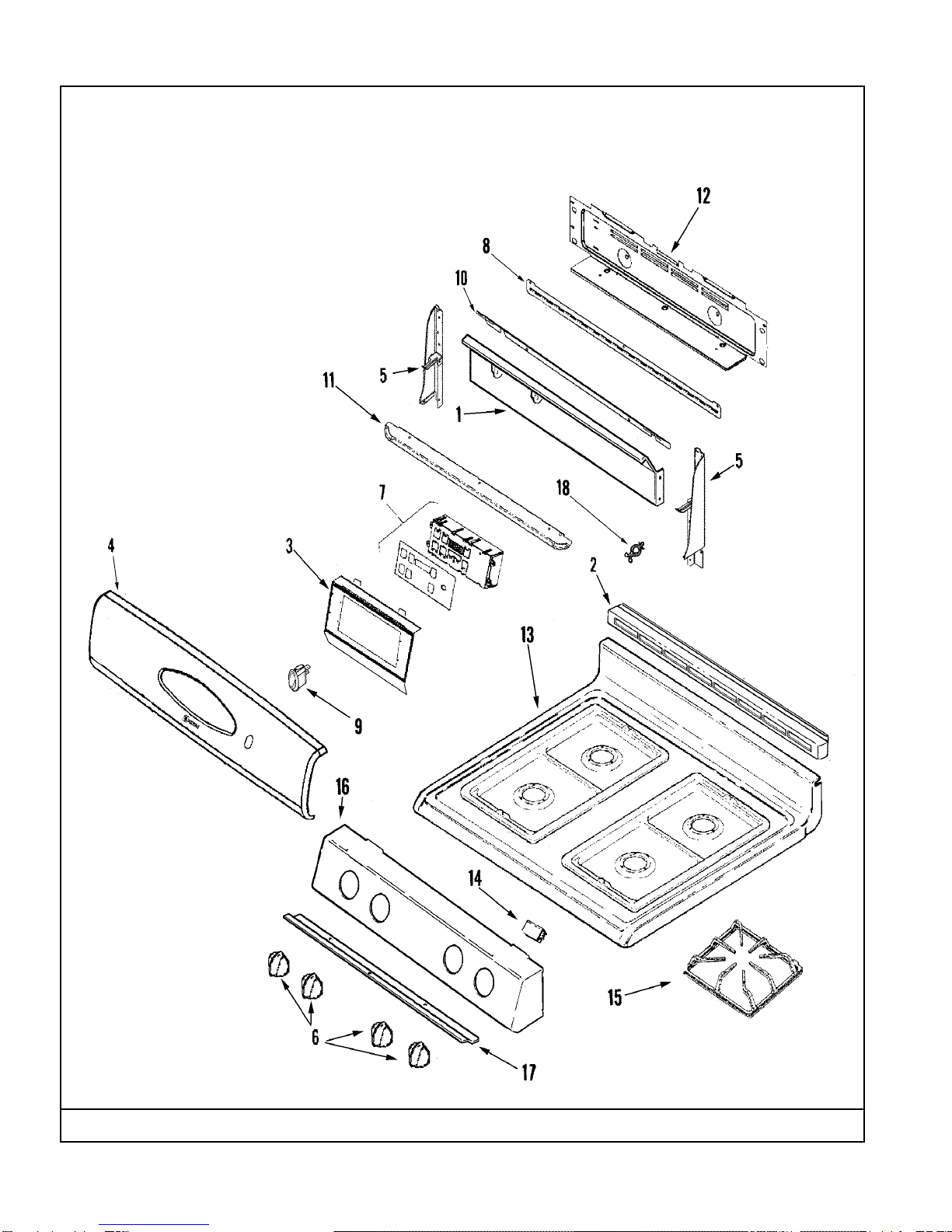

Section: CONTROL PANEL/TOP ASSEMBLY

C10-690

Model: MGR4451BDQ

CONTROL PANEL/TOP ASSEMBLY

No. Part No. Description

Section:

Series Qty

- N 7101P147-60 SCREW 10 1

1 74009779 SHIELD, VENT DEFLECTOR 10 1

2 74009797 TRIM, VENT (BLK) 10 1

- 7101P208-60 SCREW (10ABX1/4P TR ZN) 10 3

3 74009052 BRACKET, CLOCK 10 1

- 74003976 SCREW, SHOULDER 10 2

4 74009110 PANEL, BACKGUARD (BSQ) 10 1

- 74009541 SCREW (BSQ) 10 2

- 74003976 SCREW, SHOULDER 10 2

5 74010714 SUPPORT, BACKGUARD (RT-BSQ) 10 1

5 74010712 SUPPORT, BACKGUARD (LT-BSQ) 10 1

6 74009774 KNOB (BSQ) 10 4

- 74003976 SCREW, SHOULDER 10 4

7 74009881 CLOCK W/OVERLAY (BSQ) 10 1

8 74009780 SHIELD, SIGHT 10 1

9 74008939 SWITCH, ROCKER (BSQ) 10 1

10 74009978 SHIELD, WIRE 10 1

- 74001530 SCREW (8AB1/2-NI) 10 2

- 74009803 SCREW, (8 X 1/4) (BSQ) 10 2

11 74009798 SHIELD, VENT (BSQ) 10 1

- 74006536 COVER, WIRE (2 5/8" X 2) 10 1

- Y700502 SCREW 10 4

- 71001394 SCREW 10 2

12 74010804 COVER, BACKGUARD WIRE 10 1

- 74005546 SPACER, RUBBER 10 4

13 74004964 TOP, MAIN (BSQ) 10 1

- 74004558 GLIDE, MAIN TOP 10 2

14 74004827 CLIP, TOP LOCKING 10 2

15 74001059 GRATE (BLK) 10 4

16 74009830 PANEL, MANIFOLD (BSQ) 10 1

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, SHIELD 10 3

17 74002447 SHIELD, SIGHT 10 1

18 74006811 CLIP, WIRE LOCK 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

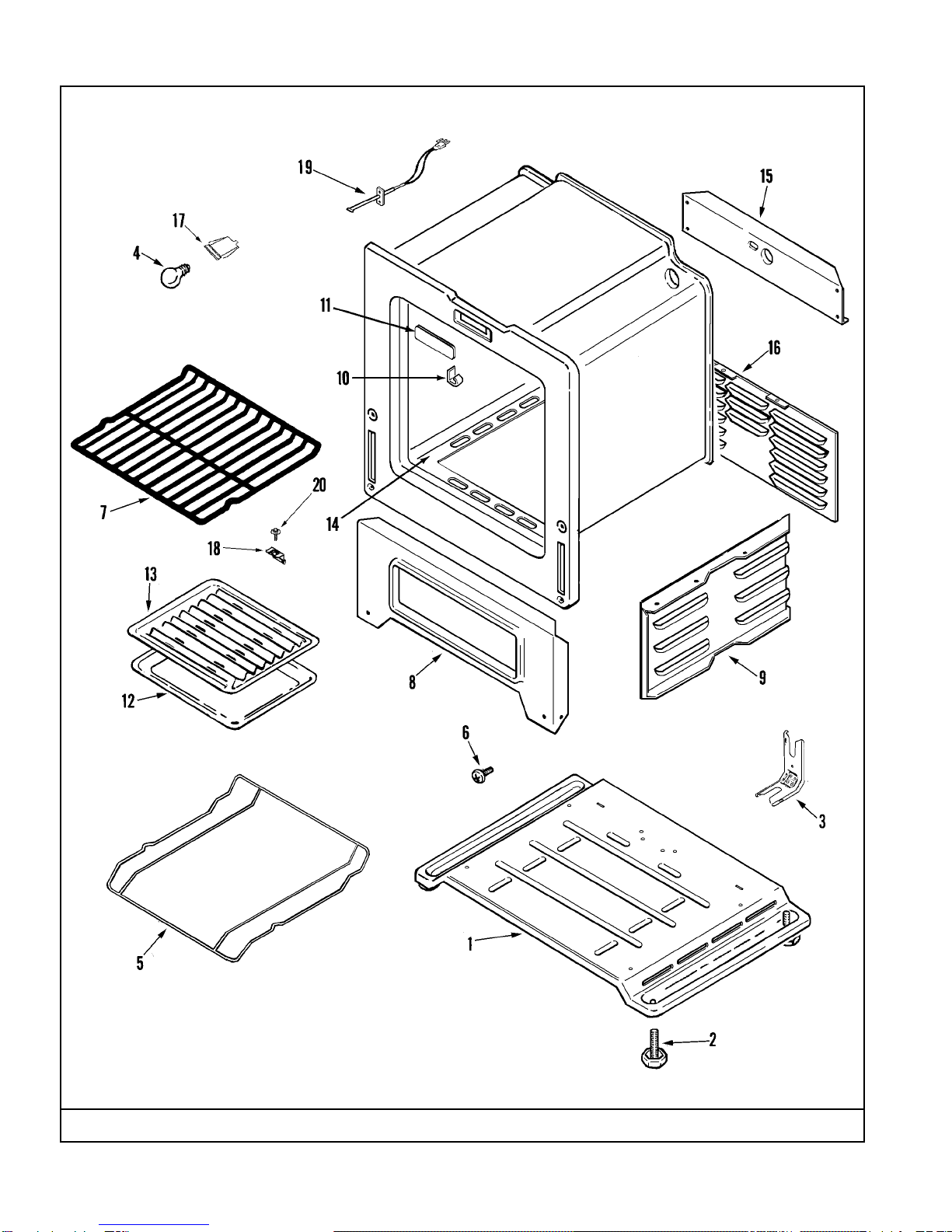

Section: OVEN/BASE

C12-551

Model: MGR4451BDQ

OVEN/BASE

No. Part No. Description

Section:

Series Qty

1 74010140 BASE, MAIN 10 1

2 74002373 LEG, LEVELING 10 4

3 74005564 BRACKET, ANTI-TIP 10 1

- 7101P352-60 SCREW Note: SCREW, BRACKET 10 2

4 7407P103-60 BULB, OVEN 10 1

5 74002381 RACK, BROILER 10 1

6 790448 SCREW (8ABX1/2"-BLK) Note: SCREW, OVEN FRONT (LWR) 10 2

6 74001530 SCREW (8AB1/2-NI) Note: SCREW, OVEN FRONT (LWR) 10 2

7 74001757 RACK, OVEN 10 2

8 74002327 FRONT, OVEN (LWR) 10 1

9 74002374 SIDE, BROILER (RT) 10 1

9 74002375 SIDE, BROILER (LT) 10 1

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, SIDE 10 4

10 7112P004-60 CLIP, THERMOSTAT 10 2

11 74003406 PLUG, LOCK SLOT Note: PLUG, DOOR LATCH 10 1

12 Y3401F02019 PAN, BROIL 10 1

13 Y3413F01619 INSERT, BROIL PAN 10 1

14 74011228 BOTTOM, OVEN (FIXED) 10 1

15 74002378 SHIELD, BROILER (BK) Note: SHIELD, BROILER BACK 10 1

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, SHIELD 10 4

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, BACK 10 4

16 74002379 BACK, BROILER 10 1

17 74003387 RECEPTACLE, BULB Note: RECEPTACLE, BULB 10 1

18 74010812 SUPPORT, OVEN BOTTOM 10 2

19 74004944 SENSOR, OVEN (SHORT) 10 1

20 71001394 SCREW 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

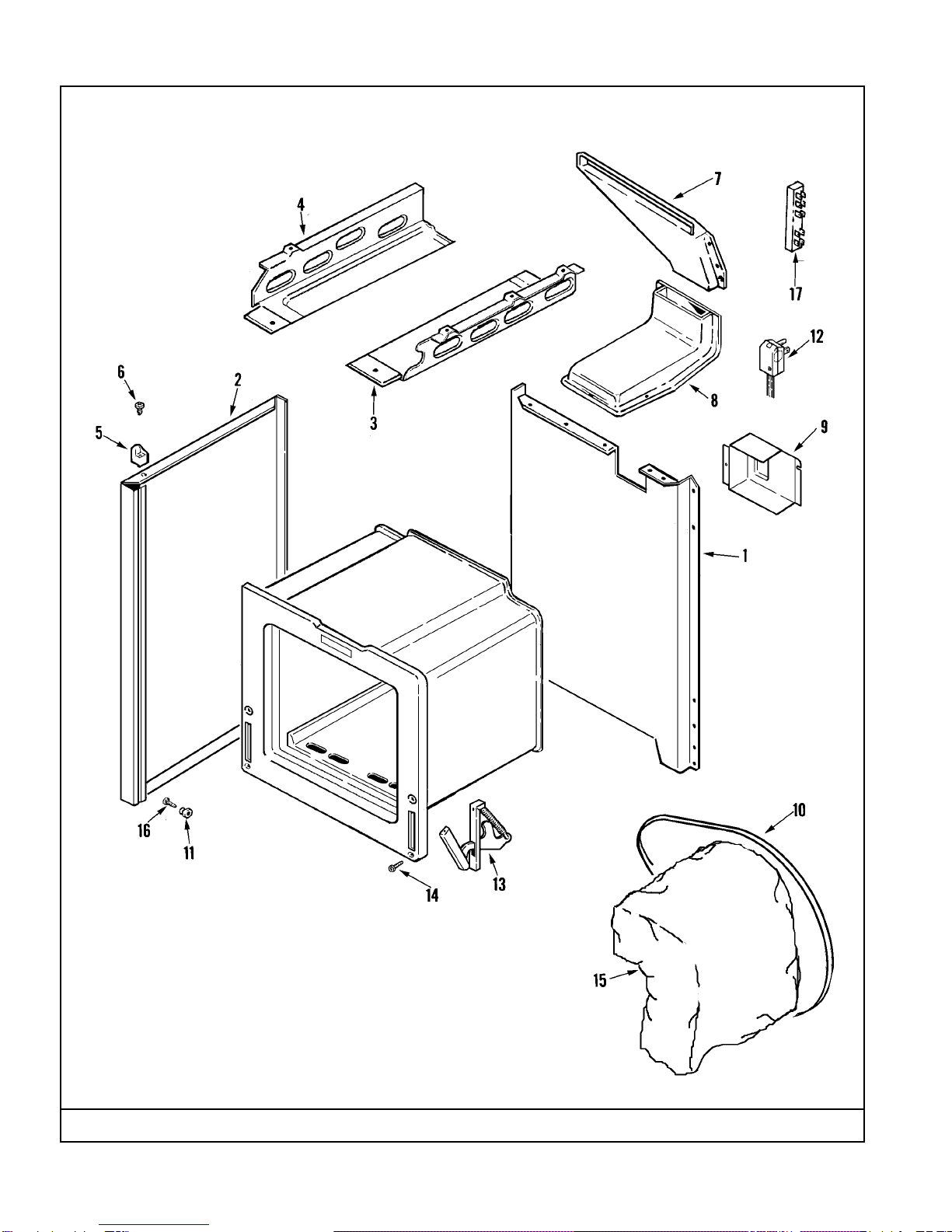

Section: BODY

C14-879

Model: MGR4451BDQ

BODY

No. Part No. Description

Section:

Series Qty

1 74009884 BACK, MAIN (GAS) 10 1

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, BACK 10 6

- 74004594 SCREW Note: SCREW, BACK 10 2

- 8008P010-60 GROMMET 10 1

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, PANEL 10 16

2 74004965 PANEL, SIDE (BSQ) Note: PANEL, SIDE (BSQ) 10 2

3 74009767 BOX, BURNER (RT) 10 1

4 74009768 BOX, BURNER (LT) 10 1

5 8010P088-60 SPACER, MAIN TOP (RT) 10 1

5 8010P087-60 SPACER, MAIN TOP (LT) 10 1

6 N 7101P338-60 SCREW (8BX3/8-NI) 10 1

- N 7101P338-60 SCREW (8BX3/8-NI) Note: SCREW, EXTENSION 10 2

7 4022W007-19 EXTENSION, FLUE BOX Note: EXTENSION, VENT BOX 10 1

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, BOX 10 2

8 74006420 BOX, VENT 10 1

- 74003976 SCREW, SHOULDER Note: SCREW, BOX 10 4

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, COVER 10 1

9 74004591 COVER, ACCESS Note: COVER, ACCESS 10 1

10 74002369 STRAP, INSULATION RETAINER 10 1

11 8004P024-60 SPACER, SIDE PANEL 10 4

12 74007556 CORD, POWER 10 1

13 74011141 HINGE, OVEN DOOR 10 2

14 7101P282-60 SCREW (10-24X5/16-NI) Note: SCREW, HINGE 10 4

15 74002370 INSULATION, OVEN WRAP 10 1

- 74002634 INSULATION, OVEN BACK 10 1

16 74003004 SCREW (8ABX19/32-ZN) Note: SCREW, SIDE PANEL SPACER 10 2

17 7401P037-60 BLOCK, TERMINAL 10 1

- N 7101P338-60 SCREW (8BX3/8-NI) Note: SCREW, BLOCK 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

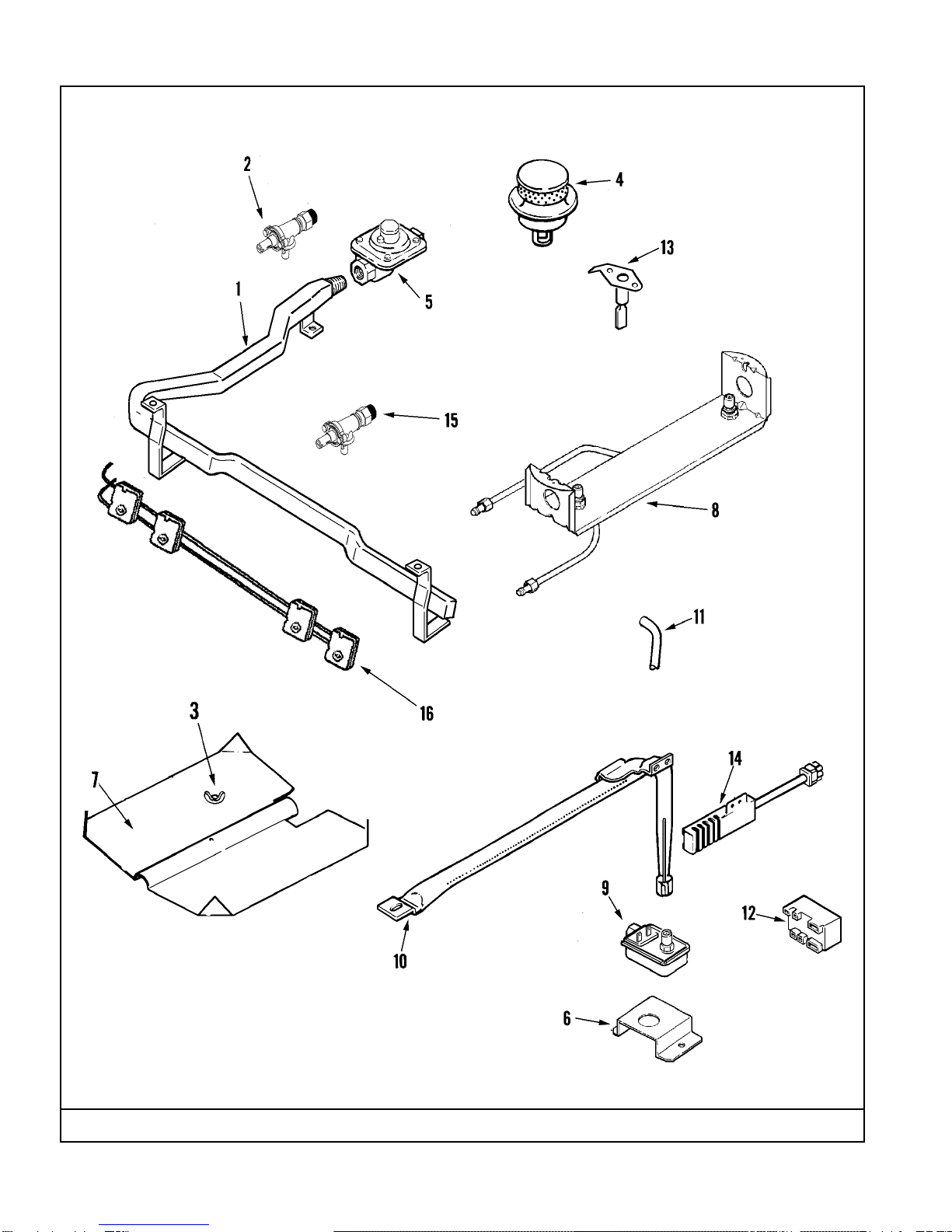

Section: GAS CONTROLS

C13-246

Model: MGR4451BDQ

GAS CONTROLS

No. Part No. Description

Section:

Series Qty

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, PIPE 10 3

1 74009886 PIPE, MANIFOLD 10 1

- 74009416 SCREW 10 4

2 74009462 VALVE (MUELLER) 10 3

2 74009770 VALVE (MUELLER 7.2) Note: VALVE (MUELLER 7.2)(LR) 10 1

3 7103P030-60 NUT, WING 10 1

4 12500050 BURNER, SEALED (BLK) 10 3

4 74004425 BURNER, SEALED (BLK) Note: BURNER, SEALED (BLK)(LR) 10 1

5 74006282 REGULATOR, PRESSURE 10 1

6 74005051 BRACKET, OVEN VALVE 10 1

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, BRACKET 10 2

7 74002393 BAFFLE, OVEN BURNER 10 1

8 74010792 ASSY. ORIFICE FITTING (RT/LP) 10 1

8 74010793 ASSY. ORIFICE FITTING (LT) 10 1

- 74009416 SCREW 10 2

9 74009891 VALVE, SAFETY 10 1

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, BURNER 10 1

10 74002434 BURNER, OVEN 10 1

11 74006417 TUBING, OVEN BURNER 10 1

12 74004283 MODULE, SPARK (4+0) 10 1

13 74004053 IGNITER, TOP BURNER 10 3

13 74004410 IGNITER Note: IGNITER, TOP BURNER (LR) 10 1

- 7101P282-60 SCREW (10-24X5/16-NI) Note: SCREW, IGNITER 10 2

14 74007498 IGNITER, OVEN --W 10 1

15 74009460 VALVE (MUELLER/SHUT OFF) 10 1

- 74009427 SCREW, VALVE 10 1

16 74009885 HARNESS, SPARK (4 POS) 10 1

- 74009911 KIT, NAT TO LP 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

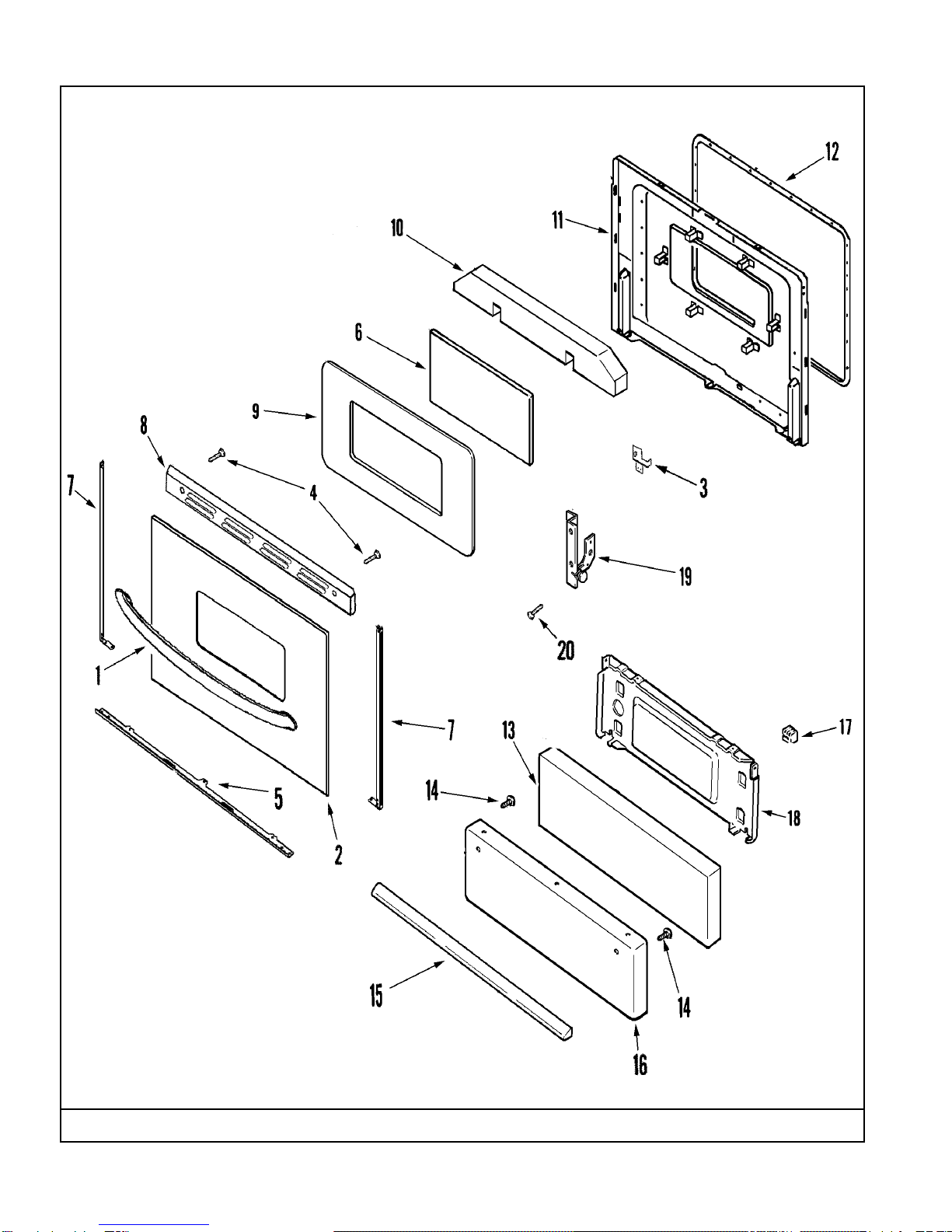

Section: DOOR/DRAWER

C11-796

Model: MGR4451BDQ
