Maytag MDB7709AWQ2 Manuel utilisateur
DOOR AND PANEL PARTS
1
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
12−09 Litho In U.S.A. (cre) (eeb) Part No. W10308304 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10199707
Instructions,
Installation
W10255026
Energy Guide
W10255114
Guide, Use & Care
English/French
W10142800
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener,
Door
4 Panel Front
W10199758
Black
W10199759
White
W10199760
Biscuit
W10199761
Stainless
5 Access Panel
8573255 Black
8573256 White
8573257 Biscuit
6 8269016 Clip, Grounding
7
W10073520
Insulation, Door
8 Toe Panel
(Includes Item 9)
W10205336
Black
W10205337
White
W10205338
Biscuit
9
W10073540
Insulation,
Toe Panel
10 Screw
302868 Black
3400836 White
11 304392 Screw
12 3400071 Screw
CONTROL PANEL PARTS
2
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
W10308304
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
(Includes Active
Overlay & Insert)
W10240103
Black
W10240104
White
W10240206
Biscuit
2 8546546 Clip, BI−Metal
3
W10250166
Control
Electronic
4 8269209 Switch, Door
5
W10077360
Latch Assembly
6 661663 Bi−Metal
7 3369051 Screw
8 Handle, Latch
W10205889
Black
W10205890
White
W10205891
Biscuit
DOOR AND LATCH PARTS
3
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
W10308304
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8545608 Harness, Vent
Motor
3
W10056249
Inner Door
Mastic Assembly
4 8268937 Inlet, Air
5
W10164259
Vent Assembly
6 8269259 Gasket, Vent
7 8545536 Deflector, Vent
(Also Order
Item 6)
8
W10199696
Dispenser,
Assembly
9 8269258 Seal, Front
10 8574160 Seal, Side
11
W10199683
Cap, Rinse Aid
12
W10078201
Wiring Harness
Main
13
W10177098
Screw
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8531865 Shield, Dispenser
17 8281217 Screw
FILL, DRAIN AND OVERFILL PARTS
4
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
W10308304
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overflow
Switch
2 8531412 Hose, Inlet
3
W10195536
Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5
W10213825
Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7
W10195049
Fill Valve
Assembly
8 304392 Screw
9 356138 Clamp, Hose
10
W10137608
Drain Loop
with Check Valve
11 8268909 Switch, Overfill
12 8545946 Standpipe,
Overfill
(Also Includes
Item 13)
13 8531743 Gasket, Flat
14 9741998 Nut, Standpipe
15 8268895 Float & Retainer
Assembly
16 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
TUB AND FRAME PARTS
5
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
W10308304
TUB AND FRAME PARTS
6
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
W10308304
Illus. Part
No. No. DESCRIPTION
1
W10213822
Tub Assembly
(Includes Heater
Assembly)
2 8573061 Strain Relief
3
W10112096
Door Seal
4
W10082838
Plug Tub
5 9743002 Gasket, Bracket
Mounting
6 8269110 Seal, Cabinet
7 3400072 Screw
8
W10084086
Door, Balance
Assembly
9 3367670 Screw
10 8269145 Bracket,
Undercounter
11 3400074 Screw
12 3370389 Screw
13 8268977 Wheel Leg
14 8524584 Leveler, Leg
15 3400014 Screw
16 8270020 Spring, Door
Balance
17 8270019 Wheel & Mount
Assembly
(Also Order
Item 6)
18 3400892 Screw
19 8268991 Cover, Terminal
Box
20
W10158291
Cable, Door
Balance
21 304666 Retainer, Push
22 Bracket, Hinge
W10185368
Left
W10185368
Right
23 8573240 Shield, Sound
Tub
24 9742648 Bracket,
Thermostat
25 661566 Thermostat
26
W10077370
Strike, Latch
27 3378128 Washer, Pronged

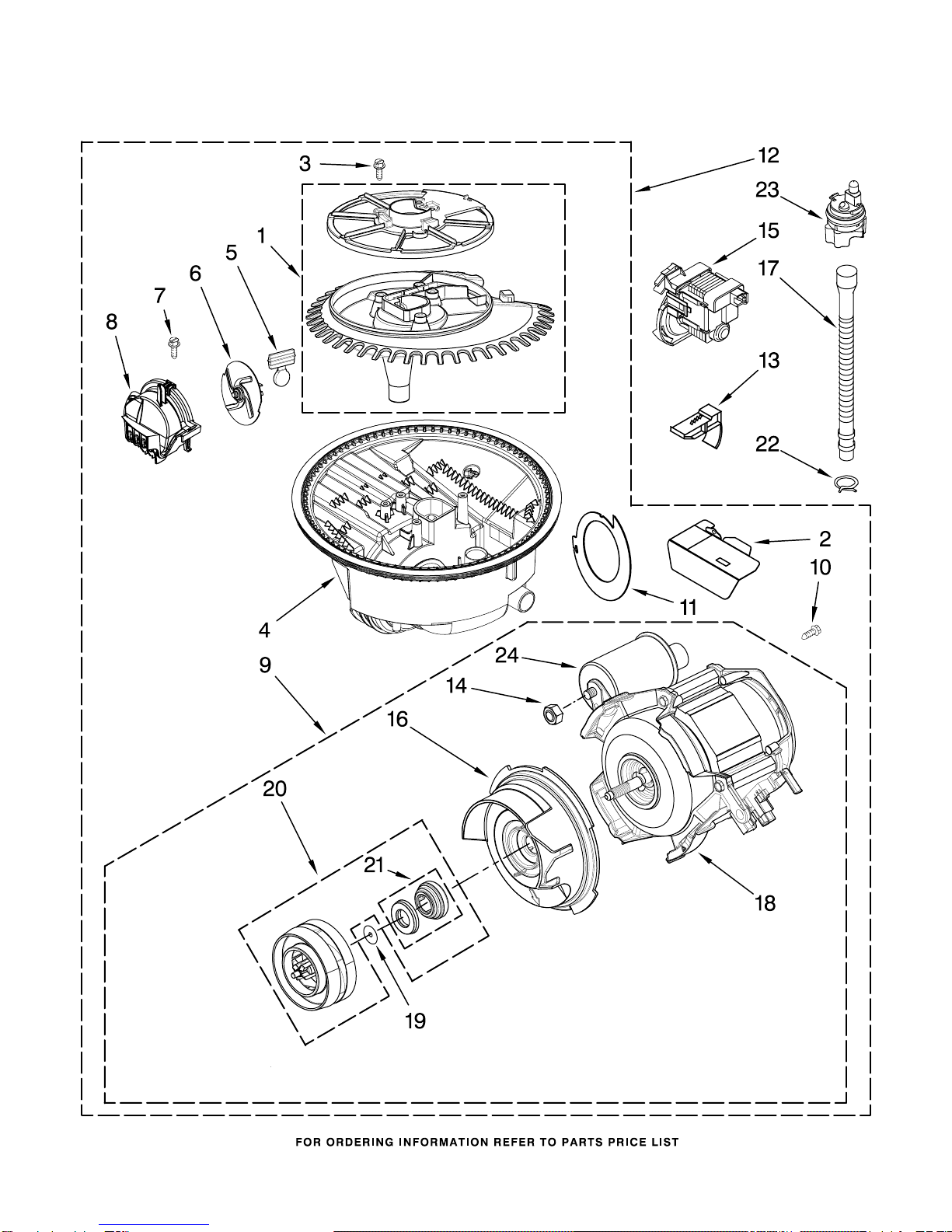

PUMP AND MOTOR PARTS
7
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
W10308304
PUMP AND MOTOR PARTS
8
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
W10308304
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump with seal
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9
W10231538
Motor Assembly
10 3400217 Screw
11
W10084567
Screen, Separation
12
W10237168
Sump & Motor
Assembly
13 8269524 Tab, Sump
14 8533949 Nut
15 8558995 Pump, Drain
16
W10142656
Volute, Back
(Also Order
Item 21)
17 8269144 Hose, Drain
18
W10226459
Motor
19 8531018 Washer
20 8531017 Impeller Kit
21 8268403 Face Seal Assembly
22 356138 Clamp, Hose
23
W10134017
Optical Water
Indicator
24
W10216724
Capacitor
UPPER WASH AND RINSE PARTS
9
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
W10308304
Illus. Part
No. No. DESCRIPTION
1 8559850 Feed Tube
Silverware Zone
(Also Includes
Item 3 & 11)
2 8533889 Screw
3 8557720 Spinner, 3rd
Level Wash
4
W10240137
Manifold
5 8268433 Seal, Sprayarm
6
W10082831
Nozzle−Feed
7
W10082841
Sprayarm
8
W10199808
Mount, Spray
Arm
9
W10118464
Retainer, Push−In
HEATER PARTS
10
For Models: MDB7709AWB2, MDB7709AWW2, MDB7709AWQ2, MDB7709AWS2
(Black) (White) (Biscuit) (Stainless)
W10308304
Illus. Part
No. No. DESCRIPTION
1
W10082892
Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Speed Nut
NOTE:
If heater element is
removed, it must be replaced.
