Maytag CVE1400B-C Manuel

Repair

Parts

List

MODEL NUMBER

CVE1400B-C

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

COOKTOP DDRAFT

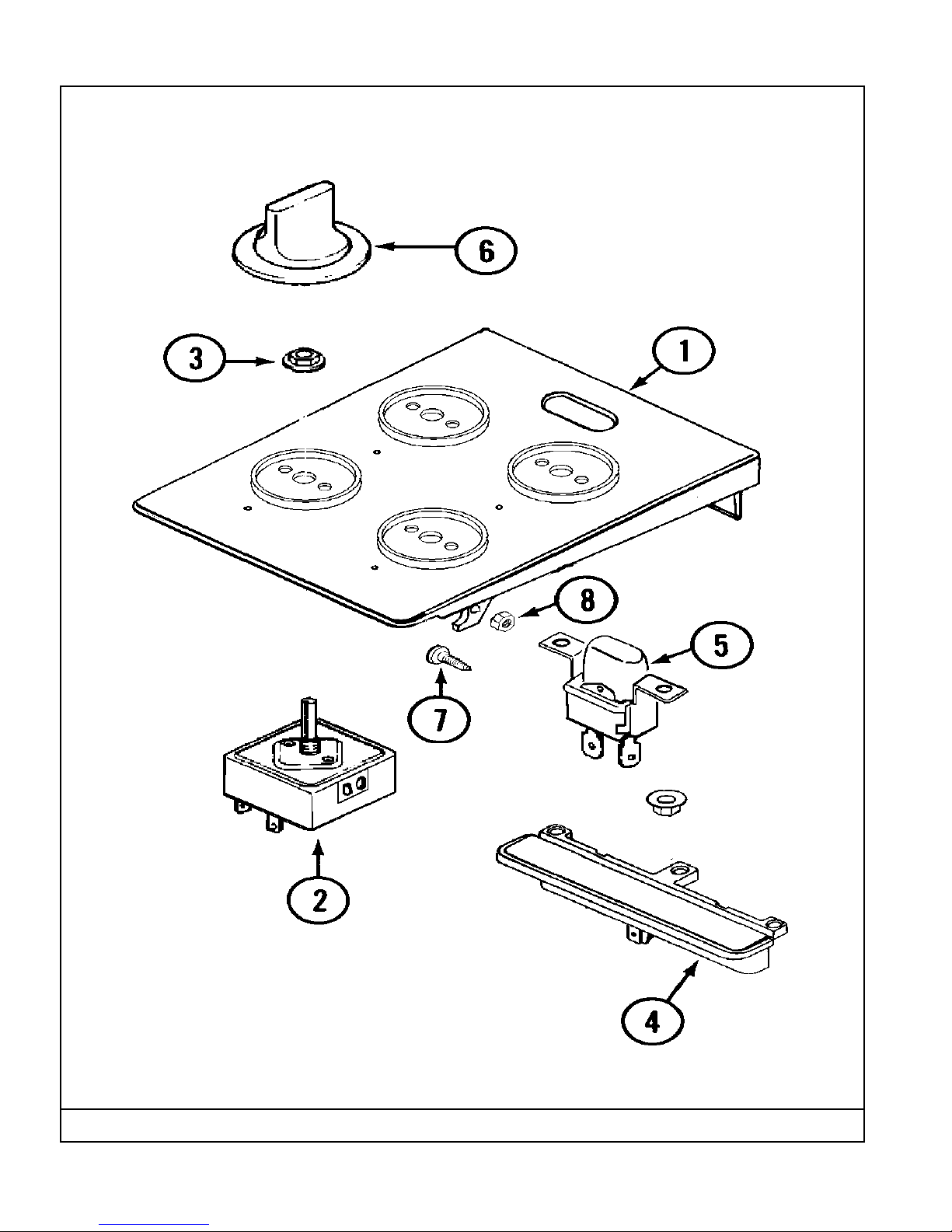

Section: CONTROL ASSEMBLY

C10-231

Model: CVE1400B-C

CONTROL ASSEMBLY

No. Part No. Description

Section:

Series Qty

1 71001559 ESCUTCHEON Note: ESCUTCHEON (BLK) 11 1

- Y704864 SCREW Note: SCREW, SWITCH 11 8

2 703650 SWITCH, INFINITE 11 4

3 Y04100035 NUT, PUSH Note: NUT, PAL 11 3

4 71001562 BOX, LIGHT ASSY. Note: BOX ASSY., LIGHT 11 1

5 71001564 SWITCH, FAN (BLK) Note: (BLK) 11 1

- 71001579 RELAY, FAN 11 1

6 71001565 KNOB, INF SWITCH (BLK) Note: KNOB, SWITCH (BLK) 11 4

- 705463 CLIP Note: CLIP, SCREW 11 2

7 71001171 SCREW, GROUND 11 2

- N 71001571 WIRE (WHT) Note: WIRE, WHT 11 1

8 Y701396 NUT Note: NUT, ESCHUTCHEON 11 2

- N 71001602 HARNESS, CONTROL 11 1

- N 71001583 WIRE (BLK) Note: WIRE, BLK 11 1

- 71001570 WIRE, PILOT LIGHT 11 1

- 702592 WASHER Note: WASHER, ESCUTCHEON 11 5

- N 71001597 WIRE, RED 11 1

- N 704360 WIRE, BLUE 11 1

- N 71001567 WIRE (YLW) Note: WIRE, YELLOW 11 1

- N 71001568 WIRE (BLU-BLK) Note: WIRE, BLUE/BLK 11 1

- EW001-00 MANUAL, SERVICE Note: MANUAL, SERVICE 11 1

- N 71001566 WIRE (BRN) Note: WIRE, BROWN 11 1

- 71001996 MANUAL, USE & CARE 11 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: TOP ASSEMBLY

C15-228

Model: CVE1400B-C

TOP ASSEMBLY

No. Part No. Description

Section:

Series Qty

1 Y04100372 MAIN TOP (BLK)----N Note: (BLK) 11 1

- Y707347 SCREW ----S Note: SCREW, GRILL 11 4

2 71001576 GRILL, AIR Note: (BLK) 11 1

3 Y04100528 DRIPBOWL, 8" (BLK) Note: (8" BLK) 11 2

4 Y04100527 DRIPBOWL, 6" (BLK) Note: (6" BLK) 11 2

5 Y04100166 ELEMENT 8" 5T DELTA BLK Note: ELEMENT (8") 11 2

6 N 703799 WIRE, VIOLET 11 4

6 701678 TIE, CABLE 11 1

- N 04100248 WIRE, GROUND Note: WIRE-GROUND 11 1

6 N 703800 WIRE, YELLOW 11 4

6 Y04100165 ELEMENT 6" 4T DELTA BLK Note: ELEMENT (6") 11 2

7 Y712355 BRACKET, RECEPTACLE---S Note: CLIP, RECEPTACLE 11 4

8 Y04100394 RECEPTACLE Note: BLOCK, RECEPTACLE 11 4

9 Y703571 SCREW ----S Note: SCREW, RECEPTACLE 11 4

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: BURNER BOX ASSY.

C14-278

Model: CVE1400B-C

BURNER BOX ASSY.

No. Part No. Description

Section:

Series Qty

1 N 04100395 BOX, BURNER 11 1

2 N 04100396 BAFFLE, BURNER BOX Note: BAFFLE, BURNER BOX 11 2

3 701662 RIVET Note: RIVET 11 12

4 Y707121 SCREW Note: SCREW, BURNER BOX 11 2

5 Y707124 NUT,SQUARE Note: NUT, SQUARE 11 2

- Y700502 SCREW Note: SCREW (#8AB/WASHER) 11 10

- N 04100398 LIMIT SHIELD Note: SHIELD, LIMIT 11 2

6 Y04100397 LIMITER, THERMAL 11 2

- Y708910 CLIP Note: CLAMP, CABLE 11 1

- N 04100400 DRAIN COVER Note: COVER, DRAIN 11 2

7 N 04100399 TOP SUPPORT BRACKET Note: BRACKET, TOP SUPPORT 11 4

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: BLOWER ASSEMBLY-PLENUM

C18-31

Model: CVE1400B-C

BLOWER ASSEMBLY-PLENUM

No. Part No. Description

Section:

Series Qty

1 71001577 PLENUM ASSY. Note: PLENUM ASSY 11 1

- Y704761 RING, RESTRICTOR 11 1

2 712008 SCROLL, BLOWER ASSY. 11 1

- Y704762 RETAINER Note: RETAINER, RING 11 1

- 702889 LOCKNUT CAP, W/NYLON INSERT Note: LOCKNUT CAP 11 4

3 Y704758 RING, INLET 11 1

4 Y707831 CLIP Note: CLIP, COVER 11 2

5 701958 CLIP, TINNERMAN Note: CLIP, COVER 11 2

6 71001578 MOTOR, BLOWER Note: MOTOR, BLOWER 11 1

7 Y707985 WHEEL, BLOWER 11 1

8 Y707393 BAND, MOTOR 11 1

9 Y708926 ISOLATOR---S 11 3

- 707407 SCREW Note: SCREW, ISOLATOR 11 3

- N 707161 NUT Note: NUT, SCREW 11 1

10 Y707402 SCREW Note: SCREW, BAND 11 1

11 Y715957 FOAM, URETHANE 11 1

12 Y704968 COVER, MOTOR 11 1

- Y705154 CONNECTOR 11 1

13 Y707702 LOCKNUT Note: LOCKNUT, COVER 11 4

- Y708955 SCREW Note: SCREW, LOCKNUT 11 2

14 712311 BUSHING Note: BUSHING, CONDUIT 11 1

15 712310 TINNERMAN Note: CLAMP, CONDUIT 11 1

16 707929 FILTER, GREASE 11 1

17 Y707681 PLATE, COVER 11 1

- N 704363 CABLE, WIRE ASSEMBLY 11 1

18 Y707172 SCREW ----S Note: SCREW, CLAMP 11 2

19 Y705155 CONDUIT, METAL 11 1

- Y707335 CLIP Note: CLIP, PUSH-ON 11 2

20 715780 CLAMP, CABLE 11 1

21 Y707688 RETAINER, FILTER 11 1

- N 712254 CLAMP, CABLE 11 5

- N 71001604 HARNESS, CIRCUIT BREAKER 11 1

- Y715443 BREAKER, CIRCUIT 11 4

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
