USER GUIDE
Vintage Style DAB, FM & Bluetooth Radio
MODEL NUMBER: 66580
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Contents
Welcome Section
General Information & Safety Instructions
Contents & Features
Controls
Setup
Selecting a DAB station / Saving a DAB/FM station
Selecting a preset
Auto tuning DAB / Manually tuning DAB
Auto tuning FM / Manually tuning FM
DAB / FM Information
Reset
Bluetooth
FAQ
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
1.
2.
3.
4.
5.
6.
7.
7.
8.
9.
9.
10.
11.
Welcome Section
Congratulations!
You have made an excellent choice with the purchase of this quality
MAXTEK®product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and saftey, supported by the
high quality standards of Quesh Ltd.
We want you to be completly satised with your purchase, so this
MAXTEK®product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt safe).
This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.
1
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
General information &
Safety Instructions
This radio is powered by 4 x ‘D’ size alkaline batteries (not included).
Do not dispose of batteries in your household waste.
Please contact your local authority for details on safe disposal.
• Never throw batteries into a re or expose to excessive heat sources.
• If batteries are swallowed, please seek mmediate medical attention.
• Always ensure correct +/- battery polarity when installing batteries.
• Do not recharge non-rechargeable batteries.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
Electrical and electronic equipment (WEEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health if the waste of electrical and electronic equipment (WEEE) is not
disposed of correctly.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
2
Contents & Features
3
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Contents
1 x DAB / FM radio
1 x 5V mains adaptor
Features
• DAB reciever (174MHz - 240MHz)
• FM reciever (87.5MHz - 108.00MHz)
• Stores 10 FM presets
• Stores 10 DAB presets
• Bluetooth V4.0
• Bluetooth range 10m
• Powered by 4 x D alkaline batteries (not included)
• 5v mains adapter (included)
• Auto adjusting clock
• Orange LED backlight display
• Stereo sound (2 x 2W speakers)
• Telescopic aerial
• 3.5mm headphone port
4
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Controls
On/Off
DAB/FM/Bluetooth
mode select
Preset 1/6
Preset 2/7
Skip Back
Preset 3/8
Skip Forward
Volume Dial
Auto Scan
Channel
Information
Shift preset
selection
Preset 4/9 Preset 5/10
Play/Pause
Tune/Enter
Dial
Headphone
Socket
DC in
Socket
Setup
5
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
First time use
After removing the radio from the packaging, either insert the 4 ‘D’
size batteries into the rear compartment located on the bottom of the
radio or connect the mains adaptor to the mains outlet and connect
the power lead to the ‘DC in’ socket located on the back of the radio.
Fully extend the telescopic aerial, press the button to turn the
radio on and you will see the welcome screen displayed on the front.
The date and time will automatically be set by the DAB signal the
radio is receiving. If your radio is in a poor signal area, the date and
time will not be set and you will see a message on the display.
You cannot set the time manually as this is a fully automatic feature.
This will also mean you can only use the radio in FM mode as the
DAB signal is not strong enough for the radio to receive stations.
After the date and time has been set the radio will perform a full scan
the DAB frequencies available. The scan progress and the number of
DAB stations found will be shown on the display.
Once the full scan has been completed the radio is ready to use.
6
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Instructions
Selecting a DAB station
Turn the ‘Tuning/Enter’ dial either clockwise or anti clockwise to
cycle through the available stations. All the stations are displayed in
alphabetical order.
Once you have found the required DAB/FM station to listen to, press
the ‘Tuning/Enter’ dial to select it. The station will only change once it
has been selected, so you can browse the available stations without
disturbing the current selected station.

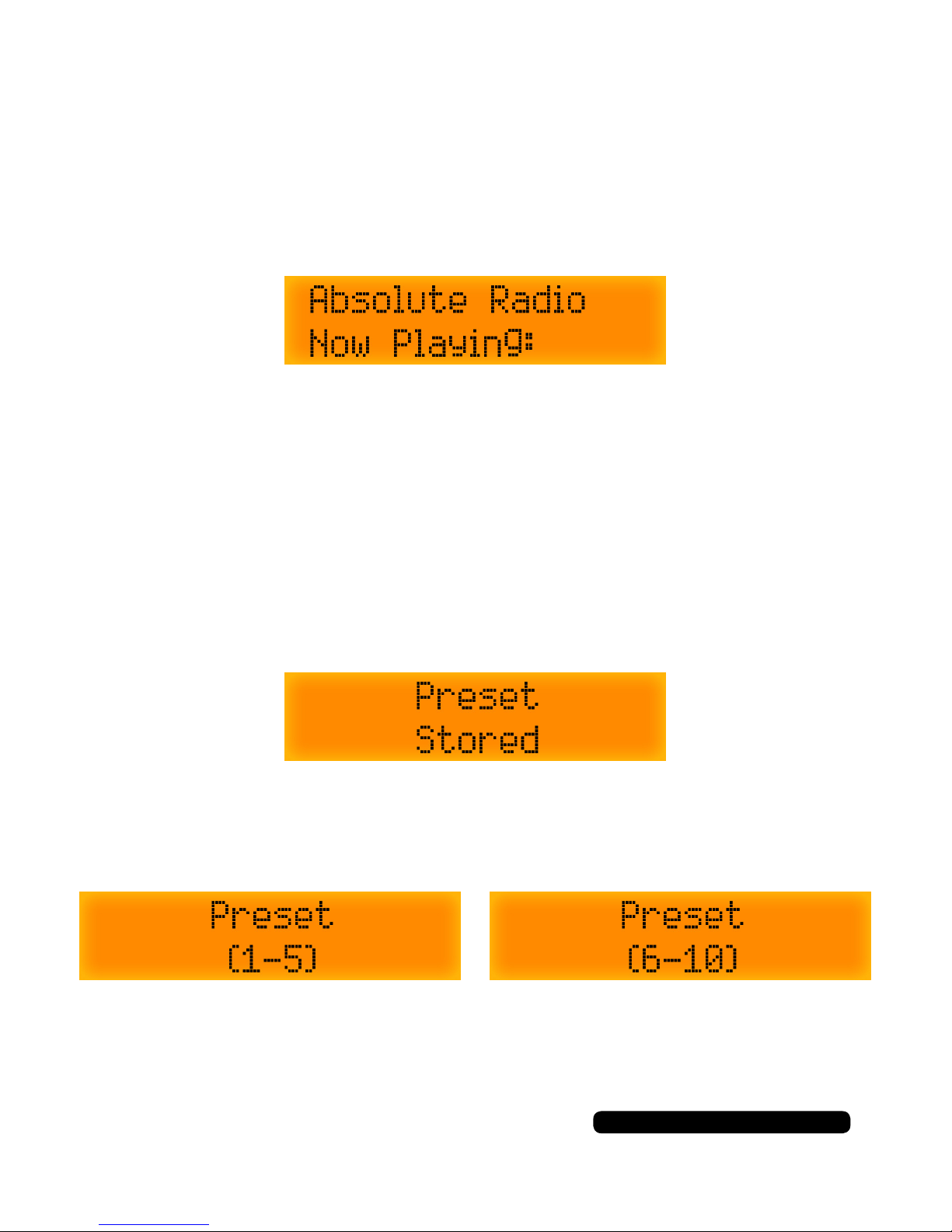

Saving a DAB/FM station
Press and hold one of the buttons marked 1 to 5 when you have tuned
the radio on to a required station in DAB or FM mode. The display will
ash with a save message.
To save a station in the available preset slots 6-10, rst press the
‘Shift’ button and you will see the display showing the preset slots 1
to 5 or 6 to 10.
Make sure the display is showing 6-10, then press and hold a number.
7
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Selecting a preset DAB/FM station
Press a number on the top of the radio corresponding to the station
you have previously saved. As before when saving in the 6-10 preset
slots, press the shift button and make sure the 6-10 is displayed and
then press the desired number button.
Auto Tune DAB
To fully retune all of the available stations on DAB press the ‘Scan’
button.This will scan through all the available channels the radio can
receive.
Manually tune DAB
To manually tune the radio, press and hold the ‘Tune/Enter’ dial till you
see ‘Manual Tune’ appear on the screen.
Rotate the ‘Tune/Enter’ dial in either direction to tune the radio in. This
helps in poor signal areas to get a clear signal. Repeat the storing a
preset procedure to save the current tuning.
Instructions
8
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Instructions
Auto Tune FM
Pressing ‘Scan’ will change the FM channel to the next station
available. Depending on the scan setting the radio will either nd the
next station or the next strongest station.
To change the type of scan used, press and hold the ‘Tune/Enter’ dial
till Scan Setting appears on the display.
Rotate the ‘Tune/Enter’ dial to select either ‘Strong Stations’ or
‘All Stations’ and press the ‘Tune/Enter’ to conrm selection.
Manually tune FM
Rotate the ‘Tune/Enter’ dial in either direction to tune the radio in FM
mode.This helps in poor signal areas to get a clear signal. Repeat the
storing preset procedure to save the current tuning.
