MaximalPower FC999 Manuel utilisateur

LCD & LED Display

Battery

TYPE

Function

LED Indication

LCD display word

LCD capacity

Indication

Ni-Cd

Discharge

Yellow

DIS

Flashing

downward

Charging

Red

CHA

Flashing upward

Fully charged

Green

Fully charged

Ni-MH

Charging

Red

CHA

Flashing upward

Fully charged

Green

Fully charged

Alkaline

Charging

Red

CHA

Flashing upward

Fully charged

Green

Fully charged

Ni-Cd

Ni-MH

Alkaline

Battery voltage

is very low short

Battery can’t recharge

Off

BAD

Dear Customer,

Thank you for purchasing

MaximalPower ™

universal battery charger. This product is an

excellent environmentally friendly choice which provides a comprehensive and versatile solution

to keep your battery charged when you need them and minimize battery waste.

This product meets the European and USAsafety requirements.

This charger has the following features:

Easy to use

Intelligent microprocessor controlled

Negative delta V cut-off function

Rechargeable batteries in all capacities 1-4 pcs sizeAAA ,AA,C ,D& 1PCS 9V

Recharges SINGLE or GROUPED batteries with microprocessor monitors each

charging bay individually

Short-circuit protection, heat sensor and reversed-polarity protection

LED and LCD displays the status of each battery’s charging cycle

Individual maximum timer control for overcharge protection.

Charges Ni-Cd (Nickel Cadium), Ni-Mh(Nickel Metal Hydride),Alkaline *,

RAM(Rechargeable Alkaline Manganese)

Note on standard alkaline batteries:

The charger can charge most types of alkaline batteries. Please use the setting “ALK” on the

sliding front panel of your charger. Please note due to the chemistry of standard alkaline batteries,

they cannot be recharged nearly as many times as standard rechargeable type batteries like Ni-Cd

or Ni-MH batteries. The charger can recharge most standard alkaline batteries 75-90% of their

original capacity, up to 30+ times which is really depending on the quality and condition of the

battery. Please make sure there’s no dirt, rust or leakage on your standard alkaline battery and the

battery hasn’t passed the expiration date before you charge them. To prevent battery leakage,

please use the alkaline battery within 3 days after charging.

Please note that this charger is intended to charge rechargeable Ni-Cd, Ni-MH and RAM batteries

AA, AAA, C, D and 9v block batteries. Not AllAlkaline batteries can be recharged.

On an environmental note, the cost/performance comparison between standard alkaline batteries

and rechargeable batteries such as Ni-Cd (Nickel Cadmium) and Ni-MH (Nickel Metal Hydride),

rechargeable batteries are more cost efficient with better performance. Using rechargeable

batteries can reduce the waste to our environment.

Warranty Disclaimer

No part of the product may be modified or rebuilt and the housing must not be opened.

Always observe the safety instruction.

In case of any damages which are caused due to failure to observe these operating

instructions, improper operation or the failure to observe the safety instructions, the

guarantee will be voided. We do not assume liability for consequential damages nor

for damages to property nor personal injury arising from improper use of the device.

For safety reasons, the unauthorized conversion or opening of the device is prohibited.

Never short-circuit the charging contacts or batteries. It is normal that batteries get

warm during the charging procedure. But please unplug the charger if the battery gets

too hot or there’s leakage from battery. Please handle re-charged batteries with

care.

Do not leave the charger in moist or wet condition.

Neither the device nor batteries are toys for children. Please keep them out of reach

of children.

Important safety instruction

Before you use your new universal rapid charger, please pay attention to the user’s manual and the

safety instructions listed below.

-Never use the unit outdoors; it is designed for indoor use only.

-This charger is only suitable for the Ni-Cd (Nickel Cadmium) batteries and the Ni-MH

(Nickel Metal Hydride) batteries and alkaline batteries. This charger does NOT charge

Lithium (Li-ion) battery.

-Don’t use an extension cord to connect the unit.

-Pay attention to the correct polarity during inserting the batteries.

-Use the unit only at ambient temperatures of 0-40℃.

-Always unplug the charger after each use and before cleaning.

-Protect the charger against humidity and heat.

-Never open the unit by yourself; otherwise the warranty will become invalid! Repair can be

carried out only by our service branch or an authorized distributor. Improper disassemble and

assemble can cause fires or electric shocks.

-Do not use damaged or corroded batteries.

-AAAbatteries with a capacity of 300 mAh can never be charged for more than 0.5 hours.

-If the power cord of this unit is damaged, it must be replaced by the manufacturer, its service

person or a similar qualified person, in order to avoid danger.

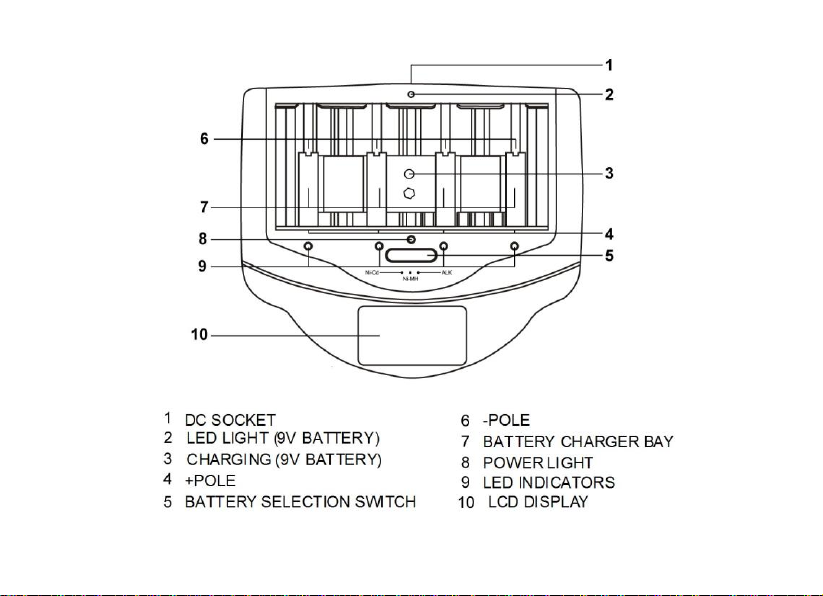

PRODUCT DESCRIPTION

1、This charger can charge 4 kinds of batteries Ni-Cd、Ni-MH, RAM &Alkaline.

Each charging bay functions independently

Charge up to 4 batteries simultaneously.

Note: Batteries must be the same type when charge them together (Ni-Cd、Ni-MH or

alkaline)

Accommodates both AA、AAA、C、D and 9V batteries.

Battery type is preselected, therefore only one type (Ni-Cd, Ni-MH, RAM or alkaline

(Ram Setting)) battery can be charged at one time

This charger uses the latest battery charging technology. It uses “Negative Delta V”

deletion when charging Ni-Cd &Ni-MH battery first, followed by a quick charge. Once

the battery is fully charged, a constant current trickle charge will keep the battery at

optimum capacity.

2、Discharging Ni-Cd only:

Discharge times will very depend on capacity and charge state, typically the process could take

up to one hour, before the charge cycle commences.

During the discharge process the indicator LED will glow amber

3、Operation

Please read the following instructions carefully before first use of the Charger.

Connect the AC adaptor to the charger with the DC connector end.

Insert theAC plug into the household power supply and make sure the power supply is

normal. LED power indicator light will turn on after the charger is plugged in.

Select the required battery type by moving the battery selector switch between

Ni-Cd ,Ni-MH or ALK.

Insert batteries into the charging bay and make sure to match the correct polarity(+ is near

the LCD display)

After approximately 2 seconds the charger will automatically detect the status of the battery.

Once battery detection is complete, one of the following charging programs will commence.

Ni-Cd batteries:A characteristic of a Ni-Cd battery is that it has memory which means after

charging the battery repeatedly, the capacity of the battery will be significantly reduced. To

improve the battery’s condition, the charger will discharge the battery first (LCD linking

“DIS”& energy LCD indicator flashing downward) while LED indicator is illuminated

yellow. Once the discharge cycle is completed, the charger will begin the quick charge

program (LCD blinking “CHA”& energy level indicator flashing upward) while the LED

indicator illuminates red.

When the battery is fully charged, the LCD will show “OK”& energy level indicator

showing full. The LED indicator turns green.

Ni-MH & Alkaline batteries: Since neither Ni-MH norAlkaline battery has memory,

the

charger will automatically start the quick charging program. Both LCD & LED will have the

same display as for charging Ni-Cd battery.

When charge 9V battery, the LED light on top will light up in Red color. The LED light

will turn Green when 9V battery is fully charged.

We suggest you to use the fully charged batteries within 3 days. If you forgot to remove the

battery from the charger after it’s fully charged, the charger will automatically trickle charge

the battery keeping it at its optimum capacity. But for Alkaline battery, please remove the

battery from the charger and use it within 3 days to prevent leakage.

CHARGING TIME

In order to determine the approximate charge time, the formula as below can be used as reference.

Capacity of the battery x 1.4 = charge time of the battery

Current of the charger

Battery Type

Battery size

Battery capacity

Charge time

Ni-Cd

AAA

400mAh

0.7Hours

800mAh

1.4Hours

2200mAh

3.9Hours

4400mAh

7.7Hours

Ni-MH

AAA

800mAh

1.4Hours

2300mAh

4Hours

3300mAh

5-8Hours

5000mAh

8Hours

Alkaline

AAA

1.5V

<1.4V 2.5Hours

1.5V

<1.4V 5Hours

1.5V

<1.4V 6Hours

1.5V

<1.4V 10Hours

9V block

200mAh

7 Hours
