Matsusada Precision VOL Manuel utilisateur

Instruction Manual

MODEL VOL / VOLJ

Standard Digital Interface

LGob Option

LUs1 Option

ＤｕｍｍｙＰａｇｅ

B/N：222.9.011 *222.9.011* Rev 0.3

CONTENTS Page

１Introduction .................................................................................................................................................................................. 1

１－１ Introduction ................................................................................................................................................................. 1

１－２ Unpacking the unit .................................................................................................................................................. 1

１－３ Environmental requirements ............................................................................................................................. 1

１－４ Notes ............................................................................................................................................................................. 1

２Exterior view diagram ............................................................................................................................................................ 2

２－１ Standard Digital Interface ................................................................................................................................... 2

２－２ LGob Option .............................................................................................................................................................. 2

２－３ LUs1 Option ............................................................................................................................................................... 2

２－４ LEt Option ................................................................................................................................................................... 3

３Connection diagram ............................................................................................................................................................... 4

３－１ VOL/VOLJ Series (Standard Digital Interface), CO-MET2-25/CO-MET2-9/CO-MET4-25 4

３－２ VOL/VOLJ Series (Standard Digital Interface), CO-G32m ................................................................ 4

３－３ VOL/VOLJ Series (LGob Option), CO-OPT2-25/CO-OPT2-9/CO-OPT4-25 .......................... 5

３－４ VOL/VOLJ Series (LGob Option), CO-G32 ............................................................................................... 5

３－５ VOL/VOLJ Series (LGob Option), CO-U32 ............................................................................................... 6

３－６ VOL/VOLJ Series (LUs1 Option) .................................................................................................................... 6

３－７ VOL/VOLJ Series (Standard Digital Interface), CO-U32m ................................................................ 7

３－８ VOL/VOLJ Series (Standard Digital Interface), CO-E32m ................................................................ 8

３－９ VOL/VOLJ Series (LEt Option) ........................................................................................................................ 8

３－１０ VOL/VOLJ Series (LGob Option), CO-E32 ............................................................................................... 9

４Functions .................................................................................................................................................................................... 10

４－１ Summary ................................................................................................................................................................... 10

４－２ CO-M cable connector Interface terminal details (Standard Digital Interface) ...................... 10

４－３ Setting of UNIT number ..................................................................................................................................... 10

４－４ Settings address and delimiter for GPIB(CO-G32/CO-G32m) ...................................................... 11

４－５ USB Setting(CO-U32m Option) ..................................................................................................................... 11

４－６ IPAddress Setting (CO-E32/CO-E32m/LEt Option) ........................................................................... 11

４－７ Settings upper connection(LGob Option) ................................................................................................. 12

４－８ Settings of CO-MET2-25/CO-MET2-9 (Standard Digital Interface) ............................................ 13

４－９ Settings of CO-OPT2-25/CO-OPT2-9 (LGob Option) ........................................................................ 14

４－１０ Settings of CO-MET4-25/CO-OPT4-25 ..................................................................................................... 15

５Program ...................................................................................................................................................................................... 16

５－１ Summary of Syntax .............................................................................................................................................. 16

５－２ Multiple command ................................................................................................................................................ 16

５－３ Character set for the command ..................................................................................................................... 17

６Getting started ......................................................................................................................................................................... 18

６－１ CO-MET2-25/CO-MET2-9/CO-MET4-25, Standard Digital Interface ........................................ 18

６－２ CO-G32m, Standard Digital Interface ......................................................................................................... 19

６－３ CO-OPT2-25/CO-OPT2-9/CO-OPT4-25, LGob option ..................................................................... 20

６－４ CO-G32, LGob Option ........................................................................................................................................ 21

６－５ CO-U32, LGob Option ........................................................................................................................................ 22

６－６ LUs1 option .............................................................................................................................................................. 23

７Command reference ............................................................................................................................................................. 24

７－１ Command list .......................................................................................................................................................... 24

７－２ Reference .................................................................................................................................................................. 25

７－３ Minimum setting / return value list ................................................................................................................ 38

iii

ＤｕｍｍｙＰａｇｅ

１ Introduction

１－１ Introduction

Thank you very much for your purchase of our product.

We have done our best for our quality control of out products. Please handle this unit

properly according to this instruction manual so that you can use the full capacity of

this unit and operate it safely and smoothly in high efficiency for long.

If you find any doubtful or unknown point or omission in this instruction manual, please

kindly contact us immediately.

１－２ Unpacking the unit

When unpacking the unit, please check the following accessories are enclosed with the unit main

body.

Accessories

・Instruction manual

・Install manual (for LUs1 option)

・USB driver disc (for LUs1 option)

・CO-M Cable (option nothing)

・CO-Optical fiber cable (for LGob option)

１－３ Environmental requirements

Warning

Install the unit horizontally when use.

Never place any object on the power supply.

Use the power supply where the ventilation condition is good.

Do not operate the power supply in a dusty area or in corrosive gas environment.

１－４ Notes

Warning

When system has high voltage power supply, equipments connected might receive

damage due to high voltage.

When operate with GPIB interface, connect only cables required for system operation.

The power supply has protection for intermittent short circuit, however operation with

repeatable short circuit with arc should be avoided.

The power supply has enough protection for noise, however if hung-up or voltage

output, which is not programmed, are observed, turn of the power supply and reset

the but, then resend the command again from controller.

Any system change shall be done while the power of all the equipments of system is

turned off. Sometimes it prevents the unit to function properly that causing of high

voltage.

！



！



２ Exterior view diagram

２－１ Standard Digital Interface

２－２ LGob Option

２－３ LUs1 Option

① CO-M cable connector (IN)

② CO-M cable connector (OUT)

③ Master/Slave setting switch

L N

ＩＮＰＵＴ AC100-240V 20A

50 /6 0 H z Φ 1 20 00 V A

VOLJ Series Half Rack Size 1U Rear Panel

VOL Series Full Rack Size 1U Rear panel

①

②

③

① CO-Optical fiber cable connector (IN)

② CO-Optical fiber cable connector (OUT)

③ Upper connection setting switch

ＩＮＰＵＴ AC100-240V 20A

50/60Hz Φ1 2000VA

L N

ＯＵＴＩＮＵＮＩＴ

①

②

③

VOLJ Series Half Rack Size 1U Rear Panel

VOL Series Full Rack Size 1U Rear panel

① USB connector

VOLJ Series Half Rack Size 1U Rear Panel

VOL Series Full Rack Size 1U Rear panel

①

２ Exterior view diagram

２－４ LEt Option

① Ethernet connector

VOLJ Series Half Rack Size 1U Rear Panel

VOL Series Full Rack Size 1U Rear panel

①

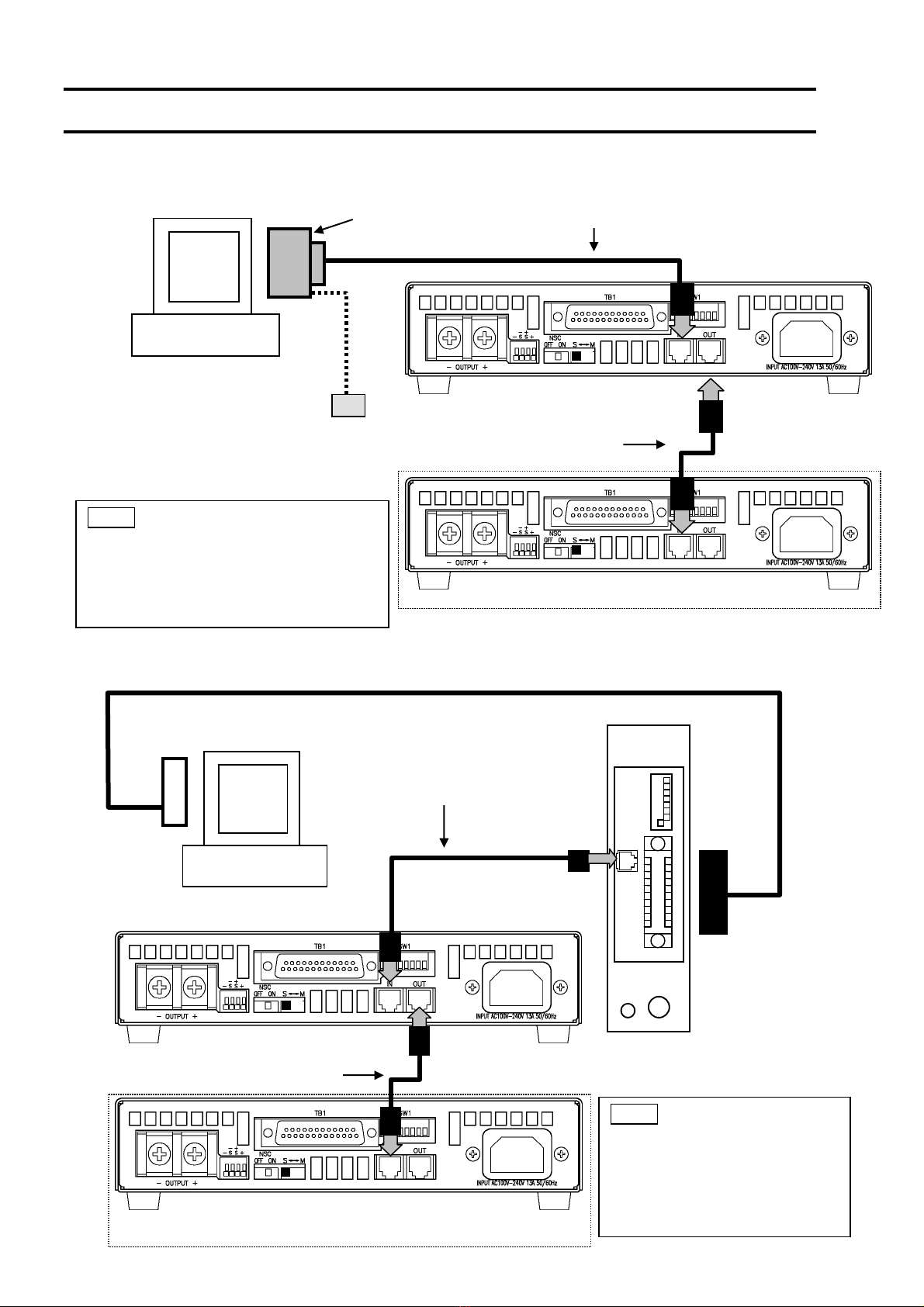

３ Connection diagram

３－１ VOL/VOLJ Series (Standard Digital Interface), CO-MET2-25/CO-MET2-9/CO-MET4-25

３－２ VOL/VOLJ Series (Standard Digital Interface), CO-G32m

VOLJ Series Half Rack Size rear panel

CO-MET2-25

CO-MET2-9

CO-MET4-25

Up to 32 units can be connected

NOTE

・For remote control of standard

digital interface, set the

Master/Slave switch to “Slave”.

AC Adapter

(CO-MET-4-25)

RS-232C Controller／

RS-485 Controller

CO-M Cable

CO-G32m Rear panel

INPUT AC

VOLJ Series Half Rack Size rear panel

GPIB Controller

CO-M cable

GPIB Cable

CO-M cable

VOLJ Series Half Rack Size rear panel

Up to 32 units can be connected

NOTE

・For remote control of

standard digital interface,

set the Master/Slave

switch to “Slave”.
