Matrix 4000 Manuel utilisateur
Matrix 4000 Table Tennis Table Manual Instruction
Model No. 184-0693
For any warranty, assembly inquiries, please call: 1-
855-803-9314
Part List
1. Table Tops
Qty: 2
2. Rack&Net
Qty: 1
3. Iron Plates
Qty: 8
4. Wheel
Qty: 4
5. Wheel with brake
6. T-leg
Part#, Description, Picture, Quantity
Assembly Instructions
1. Attach the wheels to the nuts welded on the T-leg bottom, rotate in to secure.
Qty: 4
Qty:4
7. Screw
Qty:8
8. 8*10mm Wrench
Qty:2

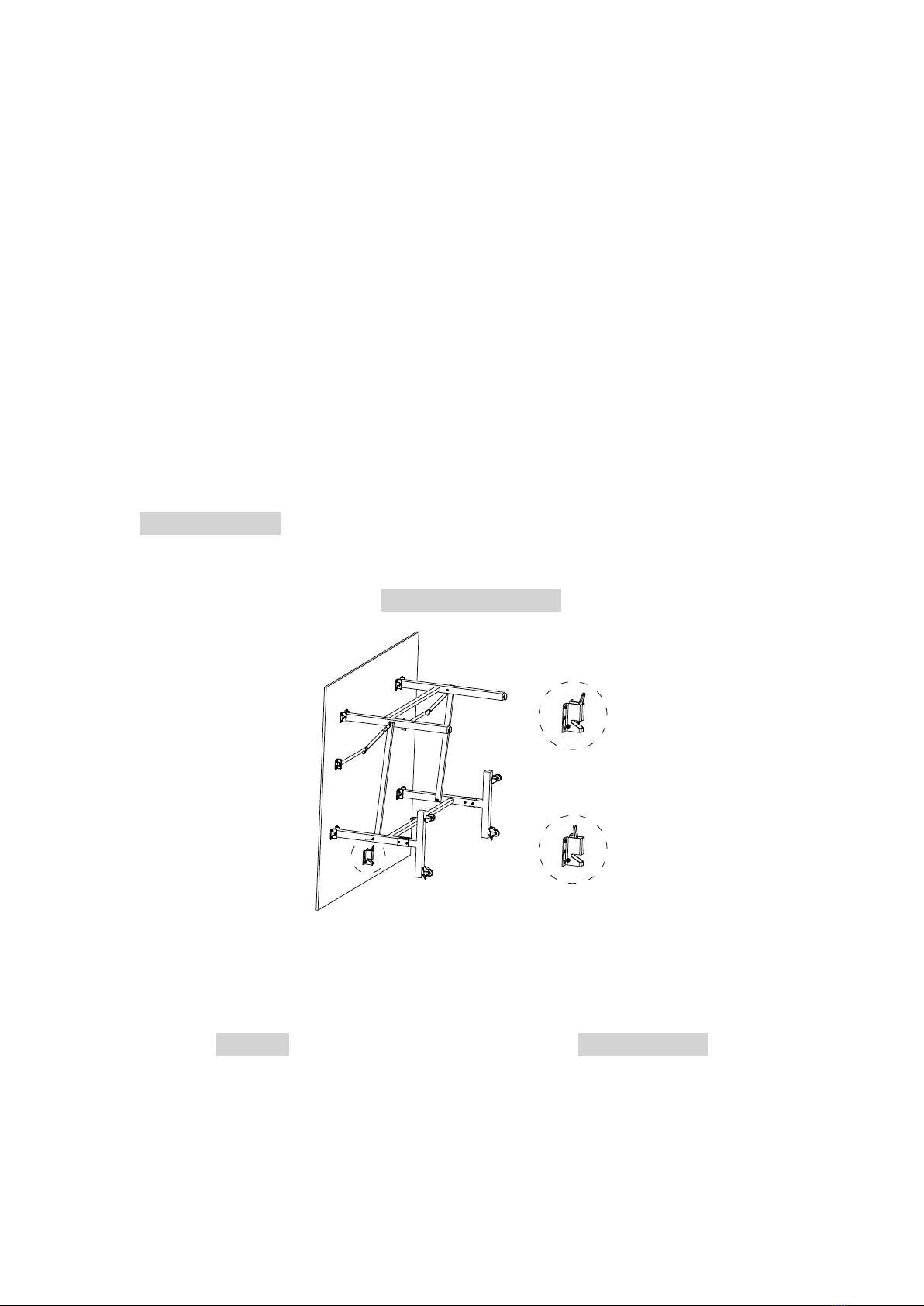

2. Carefully lay both table tops flat and face down on a soft surface. Unlock and unfold
pre-assembled table top, using two iron plates to fix ‘T’ leg [this should be
consistent with parts list] into designated position and ensure marking tape lines
up on each side, see figure 1.
3.
3
7
Preparation for use
1. Open the carton and check to ensure all accessories and fittings are in the package.
2. Install ‘T’ leg according to figure 1 above.
3. Tighten all screws and turn table up right way ready for use.。
Care and Maintenance for use of your Table
1. This item is very heavy. A minimum of two persons should be used to assemble or
move the table.
2. The two pieces of table top have to be separated before folding or opening.
3. Do not place table outdoors.
4. Do not beat on surface of table with paddle.
5. Do not place hot goods on table top.
6. Do not place heavy goods on table to avoid distortion.
7. Do not use table for any other exercise other than table tennis.
8. Do not move table around quickly on rugged ground.
9. Keep table in a dry, well ventilated area. Avoid exposure to sun and rain, which will
warp the table.
10. All wheels and feet should be adjusted to ensure level playing surface, ensure
wheels are locked prior to playing.
PLEASE READ ALL THE INSTRUCTIONS BEFORE ASSEMBLY (PAGE 2)
Operation Method
Security Lock Operation
Release the lock before opening the Table Tennis Table. Ensure lock is engaged when
folding the table.
Leg Hinge Wheel Operation
LOCK
OPEN
Straighten hinge when using table
and collapse hinge to fold table. Lock wheel tightly when using
table and unlock for moving
and storing.
Height Adjusting Method
The wheel height can be
adjusted to a maximum of 15mm. The foot height can
also be adjusted to a maximum of 15mm.
USE
FOLD
LOCK
UNLOCK
