QUICK START GUIDE

SMS Alarm/Status Communicator

Single/Dual Pump Interface - FPC-30120

V2.1

Introduction

MATelec Australia’s SMS Alarm/Status Communicator features the newly designed ME-Link Module, which is a cellular CAT-M1 remote

monitoring and control device utilising the 700Mhz frequency for‘best in class’signal strength.The Single/Dual Pump Interface Version

of the Communicator reports status information and alarms from the BMS/remote output on MATelec Australia Standard Single and

Dual Pump Controllers.The ME-Link Module can also be utilised to control external devices with the two onboard relay outputs, and

uses easy to set up SMS commands to conﬁgure the operation and alarms without the need for any additional software.

Safety

This SMS alarm sender panel has been designed and built for applications that are Commercial and/or Industrial in nature,operation,

function and location. If the control panel is to be used in Domestic/Residential applications, where speciﬁc Wiring Rules in respect

of ‘electrical supply’ protection may apply, it is the responsibility of the installing electrician to ensure compliance with relevant

standards.

• Prior to installation, ensure power supply is isolated.

• Electrical connection to the panel must be carried out in accordance with the following pages.

• Additions or modiﬁcations to the control panel are not permitted and will void warranty.

• The controller is not intended for use by children or inﬁrm persons without supervision.

• Repairs to the controller must only be carried out by a suitably qualiﬁed electrician.

This quick start guide makes use of the following symbols to indicate warnings that must be paid speciﬁc attention to:

Damage to equipment or personal harm may occur if this instruction is not followed

Electrical risk (electrocution hazard) may occur if this instruction is not followed

P: 1800 281 282 |F: 1300 281 282 |E: info@matelecaustralia.com.au |W: www.matelecaustralia.com.au

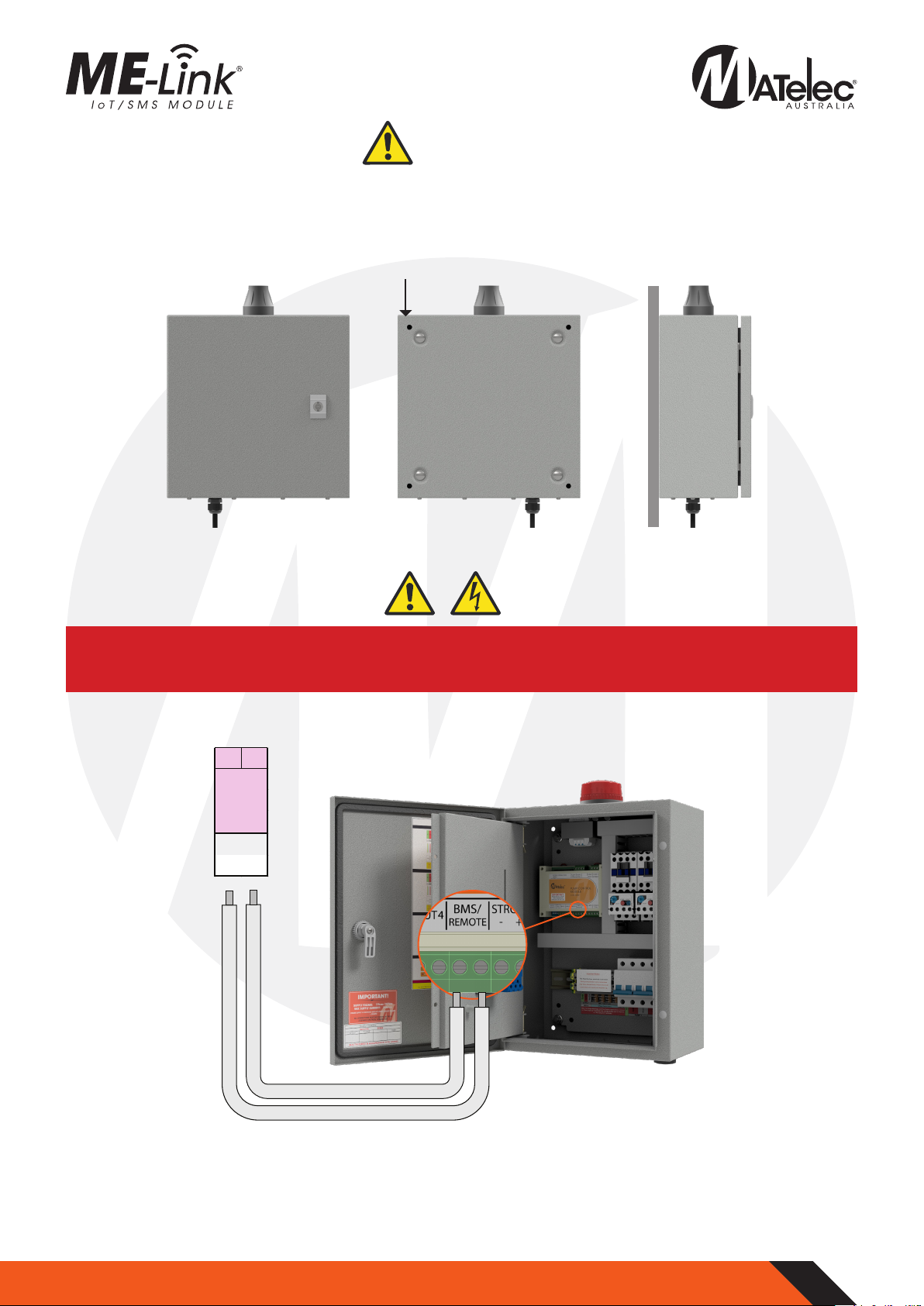

Step 1 - Installation

• SMS alarm sender must be installed in a position where mobile reception is available.

• SMS alarm sender enclosure must be mounted in a vertical position.

• Ensure mounting method does not compromise enclosure weatherproof rating.

• Ensure cables/conduits entering the panel have mechanical protection and that the penetrations are sealed and do not

compromise the weatherproof rating of the enclosure.

Warning: All electrical connections must be carried out by a suitably

qualiﬁed and registered electrician

Front View Side ViewBottom

Mounting Frame/Wall

Back View

Top

Mounting Holes (20mm from each edge)

Step 2 - Connections

Max cable length: 150m

Terminal Connections

APC6

BMS/

Remote

Coded

Signal

Connect to BMS/remote output found on MATelec

Standard Single and Dual Pump Controllers

MATelec Australia reserves the right to alter technical data without notice

Step 3 - Setup

2. To test the system is operating correctly, send #title? to the phone number of the SIM card. This will send a reply from the SMS

controller to show it is ready for programming. If there is no reply within 1 minute see the status lights above.

3.4 - Mains Powerup

Close and secure enclosure door, connect the power lead into RCD protected GPO and switch on mains power.

Link Status Description Function Cause

Green Flashing, Red Off Network connected N/A

Green Flashing, Red 1 Flash Network connected, sending SMS N/A

Green Off, Red Solid Hardware fault Contact supplier for further assistance

Green Off, Red 1 Flash Connecting, searching for mobile

network

Wait for network connection search to

ﬁnish

Green Off, Red 2 Flashes Network connection failed Check the SIM card is activate and

has credit

Green Off, Red 3 Flashes Network not found/ Poor signal

strength

Check antenna connection and

mobile signal at device.

Green Off, Red 4 Flashes Network connection denied

Check SIM is Telstra compatible and

SIM is active and has credit (Only

Telstra networks are currently valid)

Green Off, Red 5 Flashes SMS failed to send Check that SIM is still installed, active

and has credit

Green Off, Red 6 Flashes SIM card not detected Install or reinstall Micro SIM card and

check installation orientation

Green Off, Red 7 Flashes SIM Pin is enabled Disable the SIM pin before retrying

connection

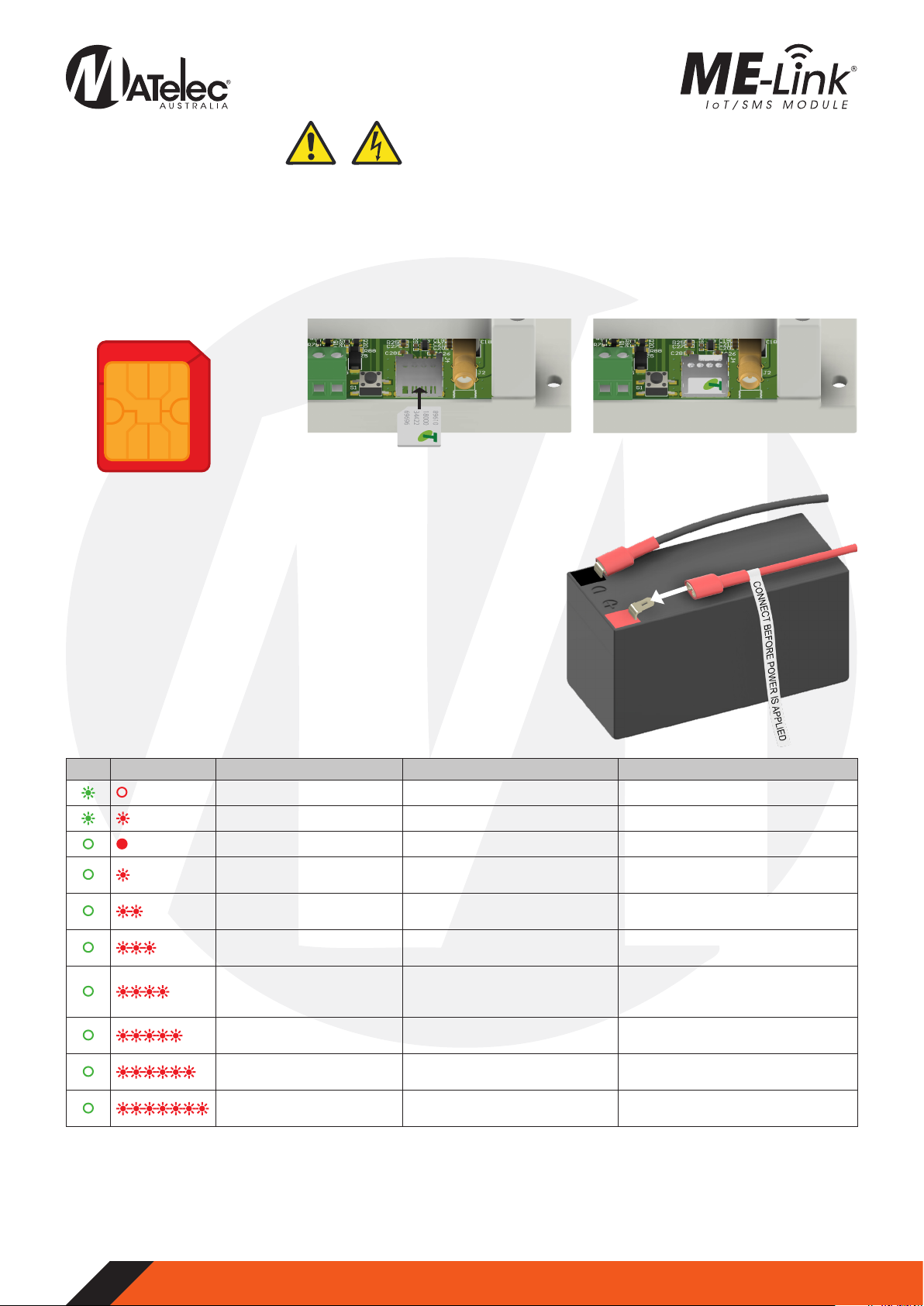

3.1 - SIM Card Installation

The SMS alarm sender takes a Micro SIM card which must be from a network operator who offers the CAT-M1 700Mhz frequency. At

the time of printing all SIM cards that use the Telstra network will be compatible. Other network providers will be compatible when

they support CAT-M1 modules.

1. Ensure power to the panel is OFF.

2. Firstly, ensure that the SIM card is activated with credit and ready to send text messages.Also,ensure that the SIM PIN is disabled.

3. Insert the SIM card with the chip gold plate facing down and the missing corner to be inserted in ﬁrst. See pictures below.

4. The SIM needs to be pushed in ﬁrmly. Ensure that it ﬁts properly in the SIM holder.

Micro SIM card required

12mm

15mm

Install SIM card with gold chip facing

down and missing corner ﬁrst

Ensure SIM card is pressed in ﬁrmly and ﬁts

properly in the SIM holder

3.2 - Enable Battery Backup

To have the SMS alarm sender operating when power fails,the internal battery

must be connected. With power isolated, connect the loose wire near the

battery labelled ‘CONNECT BEFORE POWER IS APPLIED’. See image to the right.

If power is to be isolated for more than 7 days ensure this wire is disconnected

to prevent the battery going ﬂat.

3.3 - Testing Mobile Connection

The SMS alarm sender is tested and programmed by sending SMS messages

to the SIM card’s phone number.

1. Check the SMS controller’s indicator lights to ensure that power is on and

sim card is connected to mobile network. If there is no reply, check the

indicator lights status table below:

P: 1800 281 282 |F: 1300 281 282 |E: info@matelecaustralia.com.au |W: www.matelecaustralia.com.au

User Commands

SMS commands are sent to the phone number of the SIM card installed.This phone number should be supplied with the SIM card.

Commands sent ending with ‘?’ are a query of the command setting, commands sent without this are used to conﬁgure the setting.

The symbols < > are used to reference user information to be sent in the commands, and should not be send in the command

message.

Step 4 - SMS Programming

#title?

4.1 - Set the SMS alarm sender title

Use this command to add the SMS alarm sender title (max 50 characters).

Example SMS command: #title ME-Link SMS Alarm Sender

The title will be set to ‘ME-Link SMS Alarm Sender’.This will be sent with each alarm message sent from the SMS alarm sender.

#num add <slot> <number>

Use this command to add the phone numbers.

Example SMS Command: #num add 3 0406446XXX

The phone number 0406446XXX will be added to phone number slot 3.

#num del <slot>

#msg all on?

Use this command to request alarm messages for all inputs in

ON state.

Example response:

Input on messages:

1: Power On/Restored

2: High Level Fault

3: Pump 1 Fault

4: Pump 2 Fault

5: -----------

6: -----------

7: ME-Link Mains Power Failure

8: ME-Link Battery Voltage Healthy

#msg all off?

Use this command to request alarm messages for all inputs in

OFF state.

Example response:

Input on messages:

1: Power Off/Failure

2: High Level Fault Cleared

3: Pump 1 Fault Cleared

4: Pump 2 Fault Cleared

5: -----------

6: -----------

7: ME-Link Mains Power Restored

8: ME-Link Battery Voltage Low

#title <new title>

4.2 - Set the numbers to receive alarm messages

Use this command to delete a phone number

Example SMS command: #num del 3

The phone number 0406446XXX is deleted from slot 3.

4.3 - View input alarm messages that will be received

Each digital input will send a message when the input turns on (goes high) and when it turns off (goes low). Inputs 7 and 8 are pre-

programmed for power fail and battery voltage low alarms. Inputs 1-4 are pre-programmed to match the outputs privided by the BMS

interface board, so no user programming is required. The default on and off messages for each input are shown below under the

#msg all on? and #msg all off? commands.

<input> is the digital input number from 1 to 8 that will trigger the SMS alarm messages.

<message> Is the text message you want to send to the phone number based on the input state.

<slot> is the phone book slot from 1 to 10 which phone numbers can be added and deleted from.

<number> is the phone number assigned to the phone book slot that will receive the alarm messages.

#num?

Use this command to request the phone number list. Empty slots are reported as ----------.

Use this command to enquire the current SMS alarm sender title.

MATelec Australia reserves the right to alter technical data without notice

Quick Start Complete

The SMS alarm sender is now conﬁgured and has begun operation. Refer to ME-Link Operation Manual for more information on the

operation of the ME-Link SMS module.

#info?

Use this command to request the status information of the device.

Example response:

<title>

Ver: <ﬁrmware revision>

RSSI: <signal strength>

Power: <supply voltage>

Time: <network current time>

Reminder: <on or off>

Test msg: <on or off>

#inputs?

Use this command to request status of all inputs.

Example response (input 1 only):

Input 1 OFF: ALARM ACTIVE Input state as ON/OFF and corresponding alarm direction:‘Alarm Active’ or ‘Alarm Inactive’

Activated: Alarm state:‘Last Active’ if inactive or ‘Activated’ if active

Mon 07/12/2020 16:42 Time at which the alarm was last activated

Notiﬁed once Alarm notiﬁcation state:‘Notiﬁed Once’,‘Not Recorded’,‘Not Accepted Yet’ or ‘Accepted’

Step 4 - SMS Programming (Continued)

#msg <input> on <message>

#msg <input> off <message>

#reset

Use this command to reset all settings back to defaults, including the PIN.

Example SMS Command:

Response:

SMS Command:

Response:

#reset

Are you sure you want to factory reset? Enter #reset again within 1 minute to conﬁrm

#reset

Device has been reset back to factory defaults.

Use this command to set alarm on messages for speciﬁc inputs.

Example SMS command: #msg 3 on High Pressure Fault

The Input 3 on message will be set to ‘High Pressure Fault’.

Use this command to set alarm off messages for speciﬁc inputs.

Example SMS command: #msg 3 off High Pressure Cleared

The Input 3 off message will be set to ‘High Pressure Cleared’.

4.4 - Additional Informative Commands

4.3 (Continued)

#help?

Use this command to request help on what commands are available and get more detailed information about different commands.

Refer to the ME-Link Operation Manual for more detailed information on all the SMS commands.

If you would like to edit the default input on and off messages, use the below commands:

MATelec Australia reserves the right to alter technical data without notice

User Settings

SIM Card Phone Number

Number:

SMS Alarm Sender title

Title:

Phone Numbers

Slot 1:

Slot 2:

Slot 3:

Slot 4:

Slot 5:

Slot 6:

Slot 7:

Slot 8:

Slot 9:

Slot 10:

Digital Input Alarm Messages

Input 1 On Power On/Restored

Input 1 Off Power Off/Failure

Input 2 On High Level Fault

Input 2 Off High Level Fault Cleared

Input 3 On Pump 1 Fault

Input 3 Off Pump 1 Fault Cleared

Input 4 On Pump 2 Fault

Input 4 Off Pump 2 Fault Cleared

Input 5 On Unused

Input 5 Off Unused

Input 6 On Unused

Input 6 Off Unused

Input 7 On ME-Link Mains Power Failure

Input 7 Off ME-Link Mains Power Restored

Input 8 On ME-Link Battery Voltage Healthy

Input 8 Off ME-Link Battery Voltage Low
