Matchmaster 34MM-HDS4 Manuel utilisateur
34MM-HDS4
HDMI 2.0 18Gbps
SPLITTER 4 WAY
QUICK GUIDE

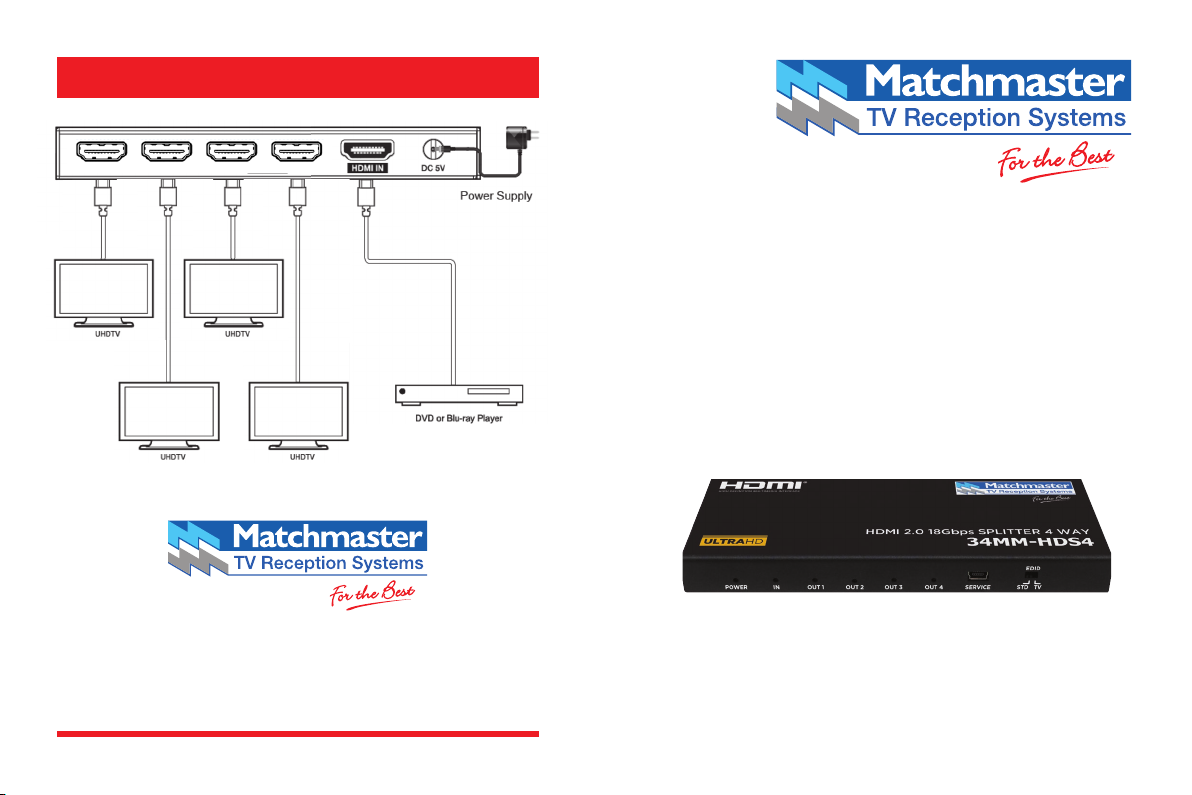

6. Application Example
AU Technical Support 1800-AERIAL237425
www.matchmaster.com.au
NZ Technical Support 0800-AERIAL237425
www.matchmaster.co.nz
HDMI OUT 4 HDMI OUT 3 HDMI OUT 2 HDMI OUT 1
Thank you for purchasing this product
Table of Contents
For optimum performance and safety, please read these
instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future
reference.
Surge protection device recommended.
This product contains sensitive electrical components that
may be damaged by electrical spikes, surges, electric shock,
lightning strikes, etc. Use of surge protection systems is
highly recommended in order to protect and extend the life
of your equipment.
1. Introduction 3
2. Features 3
3. Package Contents 3
4. Specications 4
5. Operation Controls and Functions 5
6. Application Example 6
1. Introduction
3. Package Contents
2. Features
1 x 4 HDMI 18Gbps Splitter is an advanced solution for
splitting HDMI content to 4 x HDMI outputs at the same
time. It provides high performance audio and video up to
4K2K@60Hz (4:4:4) and is capable of receiving, retiming and
transmitting up to 18Gbps of bandwidth with no data loss.
1. 1 x 1 x 4 HDMI 18Gbps Splitter
2. 1 x 5V/1A Power Adapter
3. 1 x User Manual
• HDMI 2.0b, HDCP 2.2 compliant
• Up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
• VESA format up to QSXGA@60Hz
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD
Master Audio
• Built-in equalizer, retiming and driver
• Smart EDID, STD(1080p) mode and TV(copy OUT1) mode
• Compactdesignforaneasyandexibleinstallation
4. Specifications
Technical
Video Bandwidth 600MHz/18Gbps
Input Ports 1 x HDMI Type A [19-pin female]
Output Ports 4 x HDMI Type A [19-pin female]
Video Resolutions 4K2K@24/25/30/60Hz
ESD Protection Human body model — ±8kV (air-
gap discharge) & ±4kV (contact
discharge)
Mechanical
Power Supply Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU stan-
dards,CE/FCC/ULcertied)
Dimensions 56mm (W) x 100mm (D) x 16mm
(H)
Weight 165g
Housing Metal
Color Black
Operating Temp
Storage Temperature
Relative Humidity
Power Consumption
0°C ~ 40°C / 32°F ~ 104°F
-20°C ~ 60°C / -4°F ~ 140°F
20~90% RH (non-condensing)
2W

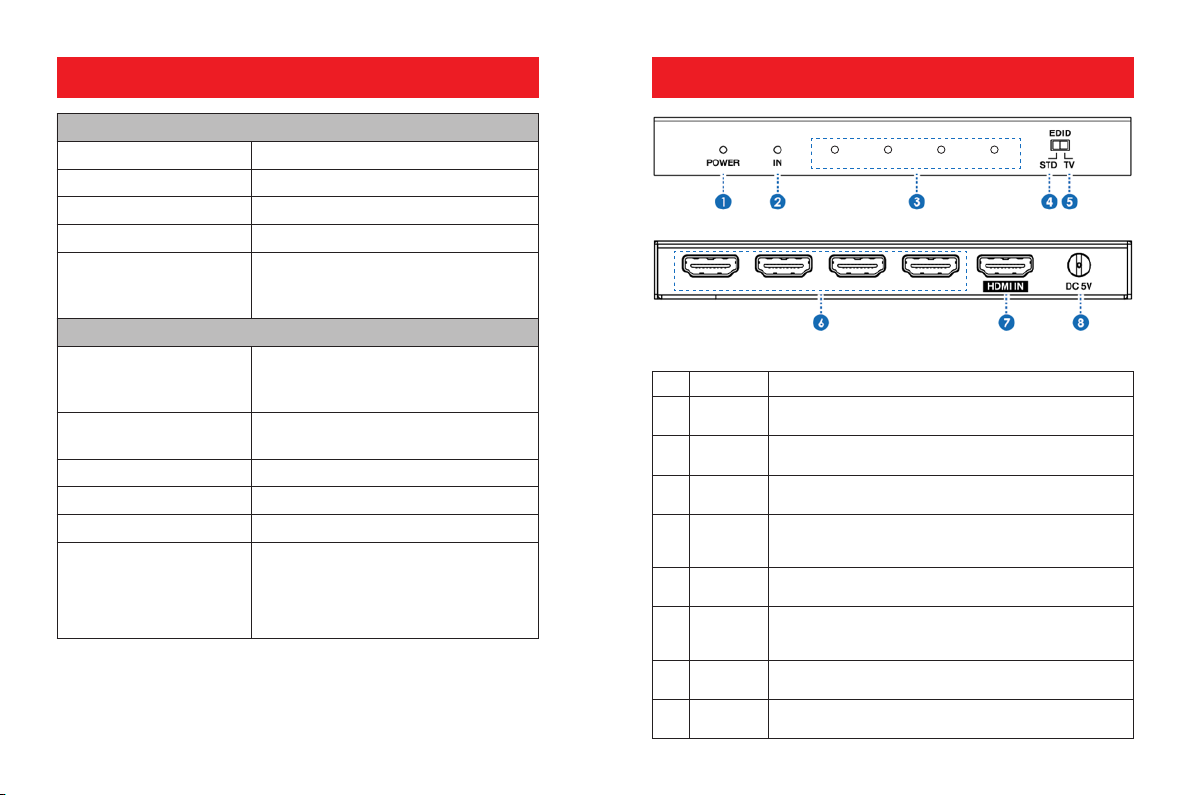

5. Operation Controls and Functions
No. Name Function Description
1 POWER
LED
Blue LED illuminates when the device is connected to
power supply.
2 IN LED Blue LED illuminates when the source is connected to the
device.
3 OUT LED Blue LED’s will light up to indicate which HDMI outputs
are connected to an active TV/display/monitor.
4 EDID STD When in ‘STD’ mode, the unit will use its own built-in EDID
settings. In this mode, the video output will be set to
1080p@60Hz and the audio output at LPCM 2CH Stereo.
5 EDID TV When in ‘TV’ mode, the unit will read the EDID settings of
the display device connected to HDMI OUT 1.
6 HDMI OUT
1~4
Connect each of the HDMI outputs to an HDMI display for
simultaneous HDMI distribution, or cascade the output to
another transmitter to extend the operating distance.
7 HDMI IN Connect the input port to the HDMI output of your source
device (DVD player or set-top box) with an HDMI cable.
8 DC 5V Plug the 5V DC power supply into the unit and connect
the adapter to an AC outlet.
OUT 1 OUT 2 OUT 3 OUT 4
HDMI OUT 4 HDMI OUT 3 HDMI OUT 2 HDMI OUT 1
