MasterCraft 058-9325-8 Manuel utilisateur

INSTRUCTION MANUAL

AIR-POWERED

DUAL-ACTION SANDER

058-9325-8

TABLE OF CONTENTS

AIR-POWERED DUAL-ACTION SANDER 058-9325-8

QUICK START GUIDE

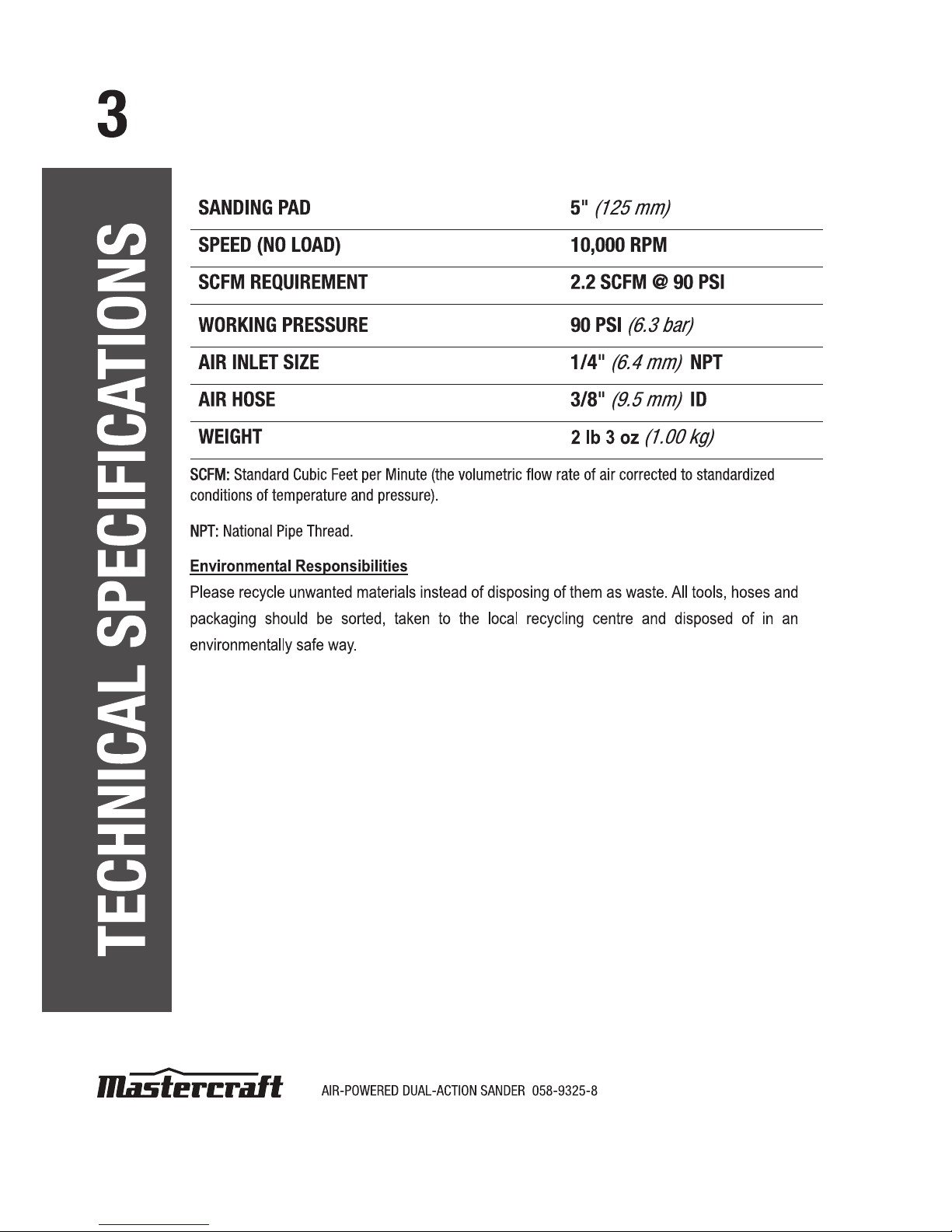

TECHNICAL SPECIFICATIONS 3

SAFETY GUIDELINES 4–9

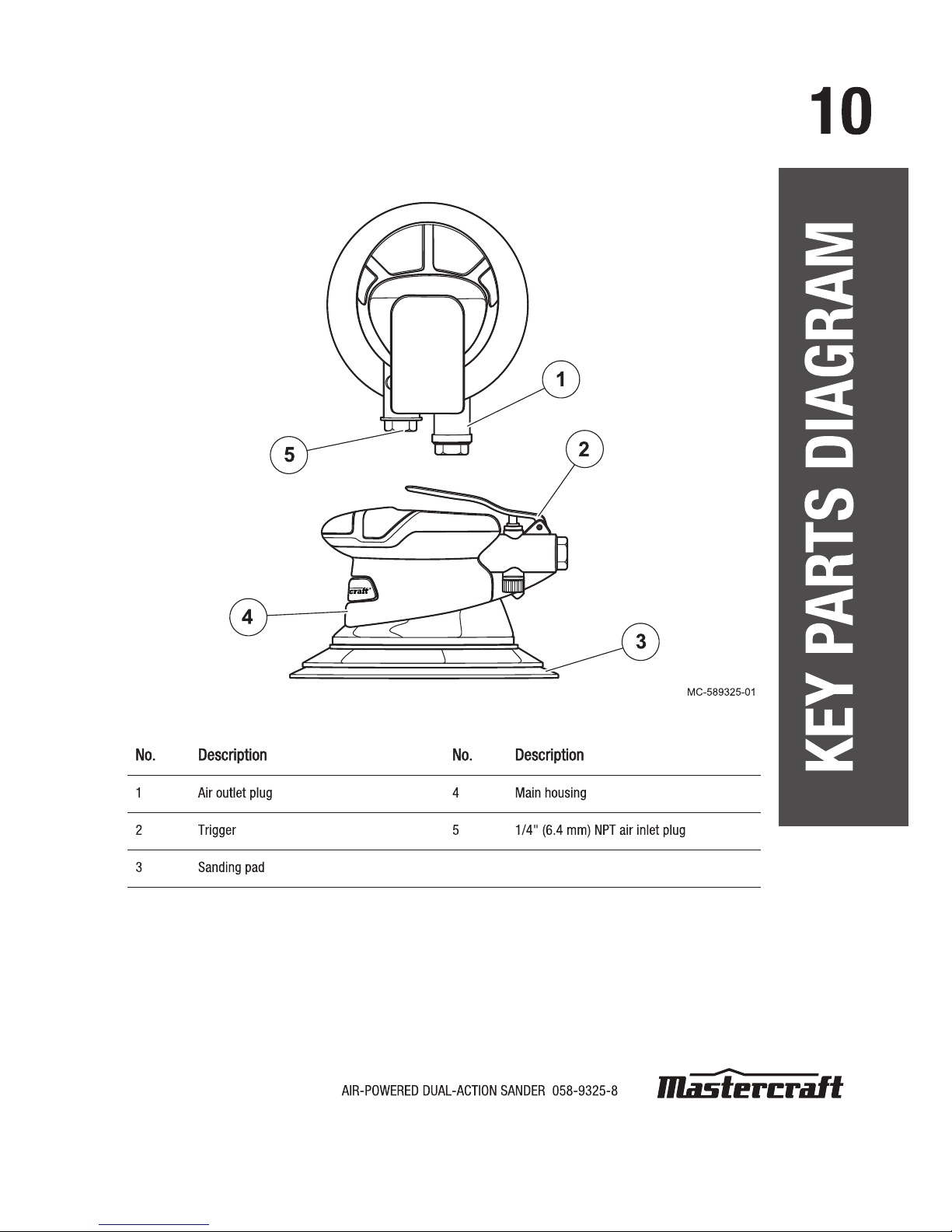

KEY PARTS DIAGRAM 10

IMPORTANT INFORMATION 11–13

OPERATING INSTRUCTIONS 14–16

MAINTENANCE 17–18

TROUBLESHOOTING 19-20

EXPLODED VIEW 21

PARTS LIST 22

WARRANTY 23–24

SAFETY GUIDELINES

AIR-POWERED DUAL-ACTION SANDER 058-9325-8

This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING

EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it

thoroughly before using the product. The symbols listed below are used to indicate this information.

Note– The word “Note” is used to inform the

reader of something he/she needs to know about

the tool.

PERSONAL SAFETY

These precautions are intended for the personal safety of the user and others working with the user.

Please take time to read and understand them.

DANGER!

Potential hazard that will result in serious

injury or loss of life.

WARNING!

Potential hazard that could result in

serious injury or loss of life.

CAUTION!

Potential hazard that may result in

moderate injury or damage to equipment.

SAFETY GUIDELINES

AIR-POWERED DUAL-ACTION SANDER 058-9325-8

SAFETY GUIDELINES

DANGER!

Potential hazard that will result in serious injury or loss of life.

•Keep children away from the work area. Do not allow children to handle

power tools.

•Do not use this tool in the presence of flammable liquids or gases. Sparks

that are created during use may ignite gases.

•Do not point the tool towards yourself or other people, even if the tool has

stopped. Keep hands, feet, and all other parts of the body away from work

area.

•Always ensure that the tool has stopped before putting it down after use, for

safety purpose and to prevent possible damage to the tool/user.

•Risk of electric shock: Do not expose the compressor to rain. Store it

indoors. Disconnect the compressor from the power source before servicing.

The compressor must be grounded. Do not use grounding adaptors.

•Risk of personal injury: Do not direct compressed air from the air hose

towards the user or other people.

•Risk for breathing: Never directly inhale the air produced by a compressor.

•Risk of bursting: Do not adjust the pressure switch or safety valve for any

reason. They have been preset at the factory for this compressor’s

maximum pressure. Tampering with the pressure switch or the safety valve

may cause personal injury or property damage.

SAFETY GUIDELINES

AIR-POWERED DUAL-ACTION SANDER 058-9325-8

•Risk of burns: The pump and the manifold generate high temperatures. In

order to avoid burns or other injuries, do not touch the pump, the manifold,

or the transfer tube while the compressor is running. Allow the parts to cool

down before handling or servicing. Keep children away from the compressor

at all times.

•Do not use oxygen or any other combustible or bottled

gas to power air-powered tools. Failure to observe this

warning can cause explosion and serious personal injury

or death. Use only the compressed air to power the air-

powered tools. Use a minimum of 25' (7.6 m) of hose to

connect the tool to the compressor. Failure to comply will

result in serious injury or loss of life.

•Risk of bursting: Make sure the regulator is adjusted so

that the compressor outlet pressure is set lower than the

maximum operating pressure of the tool. Before starting

the compressor, pull the ring on the safety valve to make

sure the valve moves freely. Drain water from tank after

each use. Do not weld or repair tank. Relieve all pressure

in the hose before removing or attaching accessories.

Oxygen

Hydrogen

Explosive

Combustible

MC-OM-02

MC-OM-22

SAFETY GUIDELINES

AIR-POWERED DUAL-ACTION SANDER 058-9325-8

WARNING!

Potential hazard that could result in serious injury or loss of life.

•Do not allow unskilled or untrained individuals to operate this tool.

•Always ensure that the accessories are specially designed for use with the

tool. Also ensure they are secured and correctly fastened before connecting

the tool to air supply.

•Switch and controls: Ensure that the air flow adjuster is closed when placing

the Air Sander in upside-down position, in order to avoid any personal injury.

•Do not carry the tool by the air supply hose.

•Pull the pressure safety valve ring every day in order to ensure that the

valve is functioning properly.

•Locate the compressor in a well-ventilated area for cooling, and must be a

minimum of 12" (31 cm) away from the nearest wall.

•Protect the air hose and the power cord from damage and puncture. Inspect

them for weak or worn spots every week, and replace them if necessary.

•Always wear hearing protection when using an air compressor. Failure to do

so may result in hearing loss.

•Do not carry the compressor while it is running.

•Do not operate the compressor if it is not in a stable position.

•Do not operate the compressor on a rooftop or in an elevated position that

could allow the unit to fall or be tipped over.

SAFETY GUIDELINES

AIR-POWERED DUAL-ACTION SANDER 058-9325-8

CAUTION!

Potential hazard that may result in moderate injury or damage to

equipment.

•Always ensure that the tool has stopped before connecting to air supply.

•Do not wear watches, rings, bracelets, or loose clothing when using any air

tool.

•Keep proper footing at all times in order to ensure correct balance. verify

that the floor is not slippery, and wear non-slip shoes.

•Do not overload the tool. Allow the tool to operate at its optimum speed for

maximum efficiency.

• Do not use a tool that is leaking air, with missing or damaged parts, or that

requires repairs. Verify that all screws are securely tightened.

• For optimal safety and tool performance, inspect the tool daily in order to

ensure free movement of the trigger, safety mechanisms, and spring.

•Always keep your air-powered tool clean and lubricated. Daily lubrication is

essential to avoid internal corrosion and possible failures.

•Keep the workarea clean. A cluttered or dirty workbench may lead to an

accident. Floors should be kept clear.

•Use the tool only in a well-ventilated area.

•Handling and storage of oil: Use with adequate ventilation. Avoid contact of

oil with eyes, skin, and clothing. Avoid breathing spray or mist. Store in a

tightly closed container in a cool, dry, well-ventilated area free from

incompatible substances.

•Do not use the tool near or below the freezing condition, because the

moisture in the air line may freeze and prevent the tool operation.

•Do not store the tool in a freezing environment to prevent frost or ice

formation on the operating valves and mechanisms of the tool that may

cause tool failure.

•Do not use the tool for a taskthat it is not designed to perform.
