TB61_1ENG TB6 User’s manual 7/8
suppy that powers TB6 cannot supply any other effect or device, please use a dedicated
unit. Always use a CE/FCC marked power supply, with cable and plug not damaged.
Chech both input and output voltage before use it.
Effectssequence.

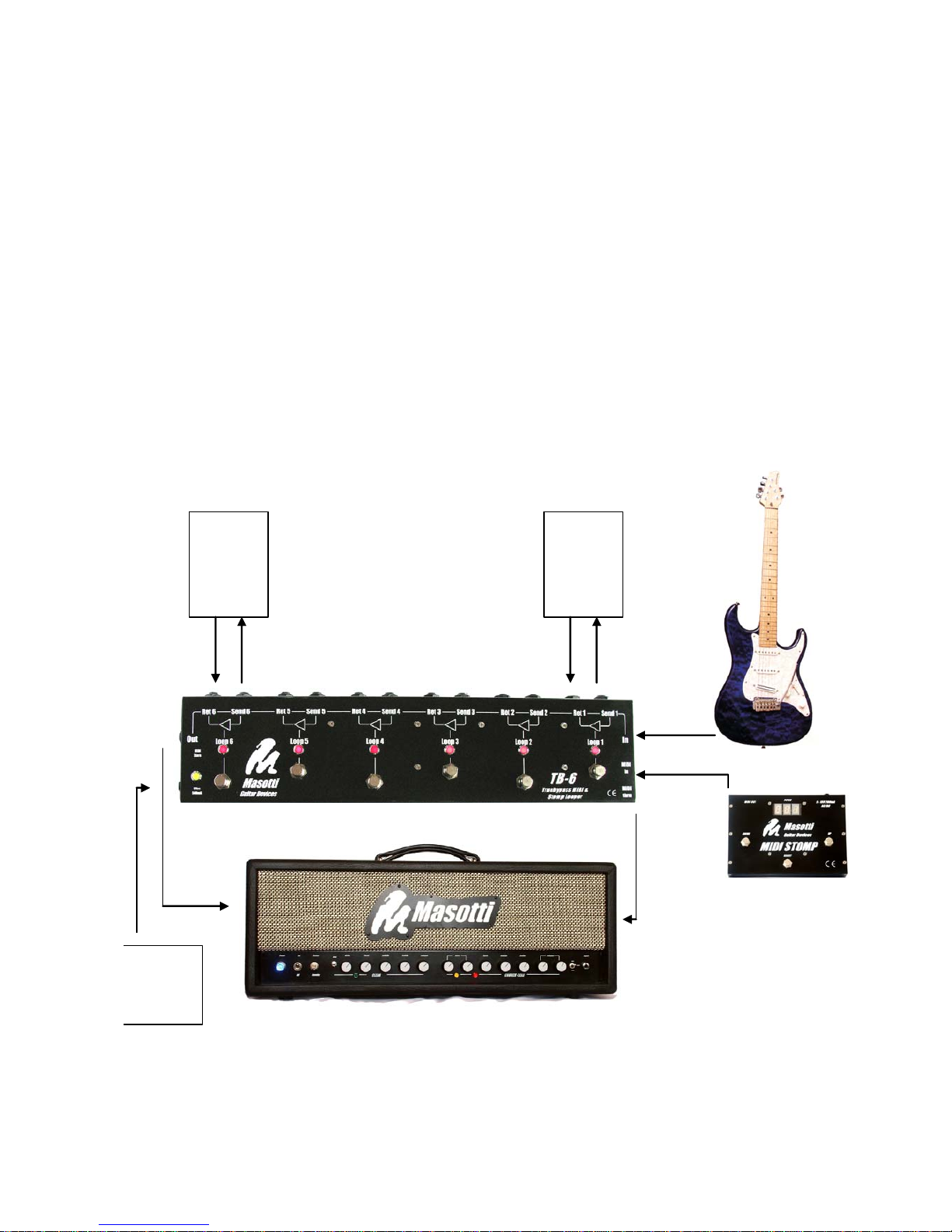

A start trace for connecting the effects can be the following:
1) wha wha: if it is true bypass, it can be connected also bifore the TB6. Of course, in
this case it’s not pssible to manage it via MIDI;
2) dynamics effects (booster and compressors);
3) distortions: overdirves, distorcers and fuzzes;
4) modulations: chorus, flanger, phaser;
5) ambients: delays and reverbers.
An optional volume pedal can be placet both immediately after the guitar, before TB6 input
(as instrument volume control) of after the chain, after TBS out as master volume.
This sequence is only a trace and it has be modified accordino to personal needs and
preferences.
Inteconnectingcablesandconnectors.
True bypass systems, if correctly projected and built, introduce a negligible signal loss
when they are in bypass. TB6 is equipped with gold plated relais and connectors and it is
wired with silver plated, teflon isolated cables. When in bypass, its electrical eqivalent
length corresponds to about 1m of good quality cable. Nevertheless, when loops are
active, signal passes trhough external connectors and cables and, of course, trhough the
effects. So, it’s very important to use best quality components and to use shorths cables.
However, a good buffer before the chain is recommendend in all complex true bypass
systems in order to compensate impedance mismatches and signal loss between different
pedals.
Warranty.
Warranty is 2 (two) years according to EU laws. Warranty is not valid if the device is
opened or partially modified without our authorization. No responsibility is due for Masotti
Guitar Devices for damages to human, animals or things originated by a manumission or a
different use of TB6 as described in this manual.
