OmniLine®
System Preparation
Martin Audio Omniline®system preparation
Notes:
A variety of mounting and suspension systems are available. Make sure you
have ordered the required wall mounting or suspension kit to suit your chosen
installation method. See section 4 for kit details…
Martin Audio Omniline® loudspeakers must be installed by experienced
loudspeaker installation personnel using the full installation kit provided
It is the installer’s responsibility to ensure that all relevant local, national and
international electrical, fire and building safety regulations are complied with
Every Omniline® loudspeaker must be fitted with a steel safety wire this can
be fitted between an attachment bracket (provided) and a suitable supporting
structure.
All material © 2009. Martin Audio Ltd. Subject to change without notice. 1
You will need the following tools for OmniLine preparation and installation.
Tool Size Operation
Building arrays
Screwdriver PZ1 Rear covers removal/assembly
Allen Key/Socket Set 4 Link Plates assembly
Open Ended Spanner 10mm Link Plates assembly
Screwdriver S3 Wiring
4 Cab Bracket
Allen Key/Socket Set 5 Adding brackets to the array
Allen Key/Socket Set 8 Adding collar
Allen Key/Socket Set 6 Clamping collar
Open Ended Spanner 13mm Clamping collar
8 - 16 Bracket
Allen Key/Socket Set 5 Adding brackets to the array
Allen Key/Socket Set 8 Adding collar
Allen Key/Socket Set 6 Clamping collar
Open Ended Spanner 13mm Clamping collar
Pliers Split pin removal/fitting
Open Ended Spanner 8mm Attaching Dog Grip
Flying Bracket
Allen Key/Socket Set 5 Adding brackets to the array
Allen Key/Socket Set 6 Adding brackets to the array
PZ = Pozidrive S = Straight/Flat head
All material © 2009. Martin Audio Ltd. Subject to change without notice. 2
1 Introduction
Omniline® is a versatile, micro-line array designed for installation in a wide variety of
architectural environments.
It’s modular approach and scalability extends its use from foreground applications to
sound reinforcement in large acoustic spaces.
Intelligent software enables an array to be configured to deliver sound precisely over
any vertical angle to fit the venue profile without spilling onto surfaces where sound is
not required.
Additionally, elimination of high frequency side-lobes gives Omniline® the advantage
over currently available DSP steered columns, making it suitable for high quality
music reproduction as well as speech in large, reverberant spaces.
2 Main features
The Omniline® module consists of 2 x 89mm reflex-loaded, mid/low radiators either
side of a central strip of 5 x 14mm HF devices in a unique, patent pending
arrangement. All drives have been painstakingly developed from the ground up,
specifically for the array module.
3 Warranty
Martin Audio Omniline® products are warranted against manufacturing defects in
materials or craftsmanship over a period of 5 years from the date of original
purchase.
During the warranty period Martin Audio will, at its discretion, either repair or replace
products which prove to be defective provided that the product is returned in its
original packaging, shipping prepaid, to an authorised Martin Audio service agent or
distributor.
Martin Audio Ltd. cannot be held responsible for defects caused by unauthorised
modifications, improper use, negligence, exposure to inclement weather conditions,
act of God or accident, or any use of this product that is not in accordance with the
instructions provided by Martin Audio. Martin Audio is not liable for consequential
damages.
This warranty is exclusive and no other warranty is expressed or implied. This
warranty does not affect your statutory rights.
4 Installation methods and kit details
A site survey is required before purchase. Omniline® software should be used to
determine the position, installation method and number of Omniline® modules
required for the installation.
All material © 2009. Martin Audio Ltd. Subject to change without notice. 3

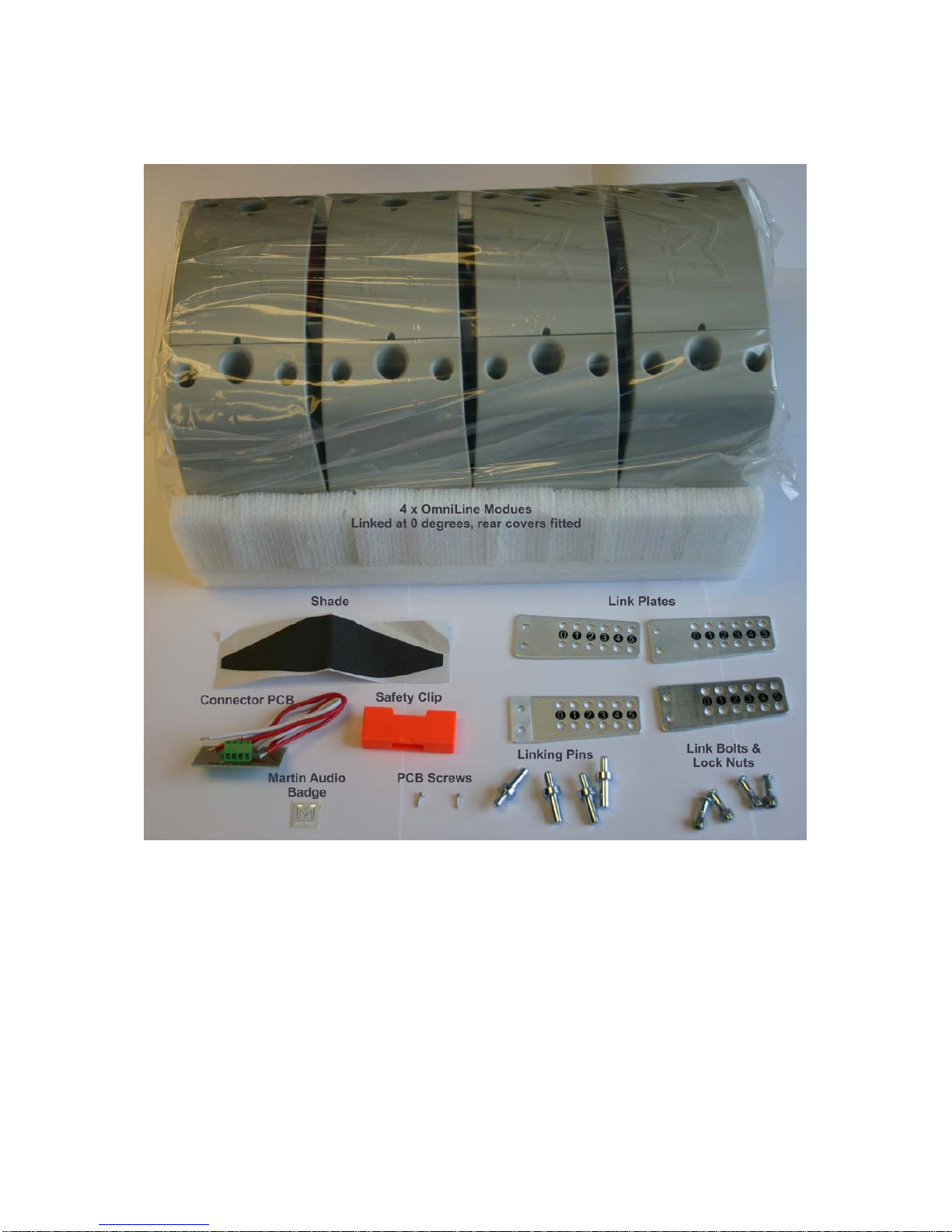

Omniline®module pack
Each pack of OmniLine® modules comprises the following parts:
Omniline®module pack
Note that the self adhesive shade included in the module pack may be used to
prevent down-lighting from shining down through the grilles in architecturally
sensitive locations.
There are three methods of installing an Omniline® Loudspeaker system. Choose
the position and number of Omniline® modules required as indicated by the
Omniline® software.
All material © 2009. Martin Audio Ltd. Subject to change without notice. 4

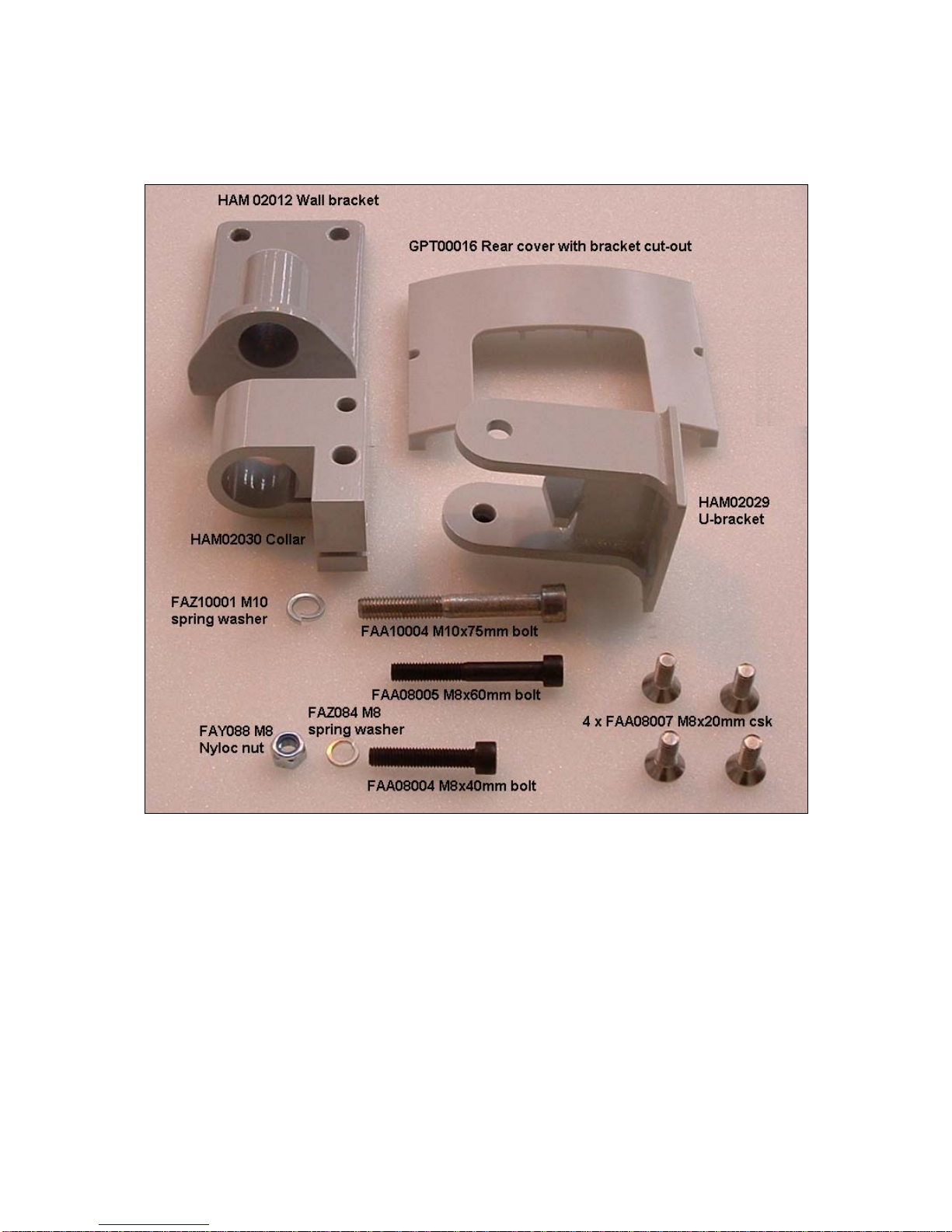

4 x OmniLine®wall mounting kit
Each 4 x OmniLine® wall mounting kit comprises the following parts:
4 x OmniLine®wall mounting kit
All material © 2009. Martin Audio Ltd. Subject to change without notice. 5

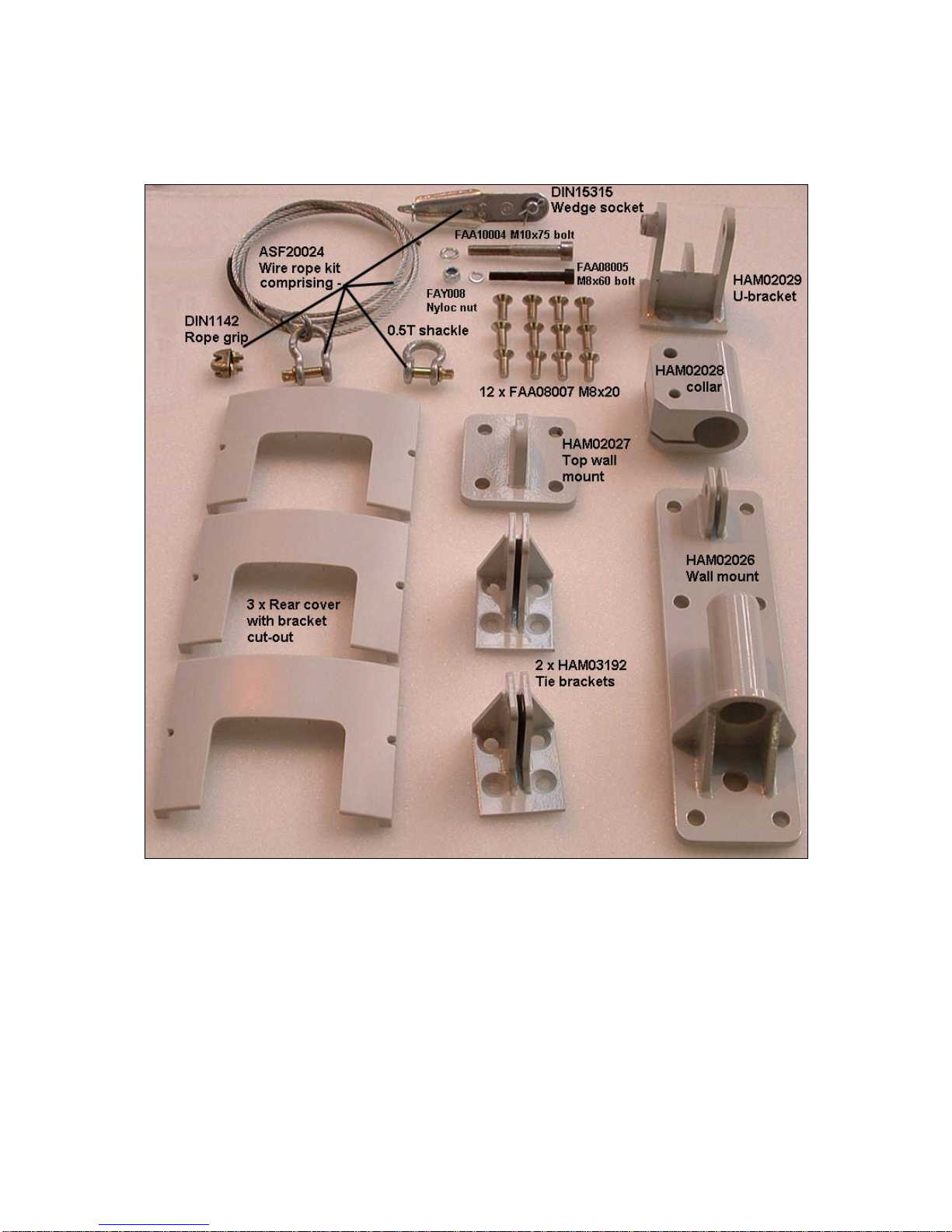

8-16 x OmniLine®wall mounting kit
Each 8-16 x OmniLine® wall mounting kit comprises the following parts:
8-16 x OmniLine®wall mounting kit
All material © 2009. Martin Audio Ltd. Subject to change without notice. 6

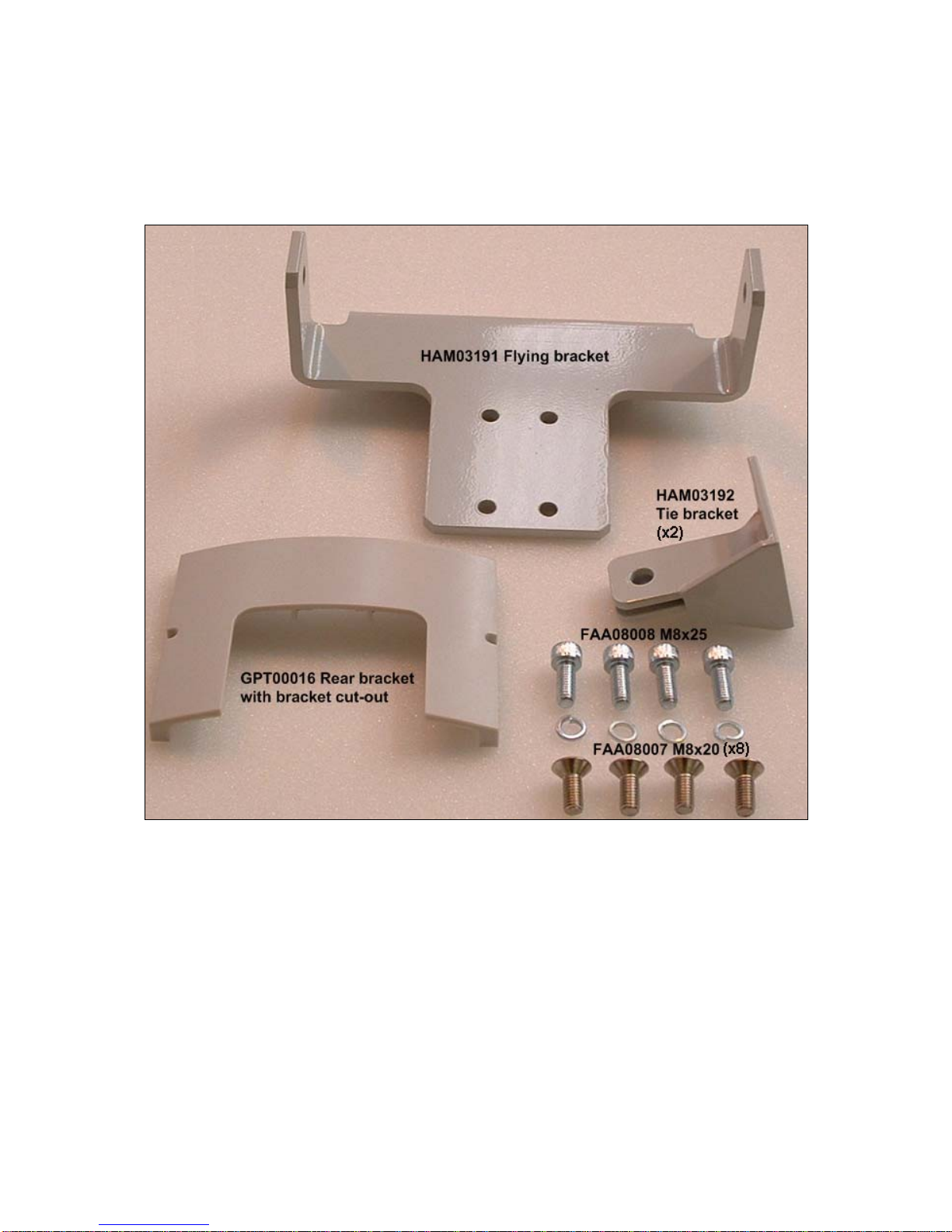

OmniLine®flying kit
Each OmniLine® flying kit comprises the following extra parts.
Please note that the flying kit also includes the ASF20024 wire rope kit (not shown):
5 Unpacking
Every Martin Audio loudspeaker is built to the highest standard and thoroughly
inspected before it leaves the factory.
After unpacking the system, examine it carefully for any signs of transit damage and
inform your dealer if any such damage is found.
We suggest that you retain the original packaging so that the system can be
repacked at a future date if necessary. Please note that Martin Audio and its
distributors cannot accept any responsibility for damage to any returned product
through the use of non-approved packaging.
All material © 2009. Martin Audio Ltd. Subject to change without notice. 7
5.1 System preparation
To avoid flattening or damaging your OmniLine grilles, we strongly recommend that
you keep each block of four Omniline® modules in their polystyrene trays.

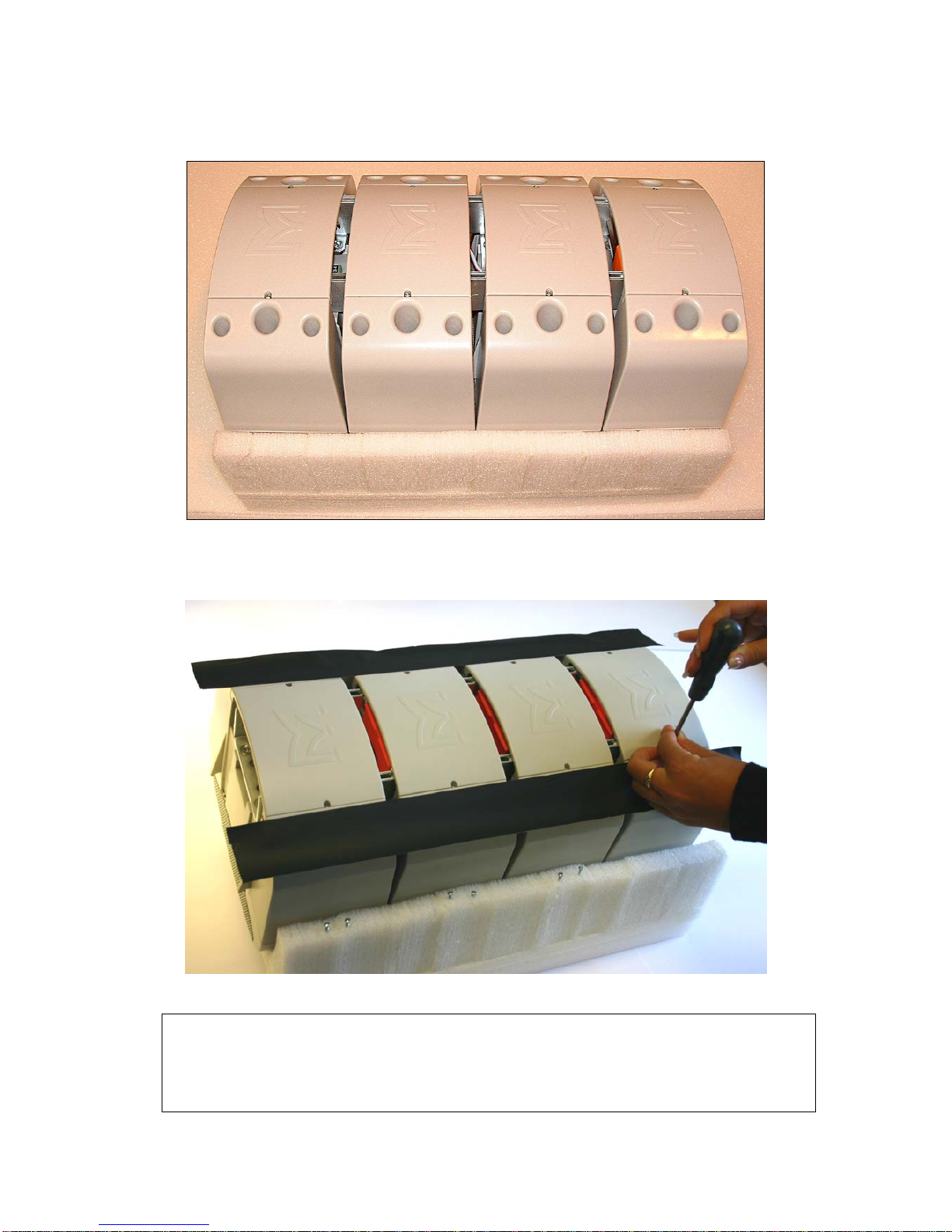

Take off the rear covers by removing the rear screws from each unit.
Tips!
1) If you are not using a magnetic screwdriver, we recommend covering the
rear port holes with some tape as shown above to prevent dropping screws
down the ports!
All material © 2009. Martin Audio Ltd. Subject to change without notice. 8
2) Press the screws into the front of the polystyrene tray to avoid loosing
them.
5.2 Splay angle adjustment
Omniline® modules are shipped with splay angles set at 0 degrees. Having
determined splay angles and mounting or suspension attachment points using the
Omniline® software, set the required inter-module splay angles as follows:
Tip!
Leave modules that require wall mounting or suspension attachments (see software
recommendations) until last as these brackets need to be orientated and fitted before
nearby link pins are inserted – see later…

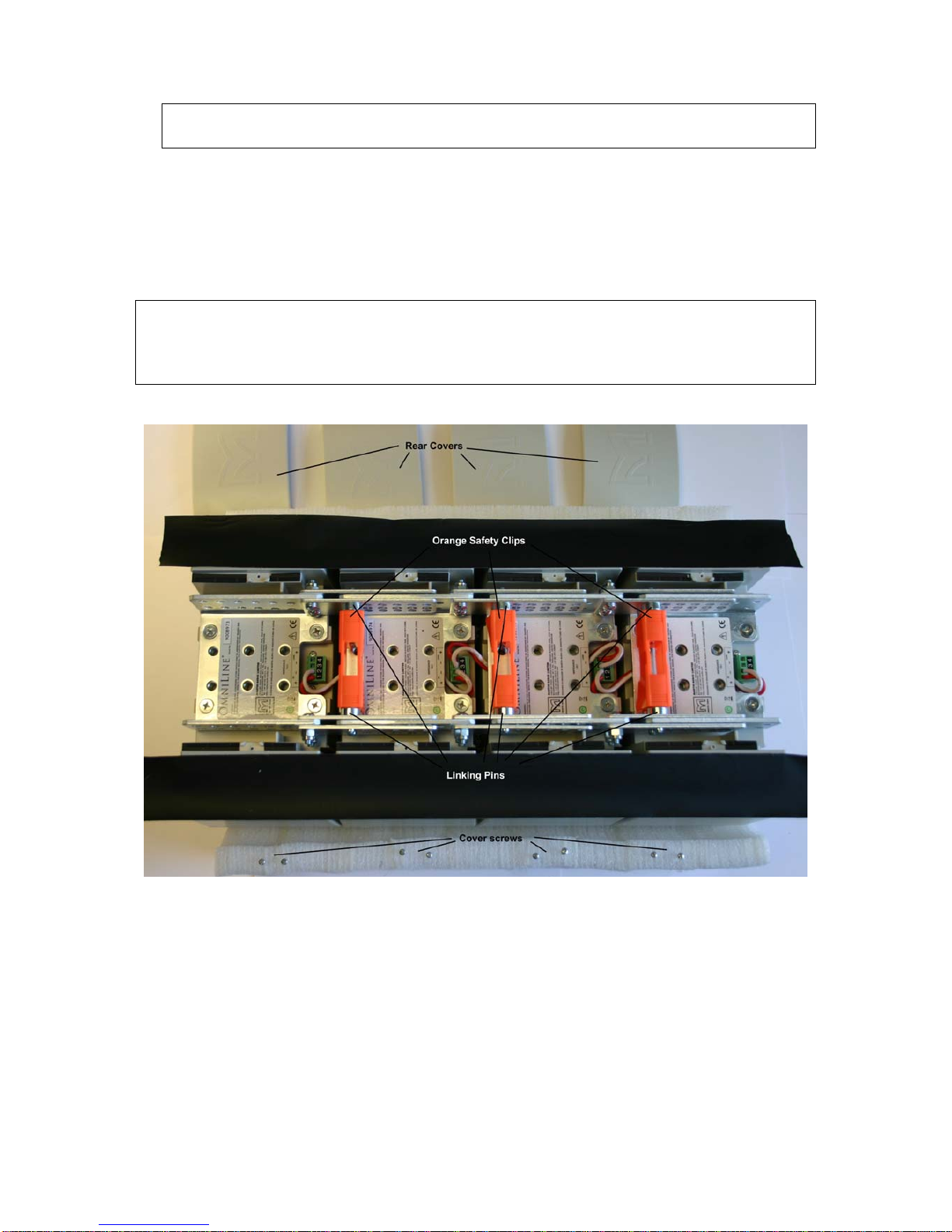

1) Remove the rear cover
2) Remove the orange safety clip
3) Remove the linking pins from the splay angle holes
All material © 2009. Martin Audio Ltd. Subject to change without notice. 9
