Marstair ECO+ Mode d'emploi

56208004-01

ECO+ Systems

Split Heat Pump Installation & Owners Manual

Thank you for selecting an ECO+ heat pump split system.

To ensure many years satisfactory operation, this owner’s manual should be read carefully before

using the heat pump. After reading, store the manual in a safe place and refer to it for questions on

use.

The ECO+ heat pump is designed for domestic and light commercial applications.

This instruction supersedes

any other instructions found

inside this unit.

2 /20 56208004-01

Contents

Filters 2

Safety Precautions 3

Remote Controller 4

Operating instructions 6

Maintenance 8

Protection 9

Troubleshooting 10

Installation Instructions 11

Filters

Power Sleep

Sleep Indicator

It lights up during the

set sleep function.

Red Power Indicator

It lights up when

power supply is on.

Green Run Indicator

It is on during

operation

Yellow Timer Indicator

It lights up during

the set time

Signal Receives

Receive signal from

the remote controller.

Timer Run

3 /20 56208004-01

Safety Precautions

Notes: 1. For the purpose of innovation and improvement, these products are subject to change without prior notice.

2. The air conditioner is not a toy please keep children away from equipment!

Power supply must be in accordance

with the rating plate requirement.

Failure to comply may result in serious

faults, hazards or fire.

Keep the power supply MCB or fuse

clean. Ensure connections to the MCB

or fuse are secure; failure to do so

result in electric shock or fire.

Don’t use the power supply circuit

breaker to turn the unit off. Do not pull

the plug out using the cable.

Do not tangle, pull or stress the power

supply cord as damage may result in

electric shock or fire.

Never insert a stick or similar objects

into the unit. Such actions may lead to

damage to the unit and injury.

It is advisable to direct the airflow away from

occupants and cool the room as a whole.

Always turn the air conditioner off via

the remote controller before turning off

the power.

Should repairs become necessary,

they should only be carried out by

qualified personnel.

Ensure the airflow is directed away

from all heat sources.

Do not touch the operating buttons

when your hands are wet.

Do not put any objects on the outdoor

unit or obstruct the airflow.

The equipment must be earthed

(grounded) in accordance with local

regulations. Qualified personnel only

should carry out electrical wiring.

4 /20 56208004-01

Remote Controller

How to insert batteries

(1) Remove the battery cover by sliding in the direction of the

arrow.

(2) Insert new batteries (2 x AAA) none rechargeable making sure

the polarity is correct

The remote controller will default to Heat Pump mode if no buttons

are pressed for 10 seconds, at which point the ‘Heat’/’Cool’ flashing

will stop.

Alternatively:

Press any button on the remote controller while “Heat” is

indicated to preset the controller for Heat Pump operation.

Notes:

If the remote controller is preset for cooling only, heating commands will

not be possible.

Refit the battery cover by sliding it back into position.

Storing the Remote Controller

The remote controller may be stored on a wall using the holder supplied.

Using the remote controller

To operate the Eco+ heat pump, point the controller at

the receiver in the middle of the unit.

The controller will operate up to 7m away from the unit

if pointed directly at the receiver.

5 /20 56208004-01

Remote Controller

(Picture shown maybe different from remote controller enclosed but all functions are the same)

6 /20 56208004-01

Operating Instructions

With the remote controller pointing towards the air conditioner:

•If you don’t like FEEL mode, try changing to HEATING, DRY or COOLING instead.

FEEL mode operation procedure

Note:

There will be a delay when changing

mode during unit operation.

The fan may stop during the changeover

7 /20 56208004-01

Operating Instructions

The timer may be set to start the system operation during your absence, to create comfortable conditions on

your return.

It can also be set to turn the system off after a programmed delay, eg when you go to bed.

Note: After setting the timer, check that the YELLOW TIMER INDICATION light is visible on the indoor unit.

TIMER mode

8 /20 56208004-01

Maintenance

9 /20 56208004-01

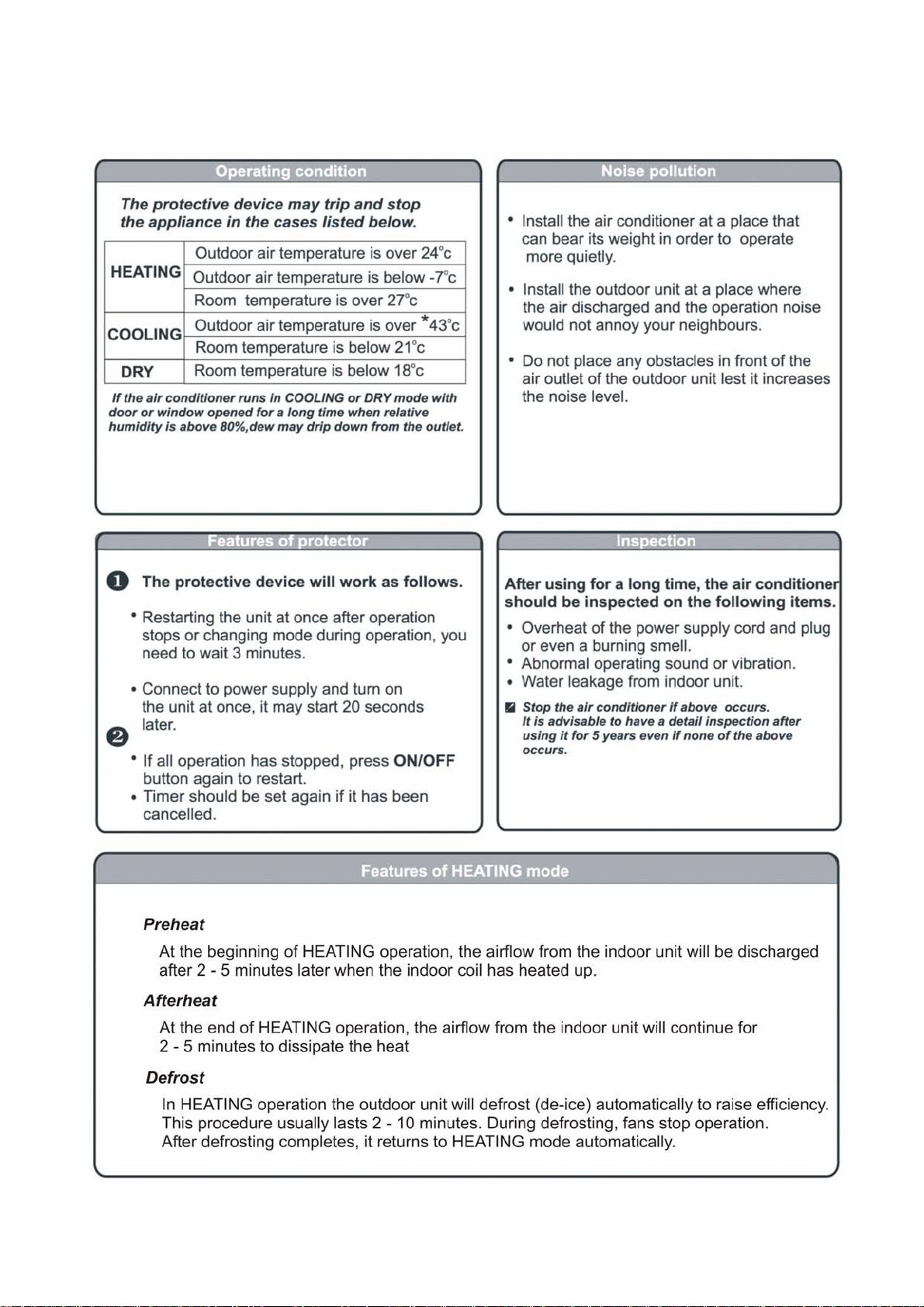

Protection

10 /20 56208004-01

Troubleshooting

The following examples may not always be due to a malfunction; please check before calling an

engineer.
