Marson MR15 Manuel utilisateur
1

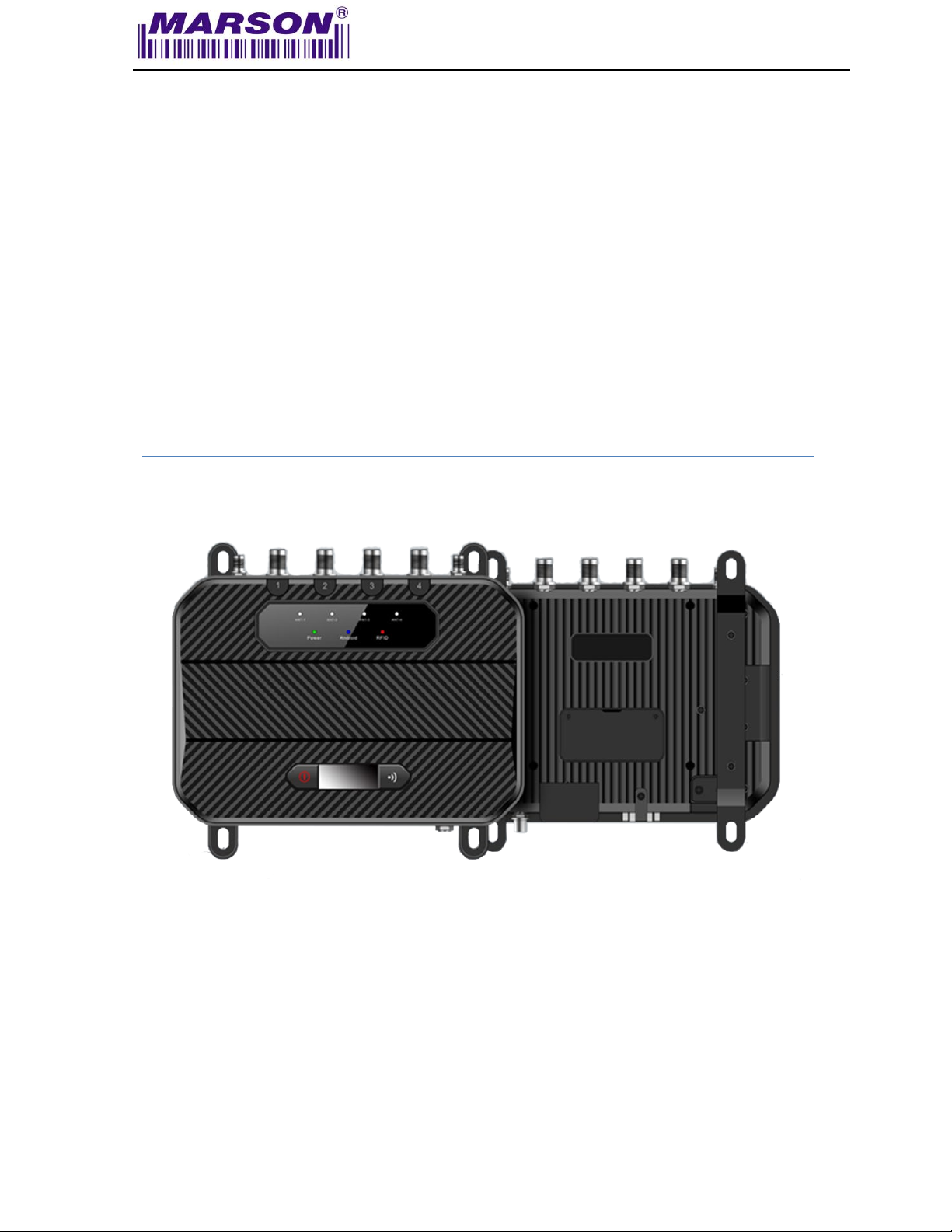

MR15 User’s Manual V1.0
MR15
Fixed Android UHF Reader
User’s Manual
2
MR15 User’s Manual V1.0
Table of Content
Chapter 1 Product Intro ..........................................................................................................3
1.1 Intro...........................................................................................................................3
1.2 Interface ....................................................................................................................4
1.3 Accessory List ...........................................................................................................5
1.4 Device installation......................................................................................................6
Chapter 2 UHF demo ..............................................................................................................7
2.1 Operating Interface...................................................................................................7
Chapter 3 UHF tag scanning ..................................................................................................9
3.1 Auto Scanning ...........................................................................................................9
3.2 Single Scanning ......................................................................................................11
3.3 Read UHF Tag ........................................................................................................12
3.4 Write Tag.................................................................................................................14
3.5 Lock Tag .................................................................................................................15
3.6 Kill Tag ....................................................................................................................17
3.7 UHF Module Version ...............................................................................................18
3.8 Module Temperature ...............................................................................................19
Chapter 4 Config...................................................................................................................20
4.1 Working mode .........................................................................................................20
4.2 Output Power ..........................................................................................................21
4.3 R2000 settings ........................................................................................................22
4.4 Protocol ...................................................................................................................23
4.5 RF link .....................................................................................................................24
4.6 QT Tag ....................................................................................................................25
4.7 Open tagFocus........................................................................................................26
4.8 Open FastID............................................................................................................26
4.9 Open EPC and TID .................................................................................................26
4.10 WWAN Specification ...............................................................................................26
Chapter 5 SIMPLIFIED EU DECLARATION OF CONFORMITY............................................27
Chapter 6 Warning ................................................................................................................28
3
MR15 User’s Manual V1.0
Chapter 1 Product Intro
1.1 Intro
MR15 is a 4-channel fixed RFID reader, based on Android 9.0.
Integrated with Impinj R2000 RFID chip, it supports RS232, RJ45 and
HDMI, and can be compatible with various types ofantennas. With
high stability and outstanding performance, MR15 can be ideally
applied to warehouse management, archives and library
management, bank, clothing and footwear retail, jewelry monitoring,
watch industry, laundry, production line management, medical
instrument cabinet and vending machines.
4
MR15 User’s Manual V1.0
1.2 Interface
Pic.1-1
Power
Button
SCAN
Button
HDMI
USB 2.0
RJ45
RS232
GPIO
USB-C
Antenna Port
5
MR15 User’s Manual V1.0
1.3 Accessory List
1
MR15 reader, 12V power adaptor
2
UHF antenna, 6dBi, 9dBi, 12dBi etc.
3
Feeder line, SMA male side connects with device, interface
on other side needs match with antenna.
4
RJ45 Ethernet cable
5
HDMI cable
6
4G external antenna
7
WIFI external antenna
6
MR15 User’s Manual V1.0
1.4 Device installation
MR15 reader adopts Android operating system, it can be
connectedwith Internet through RJ45, WIFI and 4G etc. And
connect with monitor through HDMI cable.
Developer could use USB cable to connect device with PC for
developing application, device could also be connected with PC
through serial port cable.
Pic.3-1
7
MR15 User’s Manual V1.0
Chapter 2 UHF demo
2.1 Operating Interface
Pic.4-1
8
MR15 User’s Manual V1.0

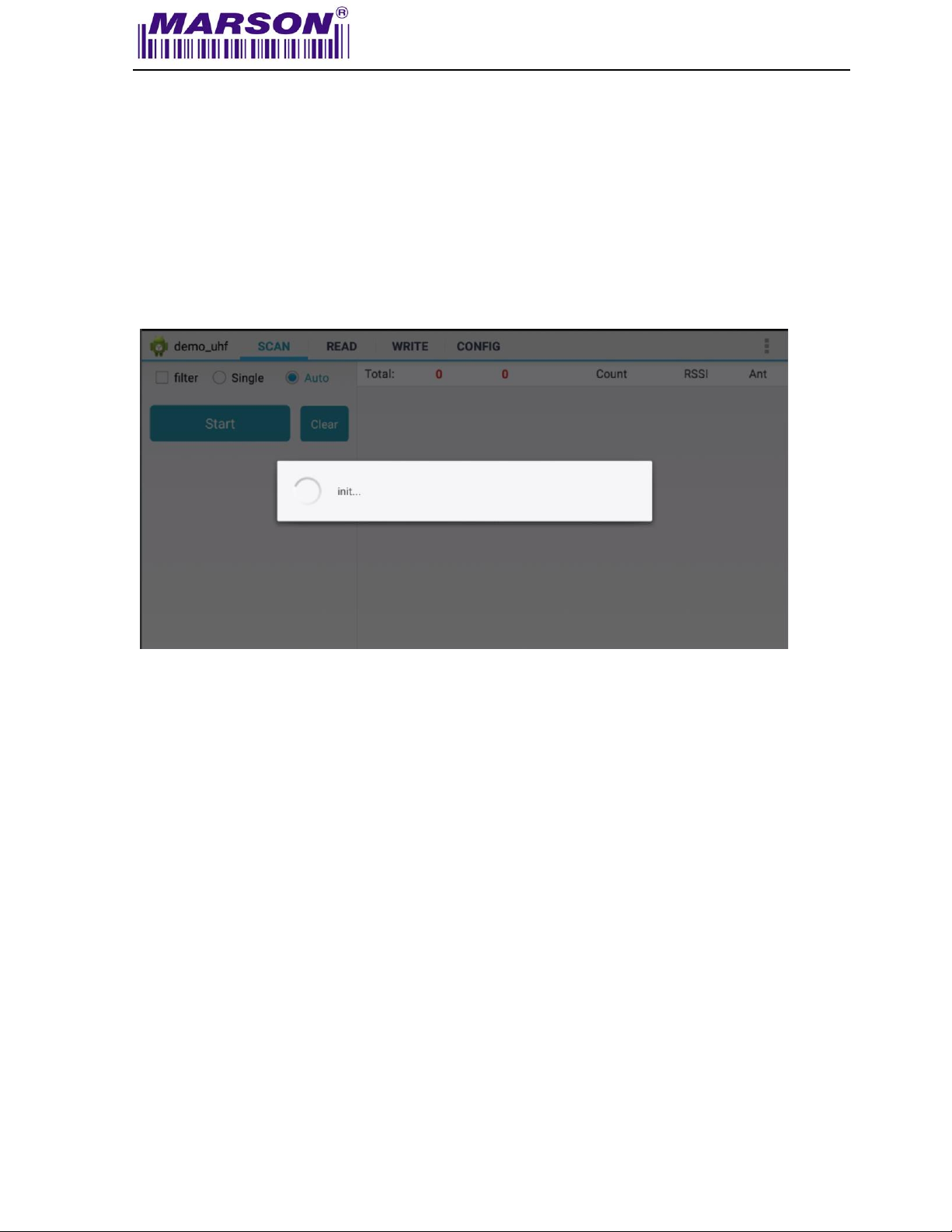

Connect monitor through HDMI cable and long-press power button
for 3 seconds to switch on device. Click demo_uhf icon to enter demo
as Pic.4-1, UHF module will initiate as Pic.4-2, if there is no error
messages show up, then initiation process has been successfully
finished. “init. fail” means UHF module failed to initiate, need to exit
application and repeat operation. If initiation cannot successfully
finished, need to contact tech support for further.
Pic.4-2
9
MR15 User’s Manual V1.0
Chapter 3 UHF tag scanning
Click SCAN on top of navigation bar to enter tags reading page.
3.1 Auto Scanning
Select “Auto”, then click “Start” button to start tags scanning
circularly, the information such as EPC or TID, Count, RSSI and Ant.
number. As Pic.5-1.
“filter” button can be used to setup tag which has been filtered, user
could setup address, data length to filter tags. EPC, TID and USER
areas can be selected, setup data length to 0 and clear EPC list, then
click “Setup” to confirm in Pic.5-2.
Pic.5-1
10
MR15 User’s Manual V1.0
Pic.5-2
