Operation Manual

Full-HD Miniature POV Camera

CV505-M/MB, CV565-MGB

CV343-CS/CSB, CV345-CS/CSB, CV365-CGB

CV502-M/MB

CV502-WPM/WPMB CV225-M/MB

MENU STRUCTURE

SETUP SUB MENU SUB MENU

ESC

DC IRIS

AUTO

ATW

PUSH

COLOR TEMPERATURE

RED GAIN

BLUE GAIN

BRIGHTNESS 0~20

AGC LIMIT 0~20

AUTO

MANUAL

FLICKERLESS

DSS (SENS-UP) OFF, x2~64

WDR

BLC

SPOT

ACE LOW, MIDDLE, HIGH

LEVEL

COLOR

ANTI-SAT.

AGC LEVEL

AGC MARGIN

DWELL TIME

COLOR

NIGHT

RANGE 10%, 20%, 30%

FILTER LOW, MIDDLE, HIGH

AUTO C OFF, HALF, FULL

DAY/NIGHT

AUTO


STABILIZER

BACK LIGHT

ECLIPSE

LENS

CONTROL

MANUAL

AE CONTROL

(EXPOSURE) SHUTTER

MENU STRUCTURE

SETUP SUB MENU SUB MENU

MODE OFF, ON

OUTPUT OFF, ON

H-SYNC PHASE

PHASE SET

AUDIO LEVEL 0~143

AUDIO AGC OFF, ON

AGC MAX 0~119

SAMPLE BITS 16, 20, 24, 32 BITS

COLOR LEVEL 0~20

SHARPNESS 0~20

MIRROR

FLIP

D-ZOOM 1.0X ~ 16.0X

AUTO

MANUAL

DNR OFF, LOW, MIDDLE, HIGH

MOTION

SHADING

GAMMA 0.3~0.8

FRAME RATE

BLACK LEVEL 0~32

CAM VERSION

CAM TITLE

PRIVACY

CAM ID 0~255

BAUDRATE

LANGUAGE

RESET ON/CHANGE USER/FACTORY

EXIT

DISPLAY

CONTROL

AUDIO


CONTROL

DEFOG

GENLOCK

Press SET button to access the MAIN MENU.

OSD Joystick and Button

SDI

IRIS

HDMI

POWER

I/O

I/O Cable for CV-565/365

CV365

CVBS

3G/HD-SDI

12VDC

RS-485

+ -

SDICVBS

12VDC RS-485

+ - + -

IRIS

SDI

IRIS

HDMI

POWER

I/O

CV502

CV343

I/O Cable for CV505/345

CV345

SYNC

SET

Used to access the menu and confirm selection.

Used to move the cursor up.

Used to move the cursor to left and change the value.

Used to move the cursor to right and change the value.

Used to move the cursor down

DOWN

RIGHT

LEFT

Cable for CV502-MP/CV225

Select LENS using the UP or DOWN button.

You can change between ESC and DC IRIS using the LEFT or RIGHT button.

ESC: Manual IRIS Lens (Fixed IRIS lens)

LENS ESC, DC IRIS

DC IRIS: DC Auto IRIS Lens.

LENS

WB CONTROL

AE CONTROL

BACK LIGHT

DAY / NIGHT

IMAGE STABILIZER

AUDIO MIC

GENLOCK

IMAGE CONTROL

DISPLAY CONTROL

RESET

EXIT

ESC

ATW

AUTO

OFF

LENS

WB CONTROL

AE CONTROL

BACK LIGHT

DAY / NIGHT

IMAGE STABILIZER

AUDIO MIC

GENLOCK

IMAGE CONTROL

DISPLAY CONTROL

RESET

EXIT

DC IRIS

ATW

AUTO

OFF

Shutter will automatically control exposure if SHUTTER is set as AUTO.

IRIS will automatically control exposure.

Select WB CONTROL using the UP or DOWN button.

You can change between AUTO, ATW, PUSH, and MANUAL using the LEFT or RIGHT button.

AUTO: Controls the automatic adjustment of the light source's color

temperature to 3,000°K ~ 8,000°K.

WB CONTROL AUTO, ATW, PUSH, MANUAL

ATW: Continuously adjusts camera color balance in accordance with any

change in color temperature. Compensates for color temperature changes

within the range of 1,900°K to 11,000°K.

PUSH: Color temperature will be manually adjusted by pushing the OSD

button. Place the white paper in front of the camera when OSD button is

pressed to obtain the optimum result.

MANUAL: Select this to fine-tune White Balance manually.

You can adjust the blue and red tone level manually.

COLOR TEMP: Select color temperature from LOW, MIDDLE, or HIGH.

BLUE: Adjust the Blue tone of the image. (0~20)

RED: Adjust the Red tone of the image. (0~20)

WB CONTROL

COLOR TEMP LOW

BLUE 10

RED 10

RETURN

■ Adjust White Balance first by using the AUTO or ATW mode before switching to MANUAL mode.

■ White Balance may not work properly under the following conditions. In this case, select the ATW mode.

- When the ambient illumination of the subject is dim.

- If the camera is directed towards a fluorescent light or is installed in place where illumination changes

dramatically, the White Balance operation may become unstable.

LENS

WB CONTROL

AE CONTROL

BACK LIGHT

DAY / NIGHT

IMAGE STABILIZER

AUDIO MIC

GENLOCK

IMAGE CONTROL

DISPLAY CONTROL

RESET

EXIT

ESC

MANUAL

AUTO

OFF

Camera will raise up gain to the selected gain limit under dark conditions.

Select AE CONTROL using the UP or DOWN button.

You can select one sub-mode from BRIGHTNESS, AGC LIMIT, SHUTTER, and DSS using

the UP or DOWN button.

AE CONTROL

BRIGHTNESS: The brightness control function adjusts gain and iris to keep

a brightness level.

AGC LIMIT: This function controls the amplification/gain process automatically

if the illumination falls under the usable level.

DSS (Digital Shutter Speed): When luminance condition is low, DSS can adjust

the picture quality by maintaining the light level. Slow shutter speed limits to x64.

SHUTTER: This function control shutter speed.

AE CONTROL

BRIGHTNESS

AGC LIMIT

SHUTER

DSS

RETURN

LENS

WB CONTROL

AE CONTROL

BACK LIGHT

DAY / NIGHT

IMAGE STABILIZER

AUDIO MIC

GENLOCK

IMAGE CONTROL

DISPLAY CONTROL

RESET

EXIT

ESC

MANUAL

AUTO

OFF

AUTO

OFF

SHUTTER

MODE

RETURN

NORMAL

MANUAL: Shutter speed will be fixed at the selected speed. (1/60~40,000)

AUTO: Shutter controls exposure automatically when IRIS is manual. (NORMAL/DEBLUR)

FLICKERLESS: This function will help to decrease video flickers due to a conflict with the

installed lighting frequency.

SHUTTER

SPEED

RETURN

1/90

BRIGHTNESS, AGC LIMIT

SHUTTER, DSS

BACK LIGHT WDR, BLC, SPOT

BACK LIGHT

WDR: Enable user to view both object and background more clearly when

background is too bright.

WDR-LEVEL:

Select the WDR level from LOW, MIDDLE, and HIGH

using the LEFT or RIGHT button.

BLC: Enable a back light compensation feature.

SPOT: Enable a user to select a desired area on a picture and view that

area more clearly when background is too bright.

AE HOR POS:

Move the SPOT area horizontally using the LEFT or RIGHT button.

AE VER POS:

Move the SPOT area vertically using the UP or DOWN button.

AE WIDTH:

Change the width of SPOT area using the LEFT or RIGHT button.

AE HEIGHT:

Change the height of SPOT area using the UP or DOWN button.

Select BACK LIGHT using the UP or DOWN button and enter using SEL button.

You can select one sub-mode from BACK LIGHT, ACE, and ECLIPSE using the UP or DOWN button.

BACK LIGHT

ACE

ECLIPSE

RETURN

LENS

WB CONTROL

AE CONTROL

BACK LIGHT

DAY / NIGHT

IMAGE STABILIZER

AUDIO MIC

GENLOCK

IMAGE CONTROL

DISPLAY CONTROL

RESET

EXIT

ESC

MANUAL

AUTO

OFF

SPOT

OFF

BACK LIGHT

AE HOR POS

AE VER POS

AE WIDTH

AE HEIGHT

RETURN

BACK LIGHT ACE, ECLIPSE

ACE

:Brightness correction of the dark image area.

Select the GAIN level from OFF, LOW, MIDDLE, and HIGH using the LEFT or RIGHT button.

ECLIPSE

:Highlight the bright area with a masking box with a selected color.

LEVEL:

Select the masking level from 0~20 using the LEFT or RIGHT button.

COLOR:

Select the color of masking from GRN, MAG, RED, BLUE, BLK, WHT, YEL,

and CYN using the LEFT or RIGHT button.

Select BACK LIGHT using the UP or DOWN button and enter using SEL button.

You can select one sub-mode from BACK LIGHT, ACE, and ECLIPSE using the UP or DOWN button.

Enable/Disable ECLIPSE, selecting from OFF or ON using the LEFT or RIGHT button.

BACK LIGHT

ACE

ECLIPSE

RETURN

LENS

WB CONTROL

AE CONTROL

BACK LIGHT

DAY / NIGHT

IMAGE STABILIZER

AUDIO MIC

GENLOCK

IMAGE CONTROL

DISPLAY CONTROL

RESET

EXIT

ESC

MANUAL

AUTO

OFF

SPOT

OFF

BACK LIGHT

LEVEL

COLOR

RETURN

CYN

Select DAY / NIGHT using the UP or DOWN button.

You can select one sub-mode from AUTO, COLOR, and NIGHT using the UP or DOWN button.

DAY / NIGHT AUTO, COLOR, NIGHT

Select the AUTO mode using the LEFT or RIGHT button and enter into sub-menu using SEL button.

AUTO: The camera will stay in DAY in a normal environment, but will switch

to NIGHT mode when ambient illumination falls below this pre-set level.

ICR(IR Cut) filter is removed when it switches to Black/White.

ANTI-SAT.: Adjust the anti-saturation level manually.

This feature will reduce the saturation in which part of the

camera receiving the light affected by the IR or light in Night mode.

If the saturation is reduced the surroundings will be darker.

AGC LEVEL

Set the level of threshold for switching day to night. This level is same

as the exposure gain level.

AGC MARGIN: Set the margin between Day →Night switching level and Night →Day

switching level.

DWELL TIME: Select the dwell time between

Day →Night and Night →Day

change.

DAY / NIGHT

ANTI-SAT.

AGC LEVEL

AGC MARGIN

DWELL TIME

RETURN

LENS

WB CONTROL

AE CONTROL

BACK LIGHT

DAY / NIGHT

IMAGE STABILIZER

AUDIO MIC

GENLOCK

IMAGE CONTROL

DISPLAY CONTROL

RESET

EXIT

ESC

MANUAL

AUTO

OFF

COLOR: The camera keeps color mode constantly.

NIGHT: The camera keeps Black/White mode constantly.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Marshall Electronics Caméra de sécurité

Marshall Electronics

Marshall Electronics V-C210-HDSDI Manuel utilisateur

Marshall Electronics

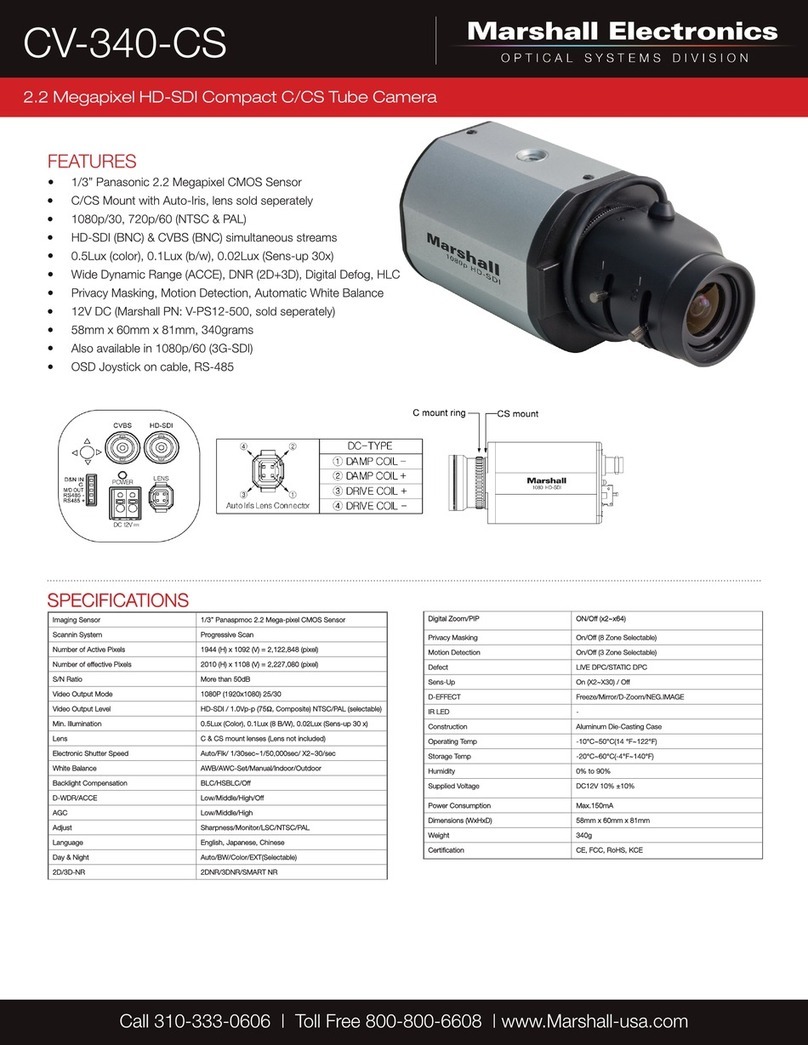

Marshall Electronics CV-340-CS Manuel utilisateur

Marshall Electronics

Marshall Electronics VS-570-HDSDI Manuel utilisateur

Marshall Electronics

Marshall Electronics CV620-BK2 Manuel utilisateur

Marshall Electronics

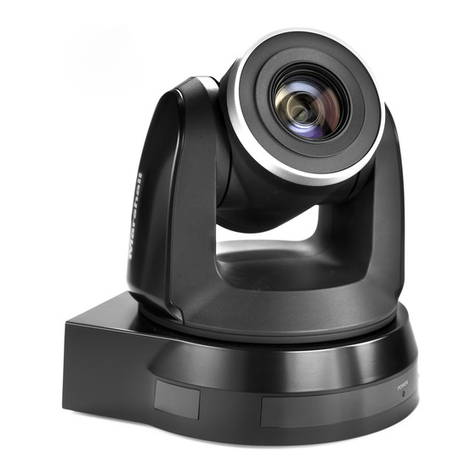

Marshall Electronics CV620-BK Manuel utilisateur
