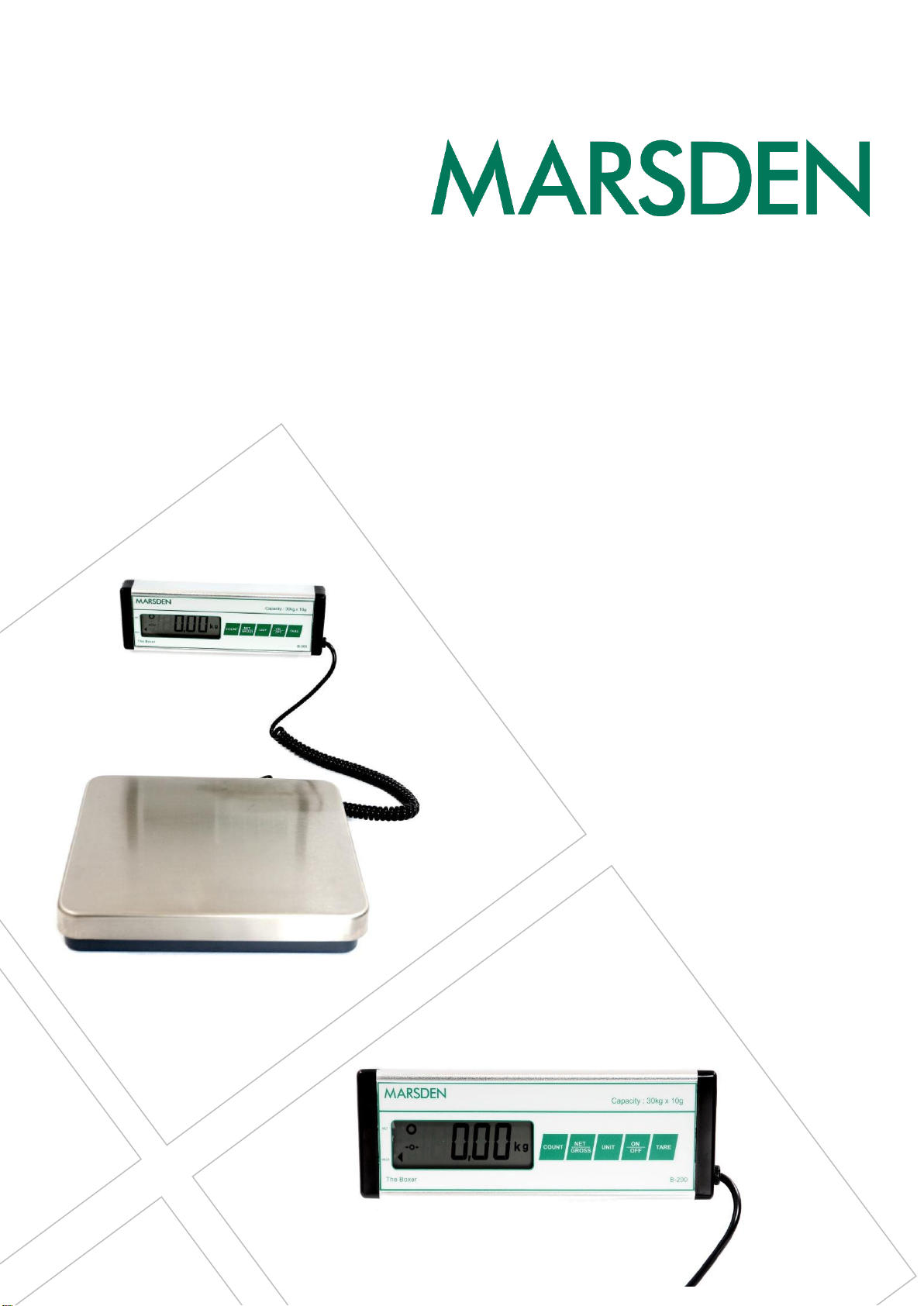

Marsden B-200 Manuel utilisateur

Version 1.0 12/17

USER MANUAL

B-200

Please take time to read these

instructions before starting

to use the scale

Contents

Introduction 3

Product Specification 3

Dimensions 4

Assembly/Installing Batteries 5

Operation 6

Calibration 7

Set Functions 8

Declaration of Conformity 9

Page 2

Product Specification

Model

B-200

Capacity/Division

15kg x 5g; 30kg x 10g; 60kg x 20g; 150kg x

50g; 300kg x 100g

Display Resolution

1/3,000

Weight of Scale

Approximately 4kg

Units of Measure

Kg / lb / oz

Dimensions

Base: 310mm x 300mm x 50mm

Indicator: 270mm 80mm x 30mm

Function Keys

COUNT, NEW/GROSS, UNIT, ON/OFF, TARE

Display

26mm LCD digital display showing Net,

Gross, Zero, Stable and weighing units

Power Supply

6x AA batteries or 9V 100ma AC adaptor

Operating Temperature

5 to 35˚C

Please note: Marsden’s policy is one of continuous development and therefore

we reserve the right to change product specification without notice.

Page 3

Dimensions

Page 4

300mm

310mm

50mm

270mm

80mm

Overview

All scales come complete with an easy to clean stainless steel top of a study steel frame,

and a remote indicator with a large LCD display which is easy to read from a distance.

The water-resistant keyboard has 5 easy to use function keys: COUNT, NET/GROSS -UNIT-

ON/OFF-TARE.

With the standard AC adapter included and the facility for dry cell batteries, the scales can

be used in a fixed location or as a portable scale.

Assembly

Plug the power supply into the socket on the left side of the weight indicator.

Plug the power supply into the mains power.

Installing batteries

The scale can also be used with batteries. Simply remove the battery compartment cover

on the underside of the base, insert 6x AA batteries and replace the battery compartment

cover.

Page 5

Operation Instructions

Tare: Remove unwanted weight from the scale display. Set the display to zero by storing

the current weight in the Tare memory.

On/Off: Turns the scale on or off

Units: Select kilograms, pounds or ounces

Net / Gross: Select either Gross weight or Net weight when a tare weight has been

entered

Count: Counting mode –display of quantity

To weigh an item turn the scale on using the On/Off key. When the display is at zero place

an item to be weighed on the platform. The display will show the weight. The unit will be

shown in kilograms unless the user has selected either pounds or ounces previously.

If an empty container is used the weight can be ignored by zeroing the display. To zero the

display presses the TARE key. Then when material is placed in the container only the

weight of the material will be shown.

Switch between showing the Net Weight (Material Only) and the Gross Weight (container

plus material) by pressing the Gross/Net key.

To use the Count function, press Count key until you see the sample size you require. For

example: A10 = add 10 pieces, display will show A10 (add 10) and S-BY (standby)

alternately. Minimum sample weight is 20g.

DISPLAY SYMBOLS

Symbol

Description



Scale in auto zero range (indication = accurate zero)



Result is stable

kg , lb or oz

Scale in weighing mode

Lo-bAt

Battery is weak, after 5 minutes the scale will turn off

Show the Net Weight is being display (NW) or the Gross Weight is

displayed (GW)

pcs

You can select the sample size from 10, 25, 50 or 100 pieces

Page 6

Calibration

Occasionally the scale should be verified that it is weighing correctly by measuring a

known mass of approximately the scale capacity. Tare the scale, place the mass on the

centre of the platform and note the reading. Calibrate the scale if necessary.

Before beginning make sure you have the mass specified and you know the mass is

accurate.

Turn the scale off.

Press and hold the On/Off key then press the Units key 3 times. Release the ON/OFF key.

The display will show a value from the internal counters. The typical value is 2000 to

16000.

Press the Tare key. Display will show zero.

Place the calibration weight (below) on the scale, in the centre of the platform.

B-200/15 10kg mass

B-200/30 20kg mass

B-200/60 40kg mass

B-200/150 100kg mass

B-200/300 200kg mass

Press the Tare key again. The display will show “CAL” then returns to weighing showing

the value of the weight used. Remove the weight. Verify the scale is calibrated correctly.

Page 7

Set Functions

The scale can be set as desired for the user. The settings that can be changed are:

Weighing Units enabled

Time delay before the scale automatically turns off.

Weighing Units Enabled.

Press and hold the TARE key for 3 seconds until the display shows “Set” then the first

menu option “Unit”

Press the Unit key to cycle through the options.

At each option press the Net / Gross key to enter the functions and then press the Unit

key to see the options, pressing the Net / Gross key again to return to the functions menu.

Each weighing unit can be enabled or disabled.

Oz.

Unit

Off

Unit

A.Off

CAP

dIuS

End

SEt

Service Only

End

Page 8

The Automatic Turn-off time can be set or disabled (off)

The other functions do not apply to the users. Advance to in order to exit the

menu.

Manufacturer’s Declaration of Conformity

This product has been manufactured in accordance with the harmonized European standards,

following the provisions of the below stated directives:

Electro Magnetic Compatibility Directive 2014/30/EU

Low Voltage Directive 2014/35/EU

Marsden Weighing Machine Group Ltd.

End

Page 9

120

180

240

300

Off

A.Off

Seconds delay until turn off
