QUICK INSTALLATION GUIDE 1
KURZ INSTALLATIONSANLEITING 11
GUIDE D’INSTALLATION RAPIDE 21
BREVE MANUAL DE INSTRUCCIONES 31
GUIDA RAPIDA ALL’INSTALLAZIONE 41
KORTE INSTALLATIE HANDLEIDING 51
IPRobocam 541 / 641 1
ENGLISH
SAFETY WARNINGS
o To prevent short circuits, this product should only be used inside and only in dry
spaces.
Do not expose the components to rain or moisture. Do not use the product close to a
bath, swimming pool etc.
o Do not expose the components of your systems to extremely high temperatures or
bright light sources.
o In case of improper usage or if you have altered and repaired the product yourself,
all guarantees expire. Marmitek does not accept responsibility in the case of improper
usage of the product or when the product is used for purposes other than specified.
Marmitek does not accept responsibility for additional damage other than covered by
the legal product responsibility.
o This product is not a toy. Keep out of reach of children.
o Do not open the product: the device may contain live parts. The product should only
be repaired or serviced by a qualified expert.
o Only connect the adapter to the mains after checking whether the mains voltage is
the same as the values on the identification tags. Never connect an adapter when it is
damaged. In that case, contact your supplier.
©MARMITEK
2
01 Getting Started
Package Contents
Check the items contained in the package carefully. You should
have the following items. Once any item contained is damaged or
missing, contact the authorized dealer of your locale.
5One IPRobocam 541 or 641 H.264/MPEG4/MJPEG Pan-Tilt
Megapixel Network Camera
5One AC Power Adapter
5One Wall Mount Kit
5One External Antenna
5One Ethernet Cable (RJ-45 type)
5One GPIO Connector
5One Installation CD-ROM
5One Quick Installation Guide
System Requirement
Networking
LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet.
WLAN: IEEE 802.11b/g/n (for wireless model).
Accessing the Camera using Web Browser
Platform: Microsoft® Windows® XP/Vista/WIN 7/8
CPU: Intel Pentium III 800MHz or above
RAM: 512MB
Resolution: 800x600 or above
User Interface: Microsoft® Internet Explorer 6.0 or above;
Apple Safari 2 or above;
Mozilla Firefox 2.00 or above
ENGLISH
IPRobocam 541 / 641 3
12 Setting Up the Camera
Installing the Wall Mount Kit

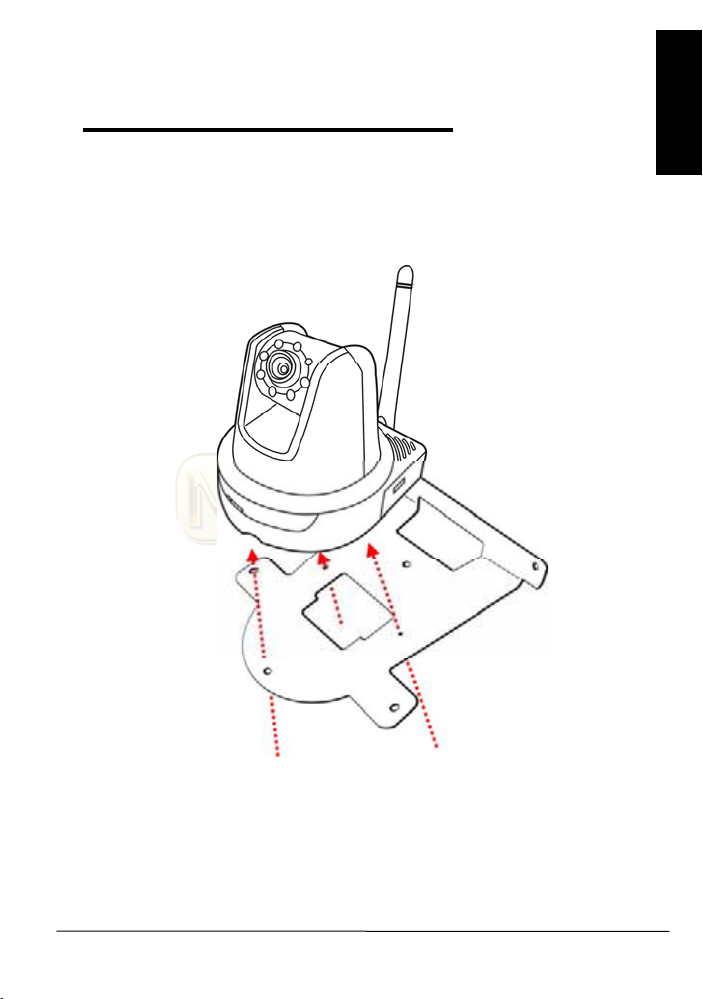

The camera comes with a Wall Mount Kit, which allows you to
place your camera anywhere by mounting the camera through the
three screw holes located in the base of the Wall Mount Kit.
Screw
Wall Mount Kit
Screw Screw
Connecting the Camera to LAN
Use the provided Ethernet cable to connect the camera to your
local area network (LAN).
When you connect the AC power adapter, the camera is powered
on automatically. You can verify the power status from the Power
LED on the front panel of the camera.
Once connected, the Link LED starts flashing green light and the
camera is on standby and ready for use now.
Connecting the Ethernet cable
©MARMITEK
4
ENGLISH
IPRobocam 541 / 641 5
Connecting the Camera to WLAN
If you use a wireless network in your application environment, you
need to attach the included external antenna to the camera.
When the camera is powered on, the camera will automatically
search any access point with “default” SSID.
A
ttaching the external antenna
NOTE If the camera cannot to your wireless network, you need
to install the camera in LAN and proceed with WLAN
settings.
23 Accessing the Camera
Using IPFinder
1. Insert the Installation CD-ROM into your computer’s CD-ROM
drive to initiate the Auto-Run program.

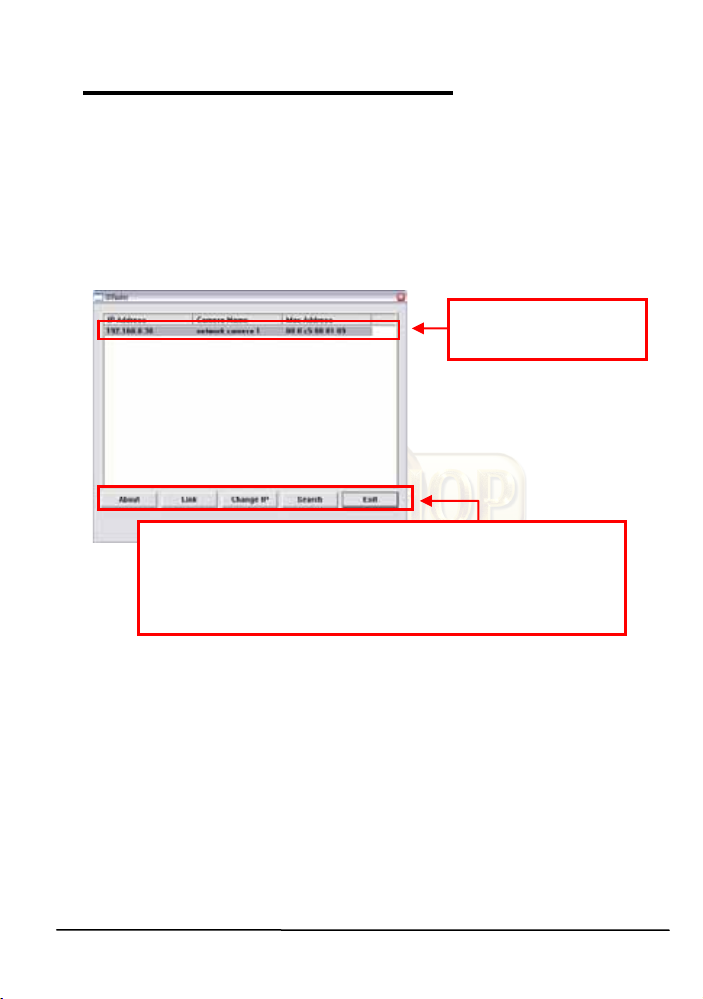

2. Click the IPFinder item to launch the utility. The control panel
will appear as below.
Display the connected
camera(s). Double click
to link the Camera.
Click About to get the Version information of IPFinder.
Click Link to connect the selected camera.
Click Change IP to modify the IP address of the selected camera.
Click Search to find the IP address of the connected camera(s).
Click Exit to close the utility.
3. Once you get the IP address of the camera, launch the Web
browser or UltraView Pro to access your camera.
TIP The Installation CD-ROM provides a setup program that
allows you to install IPFinder on your computer. To install
IPFinder, click Install Software then select IPFinder on the
Auto-Run screen.
©MARMITEK
6
ENGLISH
IPRobocam 541 / 641 7
Accessing to the Camera
1. Since the default configuration of the camera is DHCP mode
enabled, you are recommended to launch IPFinder to search
the IP address that is assigned to the camera by the DHCP
server, and then click Link to access the camera via the Web
browser.
2. If Network Camera can't get IP Address under DHCP mode,
the default IP Address will be 192.168.0.30.

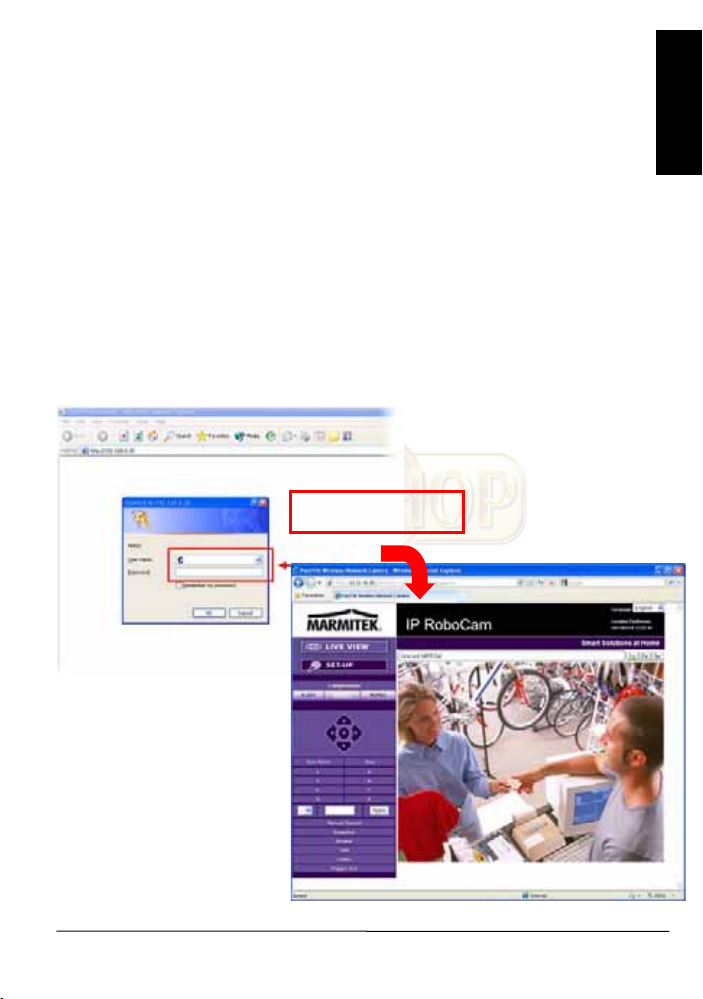

3. When the login window appears, enter the default User name
(admin) and password (admin) and press OK to access to the
main screen of the camera’s Web Configuration.
Enter the User name
and Password.
4. Click Setup and then Smart Wizard to set up your camera
quickly. The Smart Wizard will guide you through the
necessary settings with detailed instructions on each step.
©MARMITEK
8
