Marcy CL303 Manuel utilisateur
19/01/2012-1
Magnetic Cycle
Product Code: CL303
Contents
Important Safety Information 3
Weight Limit Capacities
Hardware Parts List 4
Pre Assembly Check List 5
Assembly Instructions 6 - 8
User Guide 9
Computer Instructions 10
Exercise Instructions 12
Fault Finding Chart 13
Additional Information 14
Care Maintenance
Exploded Diagram 15
Parts List 16
Limited Warranty 17
Supplied by
Escalade International Ltd
www.escaladesports.co.uk
E mail: info@escaladesports.co.uk
2
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
1. This Cycle is intended for class H (H=Domestic) use only. It is not designed for commercial use.
2. This machine has been tested to BS EN 957 Parts 1:2005 and Part 5:1996.
3. Read the OWNER’S OPERATION MANUAL and all accompanying literature and follow it
carefully before using your Cycle.
4. Keep children and pets away from the Cycle at all times. Do not leave children unattended in the
same room with the Cycle. The Cycle is not a toy and therefore parents and guardians should
be aware of the natural tendency for children to play, leading to situations and behaviour for
which the Cycle is not intended.
5. If children are allowed to use the Cycle their physical/mental development and above all,
temperament should be taken into account. Constant supervision is therefore needed.
6. P osition the Cycle on a clear levelled surface which is clear of all obstacles as not to restrict
movement whilst exercising. DO NOT use the Cycle near water or outdoors.
7. Exercise equipment has moving parts. In the interest of safety, keep others, especially children,
at a safe distance while exercising.
8. Never hold your breath while exercising. Breathing should remain at a normal rate in
conjunction with the level of exercise being performed.
9. Rest adequately between workouts. Muscle tone develops during these rest periods. Beginners
should work out twice a week and increase gradually to 4 to 5 times per week.
10. Remove all jewellery, including rings, chains and pins before commencing exercise.
11. Always wear suitable clothing and footwear during exercise. Do not wear loose fitting clothing
that could become entangled with the moving parts of your Cycle.
12. This equipment cannot be used for therapeutic purposes.
13. Consult a physician before commencing any training programme.
14. If you experience any nausea or dizziness while exercising, stop your workout immediately and
consult your physician.
IMPORTANT!!! THE MAXIMUM RECOMMENDED WEIGHT CAPACITY FOR YOUR
CYCLE IS 120KG
THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND
SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT
YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW.
3

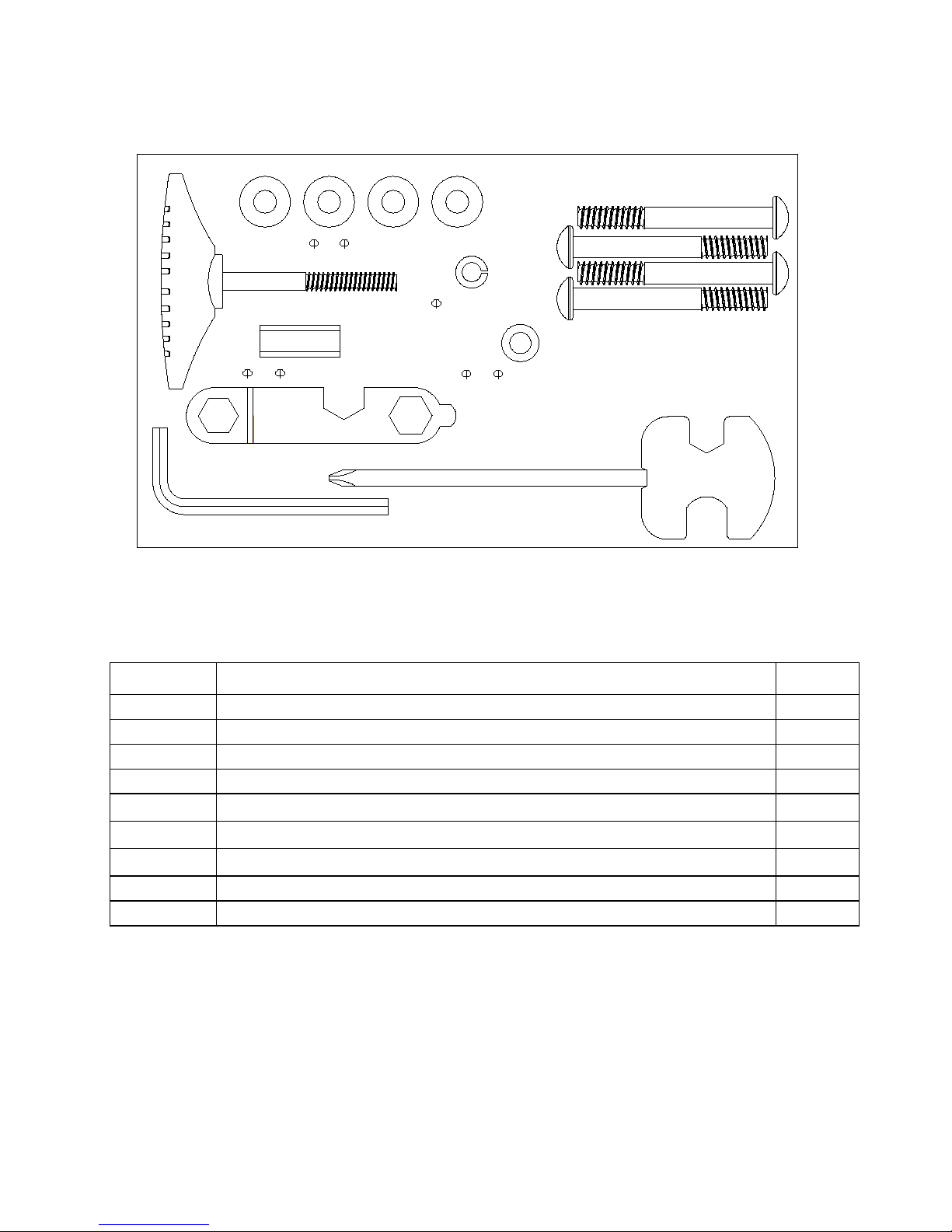

HARDWARE PARTS LIST
Part No. Description Q’ty
9 Spring washer 1
10 Flat washer 1
12 T-shape knob 1
13 Steel Tube 1
20 Flat washer 4
26 Allen Head Bolt 4
82 N-shape tool 1
83 Hex wrench 1
84 Harpoon wrench 1
Please note that some items of hardware may already be pre assembled onto your
cycle
( 26) M8* 73L, 4PCS
82
N-shape Wrench
( 10) 8* 14* 2T 1PCS
( 13) 8*12*30L 1 PCS
( 12) M8* 65L 1PCS
(9) 8*2.5T 1 PCS
( 20) 8* 19*2T 4 PCS
83
Hexagon Key
84 Harpoon wrench
4

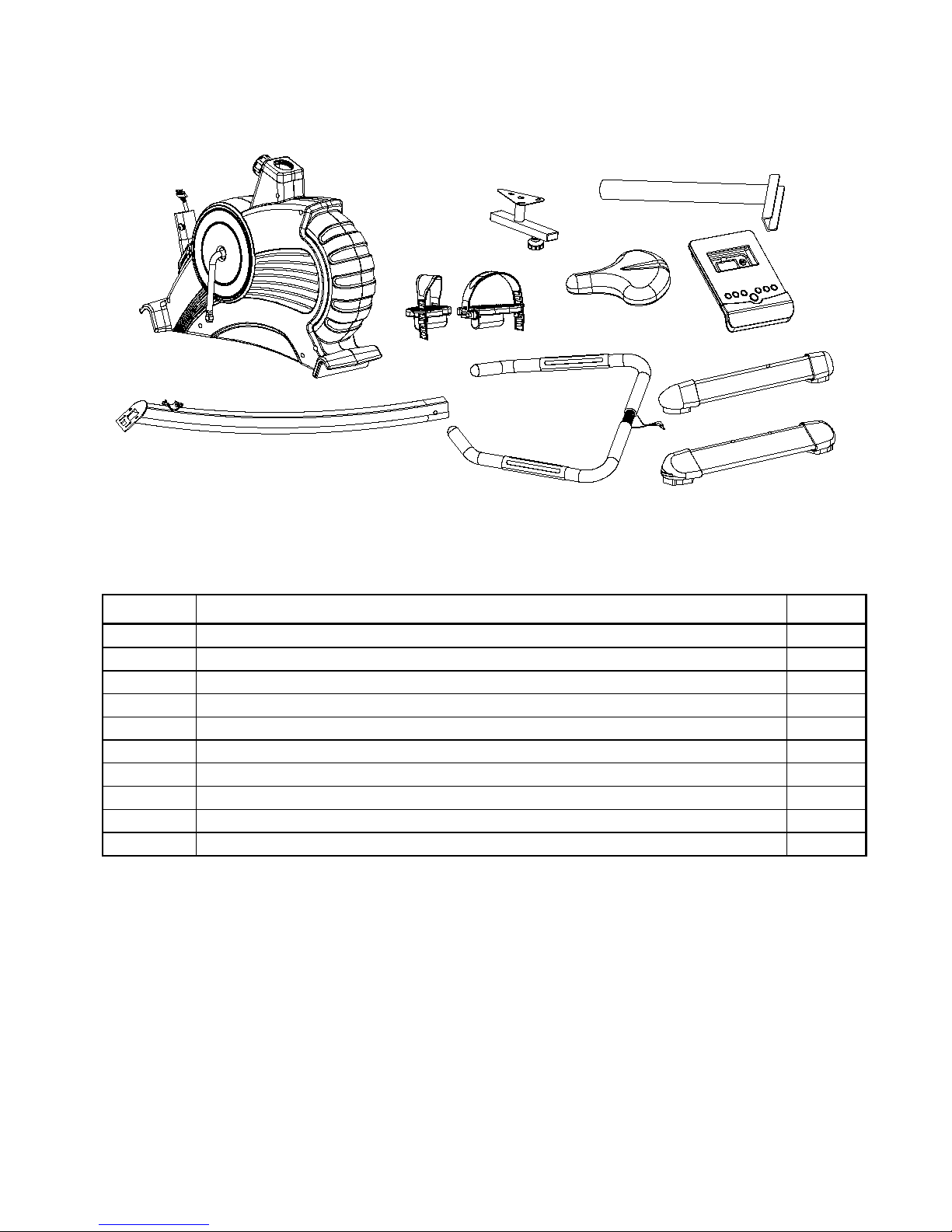

PRE-ASSEMBLY CHECK LIST
Part No. Description Q’ty
1 Computer 1
4 Horizontal Slider 1
6 Handlebar 1
17 Handlebar Post 1
23 Rear Stabilizer 1
25 Pedal (R/L) 1
27 Front Stabilizer 1
32 Saddle 1
36 Saddle Post 1
47 Main Frame 1
Above described parts are all the parts you need to assemble this cycle. Before you
start to assemble, please check the hardware packing to make sure they are included.
NO. 4 7
NO. 1 7
NO. 2 5
NO. 0 6
NO. 0 1
NO. 3 2
NO. 2 3
NO. 2 7
NO. 3 6
NO. 4
5

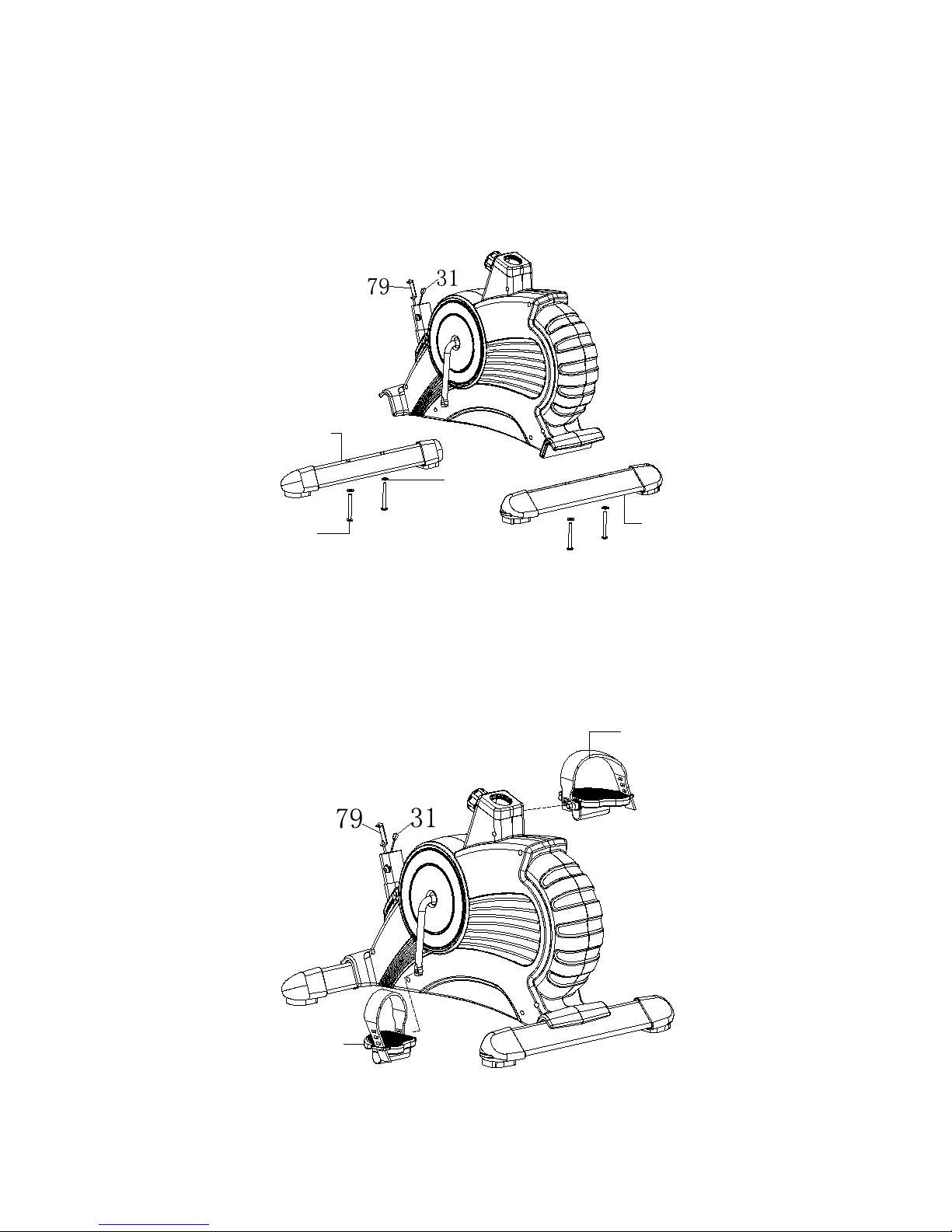

ASSEMBLY INSTRUCTIONS
STEP 1
Attach the Front Stabilizer (27) and Rear Stabilizer (23) to the Main Frame using 4 Allan Head Bolts (26)
and 4 Flat Washers (20).
STEP 2
The Left and Right Pedals (25 L & R) are marked ‘L’ and ‘R’. Assemble the pedals onto their appropriate
crank arms. Please note that the Left Pedal should be threaded counter-clockwise.
23
27
26
20
25L
25R
6

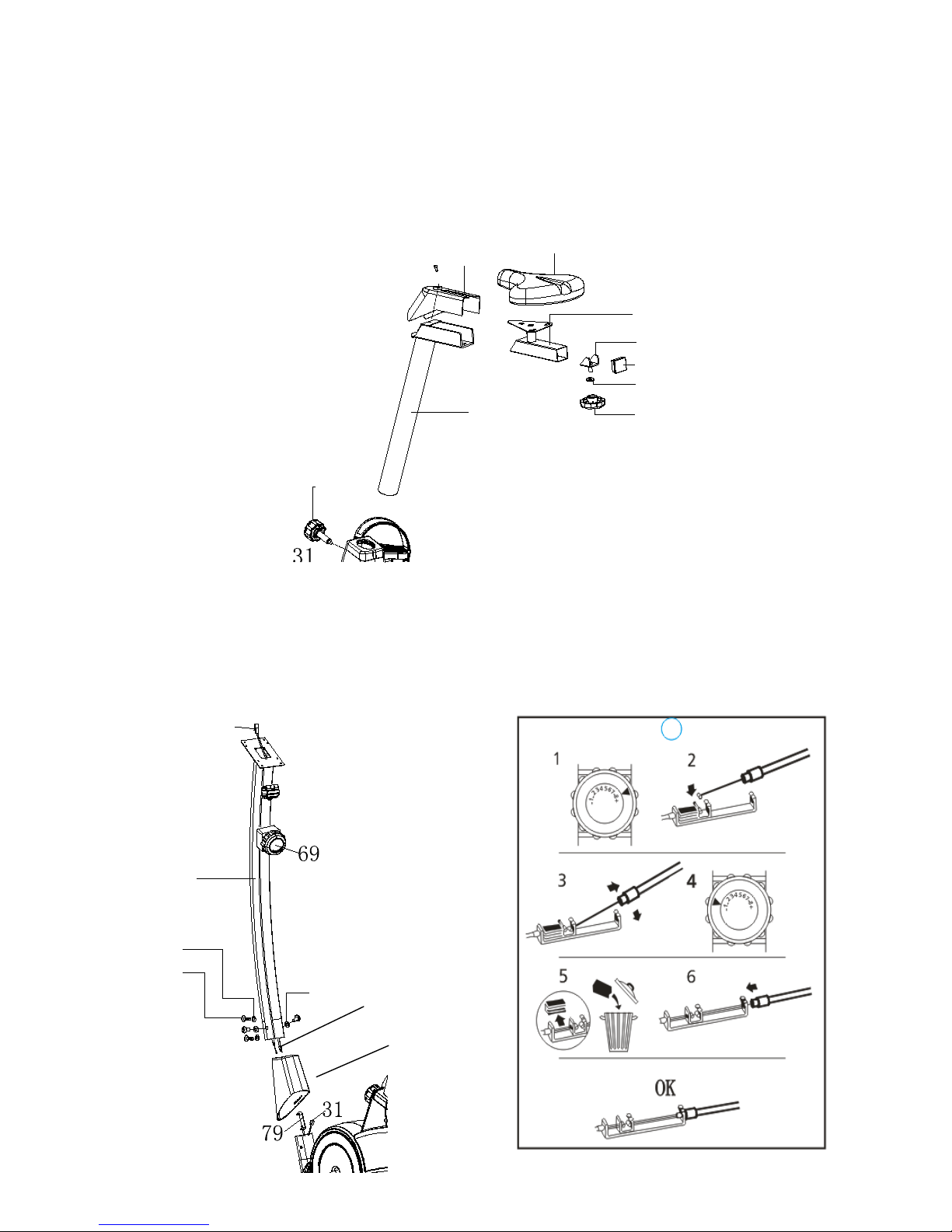

STEP 3
Assemble the Saddle (32) onto the Horizontal Slider (4) and secure into position using 3 Washers and
Nylon Lock Nuts. Assemble the Seat Post Cover (70) and Saddle/ Horizontal Slider Assembly onto the
Saddle Post (36) and secure into position using 1 Washer (37) and Lock Knob (38).
Insert the Saddle Post assembly into the Main Frame. Select the desired position and secure using Quick
Release Knob (40).
STEP 4
Ensure the Tension Control Knob is set to number 8. Slide the Handlebar Post Cover (24) over the
Handlebar Post (17). Connect the Tension Cable Upper (69) to the Tension Cable Lower (79). Turn the
Tension Control Knob to number 1 and remove the plastic retainer. Connect the Upper and Lower Sensor
Wires (14 & 31). Assemble the Handlebar Post to the Main Frame and secure into position using 4 Allen
Head Bolts (19), 2 Flat Washers (20) and Curved Washers (18).
24
20
18
19
17
14
38
37
34
32
45
70
4
40
36
14
7

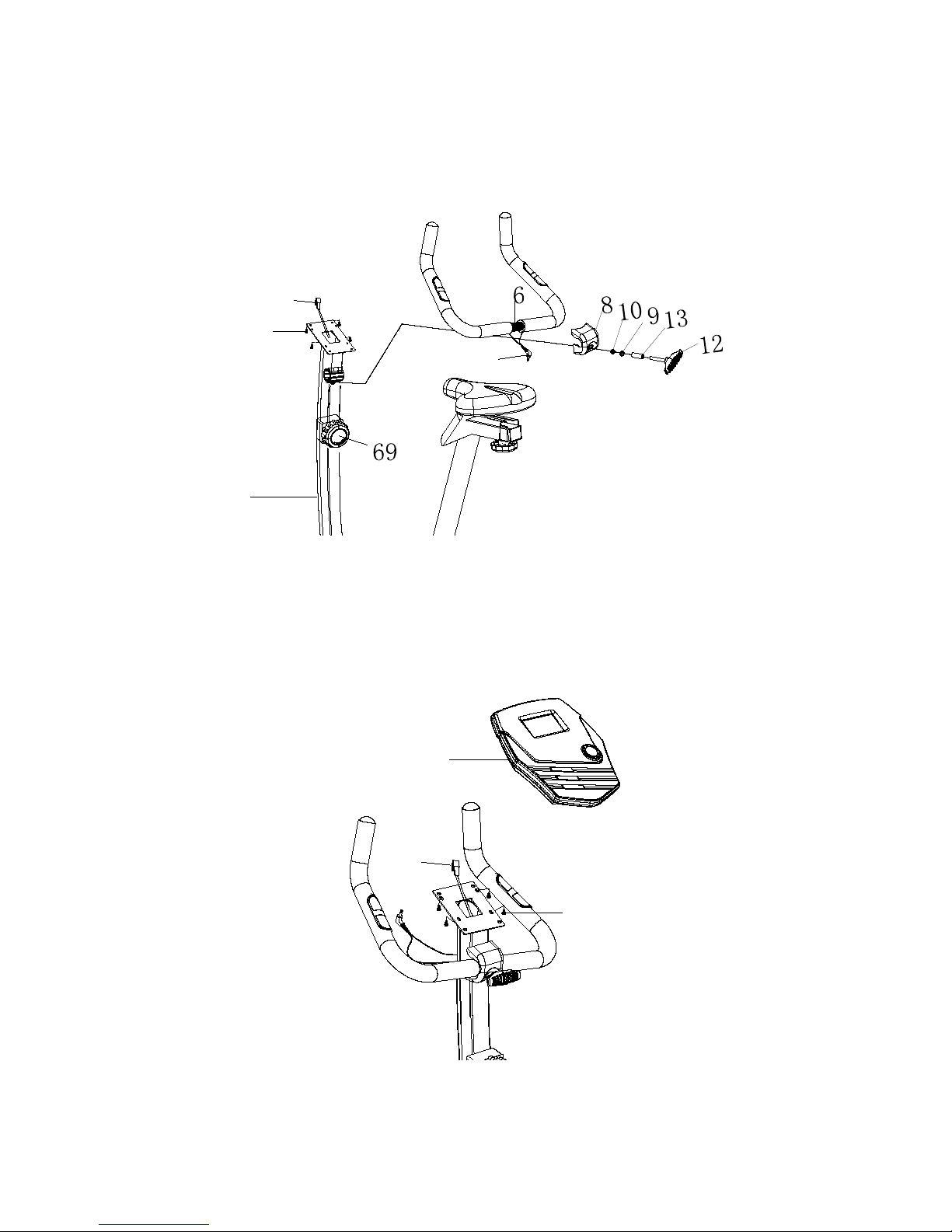

STEP 5
Loop the Pulse Sensor Wire Cable over the top of the Handlebar Post. Attach the Handlebar (6) to the
clamp on the Handlebar Post and secure into position using Plastic Cover (8), Flat Washer (10) Spring
Washer (9), Steel Tube (13) and T Knob (12).
STEP 6
Connect the Upper Sensor Computer Cable into the rear of the Computer (1). Assemble the computer
onto the top of the Handlebar Post and secure into position using 4 Screws (15).
Connect the Pulse Sensor Cable from the Handlebar into the rear of the computer marked PULSE INPUT.
15
1
14
15
2
17
14
8
User Guide

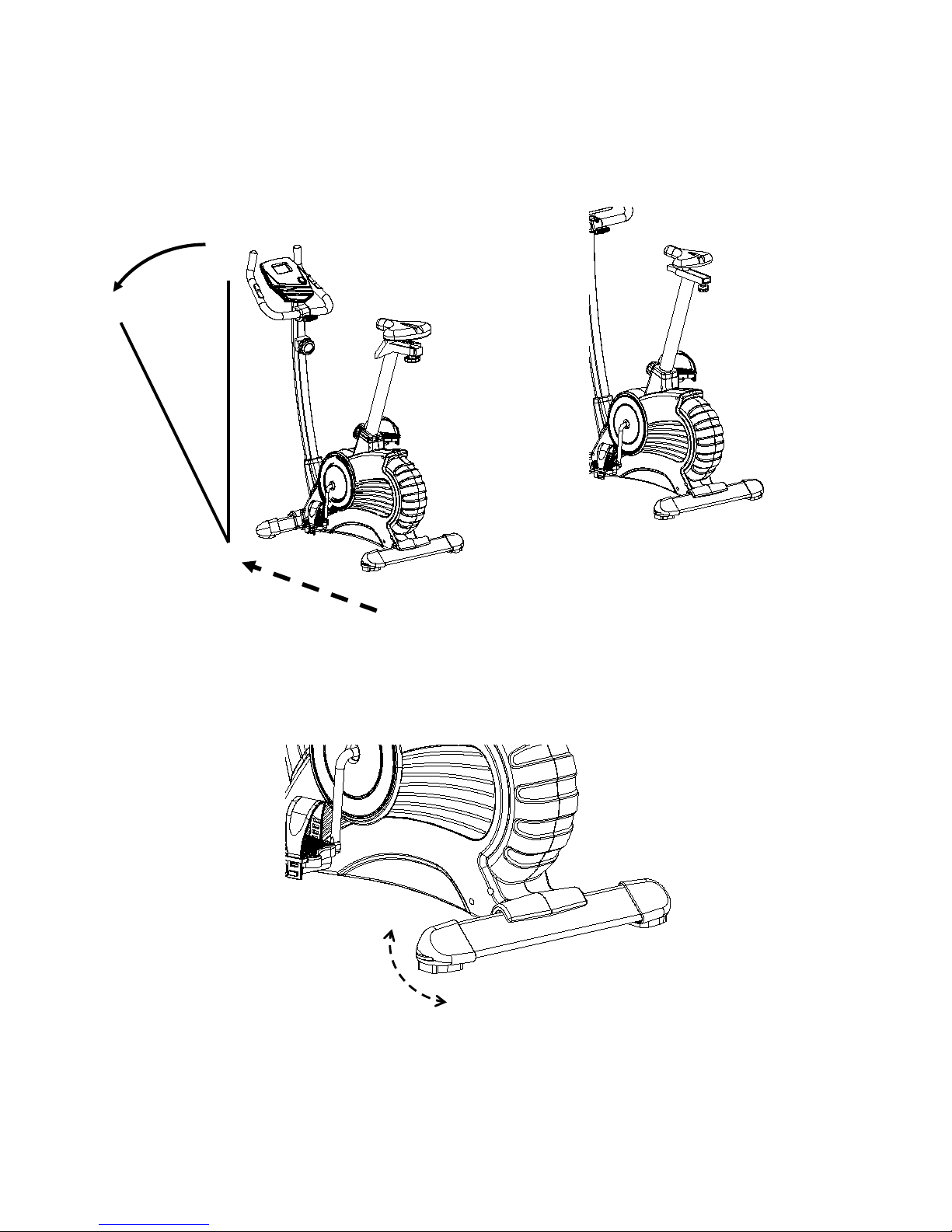

Transportation
Seat Adjustment
.
To adjust the seat, loosen the quick release knob
by turning it anti clockwise and pulling out. Adjust
the seat to the desired height and release the
knob. Re-tighten before use.
Levelling
If the cycle is not level, adjust the end caps located on the Rear Stabilizer
9

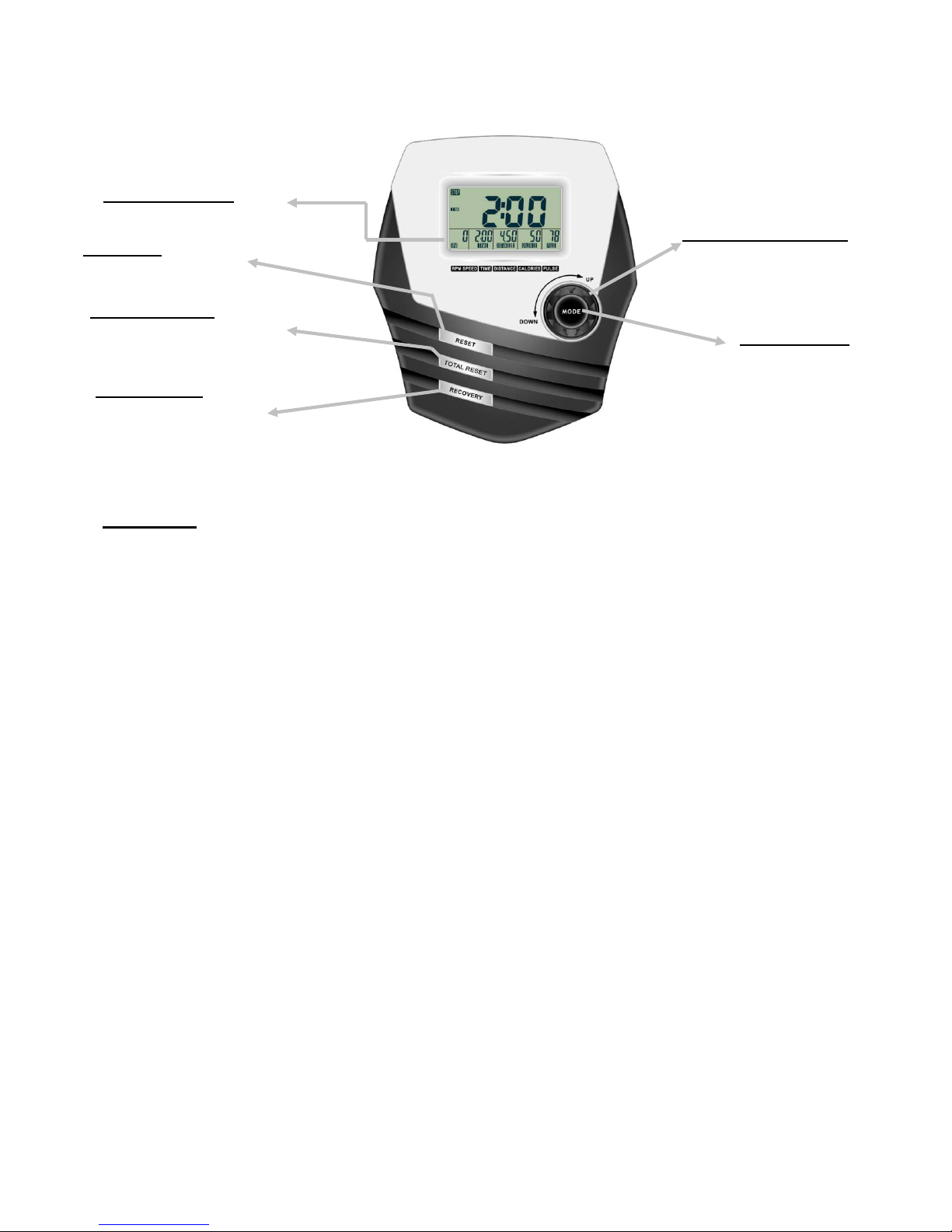

EXERCISE COMPUTER
FUNCTION BUTTONS
FUNCTIONS
SCAN
Displays all functions of RPM, Speed, Distance, Calories and Pulse in a
continuous loop.
SPEED
Displays current training speed. (Km/hr)
RPM
Displays current revolutions per minute. RPM and speed will alternate with other
displays every 6 seconds after exercising starts.
TIME
Counts up from zero – 99:59 Minutes.
Counts down from pre set value to zero. The computer will sound an alarm on
reaching zero.
DISTANCE
Counts up from zero to 99.99Km.
Counts down from pre set value to zero. The computer will sound an alarm on
reaching zero.
CALORIE
Counts up from zero to 990 Calories.
Counts down from pre set value to zero. The computer will sound an alarm on
reaching zero. (This data is a rough guide for comparison of different exercise
sessions which cannot be used in medical treatment)
PULSE
By placing your hands onto the Hand Grip Pulse Sensors the monitor will display
the user’s heart rate while exercising.
If a pre set value is entered into the Pulse Function, an alarm will sound on
reaching the pre set value.
STANBY MODE If the computer remains idle for 4 minutes, the computer will switch to a standby
mode.
MODE Select Key
Confirm your selection.
RESET Key
Reset default function value.
RECOVERY Key
The RECOVERY PROGRAM
automatically evaluate your
Fitness Level (F1-F6)
Control Wheel UP/DOWN
Adjust / add or reduce function
value
FUNCTION VALUES
RPM/Speed / Time / Distance /
Calories / Pulse
TOTAL RESET Key
Reset ALL default function value.
10
