Marantz AV7704 Manuel utilisateur

ENGLISH

FRANÇAIS

ESPAÑOL

Please do not

return this unit to

the store.

If you need help…

Check our AVR setup tips online

Us.Marantz.com/SetupTips

Ca.Marantz.com/SetupTips

Call for Assistance

1-855-ONE-Marantz (USA)

1-855-663-6272

1-800-668-0652 (Canada)

Monday – Friday 10:00AM to 10:00PM E.S.T

Saturday 12:00PM to 8:00PM E.S.T

AV Pre Tuner

AV7704

Lisez-moi en premier.... /

Lea esto primero....

Quick Start Guide

Read Me First....

Guide de démarrage rapide /

Guía de inicio rápido

1. AV7704U_QSG_ENG_00A.indd 1 2017/07/06 14:20:31

PrintingColor:Black

Thank you for choosing a Marantz Pre

Tuner.

This guide provides step-by-step

instructions for setting up your Pre

Tuner.

Welcome Before You Begin

Required for Setup

TV RCA cables XLR cables

HDMI cable Power ampliﬁer Speakers /

Speaker cables

Optional

LAN cable Wi-Fi router

• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC

functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.

• These drawings are for illustrative purposes only and may not represent the actual product(s).

1. AV7704U_QSG_ENG_00A.indd 1 2017/07/06 14:20:31

PrintingColor:Black

What’s In the Box

Quick Start Guide FM indoor antenna

Safety Instructions AM loop antenna

Notes on radio Sound calibration

microphone

Warranty (for USA /

for CANADA)

Sound calibration

microphone stand

Cable labels Remote control unit

(RC037SR)

Pre Tuner R03/AAA batteries

Power cord External antennas

for Bluetooth/

wireless connectivity

• The included sound calibration microphone stand is convenient for use

when performing Speaker Calibration. Using your own tripod or the supplied

Sound calibration microphone stand enables settings to be automatically

conﬁgured to the optimum listening environment, providing exceptionally

high performance.

1. AV7704U_QSG_ENG_00A.indd 2 2017/07/06 14:20:33

PrintingColor:Black

Important: External Antennas

The removable external antennas are required for both

Bluetooth and Wireless network connectivity. Please make

sure to connect the antennas before attempting to use the

Bluetooth or Wi-Fi features of the AV7704.

nConnecting the external antennas for

Bluetooth/Wireless connectivity

For each of the two antennas:

qPlace the antenna evenly over the antenna terminal

located at the upper left or right corner of the rear panel.

wTurn the antenna clockwise until it is fully connected. Do

not over tighten.

eRotate the antenna upwards for the best possible

reception.

qwe

1. AV7704U_QSG_ENG_00A.indd 3 2017/07/06 14:20:33

PrintingColor:Black

1Installing batteries in the

remote control unit

Batteries

There are four steps to the setup

process.

1Installing batteries in the remote control unit

2Connecting the Pre Tuner, Power Ampliﬁer

and your TV

3Following the On-Screen Setup Assistant

4Downloading the Mobile Apps

Setup

1. AV7704U_QSG_ENG_00A.indd 4 2017/07/06 14:20:34

PrintingColor:Black

2Connecting the Pre Tuner, Power Ampliﬁer and your TV

1) Place the Pre Tuner and Power

Ampliﬁer near your TV and connect

the power cord

Pre Tuner

Power Ampliﬁer

Pre Tuner

Power cord

(supplied)

Connect to household

power outlet

(AC 120 V, 60 Hz)

1. AV7704U_QSG_ENG_00A.indd 5 2017/07/06 14:20:34

PrintingColor:Black

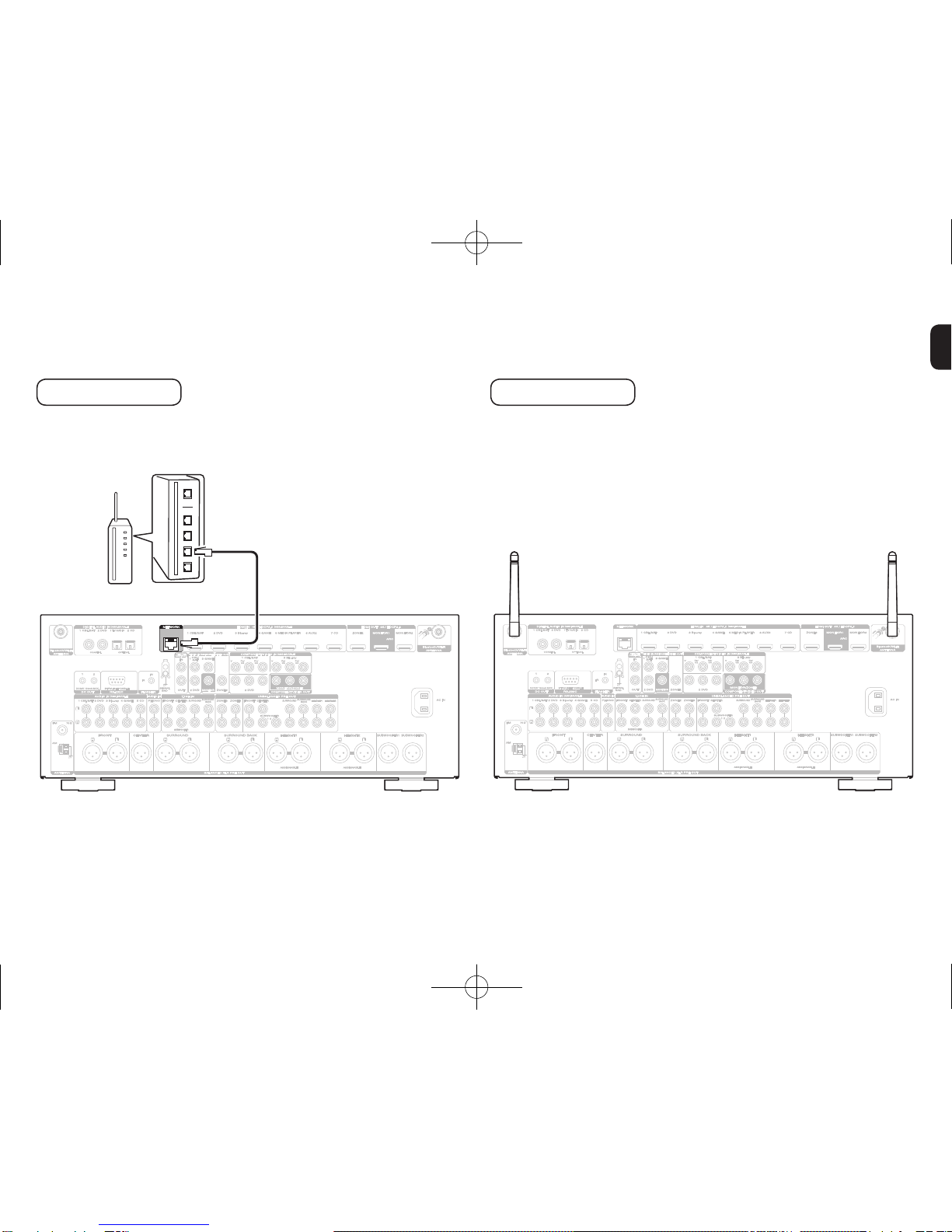

2) Connect the Pre Tuner to your home network

Wired LAN

Connect an Ethernet cable (not included) between your Pre

Tuner and your network router.

Router

To LAN port

Wireless LAN

When connecting to wireless LAN (Wi-Fi), follow the

instructions in “Connecting the external antennas for

Bluetooth/Wireless connectivity” and connect the antennas.

1. AV7704U_QSG_ENG_00A.indd 6 2017/07/06 14:20:34

PrintingColor:Black

3) Connect the Pre Tuner to your TV

with an HDMI cable

(ARC)

HDMI IN

HDMI OUT

MONITOR1

(ARC)

ARC

MONITOR1

HDMI cable

Pre Tuner (Rear panel)

ARC (Audio Return Channel) :

If your TV supports ARC, your TV can send audio back to the Pre Tuner

when you are using your TV’s built-in video sources (TV tuner, Smart TV

streaming services, etc…) ARC requires that you enable HDMI CEC on

your TV. Please refer to your TV’s Owner’s Manual for instructions on how

to setup HDMI CEC. Note that some TV manufacturers use other names

for the HDMI CEC function.

4) Turn on the TV

TV remote control unit

5) Select the appropriate HDMI input on

your TV

HDMI

TV/

VIDEO

INPUT or

TV remote control unit

1. AV7704U_QSG_ENG_00A.indd 7 2017/07/06 14:20:35

PrintingColor:Black

6) Turn on the Pre Tuner

• Press Xto turn on the Pre Tuner.

7) Verify the connection

• Verify that you can see this screen on your TV.

AV Preamp Setup Assistant

Please select a language...

Français

Español

English

If this screen is not displayed, please go back and retry

the steps again in the recommended sequence.

1. AV7704U_QSG_ENG_00A.indd 8 2017/07/06 14:20:35

PrintingColor:Black

3Following the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and

conﬁguring your Power Ampliﬁer and components to your

Marantz Pre Tuner. Please use the remote control and

follow the on-screen instructions.

AV Preamp Setup Assistant

Please select a language...

Français

Español

English

1. AV7704U_QSG_ENG_00A.indd 9 2017/07/06 14:20:35

PrintingColor:Black
