Marantz Model 30 Manuel utilisateur

QUICK START GUIDE

Integrated Amplier

1.MODEL 30 U_ENG_QSG_200518.indd 11.MODEL 30 U_ENG_QSG_200518.indd 1 2020/05/26 16:56:502020/05/26 16:56:50

PrintingColor:Black

Thank you for choosing a Marantz ampli er. This guide provides

step-by-step instructions for setting up your ampli er.

Welcome Before You Begin

What’s In the Box

Quick Start Guide Ampli er

Safety

Instructions Power cord

Warranty

(for USA/

for CANADA)

Remote

control unit

(RC002PMND)

R03/AAA

batteries

Required for Setup

CD Player Speaker

systems Speaker cables

These drawings are for illustrative purposes only and may not

represent the actual product(s).

1.MODEL 30 U_ENG_QSG_200518.indd 11.MODEL 30 U_ENG_QSG_200518.indd 1 2020/05/26 16:56:512020/05/26 16:56:51

PrintingColor:Black

There are ve steps to the setup process.

Setup

Install batteries in the remote control unit

Connect the speakers to MODEL 30

Connect the CD player to MODEL 30

Plug the power cord into a power outlet

Begin CD playback

Batteries

Install batteries

in the remote control unit

1.MODEL 30 U_ENG_QSG_200518.indd 21.MODEL 30 U_ENG_QSG_200518.indd 2 2020/05/26 16:56:512020/05/26 16:56:51

PrintingColor:Black

Connect the speakers to MODEL 30

SPEAKERS

CD TUNER LINE-1 LINE-2

RECORDER RECORDER

AUDIO OUT

PRE OUT

AUDIO IN

POWERAMP IN

SPEAKERS

CD TUNER LINE-1 LINE-2

RECORDER RECORDER

AUDIO OUT

PRE OUT

AUDIO IN

POWERAMP IN

w q w q

(R) (L)

Connecting the speaker cables

qPeel o about 3/8 inch (10 mm) of

sheathing from the tip of the speaker

cable, then either twist the core wire

tightly or apply solder to it.

wTurn the speaker terminal

counterclockwise to loosen it.

eInsert the speaker cable’s core wire to

all the way into the speaker terminal.

rTurn the speaker terminal clockwise to

tighten it.

1.MODEL 30 U_ENG_QSG_200518.indd 31.MODEL 30 U_ENG_QSG_200518.indd 3 2020/05/26 16:56:512020/05/26 16:56:51

PrintingColor:Black

AUDIO

OUT

SPEAKERS

CD TUNER LINE-1 LINE-2

RECORDER RECORDER

AUDIO OUT

PRE OUT

AUDIO IN

POWERAMP IN

SPEAKERS

CD TUNER LINE-1 LINE-2

RECORDER RECORDER

AUDIO OUT

PRE OUT

AUDIO IN

POWERAMP IN

CDCD

CD player

MODEL 30

SPEAKERS

CD TUNER LINE-1 LINE-2

RECORDER RECORDER

AUDIO OUT

PRE OUT

AUDIO IN

POWERAMP IN

SPEAKERS

CD TUNER LINE-1 LINE-2

RECORDER RECORDER

AUDIO OUT

PRE OUT

AUDIO IN

POWERAMP IN

Power cord

(supplied)

Connect to household

power outlet

(AC 120 V, 60 Hz)

Connect the CD player to MODEL 30 Plug the power cord

into a power outlet

1.MODEL 30 U_ENG_QSG_200518.indd 41.MODEL 30 U_ENG_QSG_200518.indd 4 2020/05/26 16:56:522020/05/26 16:56:52

PrintingColor:Black

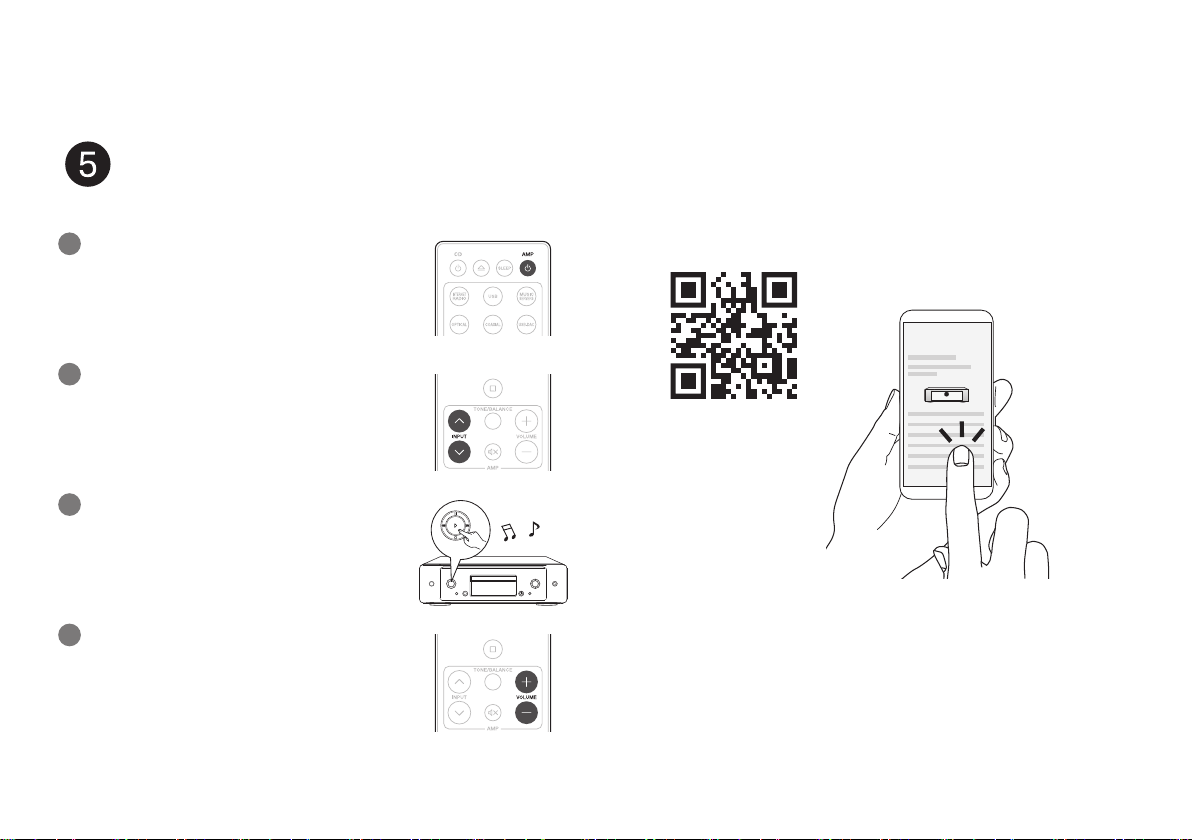

Press the power operation button.

Set the input source to “CD”.

Play the CD player.

Begin CD playback

4Adjust the volume.

Online Manual

Owner’s Manual

• Refer to the Online Manual for other functions information and

operation procedure details.

manuals.marantz.com/Model30/NA/EN/

• For more information, visit www.marantz.com

1.MODEL 30 U_ENG_QSG_200518.indd 51.MODEL 30 U_ENG_QSG_200518.indd 5 2020/05/26 16:56:522020/05/26 16:56:52

PrintingColor:Black

1.MODEL 30 U_ENG_QSG_200518.indd 61.MODEL 30 U_ENG_QSG_200518.indd 6 2020/05/26 16:56:522020/05/26 16:56:52

PrintingColor:Black

Printed in Japan 5411 11843 00AM

4.MODEL 30 U_QSG_BackPage_00A_200616.indd 34.MODEL 30 U_QSG_BackPage_00A_200616.indd 3 2020/06/16 16:38:192020/06/16 16:38:19

PrintingColor:Black
