DANGER indicates a hazardous
situation which, if materialized, could
result in a serious injury and even in
death.
CAUTION, indicates a hazardous
situation which, if materialized, could
result in material damage or a
moderate injury.
SAFETYINFORMATION
Please pay attention to all Warnings and Cautions in this manual. Failure to do so could result in
serious personal injury and/or equipment damage. It is mandatory to read the entire manual
unpack, install or operate this product.
Model Cooling
Area
TubeMaterial
Size
Rating
ShellMaterial
Rating Weight
Optimalflowservice
(cm³/min)
Singlefase Condensing
heattransfer
SC‐10.11m²
1.2ft²
316SS
1/4”ODx0.049”
245bar@540⁰C
304SS/316SS
30bar@200⁰C
5kg
11.02lb 1,000 700
SC‐20.22m²
2.4ft²
316SS
1/4”ODx0.049”
245bar@540⁰C
304SS/316SS
30bar@200⁰C
7kg
15.43lb 1,800 1,100
SC‐30.35m²
3.8ft²
316SS
3/8”ODx0.065”
215bar@540⁰C
304SS/316SS
30bar@200⁰C
11kg
24.25lb 3,500 2,000
SC‐40.44m²
4.8ft²
316SS
3/8”ODx0.065”
215bar@540⁰C
304SS/316SS
30bar@200⁰C
12kg
26.46 lb 5,000 2,000
INSTALLATION,OPERATION&
MAINTENANCEMANUAL
MANVIASAMPLECOOLERSSCSERIE
SCSERIECOOLERSSPECIFICATION

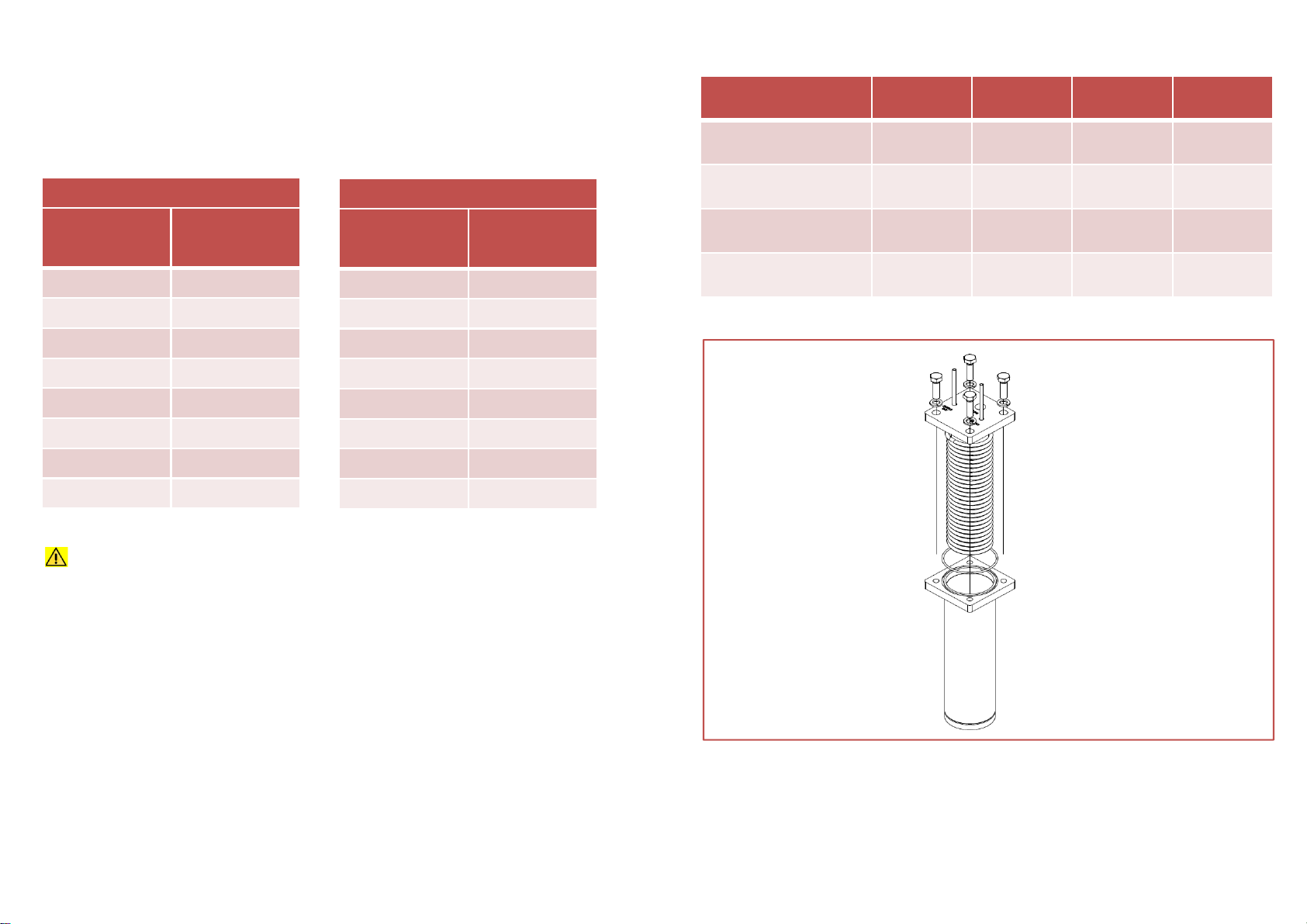

MAINTENANCE
Remove scale by circulating an inhibited sulfamic acid
cleaning solution through the cooling water side.
Replace used gaskets with new ones. After
reassembly, pressurize shell and visually inspect for
water leaks. Recommended bolts torque 80 Nm.
Replace gaskets showing visible leaks. Keep spare
shell gaskets on hand for this need
STANDARDWARRANTY
Manvia warrants products manufactured by it and supplied
hereunder to be free from defects in workmanship and, to
the extent materials are selected by Seller, to be free from
defects in materials, in each case for a period as defined in
the table below:
Model Description WarrantyPeriod
SC–1 Steam & Water Sampling
Products and Systems
Twelvemonthsfrom
dateofshipment
SC–2 Steam & Water Sampling
Products and Systems
Twelvemonthsfrom
dateofshipment
SC–3 Steam & Water Sampling
Products and Systems
Twelvemonthsfrom
dateofshipment
SC–4 Steam & Water Sampling
Products and Systems
Twelvemonthsfrom
dateofshipment
All rights reserved. All product and company names are
property of their respective owners. This document
contains proprietary information. No part of this
document may be photocopied or reproduced without the
prior written consent of Manvia S.A. Sucursal España.
COOLERSSPARE PARTS
Part#Name
CL2O Cover "O" Ring for SC‐1andSC‐2
CL3O Cover "O" Ring for SC‐3andSC‐4
START‐UP
DANGER:To avoid the risk of burns, it is essential that a full flow of cooling water is present before
opening the sample inlet valve. Always close the sample inlet valve before turning off the cooling water.
Sample pipework becomes very hot under normal working conditions, and will cause burns if touched.
Follow this procedure for safe operation:
Open the cooling water inlet valve and outlet valve (if installed) first, and ensure that a full flow can
be seen at the cooling water outlet.
Gradually open the sample inlet valve and regulate the flow to achieve a cooled sample at desired
temperature.
Allow the sample to run for a while before collection or adjust flow to analyze in continuous systems.
When enough liquid has been collected close the sample inlet first, and then the cooling water
inlet/outlet valves. In continuous analyzer systems ensure the temperature is within allowable range.
After closing the sample inlet valve the sample OUT connection may drip in manual sampling systems
for a few minutes while the coil drains.
MA‐SC‐SERr00
