DSCUSB Standard User Manual

mantracourt.com

DSCUSB

Digital Sensor Card USB –Strain Gauge Input

Mantracourt Electronics Limited - DSCUSB Standard Manual

Contents

Chapter 1 Introduction........................................................................................................................................................2

Overview...........................................................................................................................................................................2

Manual Scope...................................................................................................................................................................2

LED Status Indication......................................................................................................................................................2

Chapter 2 Getting Started...................................................................................................................................................3

Communications Interface Information ......................................................................................................................3

DSC Toolkit.......................................................................................................................................................................3

What Can The Toolkit Do? ........................................................................................................................................................................... 3

Installing DSC Toolkit..................................................................................................................................................................................... 3

Connecting the Module to the Computer ...................................................................................................................4

Using the Found New Hardware Wizard................................................................................................................................................ 4

Using the Software.......................................................................................................................................................................................... 5

Information Page......................................................................................................................................................................................... 6

Home Page .................................................................................................................................................................................................... 8

Save and Restore Page ............................................................................................................................................................................. 9

Trend Chart Page ......................................................................................................................................................................................10

Logging Page..............................................................................................................................................................................................12

Data Rates and Filter Page ....................................................................................................................................................................14

Calibration Page ........................................................................................................................................................................................17

Calibration ................................................................................................................................................................................................18

Auto Calibration ................................................................................................................................................................................18

Table Calibration ...............................................................................................................................................................................18

Simple Unit Conversion..................................................................................................................................................................19

Shunt calibration ...............................................................................................................................................................................20

System Zero.............................................................................................................................................................................................20

Limits ..........................................................................................................................................................................................................21

Units............................................................................................................................................................................................................21

Advanced Calibration Page...................................................................................................................................................................22

Chapter 3 Installation ....................................................................................................................................................... 23

Identifying Strain Gauge Connections .......................................................................................................................23

9 way D Connector Pin-outs .....................................................................................................................................................................23

4-wire load cell ...............................................................................................................................................................................................23

6-wire load cell ...............................................................................................................................................................................................23

Temperature Sensor (Optional)................................................................................................................................................................24

Chapter 4 Specifications .................................................................................................................................................. 25

Technical Specifications ...............................................................................................................................................25

Dimensions & Mounting..............................................................................................................................................26

External Dimensions.................................................................................................................................................................................26

LED Position ................................................................................................................................................................................................26

Mounting Holes.........................................................................................................................................................................................26

DIN Rail Mounting (Optional Kit)........................................................................................................................................................27

Cable Clearance .........................................................................................................................................................................................27

Cable Retention .........................................................................................................................................................................................28

Environmental Approvals ................................................................................................................................................ 28

CE Approvals....................................................................................................................................................................................................28

Warranty............................................................................................................................................................................. 28

Mantracourt Electronics Limited - DSCUSB Standard Manual

Chapter 1 Introduction

This chapter provides an introduction to the DSCUSB products, describing the product range and main features.

Overview

The DSCUSB product family comprises of Digital Sensor Cards that connect sensors to your PC via USB.

The DSCUSB product is a compact, high-precision Strain Gauge Converter; converting a strain gauge sensor input to

a digital output and is connected to a PC via a USB port. They allow high precision measurements to be made and

communicated directly to a PC and is aimed at applications which require high-accuracy measurement repeatability.

With the appropriate drivers installed, the DSCUSB appears as a virtual serial port to the PC.

Simply by plugging the device into a PC, data can be extracted from most strain gauge bridge input sensors and

acquired by software which allows data manipulation removing the need for amplifiers, filters & multimeters.

Free-standing module fitted with 9-way ‘D’ type socket for load cell and optional temperature sensor connections.

Micro USB socket accepts a USB lead with type ’A’ connector at the PC end.

Manual Scope

This manual covers only the Standard level of functionality and calibration and assumes the operator is going to use

the DSC Toolkit as a means of configuration and to extract data from the module.

The DSCUSB may have already been connected to a loadcell and calibrated in which case this is the only manual you

will need to refer to.

A separate manual covers the Advanced functionality which includes loadcell profiling calibration, information on

writing your own communication software and advice on OEM production techniques.

If you have purchased this module and intend to connect it to a loadcell and perform linearization or temperature

compensation then you will need to refer to the DSCUSB Advanced Manual.

Please note that your DSCUSB module may have had the advanced features locked and if this is the case then you

will only be able to use the features documented in this manual.

LED Status Indication

The module indicates status via a flashing red Healthy LED.

With no load cell connected The LED of the DCell or DSC should flash OFF for 100ms every 500ms (LED will be ON

but flash off for a tenth of a second every half a second).

If a load cell is connected and there are no errors then the LED will Flash ON for 100mS then OFF every 500ms (LED

will be off but flash on for a tenth of a second every half a second).

Mantracourt Electronics Limited - DSCUSB Standard Manual

Chapter 2 Getting Started

Please ensure that software is installed before connecting the module to your PC

This chapter explains how to connect to a DSCUSB for the first time and how to get it working.

Communications Interface Information

DSCUSB modules can connect to a PC by plugging into a USB port and do not require an external power supply as

they appear as a ‘single unit load’ i.e. they draw <100mA.

Appropriate drivers must be installed which are bundled with the DSC Toolkit. These create a virtual serial port

allowing the DSCUSB to appear to the PC as a normal COM port device.

DSC Toolkit

The DSC Toolkit is a simple configuration tool designed specifically for configuring DSCUSB modules.

This toolkit allows configuration, calibration, logging and parameter management of the modules.

What Can The Toolkit Do?

Communications with a single module at a time to do the following:

Viewing of input with enunciators for integrity and range errors.

Two point auto calibration by application of known weight.

Setting System Zero and under and over range limits.

Select measurement rate and filter settings.

Save module settings including user calibration and ability to restore to same or different USB DSC modules.

Log input value to a CSV file at up to 100Hz which can be analysed in Microsoft Excel.

Trend chart view of live input. Exportable image and data.

Easily switch to alternative engineering units (If module has been previously calibrated)

Advanced Calibration (Not covered in this manual, see DSCUSB Advanced Manual)

o5 point temperature compensation

o7 point linearization

oLockable calibration

Installing DSC Toolkit

Install the DSC Toolkit software by inserting the CD in the CD ROM drive. This should start the ‘AutoRun’ process,

unless this is disabled on your computer.

(If the install program does not start of its own accord, run SETUP.EXE on the CD by selecting ‘Run’ from the ‘Start

Menu’ and then entering D:\SETUP, where Dis the drive letter of your CD-ROM drive).

The installation software pre-installs the required drivers so that they can be automatically found when the hardware

is plugged in later on.

After the software has been installed please connect the module and see the next section

before running the DSC Toolkit

Mantracourt Electronics Limited - DSCUSB Standard Manual

Connecting the Module to the Computer

Connect to a spare USB port on the Windows PC using the cable provided with the module.

Using the Found New Hardware Wizard

Connecting the module will cause the following dialog windows to appear. NOTE: Different operating systems may

present different dialog windows but the dialogs shown below should allow you make the correct choices regardless

of operating system.

The ‘Found New Hardware Wizard’ should now appear.

Select ‘No, not at this time’ so that the wizard does not

try searching online for a driver.

Click ‘Next’.

Now the wizard will start searching for the drivers.

The wizard should then proceed with installing the

software drivers.

Please note that there are two interfaces to the hardware

so that there are two drivers that will be installed

The USB DSC Port and the USB DSC Bus.

So the next dialog box you will see will be for the USB

DSC Port and the steps will be repeated from step 2.

Mantracourt Electronics Limited - DSCUSB Standard Manual

Using the Software

You can now launch the DSC Toolkit software.

The DSC Toolkit automatically detects the connected DSCUSB modules.

If there is only one DSCUSB connected when you launch the DSC Toolkit it will be automatically selected and the

Information Page will be displayed.

If multiple modules are detected you will be presented with a list to choose one from on the Home Page.

To connect to a module just click on one in the list to highlight it and click the ‘Connect’ button (Or just double click

the module in the list).

You will then see the Information page.

If no modules have been detected the ‘No modules detected’ message appears. Click the ‘OK’ button and the

‘Connect’ button changes to ‘Demo’. If you click the ‘Demo’ button you can navigate through the software

application with no module attached.

Mantracourt Electronics Limited - DSCUSB Standard Manual

Information Page

Click the icon to access the Information page.

This simply shows a large display and indicates if any error conditions are present by displaying an information box.

If the module has been allocated engineering units these may be displayed in the upper right of the LCD display.

‘Net’ Button

Clicking the ‘Net’ button will zero the display. When zeroed the ‘NET’ indicator will be displayed and the button

caption will change to ‘Gross’

Clicking the ‘Gross’ button will return the display to the actual value from the module. Note that with an

unconnected input you may not see any effect by clicking this button.

Mantracourt Electronics Limited - DSCUSB Standard Manual

‘Format’ Button

Clicking the ‘Format’ button allows you to select a new format for the displayed value. By using this you can hide

unwanted decimal places.

Just click the required display format in the list.

If any errors are detected these will be shown under the main display. The following screenshot shows an Integrity

error present.

The error box will disappear once the error is no longer present.

Mantracourt Electronics Limited - DSCUSB Standard Manual

Home Page

To select a different module just click the Home icon

You can then select a different module or plug in a different module. If you change the connected modules click the

‘Detect’ button to re-list the modules. Then select the required module from the list.

Mantracourt Electronics Limited - DSCUSB Standard Manual

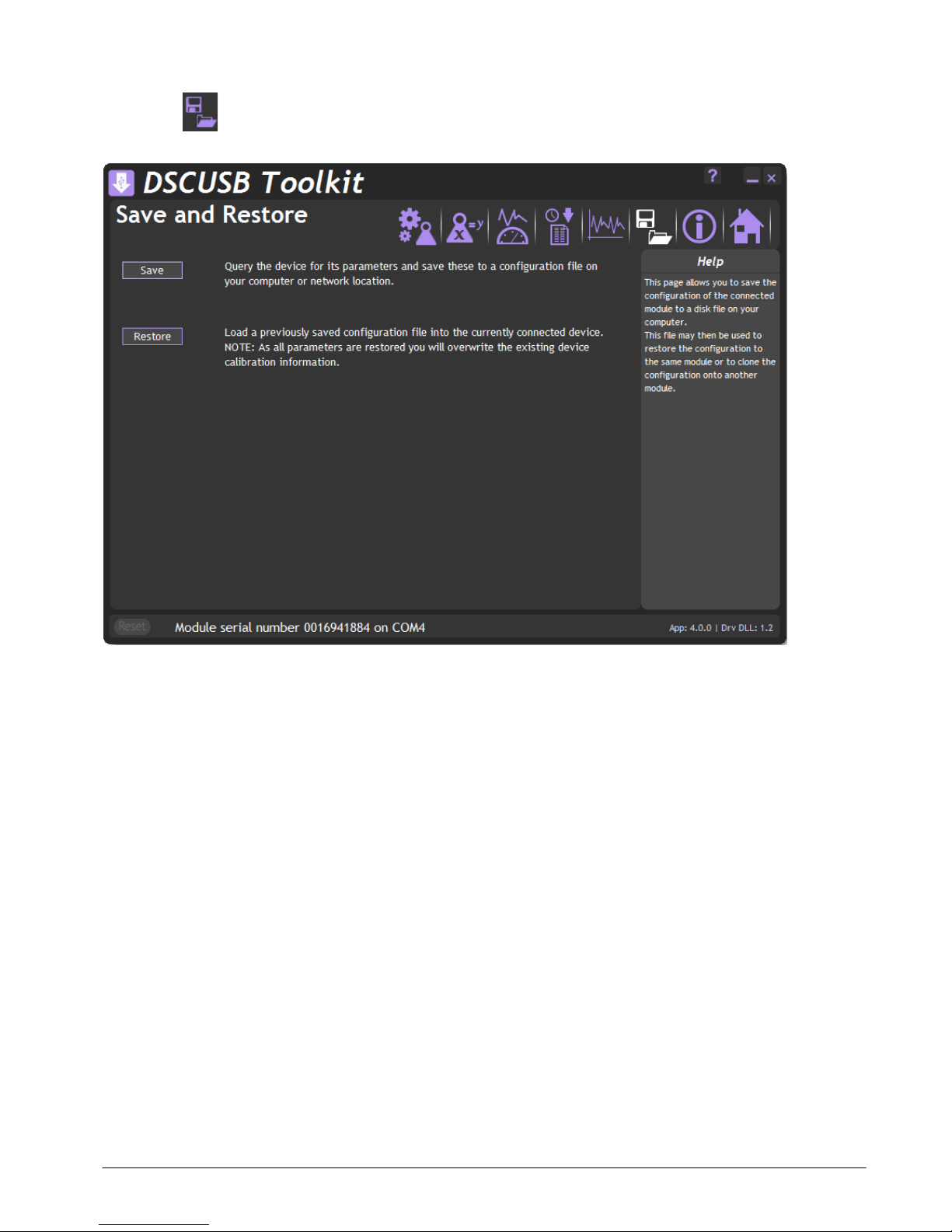

Save and Restore Page

Click on the icon to open the Save & Restore page.

Clicking the ‘Save’buttons will allow you to specify a file to which the configuration of the connected module is

written.

Once saved this file can be selected, after clicking the ‘Restore’ button, and the settings restored to the same

module or to another module.

Autres manuels pour DSCUSB

Table des matières

Autres manuels Mantracourt Accessoires

Mantracourt

Mantracourt BroadWeigh Manuel utilisateur

Mantracourt

Mantracourt T24-DWS Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
