Operator’s Manual and Safety Instructions for ordless Blower
Original Operating Instructions
Battery & harger Not
Included
Cordless Blower
WARNING
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer birth defects
or other reproductive harm.
ALIFORNIA PROPOSITION 65
WARNING: ancer and Reproductive Harm - www.P65Warnings.ca.gov.
ADVERTEN IA: áncer y Dãno Reproductivo - www.65Warnings.ca.gov.
2 Operator’s Manual
IMPORTANT MESSAGE
Thank you for purchasing this Mantis blower. You have purchased a world
class product one of the best designed and built anywhere.
This Operator’s Manual contains Safety instructions. The useful life and good service
you receive from this machine depends to a large extent on how well you read and
understand this manual. Treat your machine properly clean it as instructed
and it will give you many years of reliable service.
Your safe use of this Mantis product is one of our prime design objectives. Many safety
features are built in but we also rely on your good sense and care to achieve accident-free operation. For best protection study the manual
thoroughly. Learn the proper operation of all controls. Observe all safety precautions. Follow all instructions and warnings completely. Do not
remove or defeat any safety features. Make sure those who operate this machine are as well informed and careful in its use as you are.
Mantis designs and builds its equipment to serve many years in a safe and productive manner. For longest life use this machine only as directed
in the manual keep it in good repair and follow safety warnings and instructions. You’ll always be glad you did.
SAFETY RULES & WARNINGS
Special Safety Information ................................................ 3
Safety & Warnings ............................................................ 3
Safety Symbol Information ....................................….....3-4
Safety Rules….. ........................................................…..4-6
Battery & Charger Safety Instructions ......................…...6-7
Emergency ........................................................................ 7
ASSEMBLY
Blower Parts ..................................................….………….8
Technical Specifications ...........................................…….9
Before You Start ..........................................................….10
Assembly ...................................................................…..10
Battery Information ......................................................….11
Battery Charge Level Indicator ..................................…...11
Charger Information ....................................................12-13
Charging a Hot or Cold Battery Pack ............................... 13
Installing the Battery ........................................................ 14
OPERATION .........................................................................15
CARE.................................................................................... 16
REPAIR & MAINTENANCE.................................................. 17
STORAGE & TRANSPORTATION....................................... 17
TROUBLESHOOTING ......................................................... 18
RECYCLING AND DISPOSAL ............................................. 18
LIMITED WARRANTY INFORMATION ................BACK PAGE
TABLE OF CONTENTS
Welcome to the World of Mantis Gardenin
Schiller Grounds are, Inc.
1028 Street Road
Southampton, PA 18966-4217 U.S.A.
PHONE (800) 366-6268 • FAX (215) 956-3855
This Operator’s Manual is an integral part of the machine. Suppliers of both new and
second-hand machines must make sure that this manual is provided with the machine.
THESE INSTRUCTIONS ARE FOR YOUR SAFETY. PLEASE READ THROUGH THEM
THOROUGHLY BEFORE USE AND RETAIN THEM FOR FUTURE REFERENCE.
PRODUCT REGISTRATION
YOU AN REGISTER
YOUR MANTIS PRODU T
ONLINE AT:
S HILLERG . OM/REGISTER
3ontact us at www.mantis.com
You will notice throughout this Operator’s Manual Safety Rules and Important Notes. Make sure you understand and obey these
warnings and all instructions for your own protection.
I. SPE IAL SAFETY INFORMATION
II. SAFETY & WARNINGS
III. SAFETY DE AL INFORMATION
On the product the rating label and within these instructions you will find among others the following symbols and abbreviations.
Familiarize yourself with them to reduce hazards like personal injuries and damage to property.
Safety Warnin s & Symbols
To reduce the potential for accidents, comply
with the safety instructions in this manual.
Failure to comply may result in serious
personal injury, and/or equipment
and property damage.
Attention: This symbol points out our
important safety instructions.
When you see this symbol,
heed it’s warning!! Stay alert!!
Improper use or care of this blower or failure to wear
proper protection can result in serious injury. Read and
understand the rules for safe operation and all instructions in this
manual. Wear hearing and eye protection, proper non-slip footwear,
long trousers, protective covering to contain long hair and
protective gloves.
ALIFORNIA Proposition 65 Warning
Battery post, terminals, wiring insulation, and related
accessories contain lead and lead compounds,
chemicals known to the Sate of alifornia to cause
cancer, birth defects and other reproductive harm.
WASH HANDS AFTER HANDLING
Do not expose blower to rain or wet conditions
Check you local authority or store for recycling
waste. Please recycle where facilities exist.
Note / Remark
Caution / Warning.
Wear hearing protection.
Wear eye protection.
Wear protective gloves.
(moisture).
Work across the slopes never up and down.
WEEE symbol. Waste electrical products
should not be disposed of with household
advice.
Indoor use only. Only use battery charger
indoors.
Objects thrown by the blower could hit the user
or other bystanders. Always ensure that other
people and pets remain at a safe distance from
the blower when it is in operation. In general
children must not come into the area where
the blower is being used.
Read the instruction manual.
9
It's for household use only
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
a) Do not leave appliance when battery is connected. Remove battery when not in use and before servicing.
b) Do not store outdoors or on wet surfaces;
c) Do not allow this blower to be used as a toy. Close attention is necessary when used by or near children.
d) Use only as described in this manual. Use only manufacturer’s recommended attachments.
e) If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service center.
f ) Do not put any object into openings. Do not use with any opening blocked; keep free of dust,lint, hair,
and anything that may reduce air flow.
g) Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
h) Turn off all controls before removing battery.
i ) Use extra care when cleaning on stairs.
j ) Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may
be present.
SAVE THESE INSTRUCTIONS
MPORTANT SAFETY INSTRUCTIONS
WARNING – To reduce the risk of fire, electric shock, or injury:
instructions warnings and cautions to ensure safe use. Safe use can only be guaranteed if an undamaged battery is
personal injury and/or product damage.
6
WARNING! Incorrect use and poor care of batteries are the main factors responsible for
WARNING! Use only approved replacement batteries; other batteries may damage the
cordless blower and cause it to malfunction which can lead to serious personal injury.
AUTION! To reduce the risk of injury charge the Mantis lithium-ion battery only
with supplied Mantis charger. Other types of chargers present risk of fire personal injury and
damage. Do not connect a battery pack to a power supply plug or car cigarette lighter. Such
misuse will permanently disable or damage the battery pack.
V. BATTERY & HARGER SAFETY INSTRU TIONS
We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are
safe durable and have a high energy density.
Despite all of the safety precautions caution must always be exercised when handling batteries. Read and follow all
used. Incorrect handling of the battery pack can cause cell damage.
1 +"
2
3 "E
6 "
8 "AF
*
9 "E
< '5
> '
B "
1D "E5)
11 &E
12 !E
13 E
16 AA

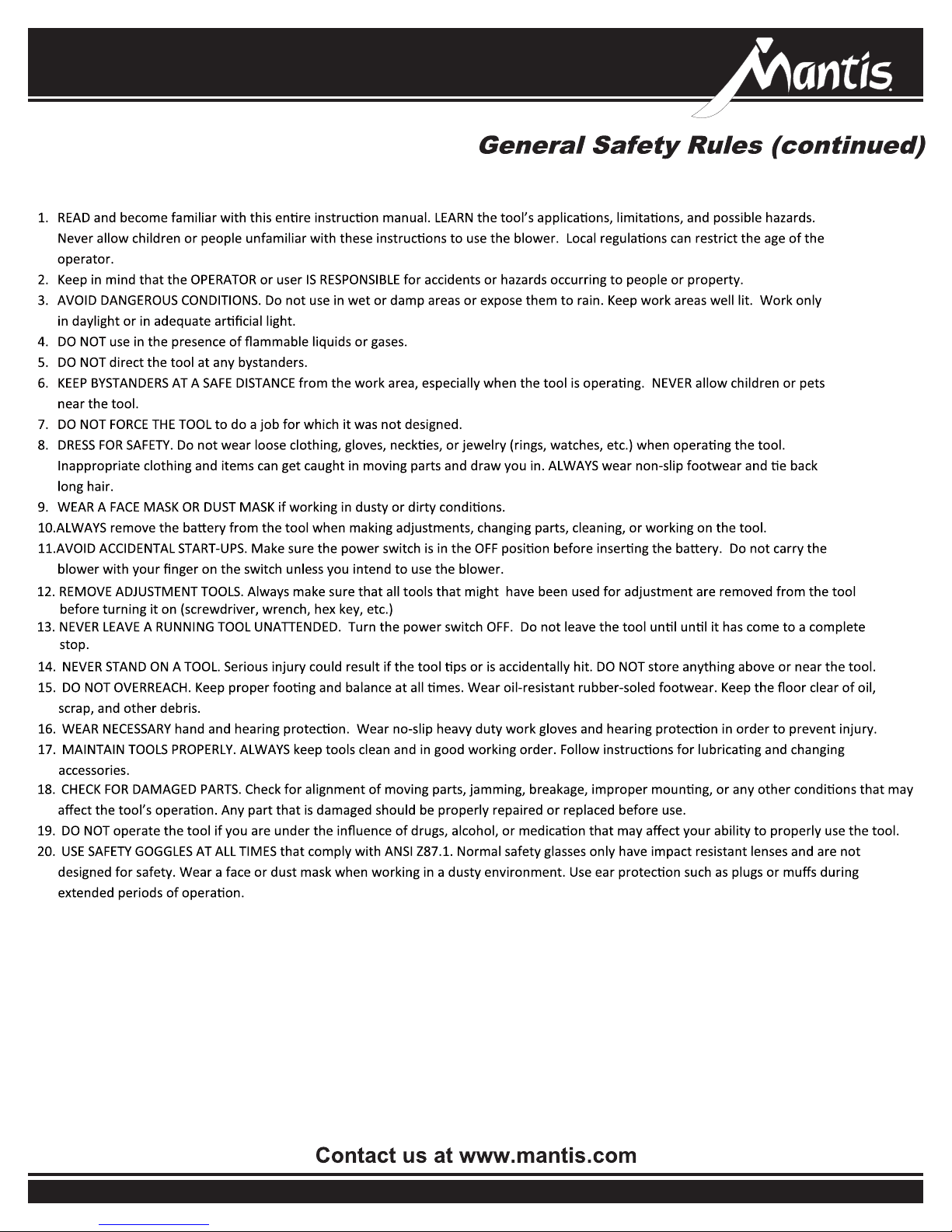

READ AND UNDERSTAND ALL INSTRUCTIONS. ;
5I
FOLLOW THESE RULES WHILE OPERATING THE BLOWER.
Operator’s Manual
Blower Specific Safety Rules
7
VI. EMERGEN Y
Familiarize yourself with the use of this product by reading of this instruction manual completely. Memorize the safety
directions and follow them to the letter. This will help to prevent risks and hazards.
1. Always stay alert when using this blower so that you can recognize and handle risks early. Watch what you are doing. Use
common sense. Do not operate the blower when you are tired or under the influence of drugs alcohol or other medication. Fast
intervention can prevent serious injury and damage to property.
2. Switch off and remove the battery if there are malfunctions. Have the blower and battery checked by a qualified professional and
repaired if necessary before you operate it again.
3. Please call the Mantis customer service center at 1-800-366-6268 for assistance.
• Charge in a well-ventilated area – Do
not block the charger vents. Keep them
clear to allow for proper ventilation. Do
not allow smoking or open flames near
a charging battery pack since it may
explode.
NOTE: The safe temperature range for
discharging the battery is -4°F (-20°C) to
113°F (45°C). Do not charge the battery
outside in freezing weather; charge it at
room temperature.
• Maintain charger cord – When unplugging
the charger pull the plug not the cord
from the receptacle to reduce the risk of
damage to the electrical plug and cord.
Never carry the charger by its cord or
yank it by the cord to disconnect it from
the receptacle. Keep the cord away from
heat oil and sharp edges. Make sure
the cord will not be stepped on tripped
over or subjected to damage or stress
when the charger is in use. Do not use
the charger with a damaged cord or plug.
Replace a damaged charger immediately.
• Do not use an extension cord unless it is
absolutely necessary – Using the wrong
damaged or improper extension cord
poses a risk of fire and electric shock.
If an extension cord must be used plug
the charger into a 16 gauge or larger
extension cord with the female plug
matching the male plug on the charger.
Make sure that the extension cord is in
good electrical condition.
• Charger part number 3505 is rated for
120 volt AC only – The charger must be
plugged into an appropriate receptacle.
• Use only recommended attachments if
applicable.
– Use of an attachment not
recommended or sold by Manits
may result in risk of fire electric
shock or personal injury.
• Unplug charger when not in use – Make
sure to remove battery packs from
unplugged chargers.
• Do not burn or incinerate battery packs
• Do not crush drop or damage battery
packs – Do not use the battery pack or
charger if they have been dropped run
over or have been damaged in any way
(i.e. pierced with a nail hit with a hammer
stepped on etc.).
• Do not disassemble the battery– This may
pose a serious risk of electric shock fire
or exposure to toxic battery chemicals.
If the battery or charger are damaged
contact the Mantis customer service
center at 1-800-366-6268 for assistance.
• Do not short circuit – A battery pack will
short circuit if a metal object makes a
connection between the positive and
negative contacts on the battery pack. Do
not place a battery pack near anything
that may cause a short circuit such as
paper clips coins keys screws nails and
other metallic objects. A short-circuited
battery pack poses a risk of fire and
severe personal injury.
• Store your battery pack and charger in a
cool dry place – Do not store the battery
pack or charger where temperatures
may exceed 104ºF (40ºC) such as in
direct sunlight or inside a vehicle or metal
building during the summer.
V. BATTERY & HARGER SAFETY INSTRU TIONS ( ONTINUED)
To reduce the risk of electric shock, always unplug the charger before
performing any cleaning or maintenance. To reduce the risk of electric
shock, do not allow charger or charger’s A /D plug to get wet. Use a
Ground Fault ircuit Interrupter (GF I) to reduce shock hazards.
Battery packs may explode, causing personal injury or damage. Toxic
fumes and materials are created when battery packs are burned.
Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth.
If a damaged battery pack leaks battery chemicals,
use rubber or neoprene gloves to safely dispose of it.
If skin is exposed to battery fluids, wash the affected
area with soap and water and rinse with vinegar. If eyes
are exposed to battery chemicals, immediately flush
with water for 2 minutes and seek medical attention.
Remove and dispose of contaminated clothing.
ontact us at www.mantis.com
8
14
15
Blower Parts
1. Carrying handle
2. Trigger Switch
3. Speed Control
4. Turbo Switch
5. Blower Tube
6. High Pressure Nozzle Tip
7. 58V Lithium ion battery (Not pictured sold separately)
8. Charger (Not pictured sold separately)
Operator’s Manual
9
Technical Specifications
EC. The sound intensity level for the operator may exceed 80dB(A) and ear protection
measures are necessary.
Adopt proper measures to protect yourself against vibration exposures. Take the whole work
process including times the blower is running under no load or switched off into
consideration. Proper measures include among others regular maintenance and care of the product
and accessories, keeping hands warm, periodic breaks and proper planning of work processes.
Motor
Battery (sold separately)
harger (sold separately)
Air Speeds (Low/High/Turbo)
Air Volumes (Low/High/Turbo)
Estimated Run Time (Low/High/Turbo)
Weight (Tool Only)
Assembled Dimensions
……………..58V Brushless DC Motor
……………..3501-01A 3501-02A | 58V Lithium Ion
……………..3505 | 58V | 2A | 145W
……………..100 / 123 / 129 MPH
……………..400 / 480 / 520 CFM
……………..17 / 7 / 6 Minutes
……………..5.28 lbs. (2.4kg)
……………..35.0 in X 10.2 in X 5.5 in
(89 cm X 26 cm X 14 cm)
ontact us at www.mantis.com
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Mantis Ventilateur
