Manrose LED Series Guide d'installation

Simx Connect

App Function Overview

DESIGNER SERIES

GENIUS

DESIGNER SERIES

GENIUS

Thank you for choosing the award winning

Manrose Genius - the leading 100mm

intelligent through-wall ventilation fan kit.

This innovative ventilation product was

designed and built in Sweden by a sister

company in our group - PAX. The PAX

User and Installation Guide, included in

the Manrose Genius kit, is applicable to

the Manrose Genius, except for the specific

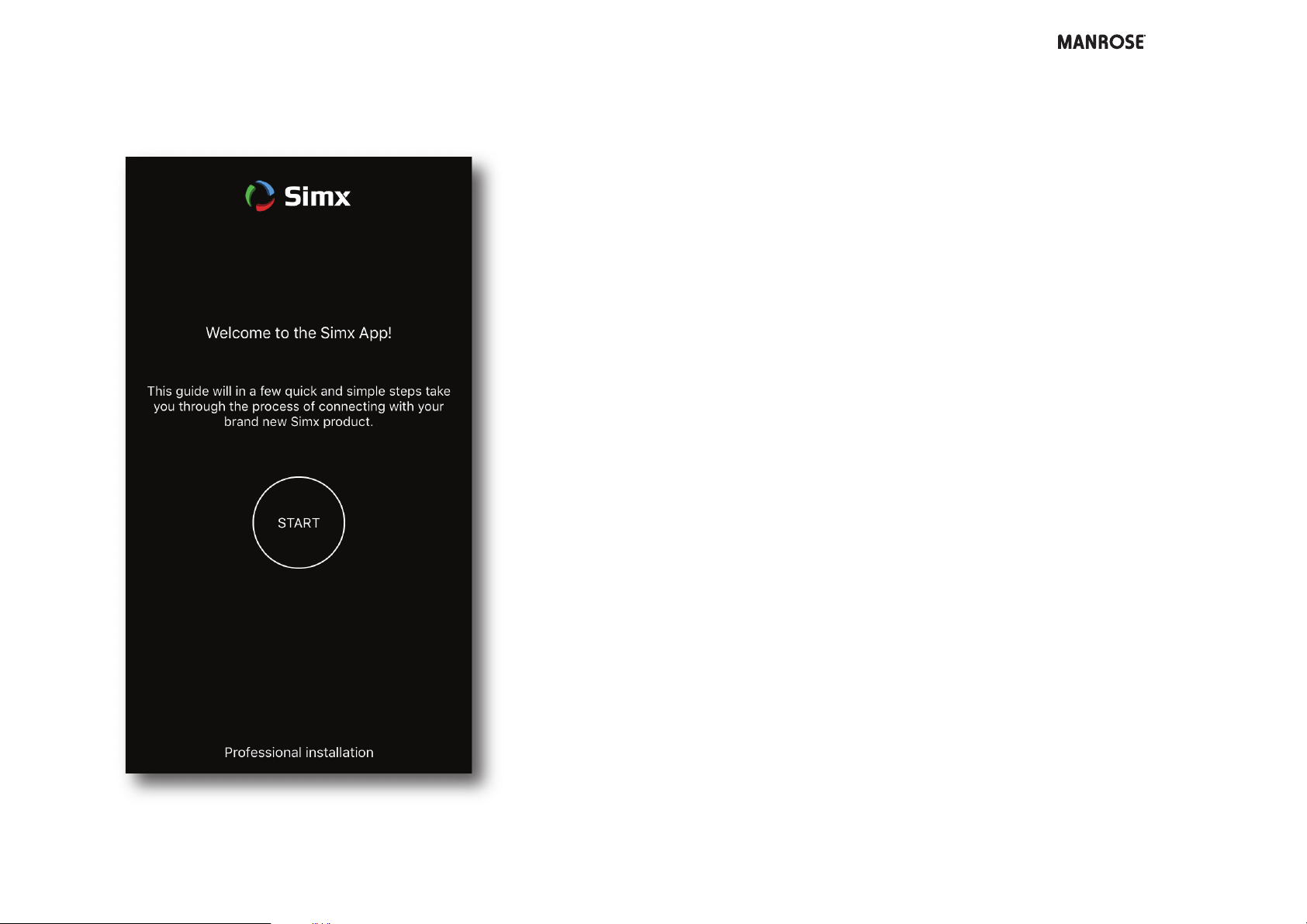

details below. Locate the App by searching

for Simx Connect from compatible android

or iOS devices, using Google Play or App

Store respectively.

Learn more about all the possibilities with

our App at www.manrose.co.nz.

DESIGNER SERIES

GENIUS

These slides are designed to aid in the

set up and demonstration of the Manrose

Genius app controlled fan.

The fan can be used without setting up on

the app and, in this case, will operate on

default factory settings.

DESIGNER SERIES

GENIUS

To activate the App, enter the fan’s unique

code, found on the right leg of the motor

unit as shown.

To remove the motor unit, firmly grip and

pull out from the housing. To return the

motor unit to the housing, align tabs and

click back into position.

Unique Pin Code

DESIGNER SERIES

GENIUS

Once the unique pin number is entered

the fan will display a white light to show

communication is taking place.

DESIGNER SERIES

GENIUS

If you have more than one fan in the

home, you can re name them to suit

their locations. For example

• Family Bathroom

• Ensuite 1

• Ensuite 2

• Spare Room

• Utility Room

• Kitchen

DESIGNER SERIES

GENIUS

The name will appear in the full list and

gives the user the reassurance that they

have selected the correct fan before

proceeding to change the settings or

functionality.

DESIGNER SERIES

GENIUS

Please note that in order to use the

automation control functionality of the

Manrose Genius, it is recommended that

it is NOT wired through a wall switch

(refered to as a “circuit breaker” in the App).

Also, if replacing a standard basic fan or

pull cord fan that only has a two-wire power

supply, select NO.

If, however, you simply wish to run the

Manrose Genius via a manual ON/OFF

wall switch, select YES.

DESIGNER SERIES

GENIUS

Manrose Genius can be set-up as a Heat

Transfer unit to move warm air through an

internal wall from one room (eg. lounge) to

an adjacent room.

The Simx Connect App can be used to

set-up this function and adjust settings.

Refer page 17 for Heat Transfer settings

DESIGNER SERIES

GENIUS

The fan can also be used as an

intermittent fan or as a continuously

running fan.
