Manhattan 205146 Manuel utilisateur

USB

SERIAL

CONVERTER

USER

MANUAL

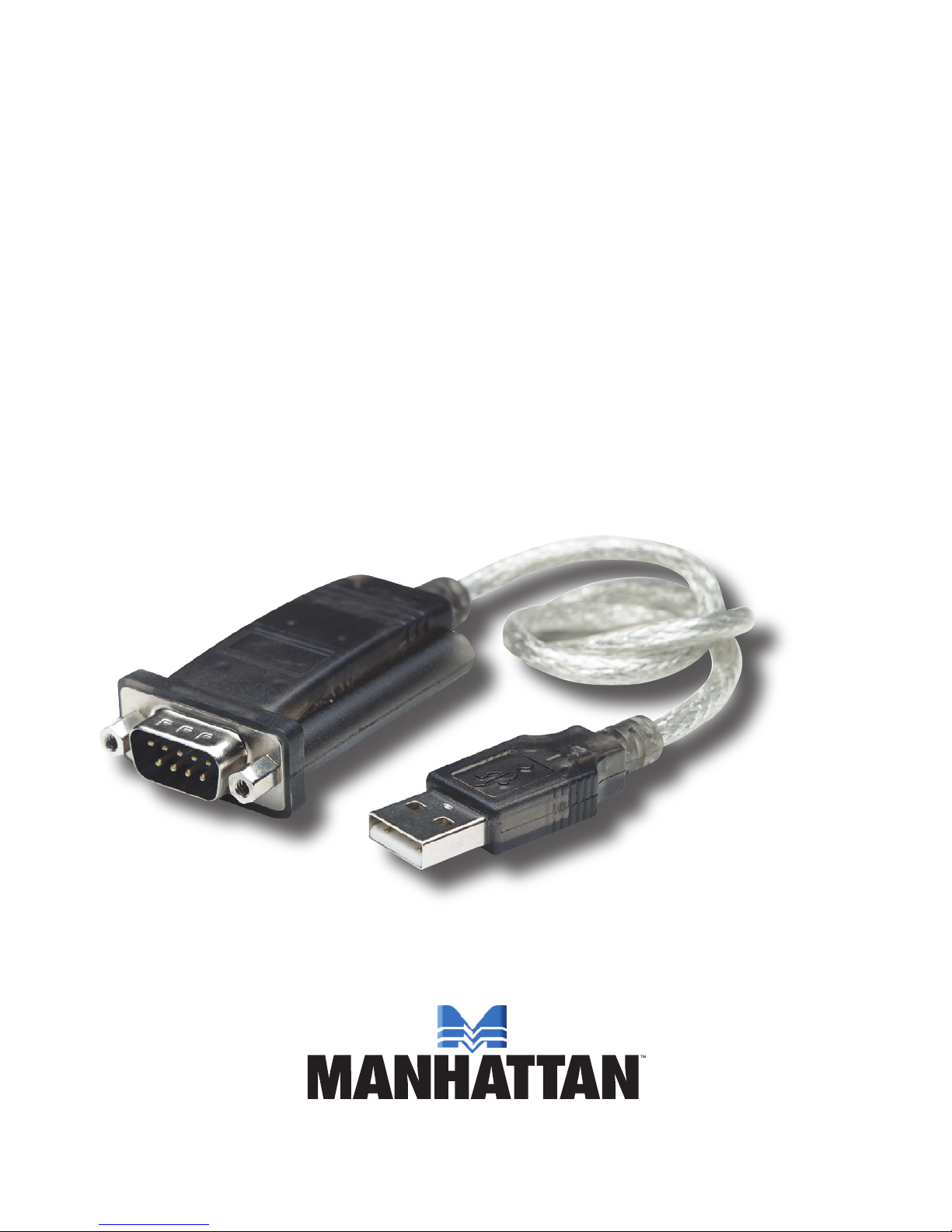

Model 205146

MAN-205146-UM-0208-01

INTRODUCTION

Thank you for purchasing this MANHATTAN

USB to Serial Converter,

Model 205146.

Modern computers are often not equipped with RS-232 ports, making

the use of legacy peripherals and communication devices more difcult.

The MANHATTAN USB to Serial Converter, with its serial RS-232 port,

easily expands a single USB 1.1 port to connect and support serial

modems, barcode scanners, digital cameras, card readers and other

devices.

The easy-to-follow instructions in this manual help make installation

of the converter quick and simple, so you’ll also soon be enjoying the

benets of these additional features:

• Gold-plated contacts and rugged construction provide a reliable

connection between the computer and serial peripherals

• Windows compatible

• Plug and Play

• Hot-swappable

• Lifetime Warranty

System Requirements

• USB 1.1 or 2.0 port

• Windows 2000/XP/Vista

Package Contents

• USB to Serial Converter

• User manual and driver CD

INSTALLATION

NOTE: The procedure for Windows 2000 and XP presents XP screen

images, which are essentially the same as Windows 2000. Some screen

images have been modied to t the format of this manual.

Windows 2000/XP

1. Insert the included driver CD in the computer’s CD-ROM drive.

2. Run the InstallShield Wizard.

3. When the wizard is nished, restart the system.

4. Connect the MANHATTAN USB to Serial Converter to the serial

device and an open USB port on the computer.

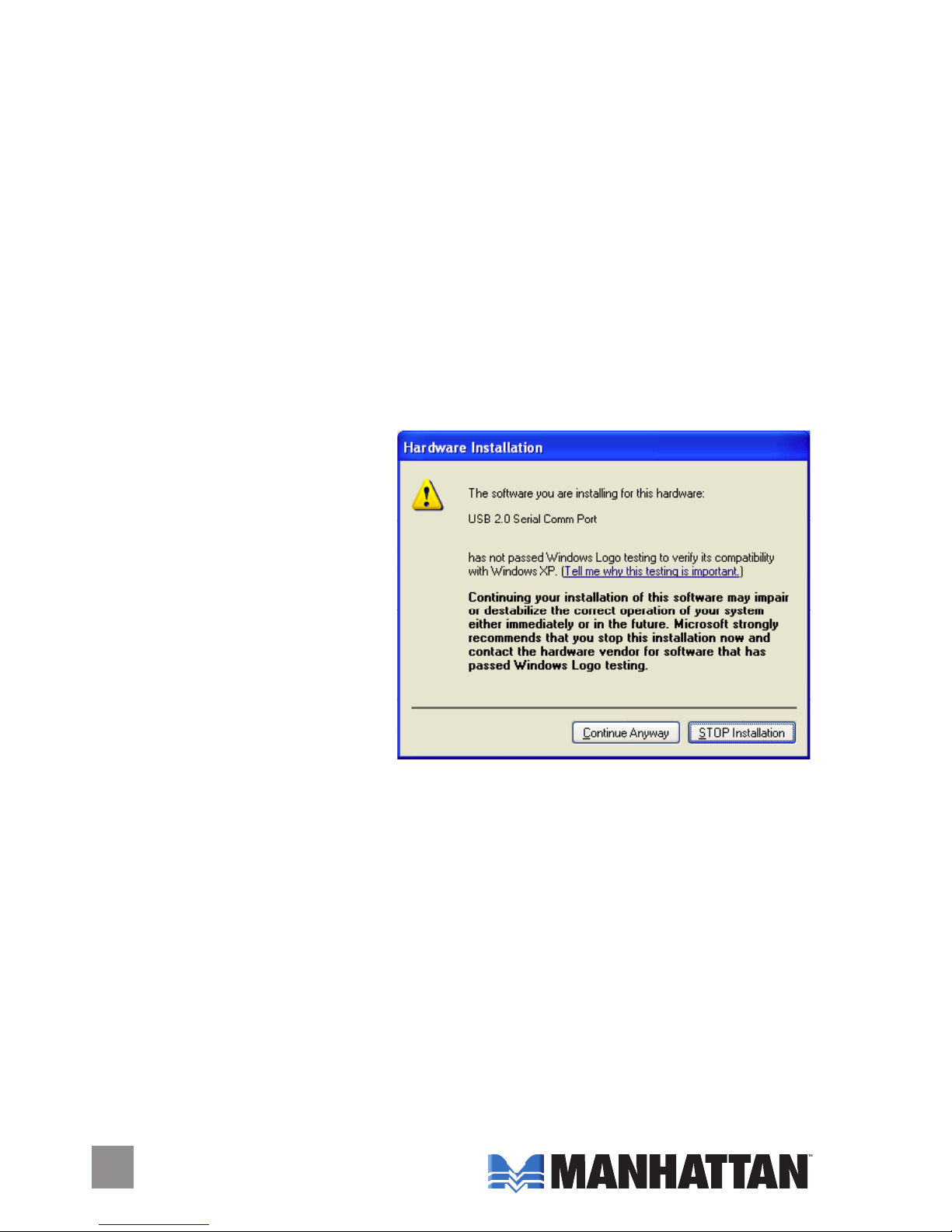

NOTE: In Windows XP only, a

Software Certication screen

may display (as shown at

right). Click “Continue Anyway.”

Windows Vista

1. Connect the USB to Serial Converter to the serial device and an open

USB port on the computer.

2. Allow Vista to automatically search for updates on the Internet.

NOTE: Make sure the computer is connected to the Internet. Vista

will automatically download any appropriate update(s) and install the

proper driver required for adapter operation. (If the necessary updates

are already on your system, Vista will nd them.)

Installation Verication

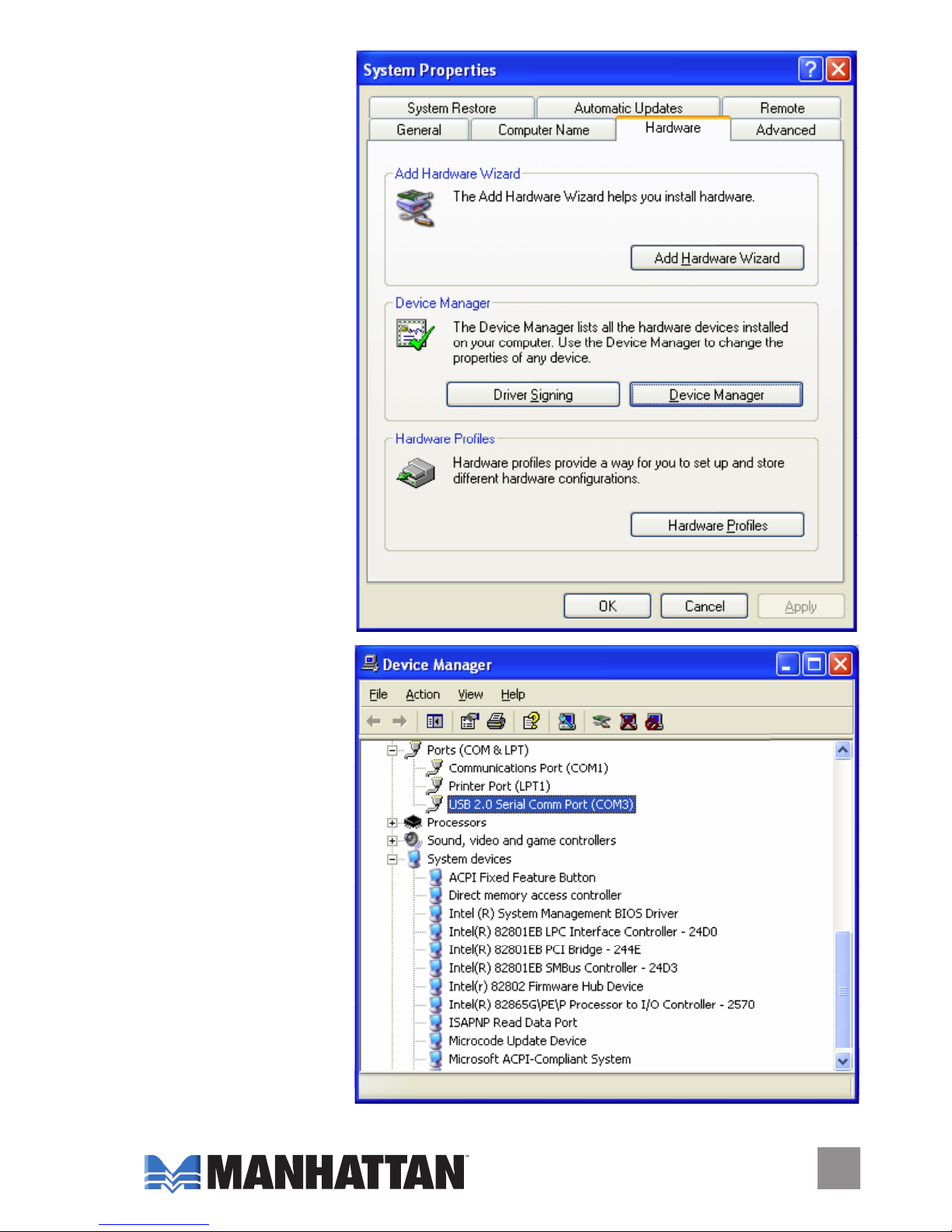

1. To conrm that the installation has been successful, right-click My

Computer on the desktop to display the System Properties screen.

2. Click “Hardware,”

then click “Device

Manager.”

3. The device will

be presented as

shown if it’s been

installed properly.

SPECIFICATIONS

General

• USB 1.1

• (1) USB port; Type B female

• (1) RS232 ports; 9-pin male

• Transfer rate: up to 225 kbps

• Bus powered

• Over-current protection

• 45 cm (18 in.

System Requirements

• USB 1.1 or 2.0 port

• Windows 2000/XP/Vista

Package Contents

• USB to Serial Converter

• User manual and driver CD

All products mentioned are trademarks or registered trademarks of their respective owners.

www.manhattan-products.com

MANHATTAN®offers a complete line

of PC Components, Peripherals, Cables and Accessories.

Ask your local computer dealer for more information

or visit us online at
