Manhattan 177603 Manuel utilisateur

2D BARCODE

SCANNER

USER MANUAL

MODEL 177603

MAN-177603-UM-1110-01

TABLE OF CONTENTS

1 Introduction ..................................................................................................................4

1.1 Safety Considerations...................................................................................4

1.2 Hardware Features.........................................................................................4

2 Installation .....................................................................................................................5

3 Conguration................................................................................................................5

3.1 Changing Settings with Programming Codes...................................... 5

3.2 Factory Default Settings.............................................................................. 5

4 Operating Settings......................................................................................................6

4.1 Scanning Triggering......................................................................................6

4.2 Timeout..............................................................................................................8

4.3 Good Read Mode..............................................................................................9

4.4 Buzzer Beep Tone.............................................................................................9

4.5 Good Read Duration......................................................................................11

4.6 Bad Read Message Settings........................................................................12

5 Imager Settings..........................................................................................................13

5.1 Imager Mode....................................................................................................13

5.2 Firmware Version............................................................................................13

6 Programming Codes ................................................................................................14

6.1 Factory Default................................................................................................14

6.2 RS232 Parameter.............................................................................................14

6.3 USB Parameter................................................................................................ 22

6.4 Decoding Selection ...................................................................................... 22

6.5 Australian Post Settings ...............................................................................33

6.6 Aztec Settings..................................................................................................33

6.7 BPO Settings ................................................................................................... 34

6.8 Canada Post Settings ...................................................................................35

6.9 Codabar Settings ...........................................................................................35

Section Page

6.10 Codablock Settings ...................................................................................... 38

6.11 Code 11 Settings ............................................................................................39

6.12 Code 39 Settings ........................................................................................... 40

6.13 Code 93 / Code 93i Settings .......................................................................43

6.14 Code 128 / GS1-128 Settings ......................................................................43

6.15 DataMatrix Settings...................................................................................... 46

6.16 Dutch Post Settings .....................................................................................47

6.17 Ean / UPC Parameters Settings..................................................................47

6.18 GS1 Composite Settings ..............................................................................52

6.19 GS1 Databar Settings ...................................................................................53

6.20 Infomail Settings............................................................................................ 54

6.21 Interleaved 2 of 5 Parameters .................................................................. 54

6.22 Japan Post Settings ...................................................................................... 56

6.23 Matrix 2 of 5 Settings .. ................................................................................ 56

6.24 MaxiCode Settings ........................................................................................57

6.25 MicroPDF417 Settings.................................................................................. 58

6.26 MS Code Parameters Settings....................................................................59

6.27 PDF417 Settings.............................................................................................. 60

6.28 Planet Settings.................................................................................................62

6.29 Plessey Code Settings.................................................................................. 63

6.30 Postnet Settings............................................................................................. 64

6.31 QR Code Settings .......................................................................................... 64

6.32 Standard 2 of 5 Settings.............................................................................. 65

6.33 Sweden Post Settings .................................................................................. 66

6.34 Telepen Settings ............................................................................................ 66

6.35 TLC 39 Settings................................................................................................67

6.36 Miscellaneous Parameters.......................................................................... 68

6.37 Preambles and Postambles........................................................................ 68

7 Appendices..................................................................................................................70

8 Specications..............................................................................................................74

1 INTRODUCTION

Thank you for purchasing the MANHATTAN®2D Barcode Scanner, Model 177603.

This scanner delivers high-quality scanning for a wide range of data collection

functions to improve routine transactions, automate paper-based processes

and increase productivity. The laser scan engine oers speed, accuracy and

greater tolerances for reliable service reading popular 1D and 2D barcodes

including UPC/EAN, UCC/EAN128, Data Matrix, PDF 417, Maxicode and more.

Easy to implement and simple to use, a built-in keyboard wedge decoder

sends scanned data to an active application where it appears as if it were

manually typed or directly keyed into the computer. Its versatile USB interface

and bus power integrate with most PCs without the need of an external

power supply or complicated installation. With a scan rate of 200 scans per

second and an accurate read range of up to 430 mm (17 in.), the MANHATTAN

2D Barcode Scanner oers a practical daily scanning solution for point-of-

sale, postal, hospitality, travel, shipping, warehousing, oce and other

commercial and industrial applications to minimize manual data entry, speed

transactions and reduce errors.

1.1 SAFETY CONSIDERATIONS

•Beforecleaningthescanner,disconnectitfromthepowersource.Useonly

a damp cotton cloth for cleaning. Avoid liquid cleaners, as the scanner must

be kept dry to prevent short circuits.

•Donotdropthescanner.

•Donotyankthepowercord.

•Ifthescannerisnotinuseforanextendedtimeperiod,disconnectitfrom

the power source to prevent damage from power surges.

•Donotattempttodisassemblethescanner.Ifitisn’tworkingproperly—

possibly due to a damaged cord/plug, liquid seeping inside, an overly humid

 environmentorphysicaldamageofanysort—presentthescannertoa

qualied technician for repair.

1.2 HARDWARE FEATURES

INTRODUCTION

2 INSTALLATION

1. Iftheincludedcommunicationcableisn’talreadyattachedtothescanner,

connect it to the bottom of the handle so you hear it click in place.

2. Turn o the host system.

3. Connectthescanner’scommunicationcabletothehostsystem.

4. If using an optional power supply, use it now to connect the scanner to an

AC outlet.

5. Turn on the host system.

Switching the Communication Cable

Beforeremovingaconnectedcablefromthescanner,it’s

recommended that the host system power be turned o

and any power supply be disconnected from the scanner.

1. Insert a common pin or similar object into the pin hole

just above the cable connection (as highlighted at right).

2. Push the pin into the hole until you hear a click, then

gently remove the cable from the scanner handle.

3. Insert the replacement cable so you hear it click into

place.

3 CONFIGURATION

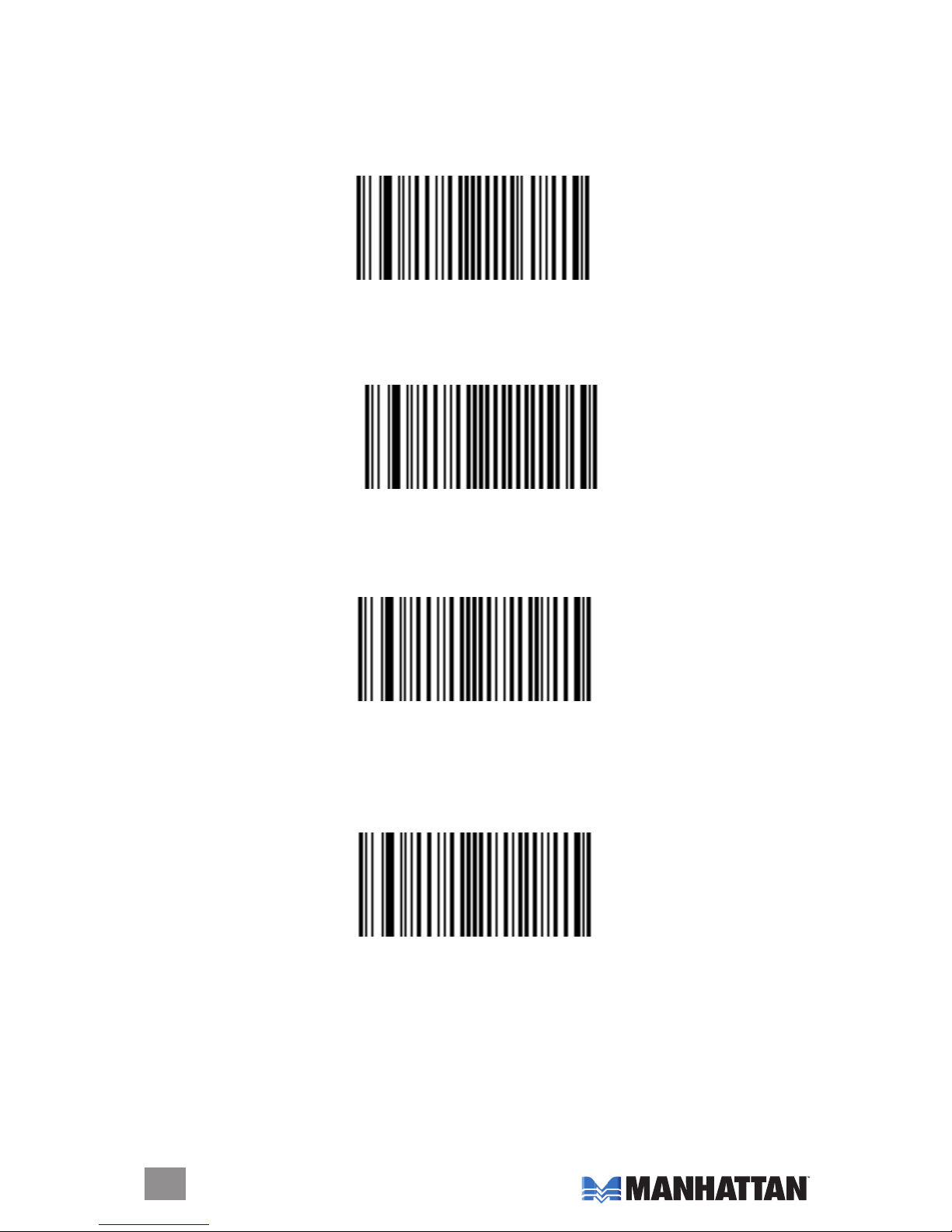

You can set up your device by scanning all necessary programming codes for

parameters that meet your current application requirements. After these

scans, the device will save settings directly. To go back to the factory default

settings, just scan the programming code Factory Default.

3.1 CHANGING SETTINGS WITH PROGRAMMING CODES

1. Turn on the scanner.

2. Change the scanner settings by scanning any of the programming codes

that meet the requirements of the current application. After reading a

valid programming code, the scanner will sound a high-pitched beep and

the green LED will light.

NOTE: At any time, you can stop your programming and scan the Factory

Default programming code to go back to the default setting(s).

3.2 FACTORY DEFAULT SETTINGS

Throughtout this user manual, the factory default settings are printed in bold

and are set inside brackets. See Section 7.3 for a list of readable and default

enable symbologies.

INSTALLATION

OPERATING SETTINGS

4 OPERATING SETTINGS

4.1 SCANNING TRIGGERING

<Level>

A reading session begins (lighting and decode processing on) when the

beam is activated and stops when the beam is deactivated.

Continuous Scanning

When the scanner is turned on, a continuous reading session begins (lighting

and decode processing on).

Pulse

A reading session begins when the beam is activated and stays on until a

period of inactivity equal to the time specied by the timeout. After the

timeout, the scan engine turns o.

Continuous + Flashing

When the scan engine is turned on, a reading session begins (no need to

activate the beam). After a period of inactivity equal to the time specied by

the timeout, the scan engine starts ashing, checking for a barcode to be

read. When a barcode is detected, the light automatically turns on and stays

on until another period of inactivity (timeout). After the timeout, the scan

engine starts ashing again.

Level + Flashing

This mode allows you the switch between Level and Flashing modes. When

the scanner is turned on, it is in Flashing mode (see Flashing below). You can

automatically switch to Level mode by activating the beam line. After a period

of inactivity equal to the time specied by the timeout, the scan engine

switches back to Flashing mode.

Flashing

Flashing mode activates the lighting and decoding function (no need to

activate the trigger line). After a period of inactivity equal to the time specied

by the trigger timeout, the scanner starts ashing, checking for a barcode to

be read. When a barcode is detected, the lighting and decoding automatically

turn on and stay on until another period of inactivity (timeout), after which

the scanner starts ashing again.

Autostand

This mode allows you to switch from Flashing trigger mode to Level trigger

mode. Autostand begins in Flashing mode: At power-up, the lighting and

decoding are on (no need to activate the trigger line) and after a period of

inactivity equal to the time specied by the trigger timeout, the scanner

starts ashing. To switch to Level trigger mode, activate the trigger line

(press the trigger). When in Level trigger mode, after a period of inactivity

equal to the time specied by the trigger timeout, the scanner switches back

to Flashing mode.

OPERATING SETTINGS

Toggle

This mode allows lighting and decoding toggle when the trigger line is

activated. First trigger activation = lighting and decoding on; second trigger

activation = lighting and decoding o.

Presentation

This mode activates the lighting and decoding function. After a period of

inactivity equal to the time specied by the trigger timeout, the lighting

turns o or is dimmed. When a new barcode is presented, the lighting and

decoding restart and stay on until another period inactivity.

4.2 TIME OUT

OPERATING SETTINGS

<2 sec>

4 sec

6 sec

4.3 GOOD READ MODE

When active, the scan engine stops the reading session after a successful

decoding. NOTE: This parameter is not used with Continuous and Continuous

+ Flashing modes.

4.4 BUZZER BEEP TONE

4.4.1 BEEP TONE SETUP

OPERATING SETTINGS

Low

Not Active

<High>

Medium

4.4.2 GOOD READ BEEPS

4.4.3 BEEP DURATION

OPERATING SETTINGS

None

Two Beeps

200 msec

60 msec

<80 msec>

O

Table des matières

Autres manuels Manhattan Lecteur de codes-barres

Manhattan

Manhattan 178853 Manuel utilisateur

Manhattan

Manhattan 460835 Manuel utilisateur

Manhattan

Manhattan 178495 Mode d'emploi

Manhattan

Manhattan 178921 Manuel utilisateur

Manhattan

Manhattan 178211 Manuel d'installation et d'exploitation

Manhattan

Manhattan 178907 Manuel utilisateur

Manhattan

Manhattan SG300BT Manuel utilisateur

Manhattan

Manhattan SG300BT Manuel utilisateur

Manhattan

Manhattan 178914 Manuel utilisateur

Manhattan

Manhattan 400886 Manuel utilisateur

Manhattan

Manhattan 178938 Manuel utilisateur

Manhattan

Manhattan 178938 Manuel utilisateur

Manhattan

Manhattan 460873 Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
