Mammoth Tents Elite+ Manuel utilisateur

Step 6Step 5Step 4

Step 3Step 2Step 1

Elite & Elite HC 1200L

mammothtents.nl

Four Person +Assembly Recommended

Assembly Instructions

+Parts List

Base

Roof

End Panel

Left Side Panel

Right Side Panel

Check all parts and layout in groups before assembly

Insert upper pole into

lower pole

Note:

Upper Equipment Hanger

Lower Equipment Hanger

Flat edge of pole

Curved edge of pole

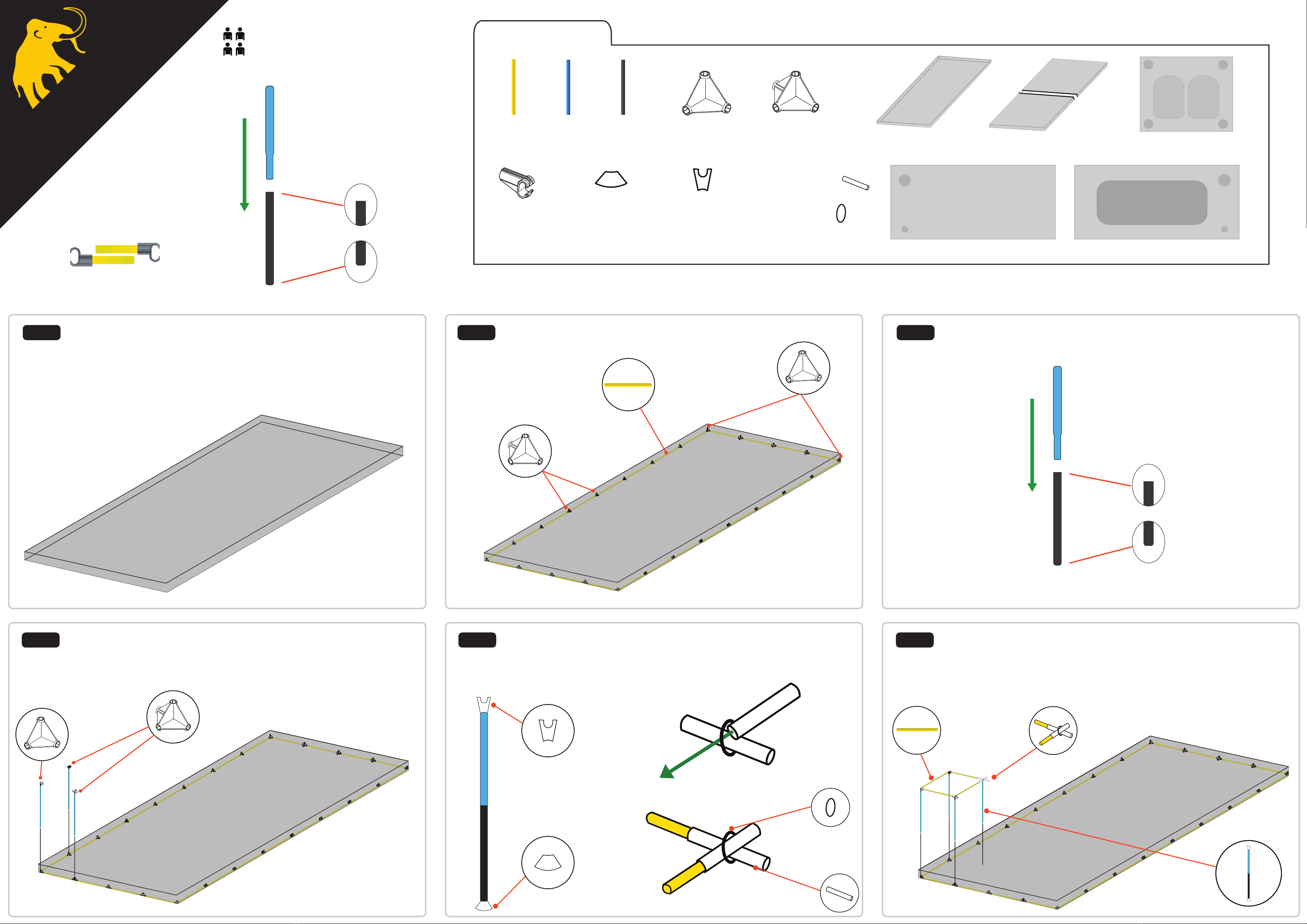

Lay out base.

TIP: Ensure 360° Access.

Fit 3 of the vertical poles

Fit 3-way corner

Fit 4-way joins

Fit roof poles

Fit support pole

Fit straight pole connectors with centre securing ring

Blue Pole

x45

3-Way

Corner

Equipment

Hanger Ends

x128

Yellow Pole

x164

Support Pole

Rubber Foot

x21

Support Pole

Rubber Top

x21

Straight Pole Connectors x42

Centre Securing Ring x21

4-Way

Join

x40

Black Pole

x45

4-Way Join x20

Yellow Poles x24

4-Way Join

3-Way Corner x4

3-Way Corner

Assemble oor poles,

3-way corners and

4-way joins as shown.

Assemble vertical poles x45

Yellow Poles

Insert upper pole into

lower pole

Note:

Flat edge of pole

Curved edge of pole

Link straight pole connectors and t centre securing ring as shown.

Refer to step 6 for location.

Fit support pole top and foot

to x21 vertical poles

Centre

Securing Ring

Straight Pole

Connectors

Support Pole

Rubber Top x21

Support Pole

Rubber Foot x21

Straight Pole Connectors

Support Pole

Step 7 Step 8 Step 9

Step 10 Step 11 Step 12

Step 13 Step 14 Step 15

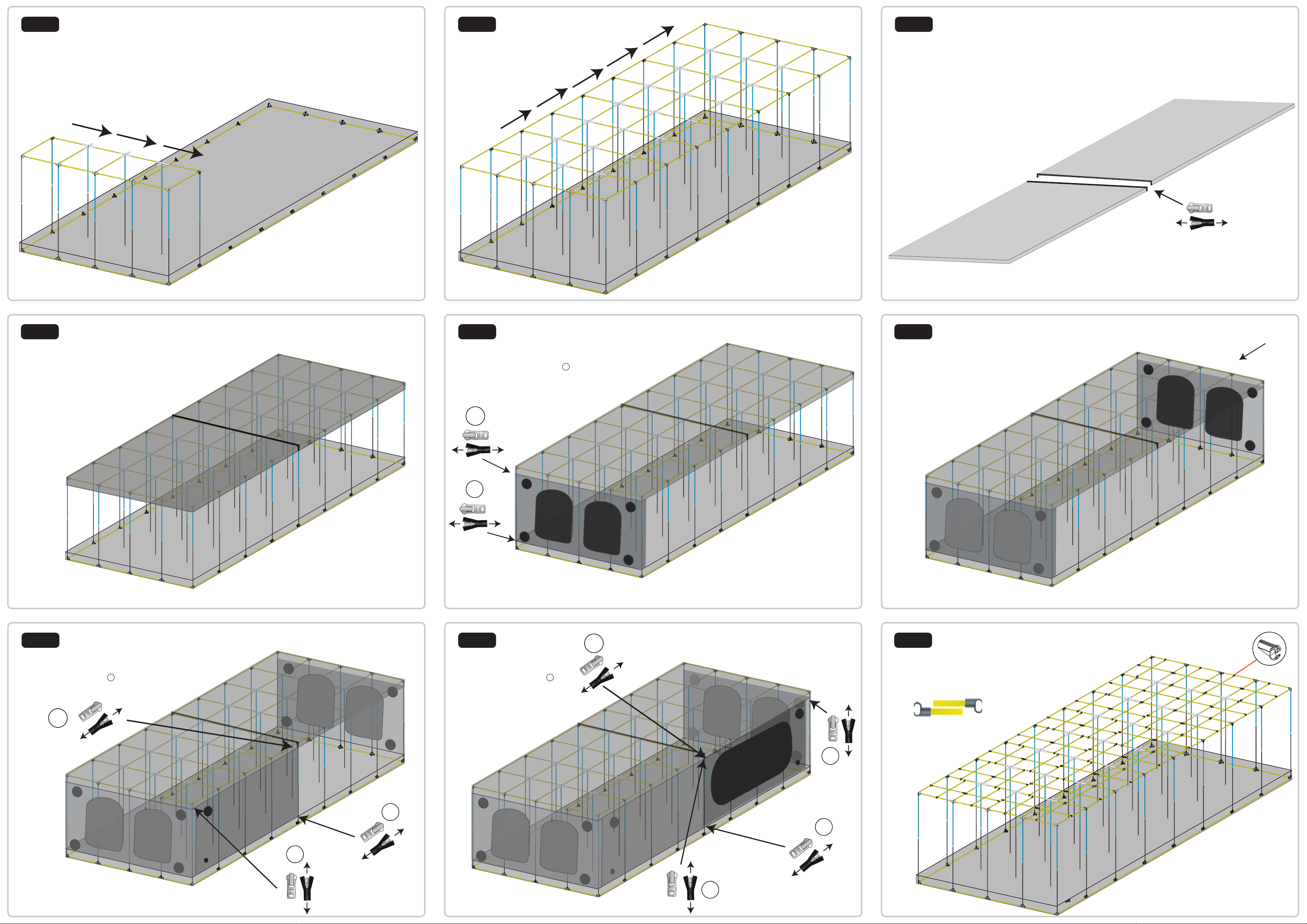

Repeat as shown. Repeat as shown. Zip roof panels together as shown.

Repeat for end panel 2.

Fit Roof

TIP: Start at one end and pull along from inside tent.

Fit end panel 1 as shown.

TIP: Zip panel to roof first 1

Fit left side panel as shown.

TIP: Zip panel to roof first 1

Fit right side panel as shown.

TIP: Zip panel to roof first

Repeat for other side

Fit equipment hangers ends and place as required.

Upper Equipment Hanger

Lower Equipment Hanger

Equipment

Hanger End
