Makita EW100R Manuel utilisateur

05-2003

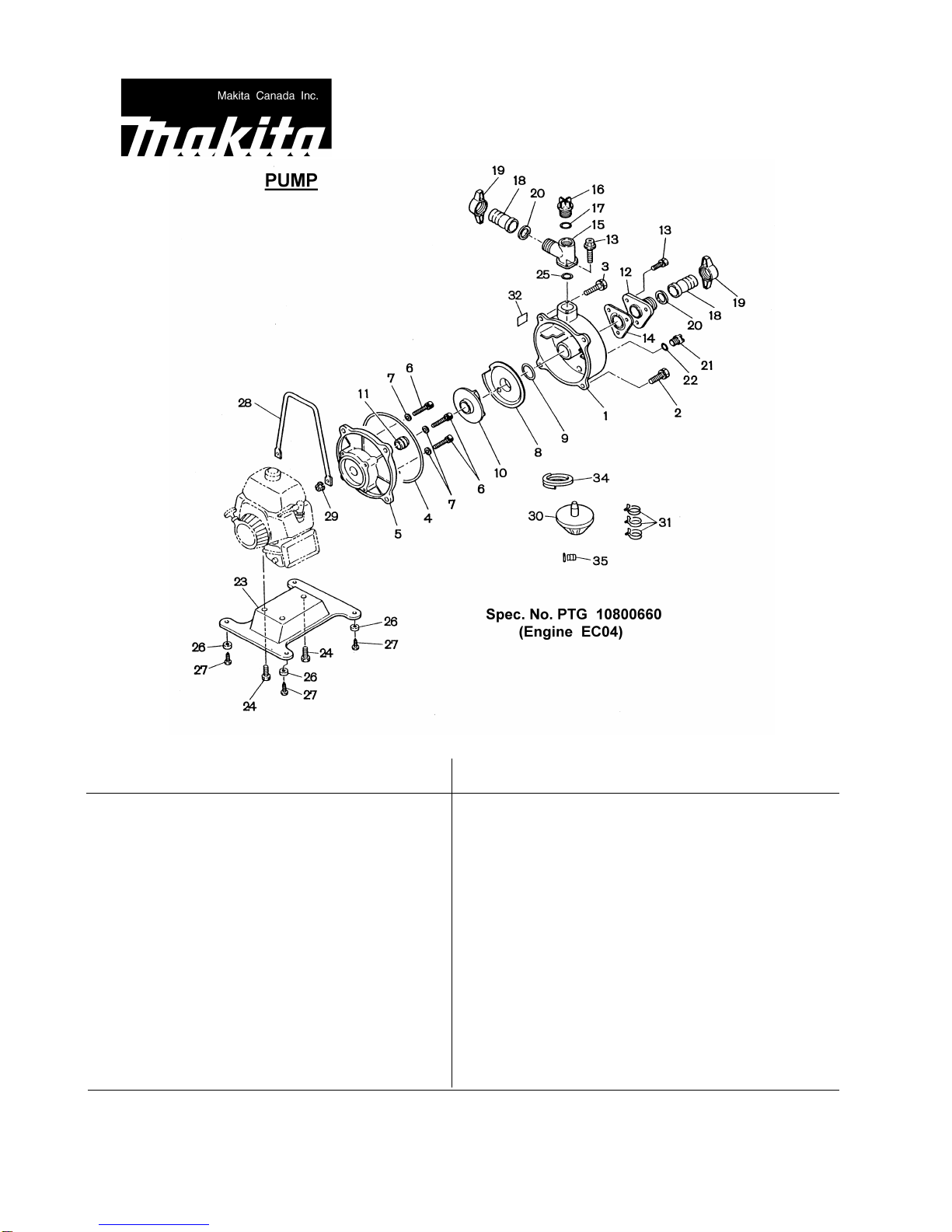

1" WATER PUMP Model EW100R

(Spec. No. EC04ER*0254)

(Engine Model No. EC04ER)

Item Part No.

No. No. Used Description Item Part No.

No. No. Used Description

1480-02510-01 1Casing

210480-05010-14 2Bolt & Washer Assy M8x25

310480-05010-23 2Bolt & Washer Assy M8x40

4480-02510-02 1O Ring

5480-02510-04 1Casing Cover

6480-02510-05 4Socket Head Bolt M6x40

7480-02510-08 4Washer

8480-02510-11 1Inner Casing

9480-02510-12 1O Ring

10 480-02510-09 1Impeller

11 480-02510-10 1Mechanical Seal

12 480-02510-13 1Valve Case

13 480-02510-14 5Bolt & Washer Assy M6x20

14 480-02510-15 1Check Valve

15 480-02510-19 1Delivery Bend

16 10480-05010-21 1Plug

17 10480-05010-22 1O Ring

18 481-00001-22 2Hose Coupling

19 481-00001-23 2Hose Coupling Handle

20 480-02510-17 2Packing

21 10480-05010-21 1Plug

22 10480-05010-22 1O Ring

23 480-02510-36 1Base

24 480-02510-23 3Bolt M5x20

25 480-02510-20 1O Ring

26 480-02510-31 4Base Cushion

27 480-02510-38 4Tapping Screw M5x14

28 480-02510-35 1Handle

29 10480-10010-24 2Nut & Washer Assy M8

30 480-02550-29 1Strainer

31 480-02510-28 3Hose Band

32 482-00123-03 1Label

34 480-02540-36 1Suction Hose (3M)

35 480-02530-18 1Hose Coupling

2 Model EW100R

Item Part No.

No. No. Used Description Item Part No.

No. No. Used Description

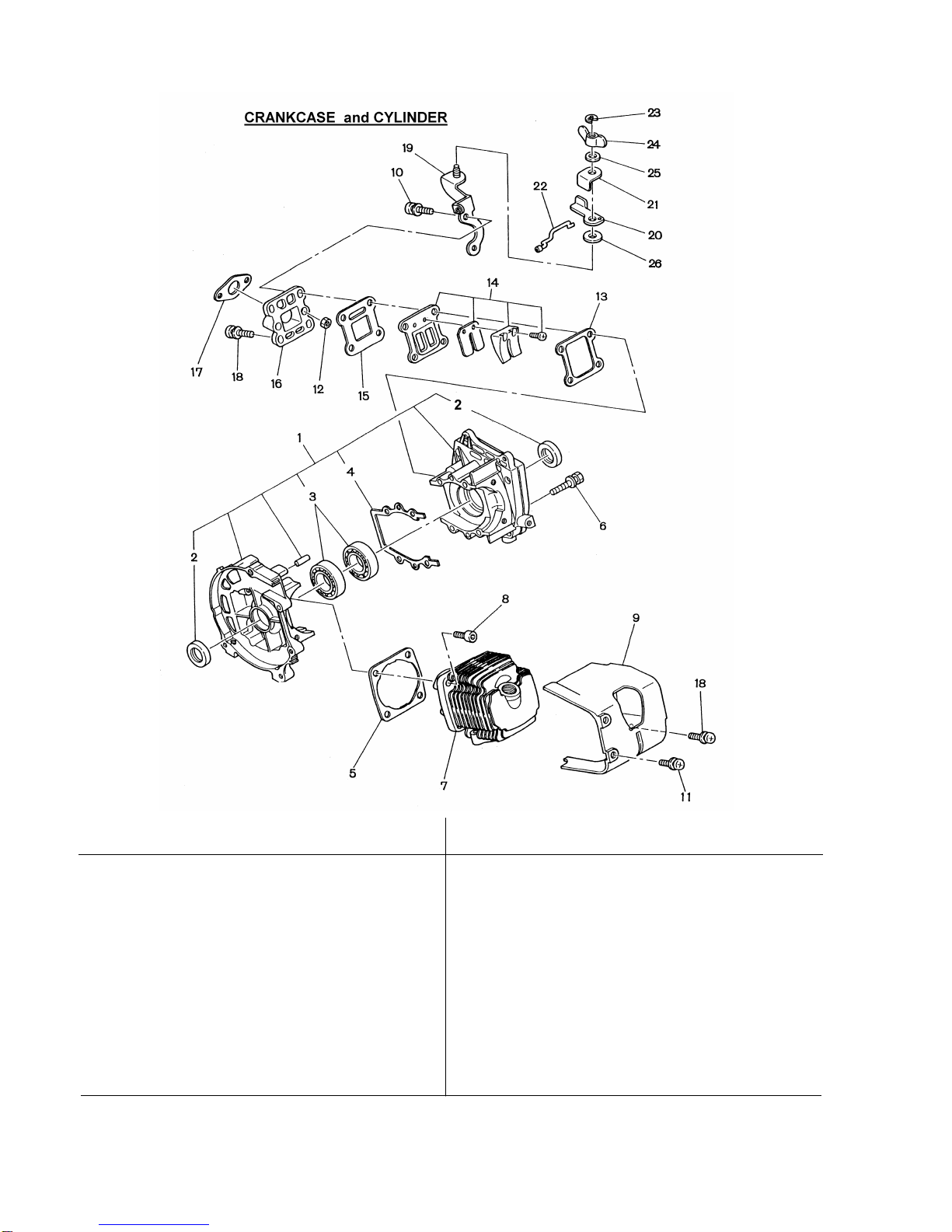

1541-10050-00 1Crankcase Com. (Includes

Items 2 - 4)

2044-01599-50 2Oil Seal (Old 044-01599-71)

3060-01500-60 2Ball Bearing(Old 060-01598-80)

4 541-15012-00 1Gasket

5541-15005-01 1Cylinder Packing

(Old 541-15005-00)

6011-90599-40 4Socket Head Bolt

7541-15003-00 1Cylinder Com.

8011-90699-90 4Socket Head Bolt M6x18

9541-55046-00 1Cylinder Cover

10 004-35052-20 2Screw Assy

11 004-37051-40 1Screw & Washer Assy

12 002-17050-00 1Nut

13 541-35028-00 1Lead Valve Gasket

14 541-30070-00 1Lead Valve Assy

15 541-35012-00 1Packing

16 541-35033-00 1Insulator

17 541-65023-00 1Carburetor Gasket

18 004-37052-00 3Screw & Washer Assy

19 541-40010-00 1Throttle Lever Com.

20 541-45001-00 1Throttle Lever

21 541-45003-00 1Stop Plate

22 541-40020-00 1Rod Com.

23 129-45001-03 1Clip

24 017-80600-10 1Wing Nut

25 020-00700-10 1Washer

26 021-70600-20 1Friction Washer

3 Model EW100R

Item Part No.

No. No. Used Description

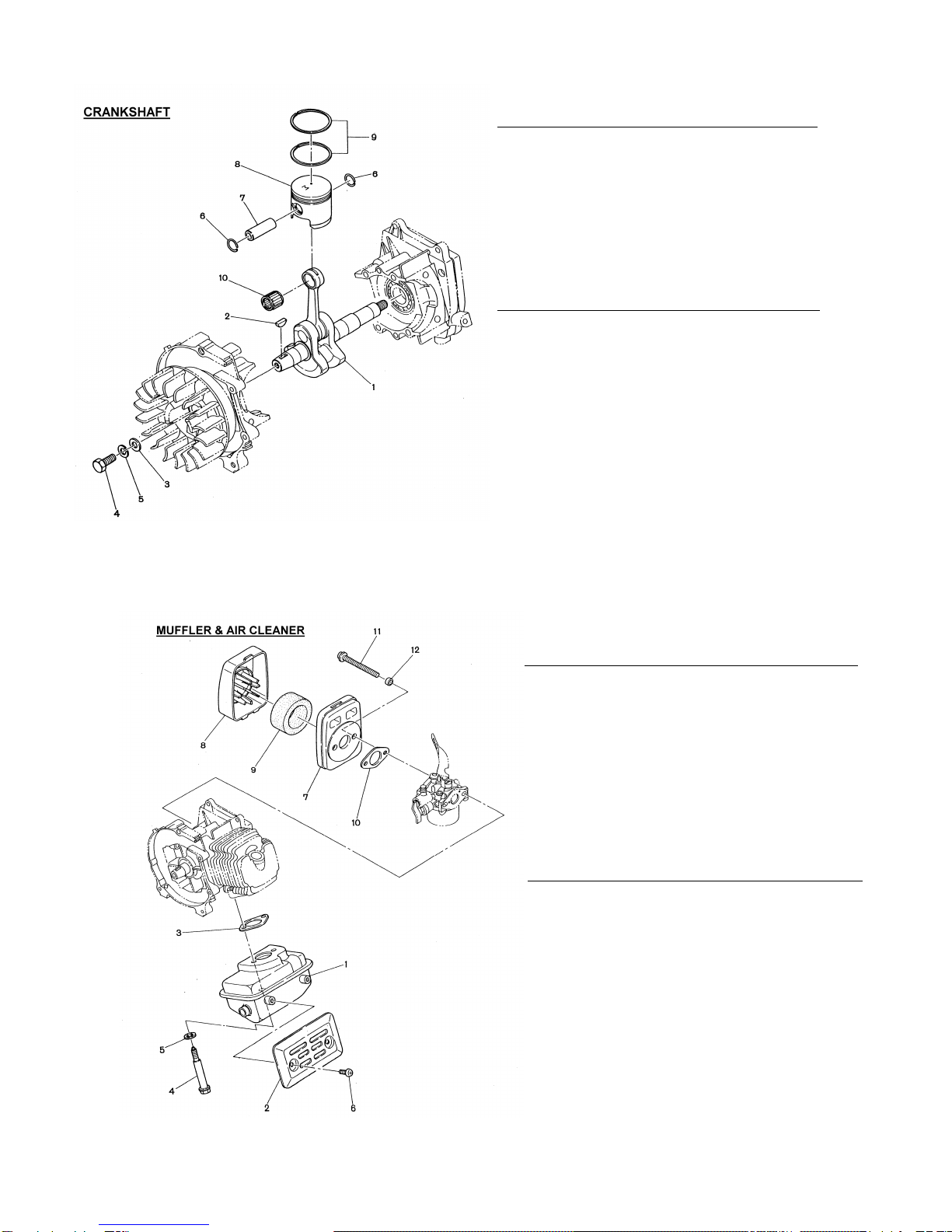

10541-25013-00 1Needle Bearing

1541-30280-00 1Muffler Com.

2540-35024-00 1Muffler Cover

3530-35007-00 1Gasket

4011-90698-30 2Socket Head Bolt

5EY003-10060-00 2Washer

6014-00599-62 2Screw

7541-35034-00 1Cleaner Body

8541-35035-02 1Cleaner Cover

9541-35009-00 1Filter

10 541-35041-00 1Gasket

11 004-37066-50 2Screw & Washer Assy

1541-20070-00 1Crankshaft Assy

2005-32031-01 1Woodruff Key

3020-00699-20 1Washer

4001-67061-60 1Bolt

5EY003-20060-00 1Spring Washer

6056-50999-90 2Clip

7541-25003-00 1Piston Pin

8541-25008-00 1Piston

9540-25006-00 2Piston Ring

Item Part No.

No. No. Used Description

Item Part No.

No. No. Used Description Item Part No.

No. No. Used Description

12 023-00698-20 2Spacer

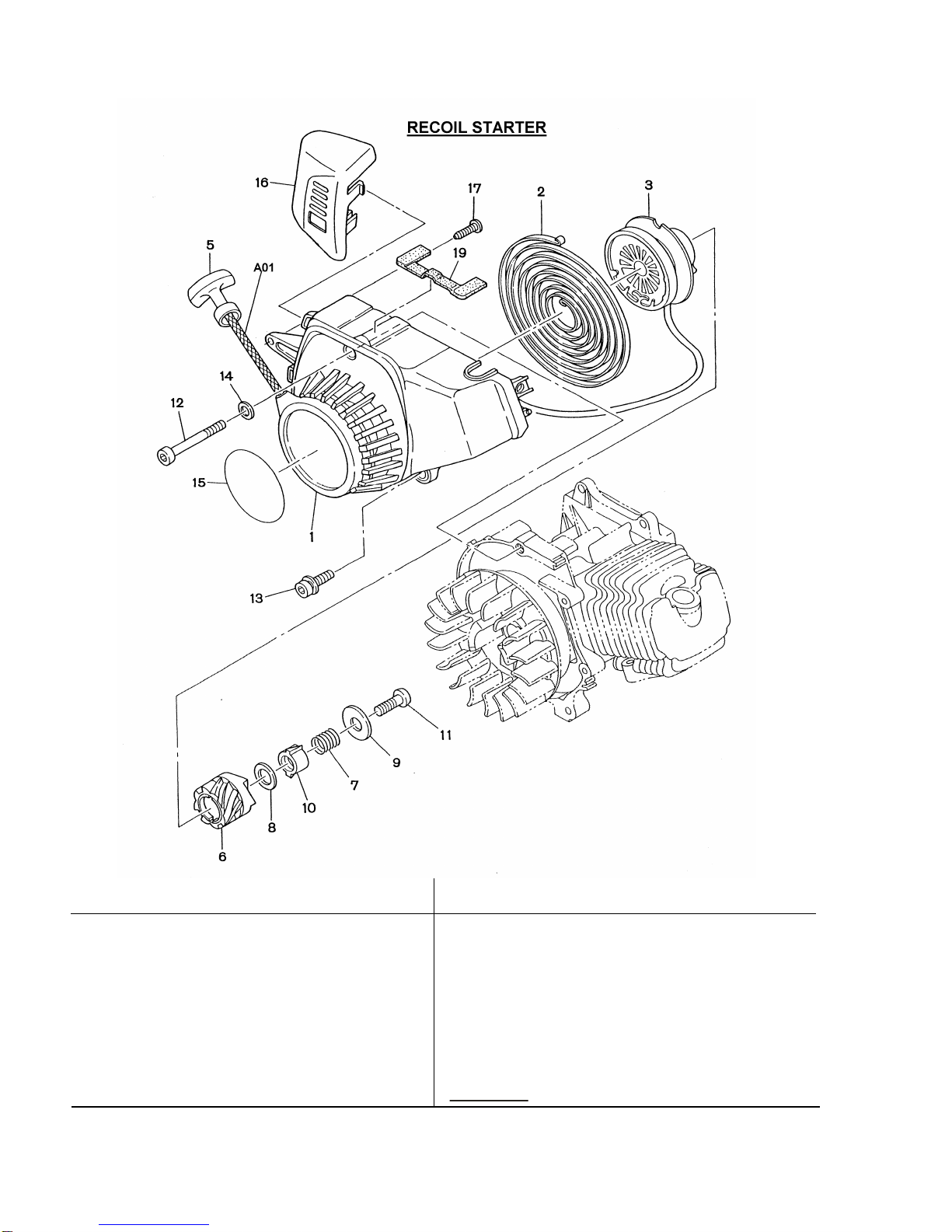

1541-50380-00 1Recoil Starter Assy (Includes

Items 2, 3, 5 - 11, & A01)

2541-50010-30 1Spiral Spring

3541-50010-10 1Reel

5530-50021-10 1Starter Knob

6541-50010-20 1Ratchet

7541-50010-50 1Friction Spring

8541-50012-20 1Thrust Washer

9541-50010-60 1Washer

10 541-50010-40 1Ratchet Guide

11 524-50010-10 1Set Screw M5

12 011-90598-10 1Socket Head Bolt

13 011-90597-90 1Socket Head Bolt M5x22

14 003-10050-00 1Washer

15 540-95032-00 1Label

16 541-55053-00 1Cover

17 621-85015-00 1Screw

19 541-65036-00 1Damper

Accessories

4 Model EW100R

Item Part No. No. No. Used Description

A01 541-50011-40 1Starter Rope

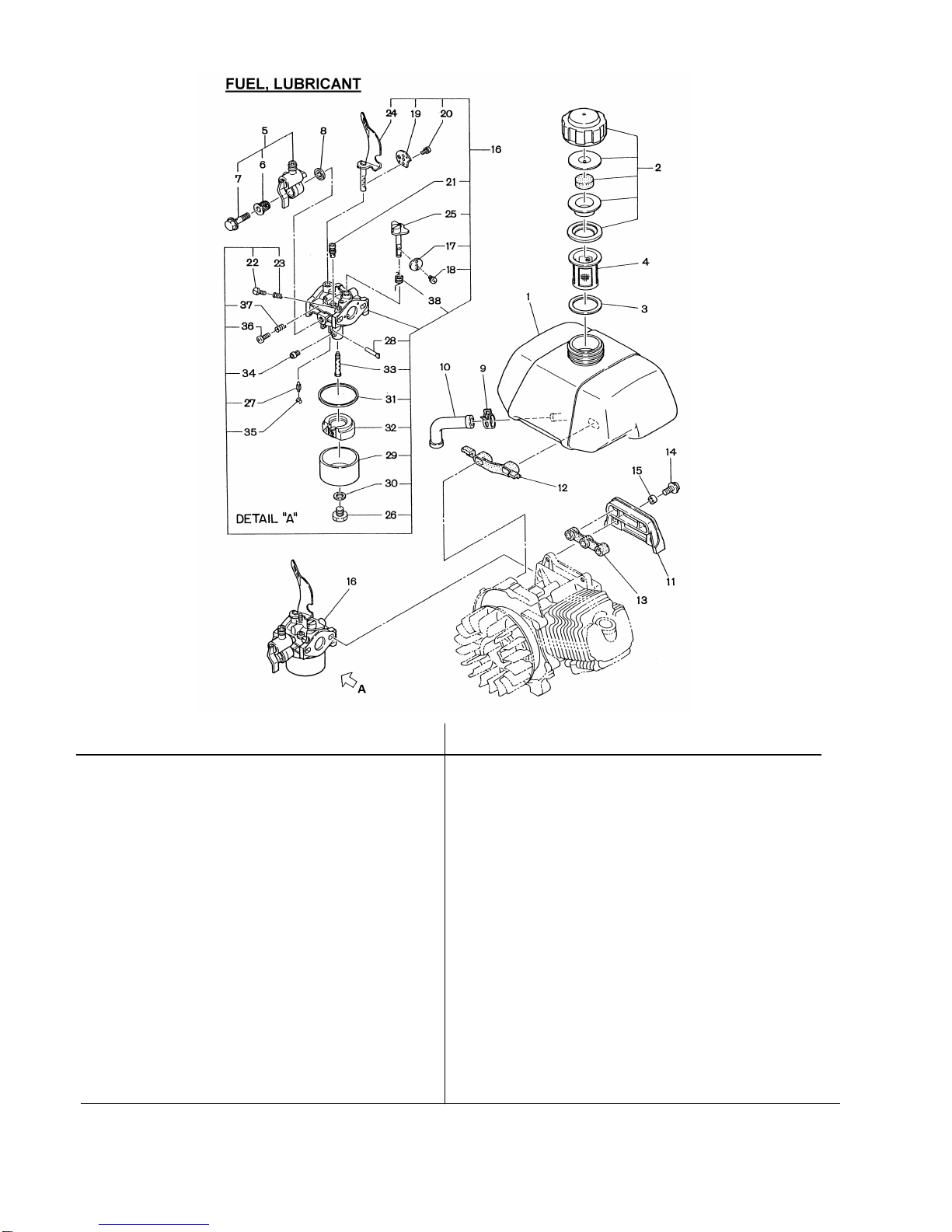

1541-65012-00 1Fuel Tank Com.

2510-60130-01 1Fuel Tank Cap Assy

3551-65005-01 1Packing

4064-12799-90 1Filter

5541-60100-00 1Strainer Cock Assy

(Includes Items 6 & 7)

6541-65022-00 1Strainer Filter

7541-65021-00 1Pipe Bolt

8690-45005-00 1Seal Washer

9056-11399-82 1Hose Clamp

10 541-65002-00 1Fuel Hose

11 541-65003-00 1Tank Bracket Com.

12 541-65035-00 1Damper

13 541-65011-00 1Damper

14 001-17051-40 2Bolt Assy

15 023-00599-90 2Spacer

16 541-60020-01 1Carburetor Assy (Includes Items

17 - 38) (Old 541-60020-00)

17 230-62537-08 1Throttle Valve

18 EY237-62451-08 1Screw

19 230-62527-08 1Choke Valve

20 EY237-62451-08 2Screw

21 209-62421-08 1Pilot Jet

22 213-62390-08 1Adjuster

23 EY209-62445-08 1Spring

24 541-60021-40 1Choke Shaft Assy

25 541-60021-30 1Throttle Shaft Assy

26 EY129-62351-08 1Bolt

27 541-60023-10 1Needle Assy

28 EY214-62515-08 1Pin

29 230-62550-08 1Float Chamber Body

30 209-62345-08 1Insert Washer

31 230-62540-08 1Packing

32 541-60022-10 1Float Assy

33 541-60022-20 1Main Nozzle

34 128-62400-08 1Main Jet

35 230-62454-08 1Clip

36 EY209-62352-08 1Screw

37 EY209-62445-08 1Spring

5 Model EW100R

38 541-60020-40 1Spring

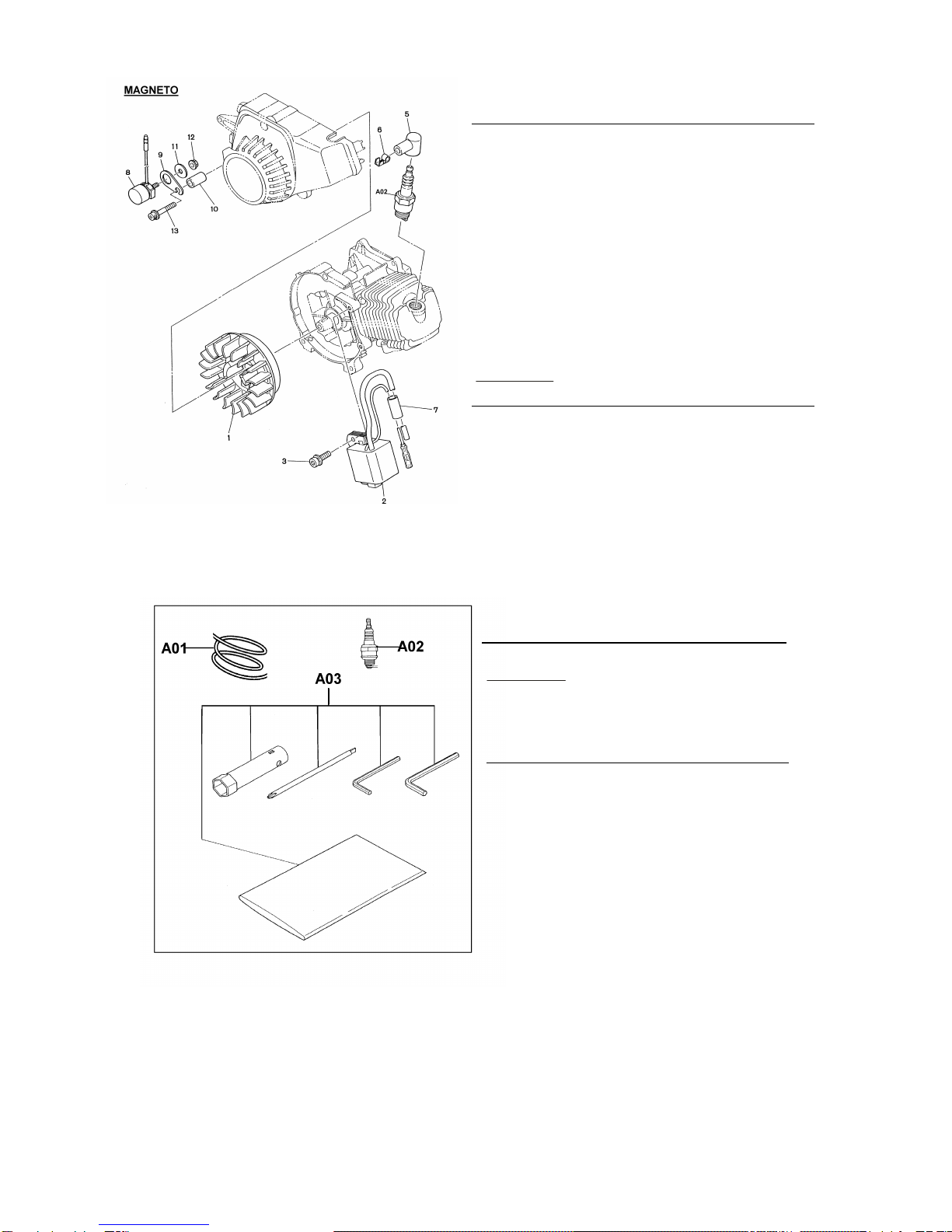

1541-70030-11 1Flywheel

2541-70030-21 1Ignition Coil

3011-90597-90 2Socket Head Bolt M5x22

5065-50099-40 1Spark Plug Cap

6065-40099-31 1Plug Cap Spring

7541-75003-00 1Tube

8066-20098-10 1Stop Switch

9540-75008-00 1Plate

10 023-00697-80 1Spacer

11 003-12040-00 1Washer

12 002-37040-00 1Flange Nut

13 011-90595-90 1Socket Head Bolt M5x40

Accessories

Item Part No.

No. No. Used Description

6 Model EW100R

Item Part No.

No. No. Used Description

A02 065-01497-10 1Spark Plug

Accessories

A01 541-50011-40 1Starter Rope

A02 965 603 022 1Spark Plug

(Old 065-01497-10)

A03 530-90030-00 1Accessory Tool Kit
