Makita BCM2310 Manuel utilisateur

MODEL BCM2310

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

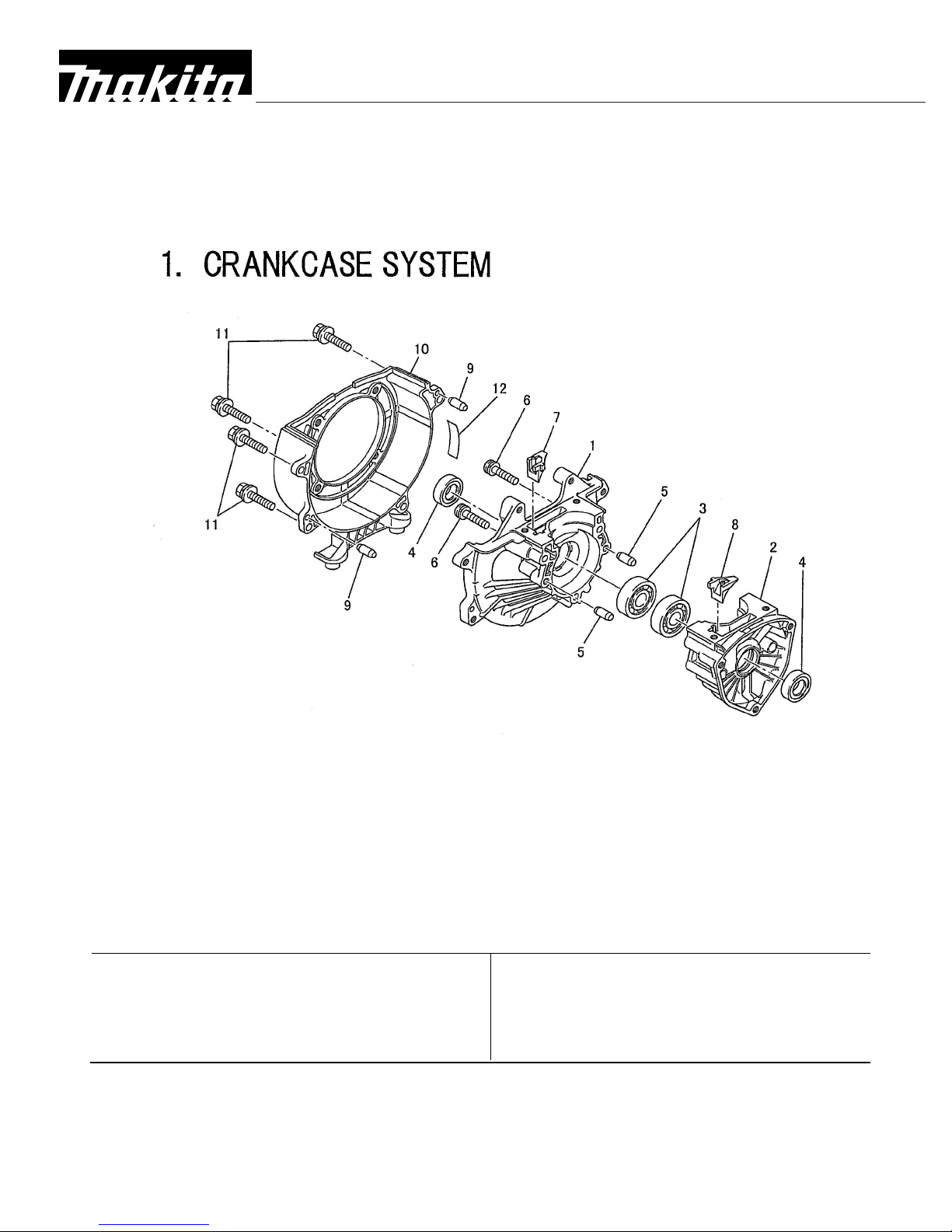

1 KB13004AA 1 CASE,DRIVE 7 KB90005AA 1 GUIDE

2 KB13005AA 1 CASE,STARTER 8 KB90006AA 1 GUIDE

3 110X60X010 2 BEARING,BALL #6001 9 KU40004AA 2 PIN,DOWEL

4 KW21005AA 2 OIL SEAL 10 KH30024DA 1 CASE,FAN

5 KU40003AA 2 PIN,DOWEL 11 FR64569E 4 BOLT&WASHER

6 KU12028AA 3 SCREW&WASHER 12 KW56056A

1 LABEL

06-05 1BCM2310

MODEL BCM2610

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

1 KC13020AA 1 CYLINDE

7 KU12031A

4 SCREW,CTSK-CRS

2 KW32014AA 1 GASKET,CYLINDER 8 151B05X050 2 BOLT,STUD

3 121C05X020 4 BOLT,SCH 9 KH40094D

1 COVER,TOP

4 KC90016A

1 COVER 10 KH70020A

1 GUARD,PLUG

5 KC90017A

1 COVER 11 71D05X020

1 SCREW & WASHER

6 KW39079AA 2 GASKET 12 KU12043A

1 SCREW & WASHER

13 KW56248BA 1 LABEL,EMISSION

06-05 2 BCM2610

MODEL BCM2310

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

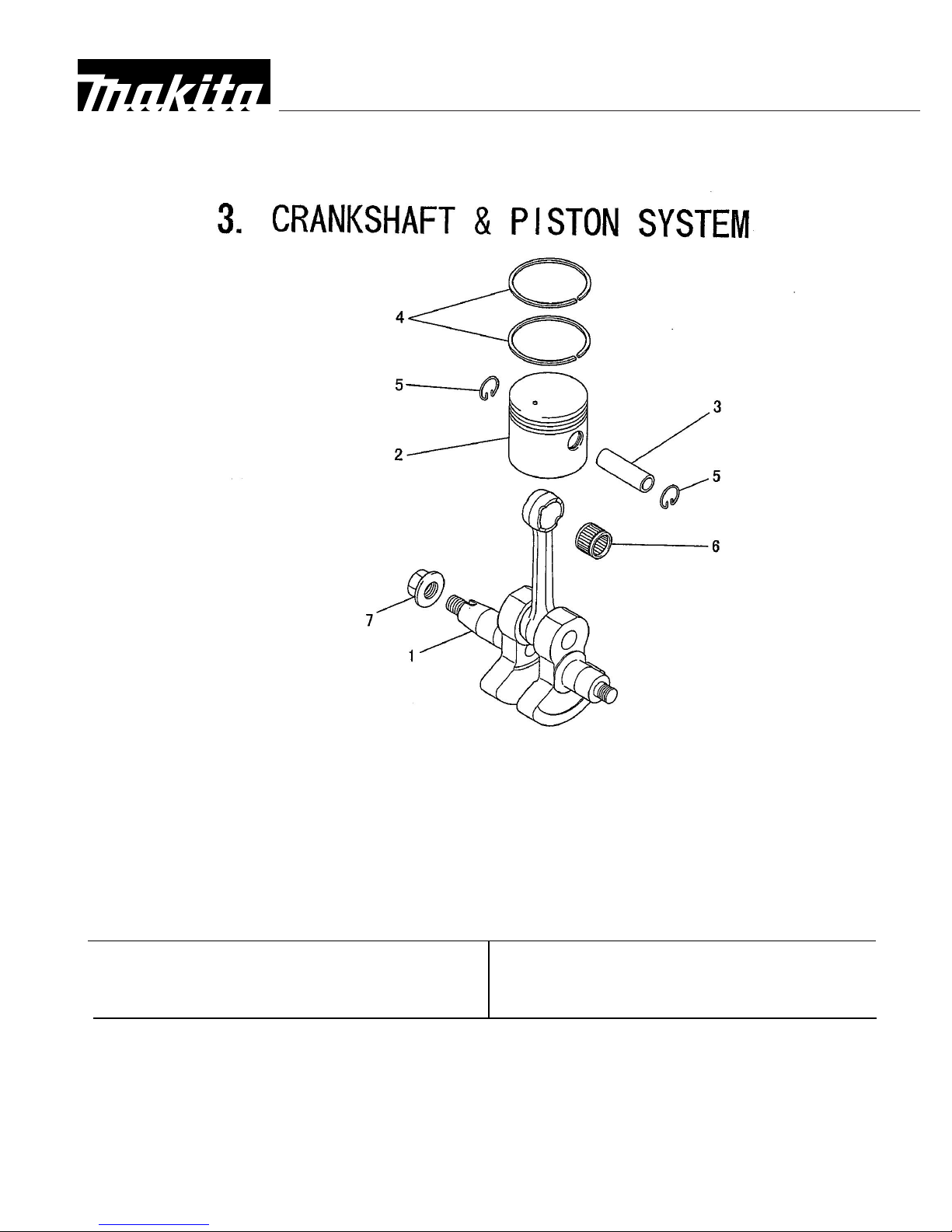

1 KD01033A

1 CRANKSHAFT ASSY 4 FR64264 2 RING,TOP

2 KP13015A

1 PISTON 5 FR64817 2 CLIP,PISTON PIN

3 FR64815 1 PIN,PISTON 6 FR64857 1 BEARING,NEEDLE

7 ZZ70028C 1 NUT,CONICAL SPG

06-05 3 BCM2310

MODEL BCM2310

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

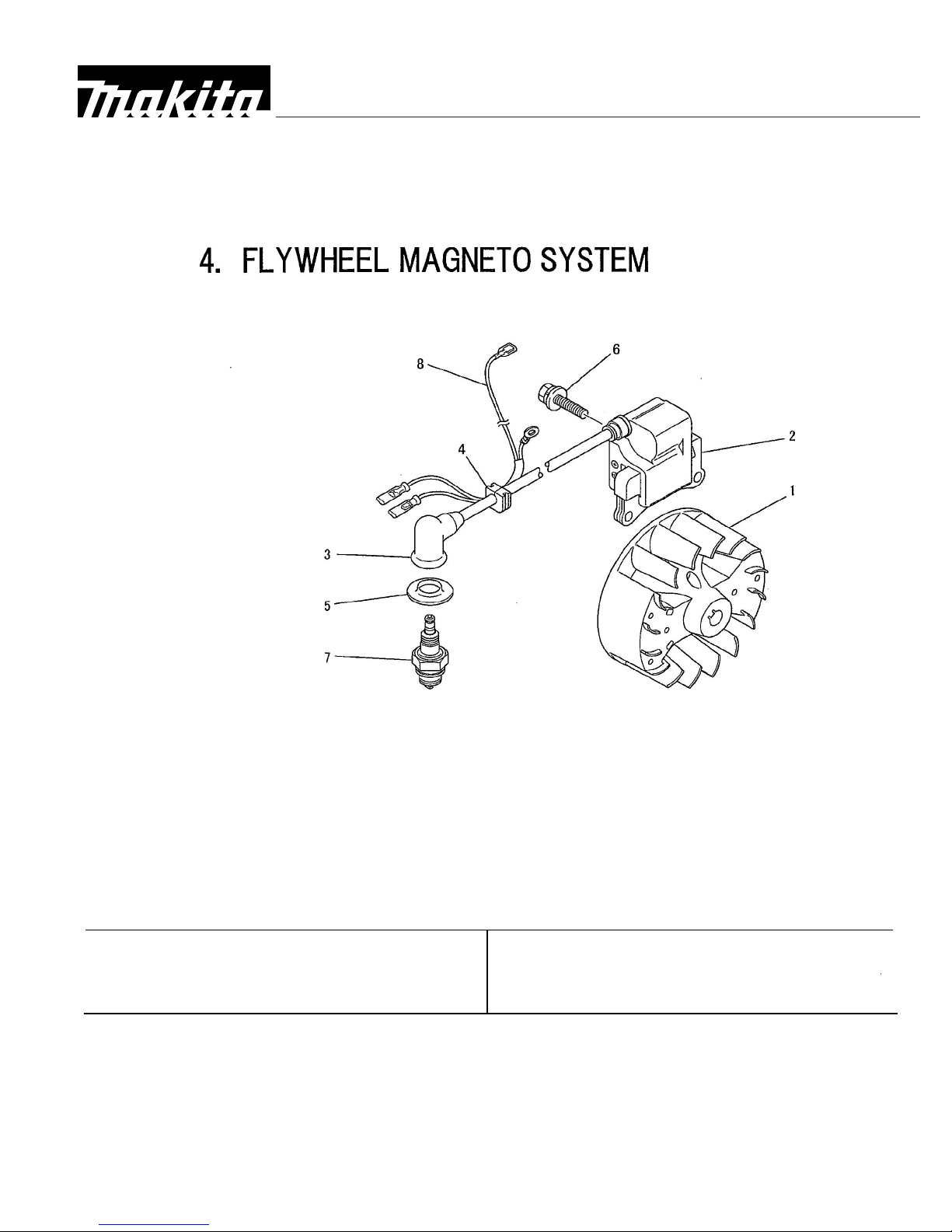

1 KE11026AA 1 ROTOR 5 FR66751 1 CAP,PLUG

2 KE04032AB 1 COIL,IGNITION (INCL.FIG.3) 6 FR64569A 2 BOLT&WASHER

3 FR64961 1 CAP,PLUG 7 KE41011A 1 PLUG,SPARK NGK BPMR8

4 KE90001BA 1 GROMMET 8 KE90239AA 1 WIRE,LEAD

06-05 4 BCM2310

MODEL BCM2310

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

1 KW34066AA 1 GASKET,INSULATOR 16 21028AA006 1 DIAPHRAGM

2 KK31031AA 1 INSULATOR 17 22007AA012 1 GASKET

3 FR64960E 4 SCREW&WASHER 18 21017AA005 1 DIAPHRAGM

4 KW39091AA 1 GASKET,CARBURETOR 19 21028AA009 1 GASKET

5 KK21044AA 1 CARBURETOR(D) (INC.FIG. 6-30) 20 22057CA010 1 JET

6 22016AA002 1 BODY,PUMP (INC.FIG.7-12) 21 21017AA002 1 O-RING

7 21009AA002 1 SCREEN 22 66652XX032 1 CLIP

8 22007AA003 1 VALVE,NEEDLE 23 21024AA022 1 HOLDER,WIRE

9 23002AA005 1 SPRING 24 21017AA021 2 SCREW

10 22007AA005 1 SCREW 25 22023AA014 1 BRACKET

11 66652XX027 1 PIN 26 21017AA027 1 NUT

12 66652XX029 1 LEVER 27 22008AA016 1 SCREW,ADJUST

13 22007AA006 1 BODY 28 21028AA019 1 PACKING

14 22007AA007 1 COVER 29 22007AA019 4 SCREW

15 21017AA013 1 PRIMER PUMP ASSY 30 22004EA024 1 WASHER

06-05 5 BCM2310

MODEL BCM2310

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

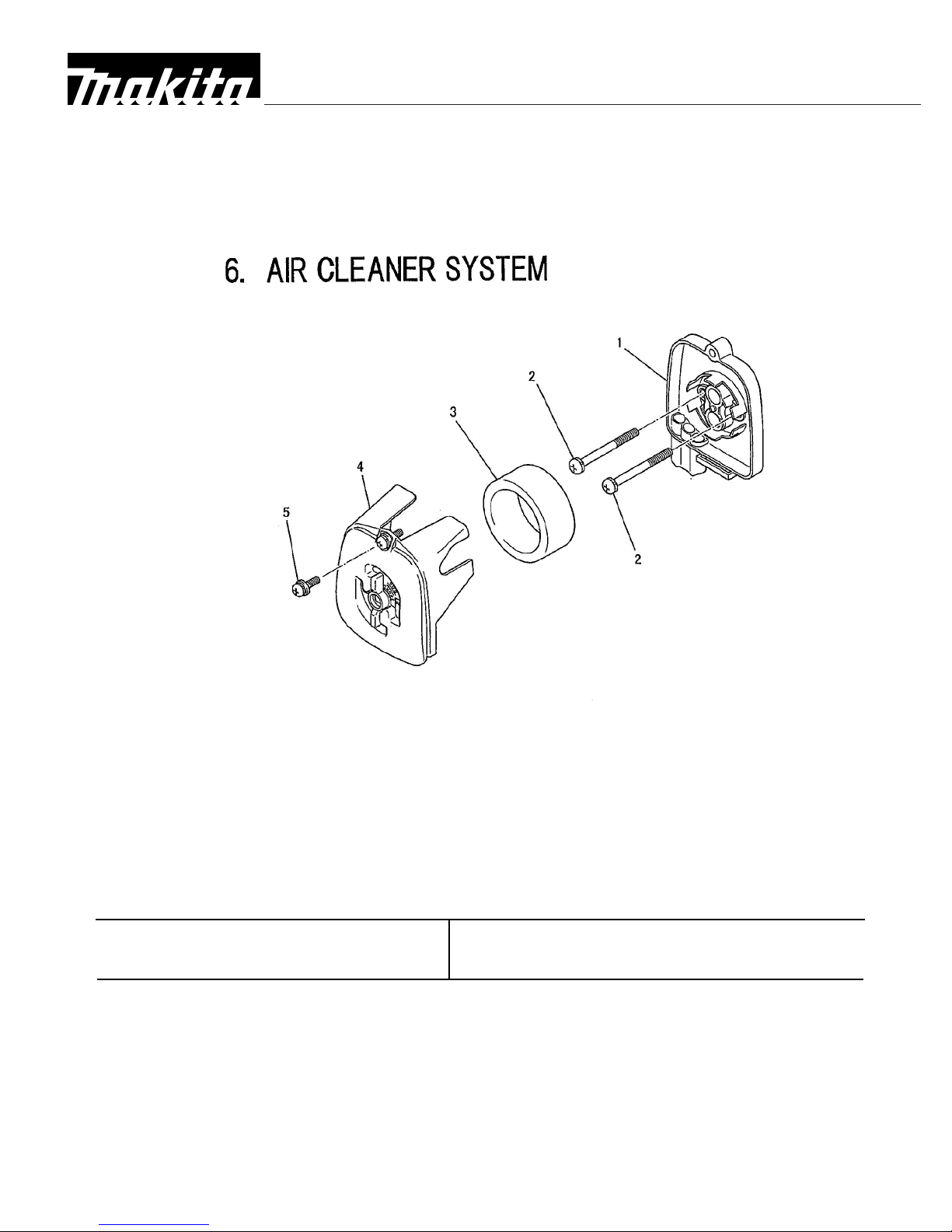

1 KA11025AA 1 CASE,CLEANER 3 KA40080AA 1 ELEMENT,CLEANER

2 71D05X050 2 SCREW&WASHER 4 KA02032AA 1 COVER,CLEANER (INC.FIG.5)

5 FR64960D 1 SCREW&WASHER

06-05 6 BCM2310

MODEL BCM2310

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

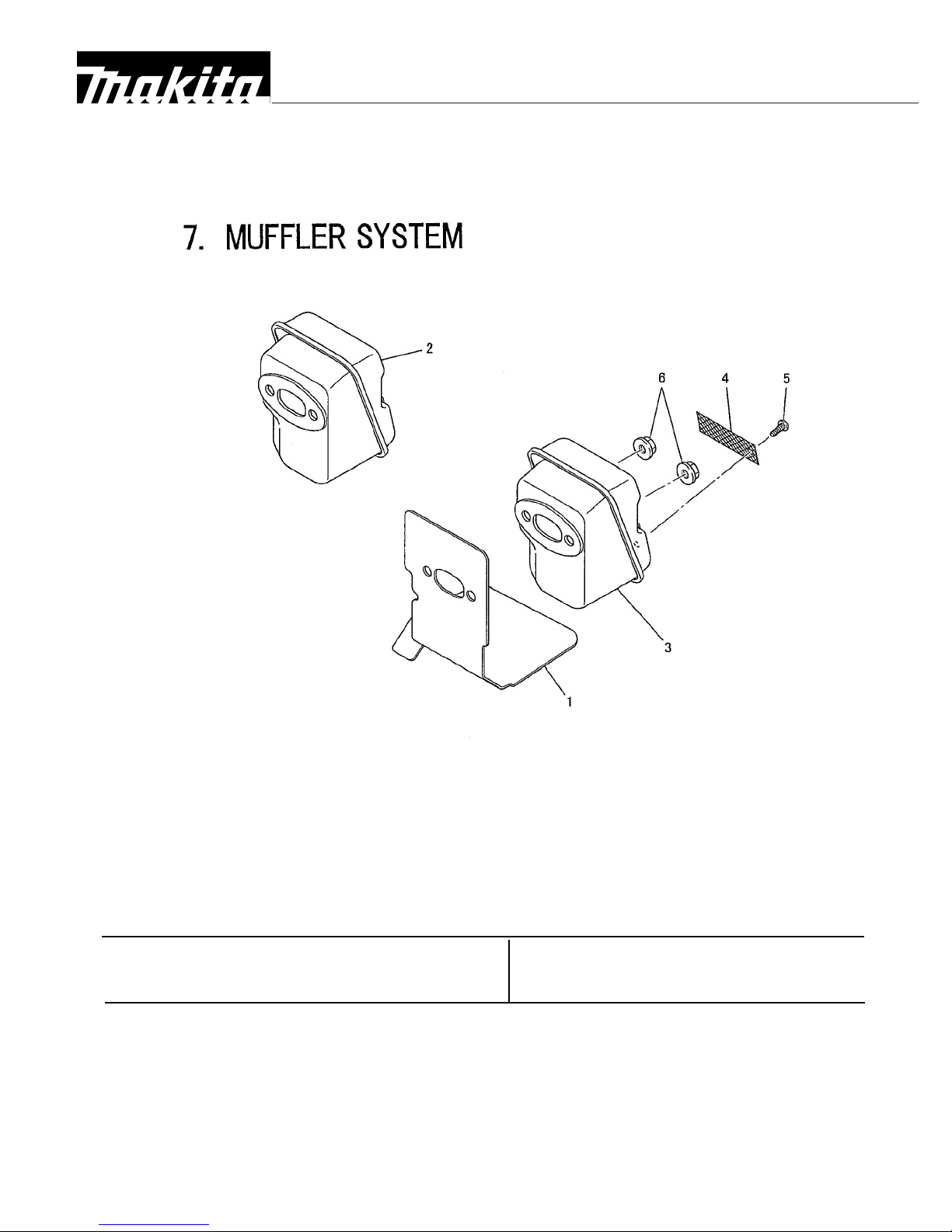

1KM70061AA 1 GASKET,MUFFLER 4 KM90179AA 1 SPARK ARRESTER

2KM01080AA 1 MUFFLER ASSY(INC.FIG. 3-5) 5 006D03X006 1 SCREW

3KM01078AA 1 MUFFLER 6 FR67566 2 NUT,FLANGE

07-05 7 BCM2310

MODEL BCM2310

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

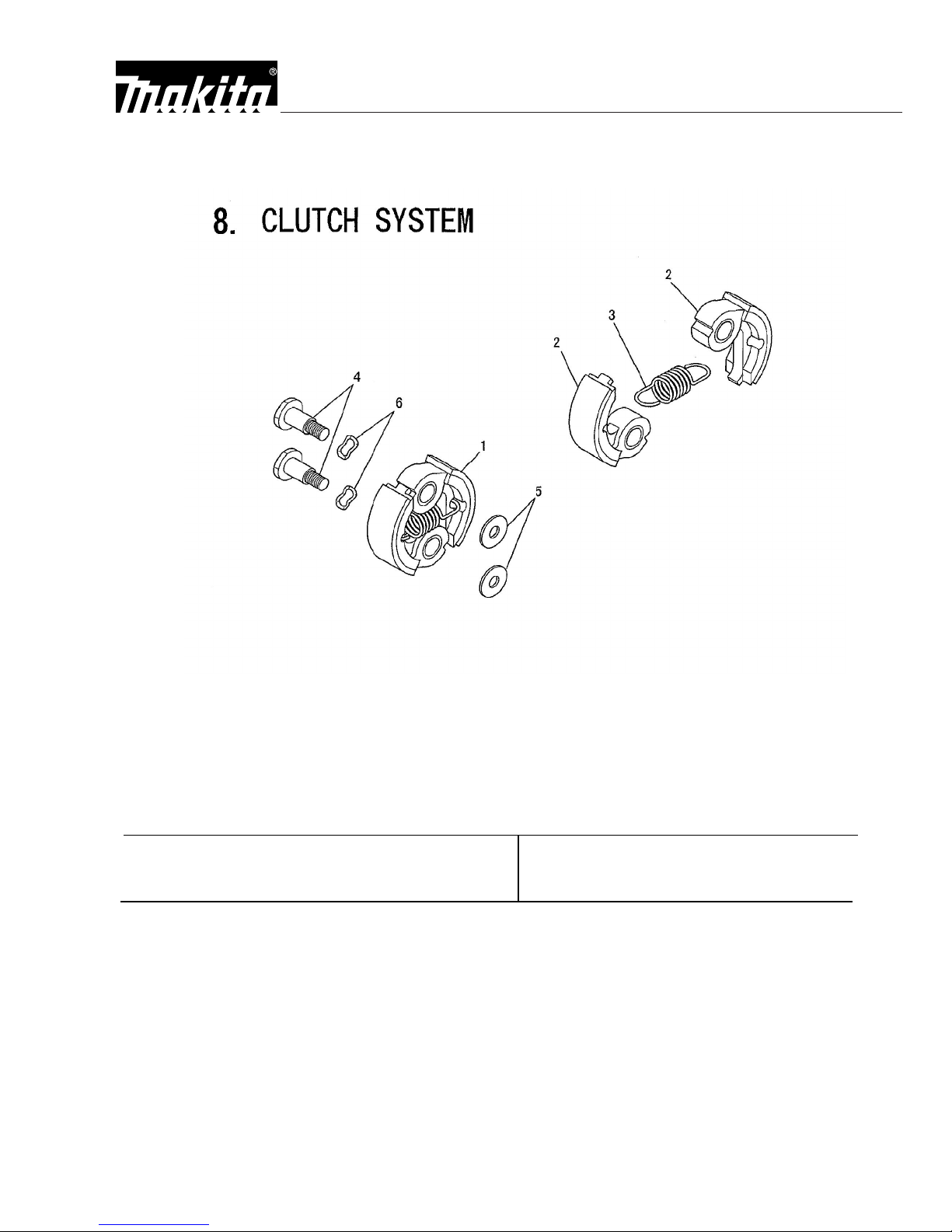

1 KT01002BA 1 CLUTCH (INCL. FIG.2,3) 4 KT14003AA 2 BOLT,CLUTCH

2 KT12004BA 2 SHOE,CLUTCH 5 FR67347A 2 WASHER

3 FR64233A 1SPRING 6 KU36001DA 2 WASHER

07-05 8 BCM2310

MODEL BCM2310

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

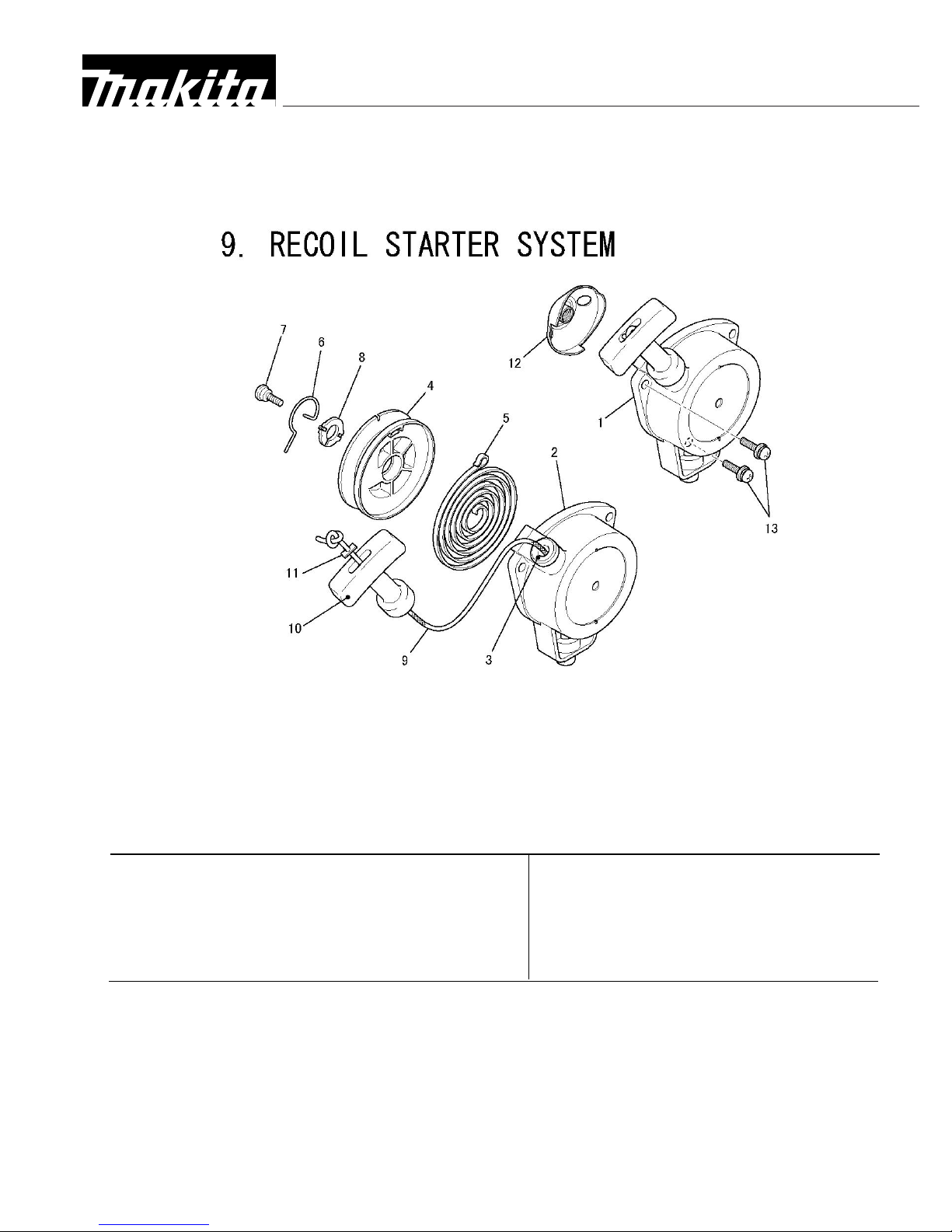

1 KS20088AB 1 RECOIL STARTER

(INC.FIG.2-11) 8 20088AA009 1 SPACER

2 20088AB001 1 CASE,STARTER 9 20088AB011 1 ROPE,STARTER

3 20021AA006 1 GUIDE 10 66881XX011 1 KNOB,STARTER

4 20088AA005 1 REEL 11 20097AA010 1 STOPPER

5 67166XX003 1 SPRING 12 KS30045AA 1 PULLEY,STARTER

6 20088AA007 1 LEVER 13 KU12043AA 2 SCREW&WASHER

7 20088AA008 1 SCREW

06-05 9 BCM2310

MODEL BCM2310

STRING TRIMMER

Item Part Qty. Item Part Qty.

No. No. Used Description No. No. Used Description

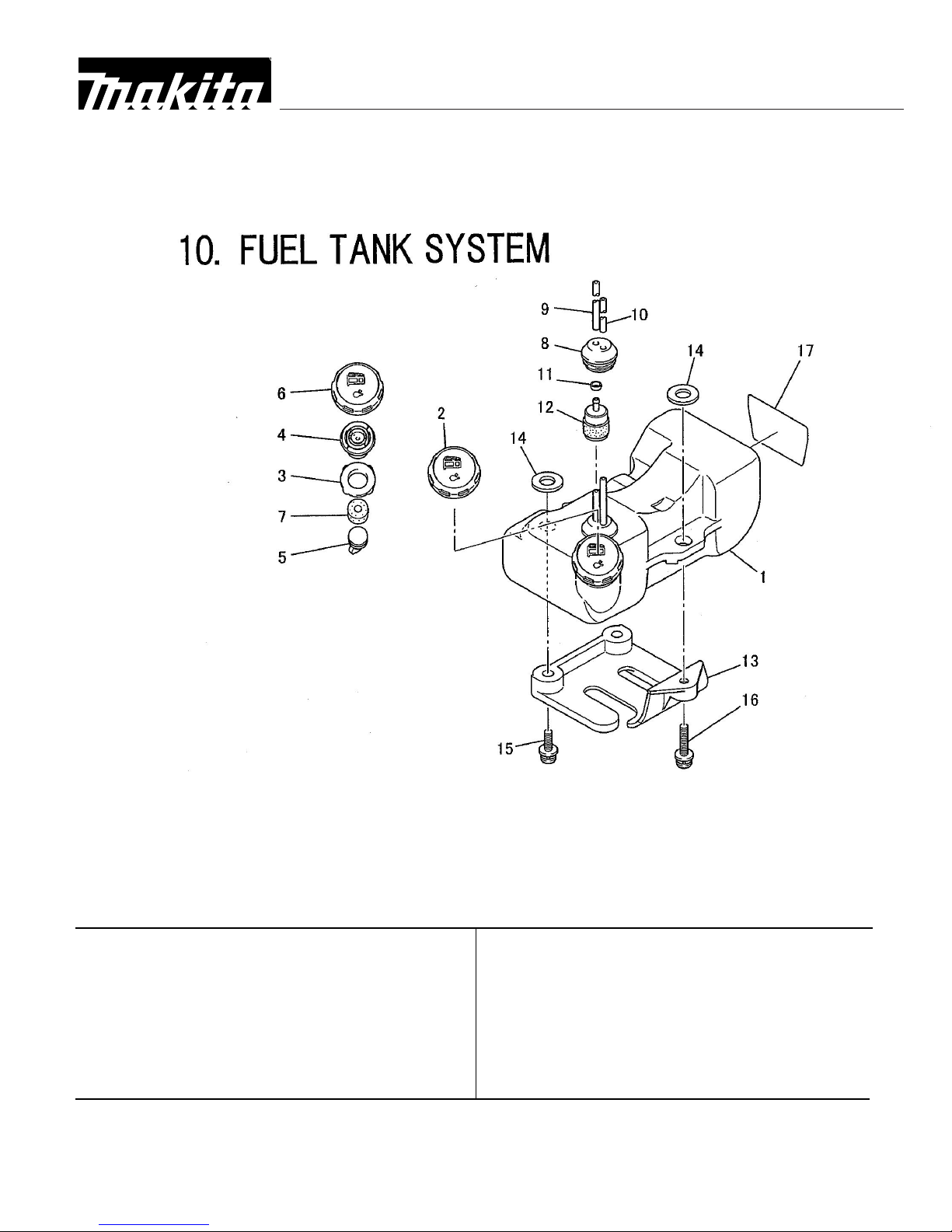

1 KF01075A

1 FUEL TANK ASSY 10 KF70031B

1 TUBE,FUEL L=75

2 KF05019A

1 TANK CAP ASSY 11 01033AA007 1 BUSH

3 KF90155A

1 PACKING 12 KF40004A

1 FILTER,FUEL

4 KF09011A

1 VALVE,BREATHER 13 KT30020A

1 STAND,ENGINE

5 KF90050AB 1 CAP 14 KF80008A

3 PAD

6 KF21012A

1 CAP,FUEL TANK 15 KU12018B

2 SCREW&WASHER

7 KF90154A

1 SPONGE 16 KU12018D

1 SCREW&WASHER

8 KF90048A

1 PLUG 17 KW56181AA 1 LABEL

9 KF70011H

1 TUBE,FUEL L=220

06-05 10 BCM2310
