Makita DUB361 Manuel

Model DUB361 is a cordless blower powered by two 18V Li-ion batteries in series.

This main features are:

• High/ Low push button for two different air volume settings

• Battery capacity warning lamp

• XPT (eXtreme Protection Technology)

This product is available in the next page variations.

Note: 1.3Ah Li-ion battery of BL1815 cannot be used for this model.

Dimensions: mm (")

Width (W)

Height (H)

Length (L1)

Length (L2)

141 (5-5/8)

420 (16-1/2)

905 (35-5/8)

194 (7-5/8)

CONCEPT AND MAIN APPLICATIONS

Specification

Model No. DUB361

Description Cordless Blower

Battery

Max air velocity*1: m/sec.

Energy capacity: Wh

Voltage: V

Capacity: Ah

Weight according to

EPTA-Procedure 01/2003*1: kg (lbs)

Cell Li-ion

Charging time (approx.): min.

36 (18x2)

2.6

17*2, 24*3

51*2, 73*3

2.6 (5.9)*4

3.1 (6.9)*5

Yes (2 settings: High/ Low)

4.4

No load speed: min.-1 = rpm

Air volume setting function

Vacuum function

Variable speed control by trigger

Continuous run time (approx.)

on a single full battery: min.

High

Low

High

Low

High

Low

High

Low

17,000

10,000

1.5, 2.0, 3.0, 4.0, 5.0

Max air volume: m3/min.

*1 With Long nozzle *2 With two batteries BL1830 *3 With two batteries BL1840

*4 With two batteries BL1815N or BL1820

*5 With two batteries BL1830, BL1840 or BL1850

Optional accessories

Battery BL1815N Fast charger DC18RC

Battery BL1820 Charger DC24SC

Battery BL1830 Charger DC18SD

Battery BL1840 Quad port charger DC18SF

Battery BL1850 Automotive charger DC18SE

Standard equipment

Battery*6

Battery cover*6

Charger*6

Long nozzle

Shoulder strap

*6 Battery, Battery cover and charger are not supplied with “Z” model.

Note: The standard equipment may vary by country or model variation.

PRODUCT

P 1/ 6

TECHNICAL INFORMATION

OFFICIAL USE

for ASC & Sales Shop

15x2, 24x2, 22x2, 36x2, 45x2 with DC18RC

27x2, 36x2, 54x2, 72x2, 90x2

P 2/ 6

Fig. 1

Repair

It is not required to lubricate the machine because of no gear mechanism to be lubricated.

[3] DISASSEMBLY/ASSEMBLY

[3] -1. Fan 95, Armature

[1] NECESSARY REPAIRING TOOLS

CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.

Code No.

---

Description Use for

Socket bit 8-55 (width across flats: 8mm) Disassembling/ Assembling M5-8 Hex nut for Fan 95

[2] LUBRICATION

DISASSEMBLING

(1) Disassemble Motor section from Housing (L) as drawn in Fig. 1.

Holder cap cover

2. Remove Holder cap covers, Holder caps and Carbon Brushes

from the both side of the machine.

3. Remove Housing (R) by unscrewing

fourteen 4x18 tapping screws.

4. Separate Armature section together

with Yoke unit from Endbell complete.

1. Remove Long nozzle

Holder cap

Carbon brush

Long nozzle

Endbell

complete

Yoke unit

Armature

P 3/ 6

Fig. 2

Repair

[3] DISASSEMBLY/ASSEMBLY

[3] -1. Fan 95, Armature (cont.)

DISASSEMBLING

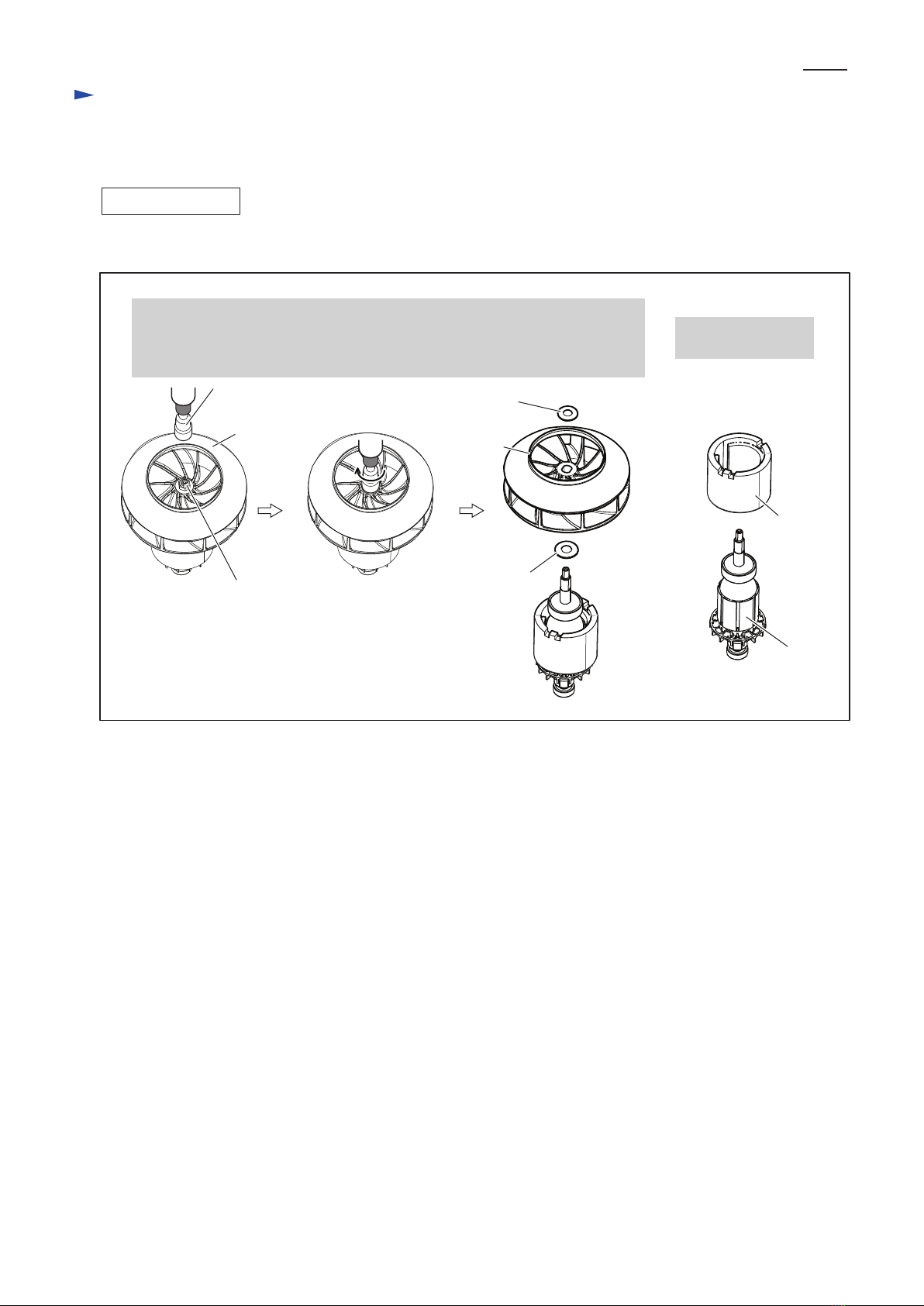

(2) Disassemble Fan 95 as drawn in Fig. 2.

8-55 Socket bit

M5-8 Hex nut

1. Hold Fan 95 by hand and turn M5-8 Hex nut clockwise using cordless impact

driver with Socket bit 8-55.

Note: M5-8 Hex nut is left hand thread.

Remove Flat washer 5, Fan 95 and Flat washer 8 from the end of Armature.

2. Pull off Armature

from Yoke unit.

Flat washer 8

Fan 95 Fan 95

Yoke unit

Armature

Flat washer 5

P 4/ 6

Fig. 3

Repair

ASSEMBLING

1. Assemble Motor section while fitting two notches of

Yoke unit to two projections of Housing (L).

2. Be sure that Hanger is mounted to the following

place before mounting Housing (R).

two notches of

Yoke unit

Hanger

two projections

of Housing (L)

Assemble by reversing the disassembly procedure. (Figs. 2 and 1)

Note:

(1) Do not forget to set Flat washer 5 and Flat washer 8 in place. (Fig. 2)

(2) Fit two notches of Yoke unit to two projections on Housing (L). (Fig. 3)

(3) Before assembling Housing (R), mount Hanger on Housing (L). (Fig. 3)

[3] -2. Switch unit

DISASSEMBLING

Fig. 4

Connector

(1) Disassemble Housing (R) from Housing (L) as drawn in Fig. 1.

It is not necessary to remove Motor section.

(2) Remove Switch unit by disconnecting Connectors as drawn in Fig. 4.

Connector

Switch unit

[3] DISASSEMBLY/ASSEMBLY

[3] -1. Fan 95, Armature (cont.)

P 5/ 6

Fig. D-1

Circuit diagram

White Orange

Blue

Yellow

Color index of lead wires' sheath

Black

Red

Endbell

complete

Controller

Line filter

Connector Housing (R) side

Housing (L) side

P 6/ 6

Fig. D-2

Wiring diagram

Wiring to Terminal Setting of Terminal to Housing (L)

Setting of Battery capacity warning lamps A, B

Set Flag connectors to Terminals A and B

as shown above.

Set Terminals A and B to Housing (L)

as shown above.

Flag connector Flag connector

Terminal A

Terminal B Terminal A

Terminal B

Battery capacity warning lamp A

Battery capacity warning lamp B

Put Battery capacity warning lamps A and B

while facing their wires connected portion to

Terminals A and B side.

Terminal A Terminal B

Rib A Rib B

Line filter

Closed end splice

Rib F

Battery capacity

warning lamp A

Terminal A

Terminal B

Battery capacity

warning lamp B

Rib E

Rib C

Rib D

Be careful not to put

any Lead wires

on these Ribs.

Put Closed end splices and

Line filter here.

Put the following Lead wires with

these Lead wire holders.

* Endbell’s Lead wires (black, red)

* Controller’s Lad wires (black, red)

Do not put any Lead wires

between Ribs A and B.

Put Lead wires of Switch

unit between Ribs C and D.

Wiring diagram in Housing (L)

Put the following Lead wires between Ribs E and F.

* Lead wires (red, black, yellow) of Terminal A

* Lead wire (red, black) of Battery capacity warning lamp A
