Main Access 200600T Manuel utilisateur

1004 Jaycox Rd, Avon OH 44011

1-888-333-1134

www.GoMainAccess.com

(For use with Model #200700T Smart Choice Ladder)

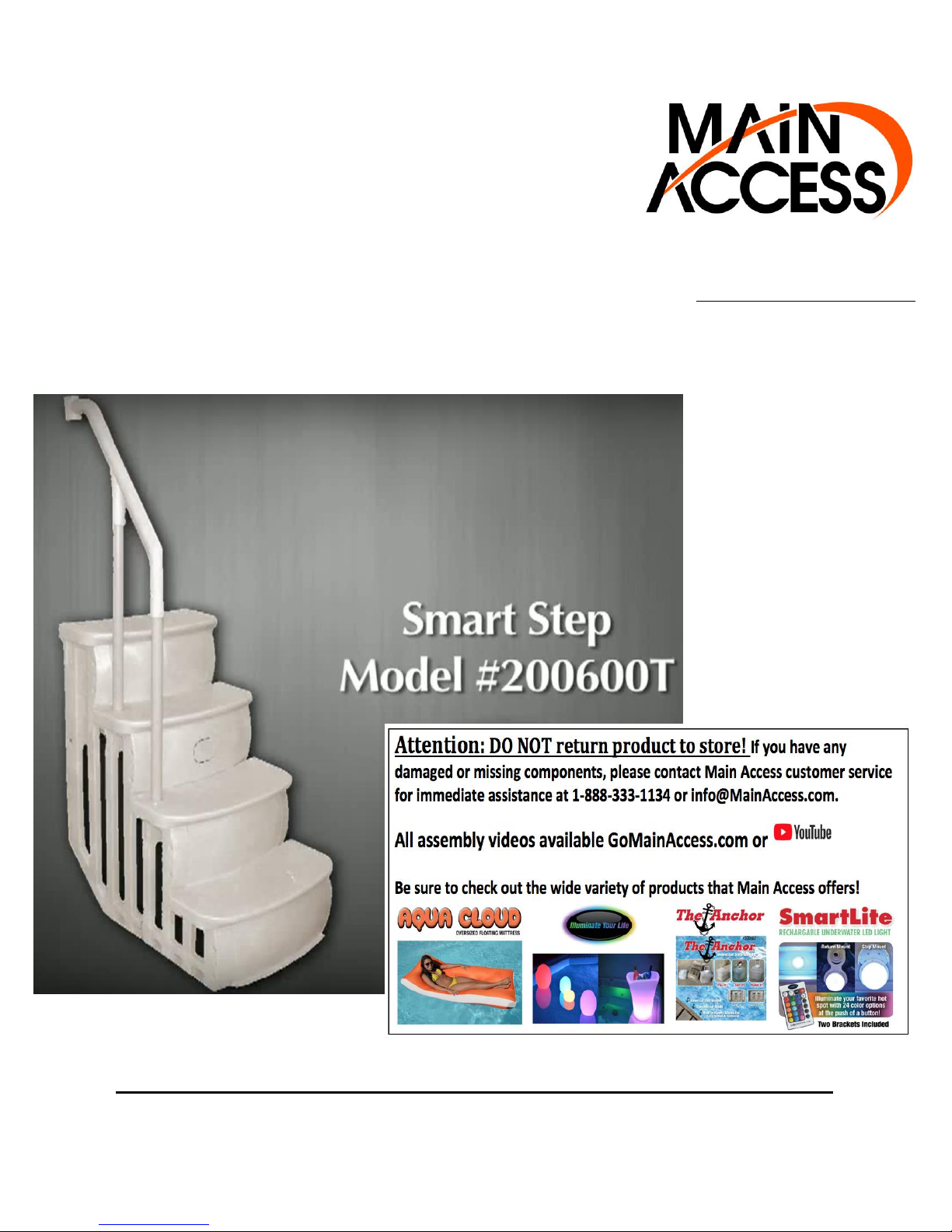

Assembly Instructions for Model #200600T Smart Step

SMART STEP

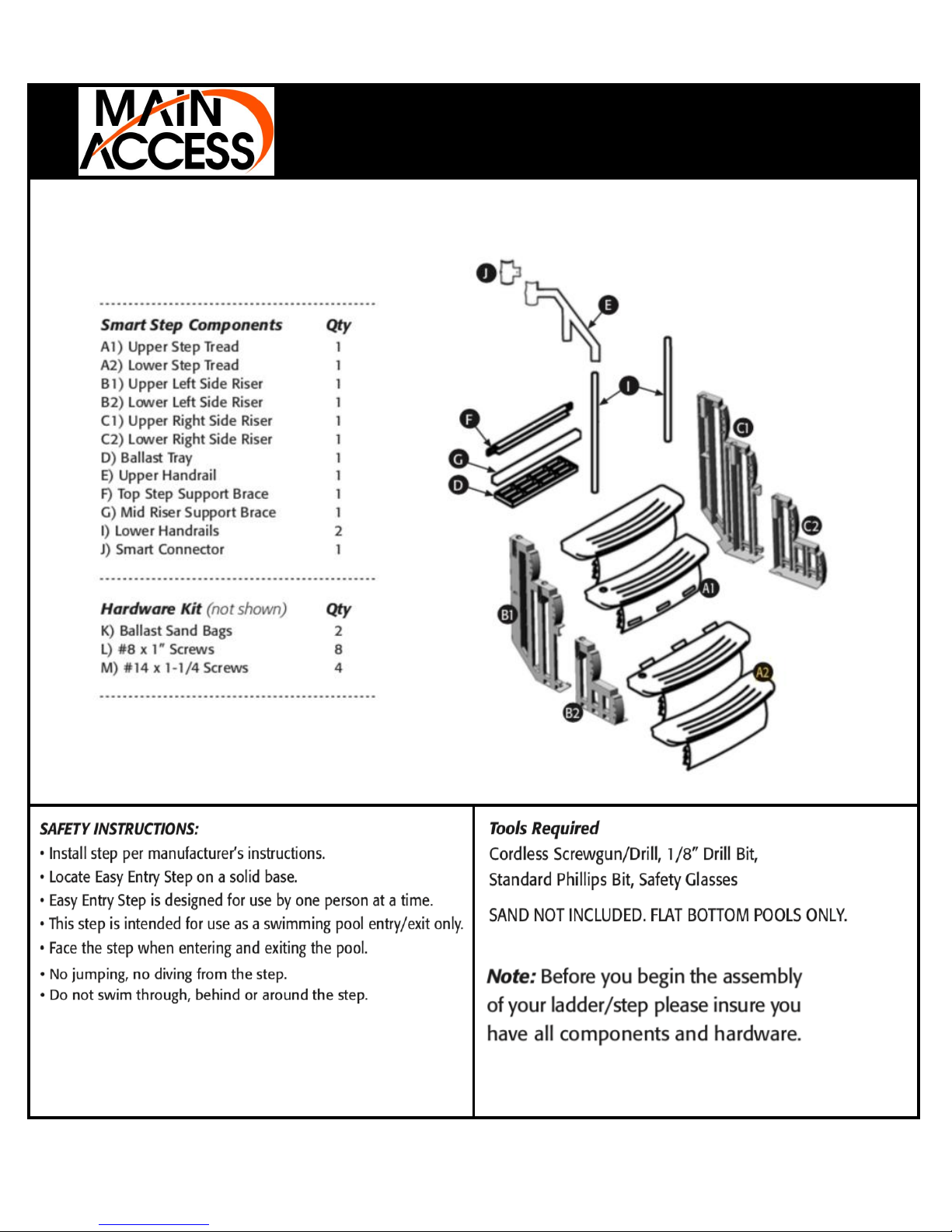

Model #200600T Assembly Instructions

*For use with Model #200700T (Smart Choice Ladder) to create the Smart Step System*

For Questions Regarding Installation, Please Contact Main Access Customer Service 1-888-333-1134

Step 3: Repeat steps 1 & 2 on the right side of the

step.

Step 4: Align the holes on the lower left riser with

the mushroom caps on the lower step tread.

Model #200600T

Step 1: Align the holes on upper left riser with with

mushroom caps on the upper step tread.

Step 2: Snap into place with a rubber mallet.

Step 6: Repeat steps 4 & 5 on the right side of the

step.

Step 5: Snap mushroom caps into place using

rubber mallet.

Step 11: Insert mid riser brace in between risers

and over the tabs.

Step 12: Insert a lower handrail into the hole on

the second step (lower step tread).

SMART STEP

Model #200600T Assmebly Instructions

Step 7: Insert the tabs from lower step assembly to

the slots of the upper step assembly.

Step 8: Align ballast tray between all four risers

under the step.

Step 9: Snap tabs from upper and lower risers into

the ballast tray with a rubber mallet.

Step 10: Insert top step support brace in between

uppers risers.

Model #200600T

Step 13: Insert the second lower handrail into the

third step (lower hole on the upper step tread).

Step 14: Place upper handrail over both lower

handrails.

Step 15: Use the socket cap provided to plug the

unused hole in the upper step tread.

Step 16: Drill #14 x 1 1/4" screws into handrails

through all upper and lower risers.

Step 17: Drill #8 x 1" screws into four dimples on

step tread.

Step 18: Use the two 1" screws to secure the upper

handrail to the lower handrails.

For Questions Regarding Installation, Please Contact Main Access Customer Service 1-888-333-1134

All Finished!

Step 19: Retrieve Smart Choice Ladder and center

Support Feet on top step. Secure feet using (8) 1"

screws through hash marks on Support Feet (C).

Step 20: Attach Upper Rail (E) to Smart Choice

Handrail (A) using Smart Connector (J) and (2) 1"

screws.

For Questions Regarding Installation, Please Contact Main Access Customer Service 1-888-333-1134

SMART STEP

Model #200600T Assmebly Instructions

Step 21: Pool Installation

*Optional* Purchase (2) Anchors (#200888) to weigh

down the Smart Step. Sand not inlcuded.

Note: Two people are required for installation.

A total weight of approximately 100 lbs. is

required to keep the step from moving once in

place under water. With the assistance of another

person, carefully place the step in the pool. Place

the two sealed bags of sand (not included) in

ballast bags (M) over the ballast tray (D) to hold

the step in place. Walk step back againast the pool

wall to prevent swim behind hazards.

1004 Jaycox Road

Avon, OH 44011

1-888-333-1134

[email protected]

www.GoMainAccess.com

Be sure to check out these other great products from Main Access!

Mount it to your step or hang it from the return!

Use them to easily weigh down your pool step!

Luxury Pool Floats!

Light-up Floating Globes and Furniture!
