Magtek 99831083-5 Manuel du produit

90-MILLIMETER COMPATIBLE

SWIPE READER

TECHNICAL REFERENCE MANUAL

Part Number 99831083-5

JULY 2003

REGISTERED TO ISO 9001:2000

20725 South Annalee Avenue

Carson, CA 90746

Phone: (310) 631-8602

FAX: (310) 631-3956

Technical Support: (651) 415-6800

www.magtek.com

MagTek®, Inc.

Printed in the United States of America

Information in this document is subject to change without notice. No part of this document may

be reproduced or transmitted in any form or by any means, electronic or mechanical, for any

purpose, without the express written permission of MagTek, Inc.

MagTek is a registered trademark of MagTek, Inc.

REVISIONS

Rev Number Date Notes

1 Sep 92 Initial Release

2 22 Oct 99 Formatted manual; Added IEC requirements to

Specifications; Changed values in Specifications;

Clarified Connector information; Added correct

drawings; Clarified Card Present Signal

3 25 Jul 01 Front Matter: Added to Agency page: FCC Class

B, UL and CUL, CE Class B. Added Copyright

2001.

4 18 Apr 03 Front Matter: added ISO line to logo, changed

Tech Support phone number, added new warranty

statement, changed warranty from 90 days to 1

year; Sec 1: Configuration Table, changed P/N for

3 tracks from 21045019 to 21045034; Sec 2:

changed Table 2-3 to reflect the new P/N.

5 16 Jul 03 Sec 1: added cable length to Configuration Table,

added MTBF Electronics to Specification Table,

changed power requirements to 2.7 VDC, and

corrected units. Sec 2: Tables 2-1, 2-2, and

2-3 corrected P/N and added mating connectors.

iii

Limited Warranty

MagTek, Inc. warrants that the Product described in this document is free of defects in materials and

workmanship for a period of one year from the date of purchase where the date of purchase is defined as

the date of shipment from MagTek. During this warranty period, MagTek shall, at their option, repair or

replace without charge for either parts or labor, any failure, malfunction, defect or nonconformity which

prevents the product from performing in accordance with MagTek’s published technical specifications

and manuals.

This warranty does not apply to wear of the magnetic read head. This warranty shall not apply if the

product is modified, tampered with, or subject to abnormal working conditions. This warranty does not

apply when the malfunction results from the use of the Product in conjunction with ancillary or peripheral

equipment where it is determined by MagTek that there is no fault in the Product itself.

Notification by the Customer to MagTek of any condition described above should be directed to the

Customer’s MagTek Sales Representative or to MagTek’s Help Desk at (651) 415-6800. If the Product is

to be returned from the Customer to MagTek, a returned material authorization (RMA) will be issued by

MagTek. The Customer shall be responsible for shipping charges to MagTek, (20801 S. Annalee Ave.,

Carson, CA 90746). MagTek shall be responsible for shipping charges back to the Customer.

Repair or replacement as provided under this warranty is the exclusive remedy. This warranty is in lieu

of all other warranties, express or implied.

FCC WARNING STATEMENT

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to

Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a residential environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

FCC COMPLIANCE STATEMENT

This device complies with Part 15 Of The FCC Rules. Operation of this device is subject to the

following two conditions: (1) This device may not cause harmful interference. And (2) This device must

accept any interference received, including interference that may cause undesired operation.

CANADIAN DOC STATEMENT

This digital apparatus does not exceed the Class B limits for radio noise for digital apparatus set out in the

Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de las classe B prescrites dans le Réglement sur le brouillage radioélectrique

édicté par les ministère des Communications du Canada.

CE STANDARDS

Testing for compliance to CE and FCC requirements was performed by an independent laboratory. The

unit under test was found compliant to Class B.

UL/CSA

This product is recognized per Underwriter Laboratories and Canadian Underwriter Laboratories 1950.

TABLE OF CONTENTS

SECTION 1. FEATURES AND SPECIFICATIONS.....................................................................................1

CONFIGURATIONS..................................................................................................................................1

SPECIFICATIONS ....................................................................................................................................1

REFERENCE DOCUMENT ......................................................................................................................2

SECTION 2. INSTALLATION ......................................................................................................................3

MOUNTING...............................................................................................................................................3

CONNECTORS.........................................................................................................................................4

TIMING......................................................................................................................................................5

DATA.........................................................................................................................................................6

STROBE....................................................................................................................................................6

CARD PRESENT ......................................................................................................................................6

FIGURES

Figure 1-1. 90-millimeter Compatible Swipe Reader --------------------------------------------------------------------vi

Figure 2-1. Reader Mounting Dimensions --------------------------------------------------------------------------------- 3

Figure 2-2. Timing --------------------------------------------------------------------------------------------------------------- 5

TABLES

Table 2-1. I/O Connector for Single Track, 5 Pin------------------------------------------------------------------------- 4

Table 2-2. I/O Connector for Dual Track, 7 Pin--------------------------------------------------------------------------- 4

Table 2-3. I/O Connector for 3 Track, 9 Pin ------------------------------------------------------------------------------- 5

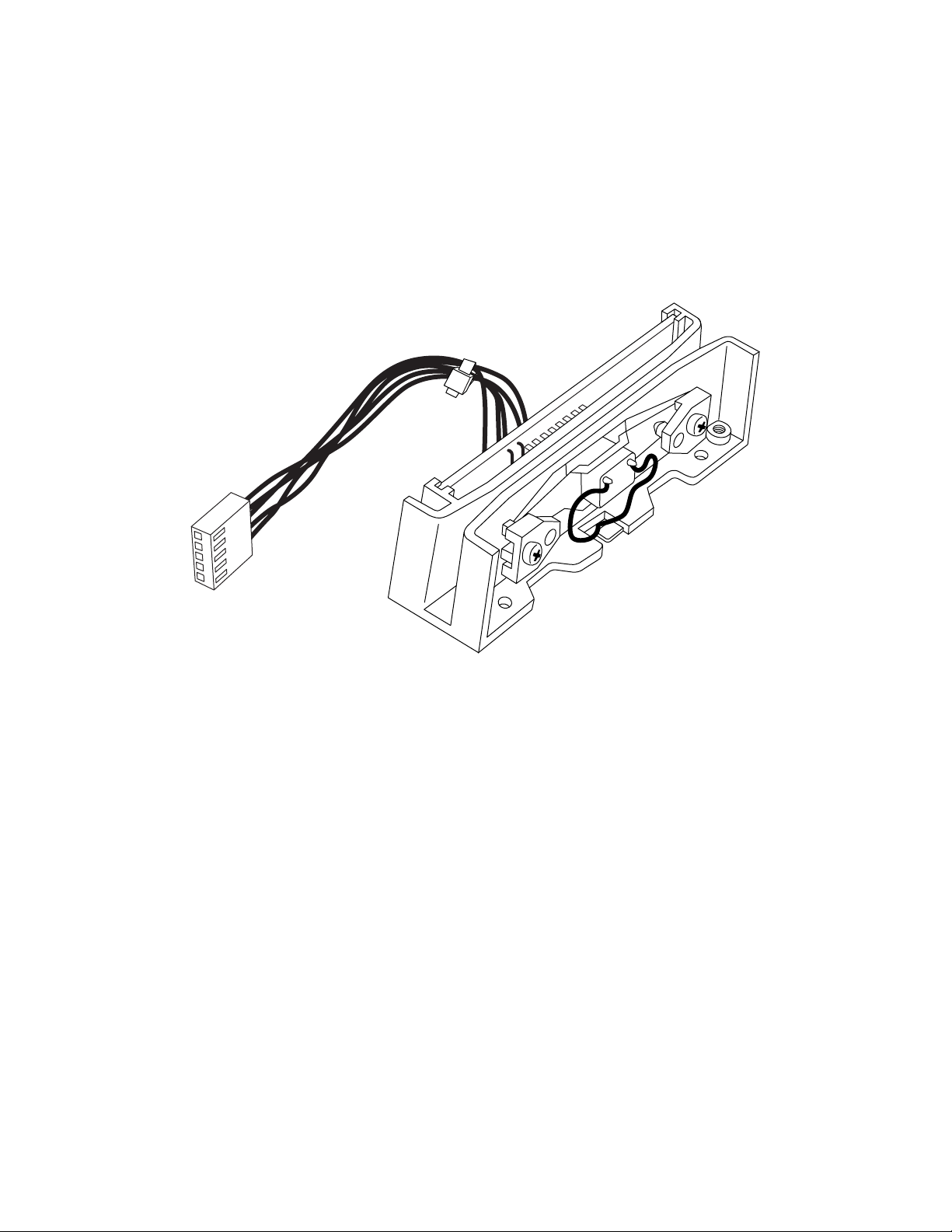

Figure 1-1. 90-millimeter Compatible Swipe Reader

SECTION 1. FEATURES AND SPECIFICATIONS

The 90-millimeter OEM Swipe Reader has a TTL level interface and is designed for use in retail,

access control, and time and attendance environments. This Reader is in compliance with

industry specifications, including ANSI/ISO Standards 7810, 7811-1 through -6, 7812, 7813, and

AAMVA. The Reader can be customized. Bidirectional read capability is available.

CONFIGURATIONS

Part Number Read Color Cable Length

Integral Electronics,

Single Track without Cover

21045001

21045002

Track 1

Track 2

Black

6”

Integral Electronics,

Dual Tracks without Cover

21045011

Tracks 1 & 2

Black

4”

Integral Electronics,

3 Tracks without Cover

21045034 Tracks 1,2, & 3 Black 5”

SPECIFICATIONS

IEC:

Meets or Exceeds

Requirements for:

IEC 1000-4-2 ESD (Electro Static Discharge)

IEC 1000-4-3 Radiated EMC Field (2X requirement)

IEC 1000-4-4 Electrical Fast Transient Burst requirement

(transmission on I/O cable)

Flammability Meets UL94V-0

Recording Method Two-Frequency Coherent Phase (F2F)

Speed Card speed through the unit may vary from:

2 to 125 in/s at 75 bpi (5.1 to 318 cm/s at 29.5 b/cm)

2 to 60 in/s at 210 bpi (5.1 to 152.4 cm/s at 82.7 b/cm)

Power Requirements Single Track: 2.7 to 5.5VDC at 1mA, typical

Dual Track: 2.7 to 5.5VDC at 2mA, typical

3 Tracks: 2.7 to 5.5VDC at 3mA, typical

Output Signal Levels Vol = 0.4V at 2mA

Voh = Vcc -0.5V at -2mA

Operating Temperature -30oC to 70o C

Operating Humidity 10% to 90% relative humidity

Life 300,000 passes Single Track

1,000,000 passes Multi-Track

MTBF Electronics 125,000 h

Dimensions Length: 3.54" (90.0mm)

Height: 0.95" (24.13mm)

Width: 0.88" (22.4mm)

Cable Length: Single Track: 6" (150mm)

Dual Track: 4" (101.6mm)

3 Track 5" (127mm)

Connector See Section 2, Connectors

Colors available Black, Standard

90-millimeter Compatible Swipe Reader

REFERENCE DOCUMENT

I/O Interface for TTL Swipe Readers, Technical Reference Manual, P/N 99875148

SECTION 2. INSTALLATION

This section consists of installation and checkout of the Reader.

MOUNTING

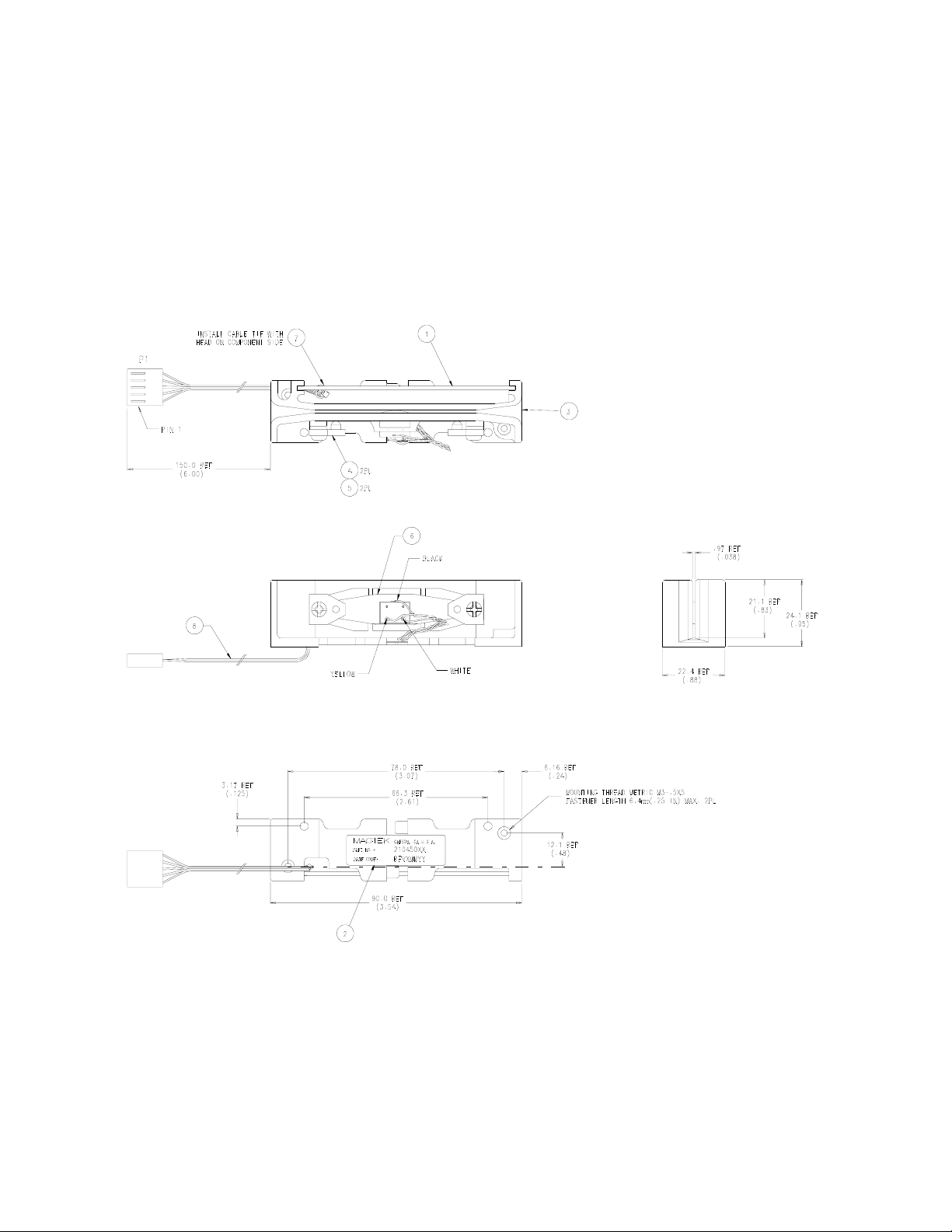

The dimensions for mounting without the cover are shown in Figure 2-1.

Figure 2-1. Reader Mounting Dimensions

90-millimeter Compatible Swipe Reader

CONNECTORS

Single Track I/O Connector is shown in Table 2-1, and the Dual Track I/O Connector is shown

in Table 2-2.

Table 2-1. I/O Connector for Single Track, 5 Pin

Pin Number Color Signal

Connector for Single Track, 5 Pin 1 Red Vcc

Molex 5 Pin 2 Black GND

22-01-2051 3 Orange DATA

0.100 inch Contact Spacing 4 Brown STROBE

Mates to Molex 22-05-2051 5 Green CARD PRESENT

Note: Vcc = 2.7 to 5.5 VDC

Table 2-2. I/O Connector for Dual Track, 7 Pin

Pin Number Color Signal

Connector for Dual Track, 7 Pin 1 Red Vcc

2 Black GND

3 Orange DATA (Tk 2)

Molex 7 Pin 4 Brown STROBE (Tk 2)

22-01-2071 5 Green CARD PRESENT

0.100 inch Contact Spacing 6 Yellow STROBE (Tk 1)

Mates to Molex 22-05-2071 7 White DATA (Tk 1)

Note: Vcc = 2.7 to 5.5 VDC
