Operation

and Installation

Manual

AT449150

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

Please take the time to read all of the information in this manual. Familiarity with operation and

Introduction

Index

Button Locations and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sound Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Using a Device with 3.5mm Output

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bluetooth Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Radio Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WIRE Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ALARM/CLOCK Operations

installation procedures will help you obtain the best possible performance from your new

Entertainment Center.

Button Locations and Functions

4. Play/Pause Button (

Bluetooth Mode: Press to pause playback.

MENU Button: Press to toggle between: bass,

treble, balance, fader, equalizer, area, boost

local/distance ,MO/ST ,DISP on/off ,alarm

6.Track Buttons:

Radio Mode: Press for automatic seek up or

seek down of radio stations. Press and hold

to activate manual tuning.

olume: Press to increase or decrease the

volume level

Display Area: This area displays mode infor-

mation, in the radio mode the radio frequency

and in IPOD and supported Bluetooth modes

song information is displayed.

10.

3.5mm Jack: Plug a cable into the 3.5mm jack

then into a device (MP3 player or phone) with

a 3.5mm socket. The unit will not control the

device, it simply allows the audio to be played

through the system.

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

12 13 14

Power/Mute Button ( MUTE):

Mute:When the unit is on press and

release this button to mute the audio,

press again to restore the audio.

2. CLOCK Button:

Press to switch between information

display and clock.

hold the button clock adjust setup

3. ALARM Button:

Press to switch between information

display and alarm clock.

hold the button alarm clock adjust setup

Power: Press to turn the unit on when

the unit is off, press and hold the button

to turn the unit off.

Radio: Recalls a memorized radio

station, and programs a radio station

into memory

Bluetooth Mode: Press to select the next or

previous tracks.

8. BT/AUX :

Press to select between input sources

BT and AUX

settings.

11. AM/FM:

Press to select between input band

FM and AM

12. 12~14 Button:

Radio: Recalls a memorized radio

station, and programs a radio station

into memory

Sound Controls

Volume:

Increase the volume by pressing the VOL

button. Decrease the volume by pressing the

VOL button.

Display

Increase

Decrease

General Operations

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

Power On:

Press the / button to turn the

entertain ment center on.

mute

Power Off:

Press and hold the / Mute button for 2

sec onds to turn the unit off.

Mute:

When the unit is on press and

release this button to mute the audio,

press again to restore the audio.

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

Sound Controls (Continued)

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

Bass, Treble, Balance, Fader and Equalizer Control

Select the desired sound mode by pressing the MENU button. The modes will be displayed in the following

order: Bass, Treble, Balance, Fader, Equalizer, Area Setting, Loudness, Distance/Local and Volume. After

5 seconds of inactivity control reverts back to volume control.

Bass:

Select the Bass mode by pressing the MENU

button

and “BAS 0” will appear in the display. Increase the

Bass by pressing the VOL

button. Decrease

the Bass by pressing the VOL

button.

Treble:

Select the Treble mode by pressing the MENU

until “TRE 0” appears in the display. Increase the

Treble by pressing the

VOL

button. Decrease

the Treble by pressing the

VOL

button.

Balance:

Select the Balance mode by pressing the MENU button until “BAL L-R” appears in the display.

Adjust the Balance to the right speakers by pressing the

button. Adjust the Balance to the

left speakers by pressing the button.

VOL+

VOL-

R -L = Equal sound Right and Left.

R 10R = Right speakers only.

L 10L = Left speakers only.

Adjustment

Buttons

Charge Only

Sound Controls (Continued)

Fader:

Select the Fader mode by pressing the MENU

button until “FAD F_R” appears in the display.

Adjust the Fader to the front speakers by pressing the VOL+

button. Adjust the Fader to the

Rear speakers by pressing the VOL-

button.

-R = Equal sound Front and Rear.

F 10F = Front speakers only.

R 10R = Rear speakers only.

Equalizer (EQ):

Select the Equalizer mode by pressing the MENU

button until “DSP OFF” appears in the display.

button. Select between: Pop, Jazz, Rock, Classic

and Equalizer Off (DSP OFF).

Note: When an Equalizer setting is selected ( Classic) both the Bass and) Treble mode will become

To change the equalizer setting press the VOL+

inactive and can not be selected. To change the bass and treble settings set the Equalizer to .

“DSP OFF”

Boost will boost high and low tones at low volume levels. To turn on boost press the MENU

BOOST:

button until “boost off ” appears in the display. Press the VOL+ button and “boost” will

appear in the display. boost off mode is now activated.

Mute:

Press the MUTE

button to mute the volume level.

Press the MUTE button again to restore the

Note: If the unit is in either the Bluetooth

mode pressing the

button will pause play

back. Press the

button again will resume

playback.

volume.

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

Using a Device with 3.5mm Audio Output

Inserting a Device with 3.5mm Audio Output

Jack into Docking Station:

Selecting the Input Mode:

1.Press the BT/AUX button until “AUX IN”

appears in the display.

2.Use the controls on the entertainment center

to adjust the volume.

Note 1: The unit will not automatically switch

to “AUX IN ” mode when the device is initially

connected to the 3.5mm cable. Select “AUX IN ”

using the BT/AUX

button.

Note 2: The entertainment center will not control

the device it just allows for the audio from the

device to play through the entertainment center.

Note 3: For optimum sound quality make sure the

media volume on the device is set at 75% or greater.

3.5mm CD_J Cable

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

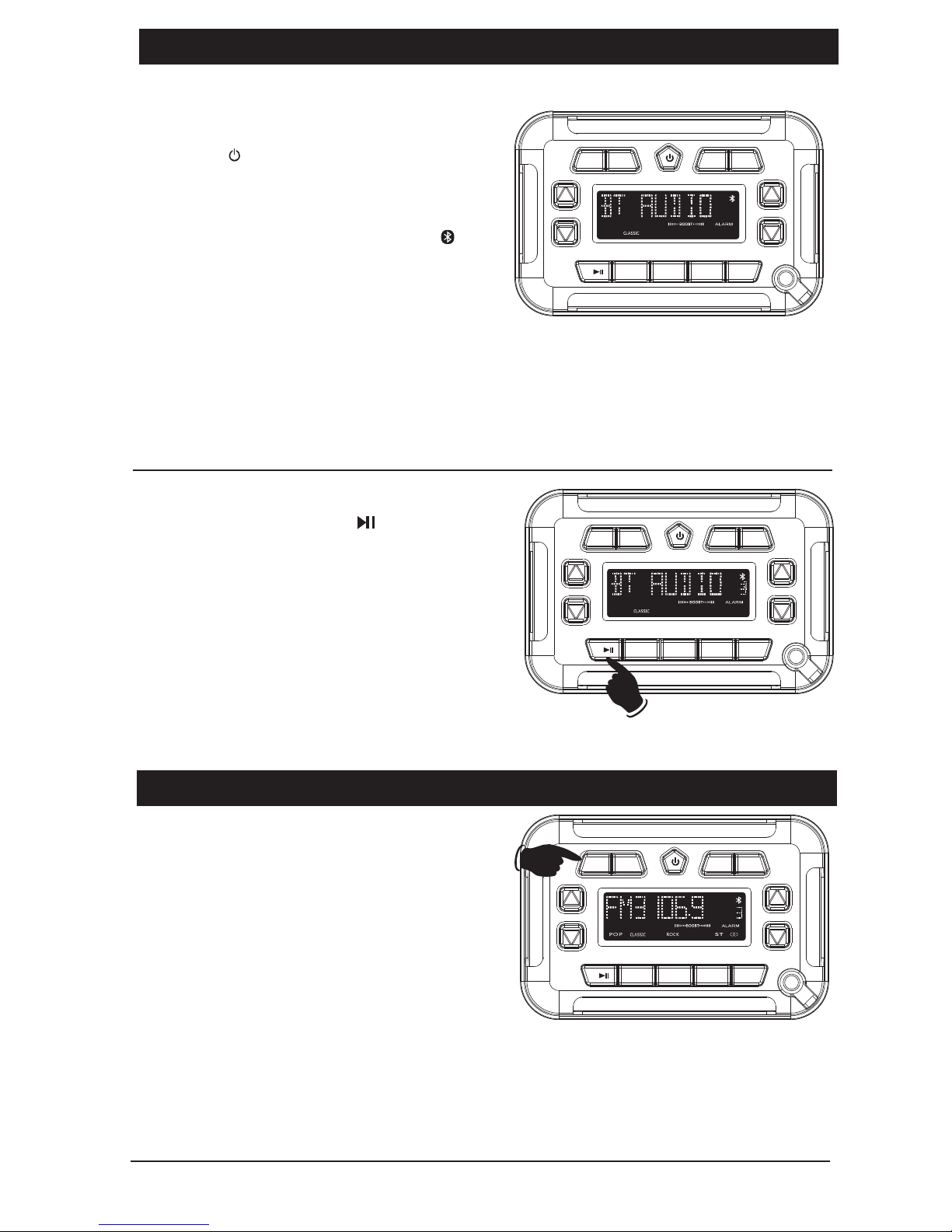

Bluetooth Operation

Pairing Bluetooth Devices:

1. Open the Bluetooth setup program on the

device and activate the Bluetooth feature. mobile

Press the

button to turn on the entertainment

3. From you mobile device scan for available devices.

Select ”AT JD ” to connect to the unit.

When the mobile device has been paired “ ”

will

appear in the entertainment center’s display

Press the

BT/AUX

button until “BT AUDIO” appears in

the display. Bluetooth audio from your mobile device

can now be played through the entertainment center.

Note 1: A previously paired Bluetooth mobile device

will automatically connect to the entertainment center when “BT AUDIO” is selected using the

(if it is within range).

Note 2: If the Bluetooth mobile device is already paired with the entertainment center, select

“AT JD ” on your phone and touch “Connect”.

Bluetooth Operation:

Play/Pause Button:

Press the

button to pause the

Bluetooth playback. Press again to resume playback.

Note: The Entertainment Center display will not

show the playback is pause. The mobile device will

show that the playback is paused.

Changing the Track:

Press the TUNER+

button to select a higher track.

Press the TUNER -

button to select a lower track.

Sound Controls: Use the sound controls on the main

unit to adjust the volume and sound quality.

Note: For optimum sound quality make sure the

media volume on the device is set at 75% or greater.

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

center.

BT/AUX button

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

Radio Operations

Selecting the AM/FM Radio Mode:

Press the AM/FM

button until “RADIO” appears

in the display along with the radio will appear

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

in the display. After a brief moment “FM or AM”

frequency.

Radio Operations

Manually Tuning in a Radio Station:

Press and hold the TUNER+ button until

“MANUAL” appears in the display.

Then press

the TUNER+ button to manually tune to a

higher radio station or press the TUNER-

button to manually tune to a lower radio

Note: After 5 seconds of inactivity control

reverts back to scan tuning. “AUTO” will be

displayed in the LCD.

Hold

Tuning in a Radio Station Using Seek:

Press the TUNER+ button and the tuner will

seek up to the next strong station and stop

seeking, then start playing.

Press the TUNER- button and the tuner will

seek down to the next strong station and

stop seeking, then start playing.

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

Higher

Lower

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

station.

Stereo/Mono Operation:

Note: “ST” will appear in the display when a FM

stereo station is being received.

For weaker FM stereo stations selecting mono

reception usually improves reception.

To switch from stereo to mono reception hold

press the MENU button until “STEREO”

appears in the display.

2. Press the VOL+ button and

“MONO” will

appear in the display.

Note: The unit will leave feature programing after

5 seconds of no button activity.

Stereo Reception Indicator

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

When scanning for station to eliminate weaker

fringe stations change the radio reception from

Distance (DX) to Local (LOCAL).

To switch from distance to local reception press

the SEL button until “DX” appears in the display.

2. Press the VOL+ button and

“LOCAL” will

appear in the display.

Note: The unit will leave feature programing after

5 seconds of no button activity.

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

Switching from US to Europe Radio Tuning

Note: Do not change if using in North America.

1. Press the MENU button until “AREA USA” appears in the display.

Press the VOL+ button and

“AREA EUR” will appear in the display.

Note: The unit will leave feature programing after 5 seconds of no button activity.

Distance/Local Reception Operation:

ALARM Reception Operation:

CLOCK Reception Operation:

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

VOL TUNER

MUTE

AM/FM

AUX/BT

ALARM

CLOCK

Setting the Clock:

2: When hold press CLOCK button

again until Time adjudt ,

3:press VOL (+)

or press any

button to finish time setting.

Press and hold the CLOCK button until

the time starts flashing.

to adjust the hours.

to adjust the minutes.

After waiting a few seconds the unit will

exit clock programming.

press VOL (-)

1:Hold press MENU button until display

ALARM OFF, than press VOL (+/-) to open

ALARM ON. LCD on display“ ALARM”

2: press ALARM button to display time,

3: hold press ALARM button again, when

ARLAM blink, adjustment hour VOL (+) and

minute VOL (-) to setting correct time. After

complete the adjustment, wait for 8 sec to

automatically set the time or press any

button to finish time setting.

Setting the ALARM :

Speaker Connections

External Automotive

Type Antenna

(Optional)

White/Black Wire

Left

Front

Speaker White Wire

Gray/Black Wire

Gray Wire

Right

Front

Speaker

Right

Rear

Speaker

Violet/Black Wire

Violet Wire

Green/Black Wire

Green Wire

Left

Rear

Speaker

Blue WireTrigger for Amp (+12VDC)

Black Wire Ground

Red Wire (+) to 12 Volt Ignition

10 Amp

Fuse

Gray Wires Audio Out

Right

Left

Wiring Harness

Model: SPA-HAR

(Sold Separately)

Speaker Connections

FCC Statement:

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate the equipment.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

Table des matières

Autres manuels Magnadyne Récepteur de voiture

Magnadyne

Magnadyne M3500DVD Operation and Fiche technique

Magnadyne

Magnadyne M9970 Manuel utilisateur

Magnadyne

Magnadyne M9999 Manuel utilisateur

Magnadyne

Magnadyne M9900DVDS-QR Manuel utilisateur

Magnadyne

Magnadyne M6 Manuel

Magnadyne

Magnadyne M3100CD Manuel utilisateur

Magnadyne

Magnadyne M9850 Manuel utilisateur

Magnadyne

Magnadyne Linear LS6100 Series Manuel utilisateur

Magnadyne

Magnadyne RV5055 Fiche technique

Magnadyne

Magnadyne M9900CDS Manuel utilisateur

Magnadyne

Magnadyne M9800 Manuel utilisateur

Magnadyne

Magnadyne M9900-1 Manuel utilisateur

Magnadyne

Magnadyne RV5060 Fiche technique

Magnadyne

Magnadyne M1-LCD-2 Fiche technique

Magnadyne

Magnadyne Linear Series Manuel utilisateur

Magnadyne

Magnadyne M9900 Manuel utilisateur

Magnadyne

Magnadyne RV5090 Guide de démarrage rapide

Magnadyne

Magnadyne M3300CD Fiche technique

Magnadyne

Magnadyne RV5080 Fiche technique

Magnadyne

Magnadyne M1-CD Fiche technique

Magnadyne

Magnadyne M4-LCD Fiche technique

Magnadyne

Magnadyne M9900CD Manuel utilisateur

Magnadyne

Magnadyne M1-LCD Fiche technique

Magnadyne

Magnadyne Sirius M9900DVDS Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
