Magma - Camera MKI serie installation manual
Precautions:
Pay utmost attention if you install the camera into the driver’s compartment.
Use only in right vehicles.
Make the correct connection.
Do not damage pipe or wiring when drilling holes.
Arrange the wire without tightening it or pinched by a sharp metal edge.
Don’t install the camera in locations which might hinder vehicle operations and don’t install in
locations with any moisture. Use the installation materials provided with the camera.
Warning ! Wrong installtion may damage the vehicle electronics ! Pay utmost attention on
instructions of the vehicle manufacturer. This camera is developed for motor vehicles only.
Environmental Reference:
Old electronic devices don’t belong into the bin.
If you want to dispose the equipment later, please remove all cables
and dispose the equipment in a collecting system planned for it.
You can dispose this device together with your old car, too.
You don’t have to remove it in this case.
The packing can by recycled. Dispose the packing in a collecting
system planned for it.
Magma Automotive Molenheidseweg 10A 5451 HD Mill 0485-4713114 REV00
www.magmaautomotive.com
Type en drukfouten voorbehouden
Attention:
In some vehicles the wire of the reverse light is digitally monitored by the
on-board electronics, what can cause disturbances in the rear view camera.
In this case, please use the MA-PNF-RVC (buffer / filter ) and install it in
between the reverse light wire and the Blue wire (power cable) of the
camera.
Other sollution is to power the rear view camera by the ignition controlled
wire (+15) and switch the monitor or headunit by the reverse light wire.

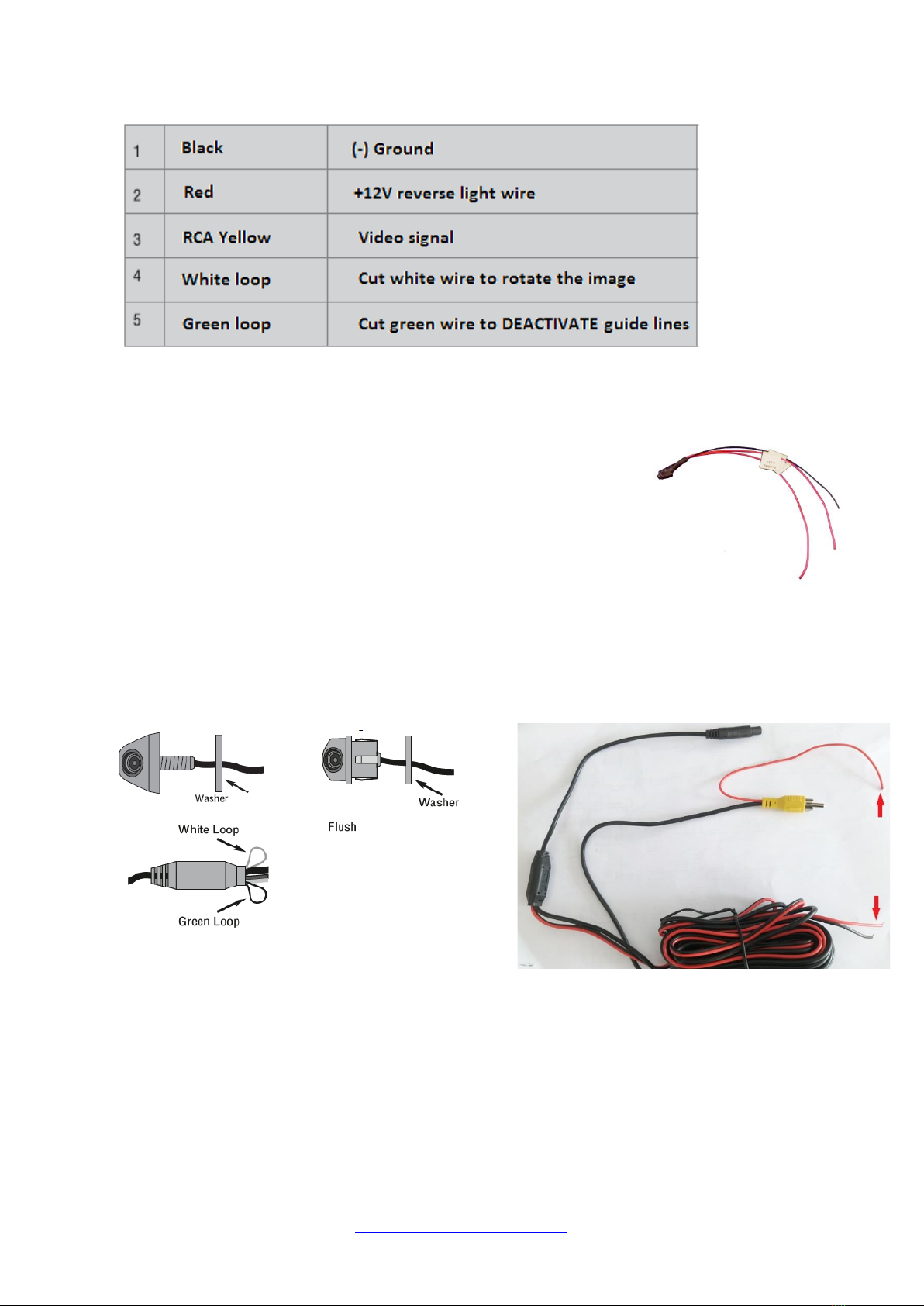

Installation:
Note:
The Red power cable which is molded to the RCA videoplug and the video cable, is used to power
the camera. Please use one of these 2 Red wires only, and isolate the unused Red power cable !
MA-PNF-RVC
