MAGIMIX LE MINI Manuel utilisateur

RECIPE BOOK

INSTRUCTIONS FOR USE

Le Mini

The Product 2

Standard accessories 3

Fitting the bowl 4

Fitting the accessories 5

Removing the bowls and accessories 7

Using the citrus press 8

Cleaning 9

How to work the MAGIMIX 10

Fundamental rules 11

Le Mini & Le Mini Plus 14

How to use the bowls: examples 15

How to use the discs: examples 16

Index to recipes 17

How to follow the recipes 20

Before using your appliance 80

ELECTRICAL INSTRUCTIONS

The warning regarding the fitting of a plug is applicable for UK only.

WARNING: Always replace the fuse cover of the fitted plug, never use the plug with the fuse

cover omitted. If a replacement fuse cover is required, ensure it is the same as the one visible

on the pin face of the plug (i.e. RED or ORANGE).

Fuse covers are available from: BBS Ltd

Po Box 110

Farnham Surrey GU104XL

Phone : 01252 727755

Use a 13A fuse approved by ASTA to BS1362, marked thus

For chromed models only:

WARNING: a plug with a bared flexible cord is hazardous if engaged in a live socket. If the

fitted plug has been cut from the power supply cord, it should be destroyed and replaced with

a three pin plug in accordance with the following code:

BLUE: neutral BROWN: live GREEN/YELLOW: earth

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked

with the letter “N” or coloured BLUE or BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is

marked with the letter “L” or coloured BROWN or RED.

The wire which is coloured GREEN/YELLOW should be connected to the

terminal marked with the letter “E”, or by the earth symbol or coloured

GREEN or GREEN/YELLOW.

ASA

•

CONTENTS

WARNING

BEFORE USING YOUR APPLIANCE

• Please ensure that the voltage indicated on the base of

the machine corresponds with the mains voltage in your

home.

• For Chromed Mini Plus, the machine must always be

connected to an earthed socket.

• Always use the mains cord supplied by the manufacturer.

• If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified

person in order to avoid a hazard.

Pusher

Lid

MINI - BOWL

(on the Mini Plus)

Handle

Control panel

Feed tube

Locking mechanism

Bowl

Motor spindle

Motor unit

Stainless steel double-

bladed knife.

4 mm grating disc and disc

support.

(optional extra in UK)

Mini-Bowl with stainless steel

double-bladed knife (Mini Plus only)

Egg whisk / Spatula

Citrus press with anti-splash arm

and 2 cones for small and large

fruit (1 cone fits inside the other)

Reversible stainless steel slicing /

grating disc and disc support.

STANDARD ACCESSORIES

1. Place the bowl on the motor unit with

the handle to the left hand side.

3. Place the chosen accessory in the

bowl (see details on following page)

5. Turn the lid in an anticlockwise direction

until the locking device clicks into position

at the top of the handle.

The safety rod is now depressed and

in contact with the motor.

4. Position the lid, completely flat, by

placing the feed tube to the left of the

handle.

2. Turn the bowl anti-clockwise as far

as it will go making sure it firmly locks

in position. The handle will now be at

the centre of the motor unit.

The Mini is now ready to use.

IMPORTANT

If the lid is not properly locked

into position or if it is opened

during preparation, the appliance

will cease to function, even if the

ON switch has been pressed.

FITTING THE BOWL

Stainless steel blade

Place the blade directly in the bowl,

over the motor spindle.

Put on the lid and lock into position.

To slice

Place the disc with its slicing edge

uppermost.

Lower the support, fitted with a disc,

onto the motor spindle in the centre of

the bowl. Put the lid on and lock into

position.

To grate

Place the disc with its grating edges

uppermost.

FITTING THE ACCESSORIES

Discs

Place the selected disc on the

support, turning it gently a little

way in an anticlockwise direction.

WARNING

Always handle the highly shar-

pened stainless steel blade and

discs with care.To mount or

separate the disc and support,

hold the disc at the hole at the

edge of the disc with the cut-

ting edge facing away from

your fingers.

FITTING THE ACCESSORIES

2.Mini-Bowl (on Mini-Plus model)

Fit over the central spindle inside

the large bowl.

Blade safe storage box

This compact box can hold a maxi-

mum of accessories in a minimum of

space and fits easily into a drawer.

Egg whisk

1. Place the egg whisk directly in the

bowl on the motor spindle.

Put the lid on and lock it into position.

3. The small metal blade also fits onto

the support and locks into place when

rotated slightly to the left/anticlockwise

direction.

4. Place the assembled accessories

on the motor spindle in the

Mini-bowl.

5. Put the lid on completely flat and

engage the locking mechanism at the

top of the handle.

REMOVING THE BOWLS AND ACCESSORIES

1. Stop the motor and remove the lid

by turning it clockwise.

3.Carefully remove the Mini-blade,

before putting the Mini-bowl down.

5.Next, remove the support by rotating it,

retaining a firm grasp on the disc. The disc

can also be left fixed to the support for

cleaning.

4.Carefully remove the blade, holding

the rim away from the blades.

2 You can then lift out the Mini-Bowl,

keeping the Mini-blade inside.

N.B. : Before removing the blade or the egg whisk, free the bowl, lift it up,

keeping the accessory in the middle, then remove the accessory.

Blade-safe storage box

The accessories are stored horizontally

and kept in place in individual spaces.

USING THE CITRUS PRESS

5. Switch on the machine and press

down gently on the arm untill all the

juice is extracted.

4. Place the fruit on the cone, pressing

down gently to position it, then lower

the arm.

6. Remove the citrus press by turning

it clockwise before lifting it off.

3. Lower the cone onto the motor

spindle. For lemons, use the small

cone. For oranges and grapefruits, fit

the large cone on top of the small one.

REMOVING THE ARM : RAISE THE ARM, THEN HOLD THE UPPER PART WITH ONE

HAND WHILE THE OTHER HAND PULLS THE BASE OF THE CLIP FREE AT THE BOT-

TOM OF THE BASKET. THE WHOLE ARM CAN THEN BE LIFTED OFF.

Citrus press

1. Place the hinged end of the anti-

splash arm on the rim of the filter basket

(to the right of the locking device), then

press firmly on the base of the clip at the

bottom of the basket, to fix it into position.

2. The citrus press fits on top of the bowl

and, like the lid, has a locking pin. Turn

the filter basket anti-clockwise until firmly

locked into position.

CLEANING

Use a soft sponge with hot water and

washing-up liquid to clean the attach-

ments. If using a dishwasher, select a

short, low temperature programme.

To clean the disc, carefully twist off the

disc support, keeping a firm hold of the

disc.

The blade, spindle and top should

then be re-assembled and stored

together in the storage box.

Clean the citrus press immediately

after use with hot water and washing-

up liquid to prevent drying pulp

sticking to it.

To clean the bases of the stainless

steel blade and the egg whisk, use the

short side of the spatula.

WARNING

Always handle the highly sharpened stainless steel blade and discs with care.

The whole egg whisk comes apart for

easy cleaning.

Table des matières

Autres manuels MAGIMIX Robot culinaire

MAGIMIX

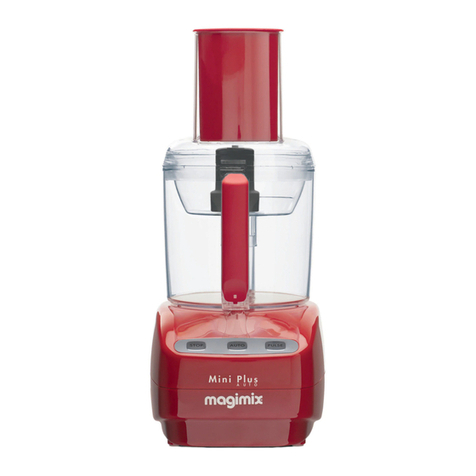

MAGIMIX Mini Plus Manuel utilisateur
