IMPORTANT SAFETY WARNINGS

The Magellan eXplorist TRX is an Off-

Road vehicle navigation aid designed to

assist you in driving on your route and

arriving to your selected destinations.

Please check with your state or local law

enforcement for applicable regulations

regarding mounting to the windshield.

The driver should enter data or program

the Magellan device only when the

vehicle is stopped. Only a vehicle

passenger should enter data or program

the device while the vehicle is moving.

It is your responsibility to comply with all

trafﬁc laws.

Every attempt is made to ensure that the

database is accurate. However, roadways,

points of interest (POIs), and business

and service locations may change over

time.

Keep the device safe from extreme

temperature conditions. For example,

do not leave it exposed to direct sunlight

for an extended period of time. The

minimum operating temperature is 14ºF

(-10ºC), and the maximum operating

temperature is 140°F (60°C).

Take care when mounting the device

in your vehicle, whether using the

windshield mount or other mount or

accessories, so that the device does

not obstruct the driver’s view of the

road, interfere with the operation of the

vehicle’s safety devices such as airbags,

or present a hazard to occupants of

the vehicle should the device become

dislodged while driving. Comply with

all local, state, and federal laws before

mounting the device in your vehicle.

You assume the risks associated with

damage to your vehicle or vehicle

occupants as the result of your choices in

mounting the device.

The battery is rechargeable and should

not be removed. In the event it should

need to be replaced, please contact

Magellan Technical Support or visit

http://support.magellangps.com.

Charging the Magellan eXplorist TRX7

An AC adapter is included with your

eXplorist TRX7. If you need to replace

your AC adapter, use a 3.5V-5V 2A

charger.

Only use the car charger approved for/

supplied with your eXplorist TRX7. Use of

another type of car charger will result in

ﬁre or electric shock.

For safety reasons, the battery in your

eXplorist TRX7 will stop charging when

the ambient temperature is less than

32°F (0°C) or more than 113°F (45°C).

It will take approximately 4 hours of

charging the eXplorist TRX device

through the vehicle power adapter or

optional AC adapter to obtain a full

battery charge. It is recommended that

you charge the battery initially for at least

2 hours.

Use only the charger approved for your

Magellan eXplorist TRX device.

Estimated usage of the eXplorist TRX

Section TitleSafety

ReferencesSafety

on battery power is approximately 4-6

hours.

FCC RF Radiation Exposure Statement

1. This Transmitter must not be co-

located or operating in conjunction with

any other antenna or transmitter.

2. This equipment complies with FCC

RF radiation exposure limits set forth

for an uncontrolled environment. This

equipment should be installed and

operated with a minimum distance of 20

centimeters between the radiator and

your body.

Wi-Fi 5G Band 1 is for indoor use only.

Canada, Industry Canada (IC) Notices

This device complies with Industry

Canada licence-exempt RSS standard(s).

Operation is subject to the following

two conditions: (1) this device may not

cause interference, and (2) this device

must accept any interference, including

interference that may cause undesired

operation of the device.

Canada, avis d’Industry Canada (IC)

Le présent appareil est conforme aux

CNR d’Industrie Canada applicables

aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux

conditions suivantes : (1) l’appareil ne

doit pas produire de brouillage, et (2)

l’utilisateur de l’appareil doit accepter

tout brouillage radioélectrique subi,

même si le brouillage est susceptible

d’en compromettre le fonctionnement.

The Magellan logo and Magellan

are registered trademarks of MiTAC

International Corporation, and OneTouch

is a trademark of MiTAC International

Corporation and are used under license

by MiTAC Digital Corporation. All rights

reserved. All other trademarks and

registered trademarks are property of

their respective owners.

All other products and brand names are

trademarks of their respective holders.

No part of this user manual may be

reproduced or transmitted in any form or

by any means, electronic or mechanical,

including photocopying and recording, for

any purpose other than the purchaser’s

personal use, without the prior written

permission of MiTAC International

Corporation.

The information provided in this

document is correct at the time that it is

created. MiTAC International Corporation

assumes no responsibility or liability

for any errors or inaccuracies that may

appear in the contents of this User

Manual.

Magellan Take-Back Program

Magellan’s Take-Back Program provides

a way for customers to recycle certain

Magellan equipment. As part of this program,

all Magellan GPS models will be accepted.

Visit magellanGPS.com for more information.

References

Magellan Explorist TRX7

Magellan eXplorist TRX7 connects you

and your vehicle to superior outdoor

adventure lifestyles experiences.

While off-road, users with Magellan’s

Off-Road GPS Navigation System can

record off-road adventures and log Dirt

Miles, capture and share adventures by

creating tracks and marking waypoints to

share with the eXplorist TRX community,

ﬁnd new trails submitted by other

eXplorist TRX users, share favorite trails

with the community, and more.

It all starts with Magellan eXplorist TRX7.

With the TRX7, you can:

• Search for Trails, Trips, and Points

of Interest (POIs) preloaded into your

TRX7 and easily route to any location.

• Create a Wish List of Trails, Trips,

and POIs for future navigation.

• Track and record Trails and off-

road routes.

• Log detailed waypoints, such as

water, obstacles, and scenic spots,

along a Trail or route.

• Earn achievements as you log Dirt

Miles through the United States and

Canada.

• Create an Account Proﬁle with

customized vehicles and sync your

proﬁle with TRX Web at http://

mytrxjournal.com.

• Connect your proﬁle to Twitter and

Instagram to share your adventures

with the TRX community.

• Keep your own Trail log and access

a database of Trails published by the

TRX user community.

Introduction

References

Getting Started at Home

Connect to Wi-Fi

1. From the Home screen, tap Apps -->

Settings --> Wi-Fi.

2. Tap the On/Off button to turn Wi-Fi on.

3. Select the desired network under Wi-

Fi networks.

4. Enter password (if applicable) and tap

connect.

Your TRX7 is now connected to a Wi-Fi

network.

Refer to Create Your Proﬁle for details

about registering your TRX account.

Getting Started in Your Vehicle

Choose a location

Find a location with a clear view of the

sky.

Clean the surface

Clean the area on the windshield where

you want to mount the device. Allow the

surface to dry.

Install the mounted device

1. Hold the suction cup ﬁrmly against the

windshield surface

2. Push the level towards the base.

3. Screw the AMPS plate on the cradle.

4. Attach the device onto the mount.

Power On

Press the Power button, located on the

right side of the device, to turn the device

on.

Connect to Wi-Fi Hot Spot

1. From the Home screen, tap Apps -->

Settings --> Wi-Fi.

2. Slide the button to the right to turn

Wi-Fi on.

3. Select the desired network under Wi-

Fi networks.

4. Enter password (if applicable) and tap

Connect.

Your TRX7 is now connected to a Wi-Fi

Hot Spot.

Note: Wi-Fi must be ON in order to

synchronize your TRX7 with your TRX

Web account.

Getting Started

Important

Various factors inﬂuence GPS signal

reception. Here are tips to help improve the

signal reception and time to calculate the

current location.

• Leave any enclosed structure (garage,

parking structures, etc.).

• Make sure you have a ‘clear view of the

sky’. Buildings and trees can have an

impact on GPS signal reception.

• Make sure that the device is mounted

where it can have a clear line of sight to

the windshield.

Note: The ﬁrst time the device calculates its

location can take up to 1 minute. Subsequent

times will be 15 seconds on average.

ReferencesOverview

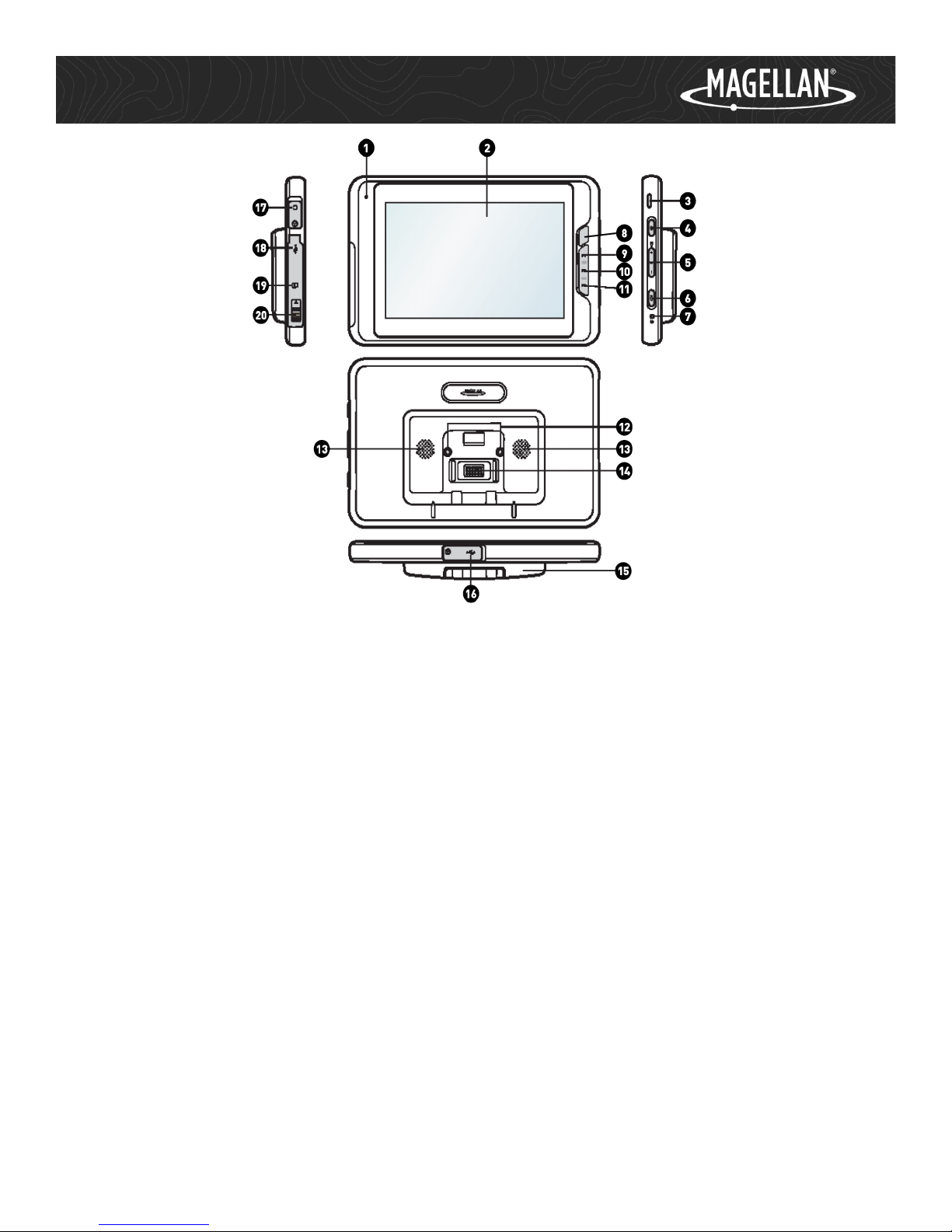

1. Microphone

2. Touchscreen

3. Lanyard attach point

4. POWER button

5. Volume buttons

6. MUTE button

7. RESET button

(unused)

8. Camera button

(unused)

9. BACK button

10. HOME button

11. MENU button

12. Cradle screws

13. Speakers

14. Pogo pins

15. Mount Plate

16. Mini-USB Power port

17. Headphone jack

18. USB port

(unavailable)

19. Memory card slot

20. Cover latch

Note: Use caution when opening the

USB power port and headphone jack

covers to avoid damaging the covers.

Note: The Camera button is not yet

implemented in this release.

References

Powering On the TRX7

The Power On/Off button is located on

the right side of the TRX7 receiver, above

the Volume buttons.

Press the Power button until you hear a

click, then release the button. The Boot

screen displaying the Magellan logo will

appear.

The Boot screen disappears, and the

Lock screen appears, displaying the

time, date, and the Lock icon.

Turning On the TRX7

Slide the Lock icon in any direction to

unlock the device. You will view either the

Home screen or the last screen displayed

when you turned off the TRX7.

Turning Off the TRX7

To lock the device, simply press the

Power button.

To power the device off completely:

1. Press and hold the Power button for 3

seconds.

2. Select Power off from the menu that

appears.

From this menu, you can also:

• Turn the device to Airplane Mode to

deactivate all data connections (Wi-Fi,

Bluetooth, etc.).

• Restart the device.

• Turn the device on Silent mode to turn

off all device sounds.

Note: you can still track your progress

while the device is in Airplane Mode.

Viewing the Battery Level Indicator

The Battery Level is always displayed on

the top right corner of the screen. The

Battery Level is indicated by a battery-

shaped icon that is colored blue based on

the percentage of battery life remaining.

To view more Battery Level details:

1. Slide your ﬁnger downward from the

top right corner of the screen.

2. Tap on the Battery icon, which

displays the percentage of battery

power left in the device.

3. A display screen will appear:

You can tap on any of these options to

display details of each type of battery

use.

The TRX7 can normally function for 4-6

hours on battery when the battery is

charged to 100%.

Fundamentals

References

Checking GPS Status

Both the top left and right corners of

the screen give you access to your GPS

Status.

To view detailed GPS Status:

1. Slide your ﬁnger downward from the

top left corner of the screen.

2. Tap on Location set by GPS.

A display screen will appear with the

following options:

• Access to my location: allows you to

give permission to apps on the device

to use your location information. Tap

On or Off to use this function.

• Location Sources

• GPS satellites: lets apps use GPS on

your eXplorist TRX7 to pinpoint your

location. This option is automatically

selected when you turn On access to

your location.

You can also view detailed GPS Status

from the top right corner of the screen:

1. Slide your ﬁnger downward from the

top right corner of the screen.

2. Tap on Settings.

3. Scroll down the menu that appears to

Location access. This will display the

same options described above.

Volume

You can adjust the volume up and down

using the two Volume buttons on the

right side of the eXplorist TRX7 (under

the Power button).

When you use these buttons, a volume

indicator appears on the screen. You can

also adjust the volume by tapping on

the circle in the volume level and sliding

it left (for volume down) and right (for

volume up).

You can also tap to open a Notiﬁcation

volume level. Slide this indicator left and

right to adjust notiﬁcation volume.

Brightness

1. Slide your ﬁnger downward from the

top right corner of the screen.

2. Tap Brightness.

3. Tap the circle in the Brightness control

indicator and slide the indicator left

(to decrease brightness) and right (to

increase brightness).

Fundamentals

References

Home Screen

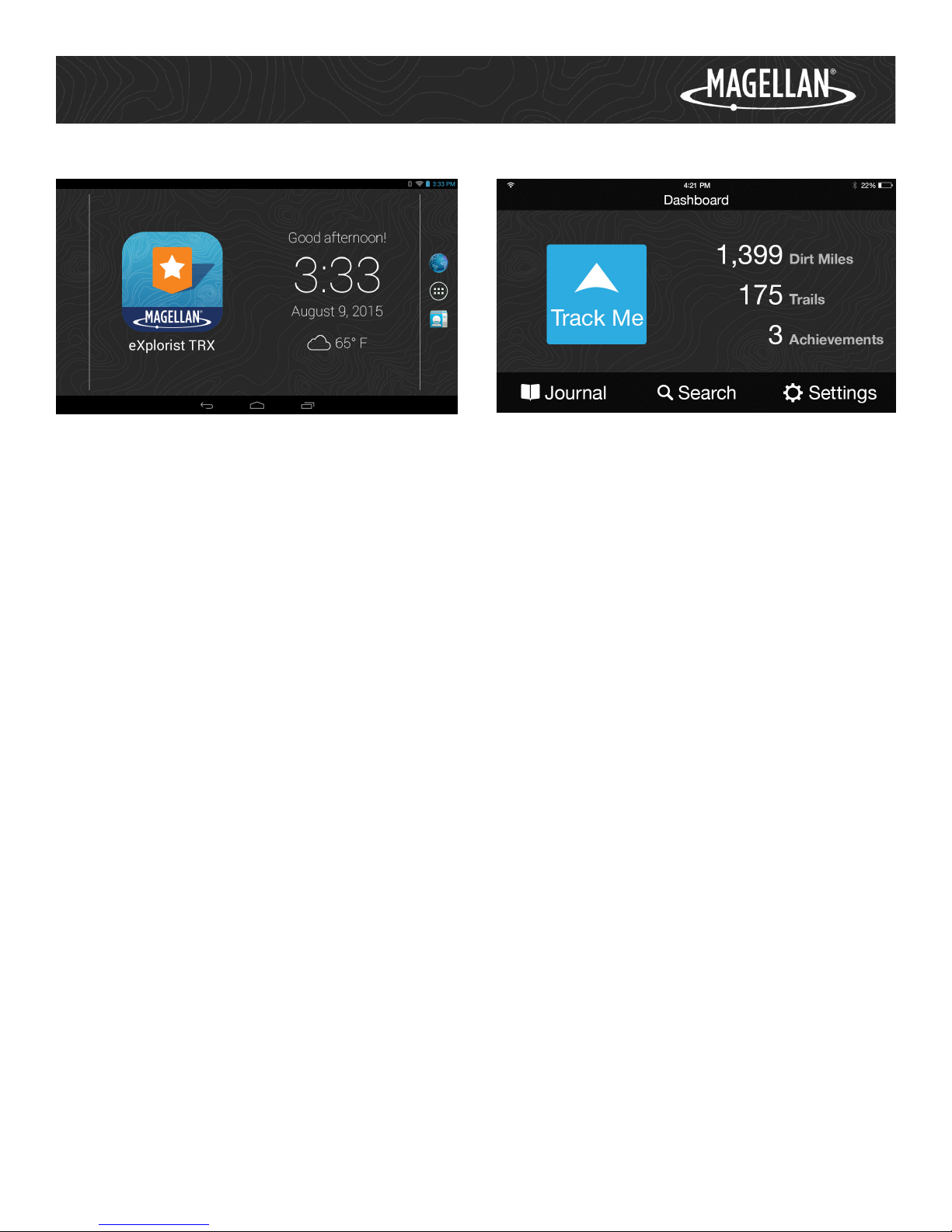

The Home Screen displays the TRX7

Dashboard app, the current time and

date, the weather at your GPS location,

and other basic functions.

The Home Screen allows you to access:

• Magellan eXplorist TRX7 Dashboard

• Internet browser

• Apps, Widgets, and Settings

• Contacts List

Note: eXplorist TRX7 is built on Ulmo Pro

N496(x) Series tablet device hardware.

Please refer to the N497(x) Series User

Manual for detailed information about

the tablet’s technical speciﬁcations,

hardware, memory, connectivity,

troubleshooting, and more.

Note: eXplorist TRX7 uses the Android

4.2.2 “Jelly Bean” software platform.

Please refer to Android Jelly Bean

software documentation for detailed

information about Jelly Bean apps,

widgets, and other user functions.

Dashboard

The TRX7 Dashboard is the central hub

of activity for the use of your TRX7. From

the Dashboard, you can:

• Track Me: Track your progress in real-

time using your device GPS location

• Journal: Manage your Trail Log and

Wish List

• Search: Explore your surroundings

using a Map or List view

• Settings: Access software updates,

your Account Proﬁle, Social Networks,

Achievements, Data/Account Resets,

and view TRX7 Product Information

• View your total number of Dirt Miles,

Trails, and Achievements

You can access the Dashboard by tapping

the ORV app icon on the Home screen.

Home Screen and Dashboard

References

Create an Account on TRX Web

Before using the TRX7 for viewing and

tracking Trails, create an account on

http://mytrxjournal.com to access your

device information online.

1. Select Sign In.

2. Select Create Account.

3. Fill in the following ﬁelds:

4. Select Create Account to conﬁrm

the creation of your new TRX Web

account. A conﬁrmation email will be

sent to your email address inbox.

Once you’ve conﬁrmed your account

through the email you received, return to

your device and complete the following

steps to sync your TRX7 with your new

account:

1. Tap Settings on the Magellan

Dashboard screen.

2. Tap Account Proﬁle and enter the

email address and password that you

used to create your TRX Web account.

3. Tap Connect to log into your account.

Note: Alternatively, tap on Register New

Account to create the account from the

device. However, it is recommended that

you create your account on the TRX Web

online platform.

Refer to Using Your TRX Web Account

Proﬁle Online for more details about

using the TRX Web homepage.

Create Your Proﬁle

Autres manuels pour eXplorist TRX7

Table des matières

Autres manuels Magellan GPS

Magellan

Magellan eXplorist 400 - Wilderness Bundle Manuel utilisateur

Magellan

Magellan Triton 300 Manuel utilisateur

Magellan

Magellan eXplorist 500 - Hiking GPS Receiver Guide de dépannage

Magellan

Magellan GPS Tracker Manuel utilisateur

Magellan

Magellan Blazer12 Manuel utilisateur

Magellan

Magellan Maestro 3220 - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan eXplorist 400 - Wilderness Bundle Manuel utilisateur

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan RoadMate 760 - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan 980588-01 - GPS Companion For Palm V/Vx Mode d’emploi

Magellan

Magellan GiS explorist Pro 10 Manuel utilisateur

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan RoadMate 1412 Manuel utilisateur

Magellan

Magellan eXplorist XL Manuel utilisateur

Magellan

Magellan Maestro 3220 - Automotive GPS Receiver Guide de configuration

Magellan

Magellan ProMark3 Manuel utilisateur

Magellan

Magellan RoadMate RV9490T-LM Manuel utilisateur

Magellan

Magellan RoadMate 760 - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan RoadMate Series Manuel utilisateur

Magellan

Magellan RoadMate 2036 Manuel utilisateur

Magellan

Magellan FX324 MAP Manuel utilisateur

Magellan

Magellan eXplorist 310 Manuel utilisateur

Magellan

Magellan CrossoverGPS Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur

Garmin

Garmin GPSMAP 78 series Manuel utilisateur

Magellan eXplorist TRX7 Manuel utilisateur

Manuels GPS populaires d'autres marques
