MADVAC PS300 Manuel

Print date 07/11/06

Operator’s

Guide

PS300

Compact

Pedestrian Sweeper

Part No 66473-OG

Revision Level 06

General Arrangement 1

Controls 2

Operation 3

Optional Equipment 4

Chapter not used 5

Routine Maintenance 6

Foreword 1

PS300 Operator’s Guide

Foreword

Congratulations on your choice of a Madvac PS300 Pedestrian sweeper to complement

your litter collection operation. This sweeper has been designed and manufactured to

meet the needs of a discriminating buyer for the vacuum collecting of litter.

Safe, efficient and trouble free operation of your Madvac Pedestrian sweeper requires

that you and anyone else who will be operating or maintaining the machine, read and

understand the safety, operation, maintenance and troubleshooting information contained

in the Operator's Manual.

This manual is applicable to all Model PS300 machines built by Allianz Madvac Inc. Use

the Table of Contents or Index as a guide when searching for specific information.

Keep this manual handy for frequent reference and to pass on to new operators or own-

ers. Call your Madvac dealer if you need assistance or information.

OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned

throughout this manual, are as seen from the Operator's position and facing in the direc-

tion of travel.

Foreword 2

PS300 Operator’s Guide

It is important that only Genuine Madvac Spare Parts are used when servicing and main-

taining the sweeper. This is especially important for consumables (filters, brooms, etc.),

as the use of non-genuine parts may cause premature failure and invalidation of warranty.

When carrying out maintenance or part replacement, additional explanatory illustrations

can be found in the Parts Section, which shows and lists hardware, and availability of

spares with the orientation and positions of the various components.

Warnings, Cautions and Notes used in this manual

All copyrights and rights reserved. The reproduction, distribution and utilization of this

document as well as the communication of its contents to others without express authori-

zation is prohibited. Offenders will be held liable for the payment of damages. All rights

reserved in the event of the grant of a patent, utility model or design.

Every endeavour has been made to ensure that the information contained in this Opera-

tors Guide is correct, but due to continuous product development, the Company reserves

the right to alter its contents without notice. This document should not be interpreted as

being part of a formal contract.

For further information and enquiries please contact:

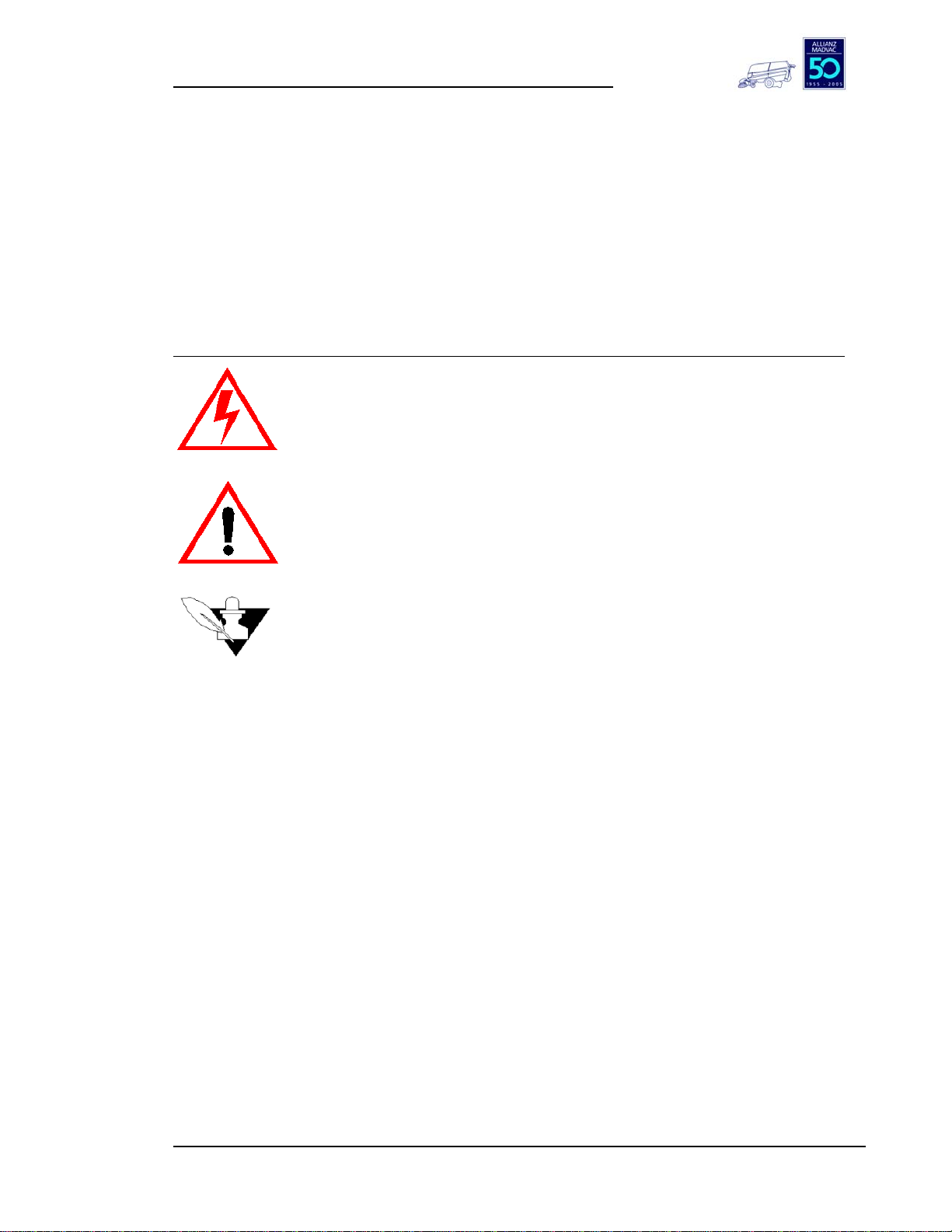

Symbol Heading Significance

WARNING Indicates an imminently hazardous situation that, if not

avoided, will result in death or serious injury. The use of

this symbol is limited to the most extreme situations, typi-

cally for machine components, which for functionality

cannot be guarded.

CAUTION Indicates a potentially hazardous situation that, if not

avoided, could result in death or serious injury. This

includes hazards that are exposed when guards are

removed. This symbol may also be used to alert against

unsafe practices.

NOTE Indicates supplementary information useful for the effi-

cient operation and maintenance of the unit, while not

normally presenting any safety hazards.

Allianz Madvac Inc.

4651 Schaefer Ave.

Chino, CA 91710

USA

1690 Eiffel, Boucherville,

Quebec J4B 7W1

Canada

Toll-Free 1-866-462-3822

Tel.: 1 (450) 616-8100

Fx.: 1 (450) 616-8103

EMail: [email protected]

Web: www.madvac.com

Foreword 3

PS300 Operator’s Guide

INTERNATIONAL SYMBOLS

Conforming to ISO 3767

Graphical symbols are used to indicate the water, fuel and hydraulic oil tank filler ports

and air cleaner servicing instructions.

Their location and descriptions are shown below.

1. Water tank filler ports

2. Hydraulic oil tank filler

3. Fuel tank (diesel) filler

4. Engine air cleaner instructions. Use only genuine Madvac replace-

ment air cleaner elements and refer to Chapter 6 of this guide for

servicing recommendations.

Foreword 4

PS300 Operator’s Guide

Safety Symbol Descriptions

Safety alert symbol

Read Operator’s Guide

Keep clear of brushes

Release radiator cap carefully when hot to avoid scalding

Keep at least 3 feet (1 meter) away from the machine

Wear hearing protection when working in this area

Foreword 5

PS300 Operator’s Guide

SAFETY

YOU are responsible for the SAFE operation and maintenance of your MADVAC.

YOU must ensure that you and anyone else who is going to operate, maintain or work

around the MADVAC be familiar with the operating and maintenance procedures and

related SAFETY information contained in this manual. This manual will take you step-by-

step through your working day and alerts you to all good safety practices that should be

adhered to while operating the Vacuum.

Remember, YOU are the key to safety. Good safety practices not only protect you but

also the people around you. Make these practices a working part of your safety program.

Be certain that EVERYONE operating this equipment is familiar with the recommended

operating and maintenance procedures and follows all the safety precautions. Most acci-

dents can be prevented. Do not risk injury or death by ignoring good safety practices.

• The Madvac PS 300 is intended for use as a suction and sweeping vehicle only. The

vehicle must not be used for any other purpose than that described. The vehicle can

cause serious injury if utilized improperly. The vehicle must not be used for sweeping

explosive powders, explosive or corrosive materials, flammable liquids or any other

hazardous substances.

• MADVAC owners must give operating instructions to operators or employees before

allowing them to operate the Vacuum, and at least annually thereafter per OSHA reg-

ulation 1928.57. The most important safety device on this equipment is a SAFE oper-

ator. It is the operator's responsibility to read and understand ALL Safety and

Operating instructions in the manual and to follow these. All accidents can be

avoided.

• A person who has not read and understood all operating and safety instructions is not

qualified to operate the machine. An untrained operator exposes himself and bystand-

ers to possible serious injury or death.

• Do not modify the equipment in any way. Unauthorized modification may impair the

function and/or safety and could affect the life of the equipment.

• Think SAFETY! Work SAFELY!

General Safety

1. Read and understand the Operator's Manual and all safety signs before operating,

maintaining adjusting or unplugging the Madvac.

2. Only trained competent persons shall operate the machine. An untrained operator is

not qualified to operate the machine.

3. Have a first-aid kit available for use should the need arise and know how to use it.

4. Do not allow riders.

Foreword 6

PS300 Operator’s Guide

5. Have a fire extinguisher available for use should the need arise and know how to use

it.

6. Wear appropriate protective gear. This list includes but is not limited to:

• A hard hat

• Protective boots with slip resistant soles

• Protective goggles

• Heavy gloves

• Hearing protection

•FilterMask

7. Place all controls in neutral, stop engine, set park brake, remove ignition key, and wait

for all moving parts to stop before servicing, adjusting, repairing or unplugging.

8. Wear appropriate hearing protection when operating for long periods of time.

9. Review safety related items with all personnel annually.

Operating Safety

1. Read and understand the Operator's Manual and all safety signs before operating,

servicing, adjusting or unplugging.

2. Do not allow riders on the machine during operation or transport.

3. Install and secure all guards and shields before starting or operating.

4. Place all controls in neutral, stop engine, set park brake, remove ignition key, and wait

for all moving parts to stop before servicing, adjusting, repairing or unplugging.

5. Be sure all controls are in neutral before starting.

6. Clear the area of all bystanders' front and back, especially small children, before start-

ing or emptying the container.

7. Keep all hydraulic components clean and in good repair.

8. Wear proper eye and hand protection when searching for a high-pressure hydraulic

leak. Use a piece of wood or cardboard as a backstop.

9. Maintain a safe speed when making sharp corners or going over rough, uneven ter-

rain.

10. Clean the lights, mirrors and the flashing strobe before operating or transporting.

11. Always use warning flashers when operating.

12. Wear appropriate hearing protection when operating for long periods of time.

13. Use flashers when emptying trash.

14. Review safety instructions with all operators annually.

Foreword 7

PS300 Operator’s Guide

Hydraulic Safety

1. Make sure that all components in the hydraulic system are kept in good condition and

are clean.

2. Replace any worn, cut, abraded, flattened or crimped hoses and metal lines.

3. Relieve pressure before working on hydraulic system.

4. Do not attempt any makeshift repairs to the hydraulic lines, fittings or hoses by using

tape, clamps or cements. The hydraulic system operates under extremely high pres-

sure. Such repairs will fail suddenly and create a hazardous and unsafe condition.

5. Wear proper hand and eye protection when searching for high-pressure hydraulic

leaks. Use a piece of wood or cardboard as a backstop instead of hands to isolate

and identify a leak.

6. If injured by a concentrated high-pressure stream of hydraulic fluid, seek medical

attention immediately. Serious infection or toxic reaction can develop from hydraulic

fluid piercing the skin surface.

7. Before applying pressure to the system, make sure all components are tight and that

lines, hoses and couplings are not damaged.

Maintenance Safety

1. Review the Operator's Manual and all safety items before working with, maintaining or

operating the Madvac.

2. Place all controls in neutral, stop engine, set park brake, remove ignition key, and wait

for all moving parts to stop before servicing, adjusting, repairing or unplugging.

3. Follow good shop practices:

• Keep service areas clean and dry

• Be sure electrical outlets and tools are properly grounded

• Use adequate light for the job at hand.

4. Before applying pressure to hydraulic system make sure that all connections are tight

and that all hoses and fittings are in good condition.

5. Keep hands, feet, clothing and hair away from all moving and/or rotating parts.

6. Clear the area of bystanders, especially children, when carrying out any maintenance

and repairs or making any adjustments or emptying.

7. Do not attempt any adjustment or maintenance to any system of the machine when

the machine is in motion.

8. Make sure that all guards and shields are properly installed and secured before oper-

ating the machine.

Foreword 8

PS300 Operator’s Guide

9. Securely support the machine using blocks or safety stands before working beneath it

or changing tires.

10. Store and transfer fuel, solvents, cleaners or any flammable liquids only in safety

standard approved containers.

Transport Safety

1. Read and understand all the information in the Operator's Manual regarding safety

and operating procedures before using the Madvac.

2. Always travel at a safe speed. Use extra caution when going around corners and

when meeting traffic.

3. Make sure the flashing strobe and all the lights and reflectors that are required by the

local highway and transport authorities are in place, are clean and can be seen clearly

by all overtaking or oncoming traffic, and by bystanders.

4. Do not allow riders on any part of the machine during either field operation or road

and highway travel.

5. Always use hazard warning flashers and the rotating beacon on the Madvac when

transporting unless prohibited by law.

Tire Safety

1. Failure to follow proper procedures when mounting a tire on a wheel or rim can pro-

duce an explosion, which may result in serious injury or death.

2. Do not attempt to mount a tire unless you have the proper equipment and experience

to do the job.

3. Have a qualified tire dealer or repair service perform required tire maintenance.

Storage Safety

1. Store unit in an area away from human activity.

2. Do not permit children to play on or around the stored vacuum.

Refueling Safety

1. Handle fuel with care. It is highly flammable.

2. Allow engine to cool for 5 minutes before refueling. Clean up spilled fuel before

restarting engine.

3. Do not refuel the machine while smoking or when near open flame or sparks.

4. Fill fuel tank outdoors.

5. Prevent fires by keeping machine clean of accumulated trash, grease and debris.

Foreword 9

PS300 Operator’s Guide

Battery Safety

1. Keep all sparks and flames away from batteries, as gas given off by electrolyte is

explosive.

2. Avoid contact with battery electrolyte: wash off any spilled electrolyte immediately.

3. Wear safety glasses when working near batteries.

4. To avoid electrolyte loss, do not tip batteries more than 45 degrees.

5. To avoid injury from spark or short circuit, disconnect battery ground cable before ser-

vicing any part of electrical system.

Safety Signs

1. Keep safety signs clean and legible at all times.

2. Replace safety signs that are missing or have become illegible.

3. Replaced parts that displayed a safety sign should also display the current sign.

4. Safety signs are available from your distributor or the factory.

How to Install Safety Signs

• Be sure that the installation area is clean and dry.

• Decide on the exact position before you remove the backing paper.

• Remove the smallest portion of the split backing paper.

• Align the sign over the specified area and carefully press the small portion with the

exposed sticky backing in place.

• Slowly peel back the remaining paper and carefully smooth the remaining portion of

the sign in place.

• Small air pockets can be pierced with a pin and smoothed out using the piece of sign

backing paper.

Autres manuels pour PS300

Table des matières

Autres manuels MADVAC Ventilateur

MADVAC

MADVAC PS300 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

Weed Eater

Weed Eater VS2000BV Manuel utilisateur

KRAUSMANN

KRAUSMANN U37020-00 Manuel utilisateur

Bosch

Bosch ALB 36 LI Manuel utilisateur

Cub Cadet

Cub Cadet HB425 Manuel utilisateur

GreenWorks Pro

GreenWorks Pro BLB482 Manuel utilisateur

ARIETE

ARIETE 2768 Manuel utilisateur

NuTone

NuTone 331H Manuel utilisateur

GÜDE

GÜDE GLB 200 18 Li-Ion Manuel utilisateur

I.VA.CO.

I.VA.CO. SC Series Mode d'emploi

DeWalt

DeWalt DCE100 Manuel utilisateur

Becker

Becker SV 7.330 Manuel utilisateur

Metabo

Metabo AG 18 Pro Manuel utilisateur

Desa

Desa GA3650TB Manuel utilisateur

Echo

Echo Power Blower PB-230LN Manuel utilisateur

Echo

Echo PB-413H Manuel utilisateur

Black & Decker

Black & Decker BV3100 Manuel utilisateur

Ryobi

Ryobi RY08570 Manuel utilisateur

Haaga

Haaga 355 Manuel utilisateur
